W11-20*2500 3-roller hydraulic cnc metal rolling machine price

  • 1-18 Sets
    $125,000.00
  • >=19 Sets
    $5,600.00
Model Number:
W11-20*2500
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Rolling Speed (m/min):
3
Max. Plate Thickness (mm):
20
Max. Working Length (mm):
2500
Applicable Industries:
Manufacturing Plant
No. of Roller:
3
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
PLSON
Material / Metal Processed:
Aluminum, Carbon Steel, Brass / Copper, ALLOY, Stainless Steel
Automation:
Automatic
Extra Services:
N/A
Certification:
ISO 9001:2000
Year:
N/A
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Warranty:
1 Year
Weight (KG):
5000
Motor Power (kw):
18.5
Machine Type:
Roller-Bending Machine
Key Selling Points:
Competitive Price
Color:
Customizable
Voltage:
220V/380V/415V/440V/customized
PLC control:
OMRON Japan
Weight:
3T

Packaging & Delivery

Selling Units:
Single item
Single package size:
100X30X40 cm
Single gross weight:
68.0 kg
Package Type:
Wrapped with films outside and fixed with wire in the container.
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

Product Application

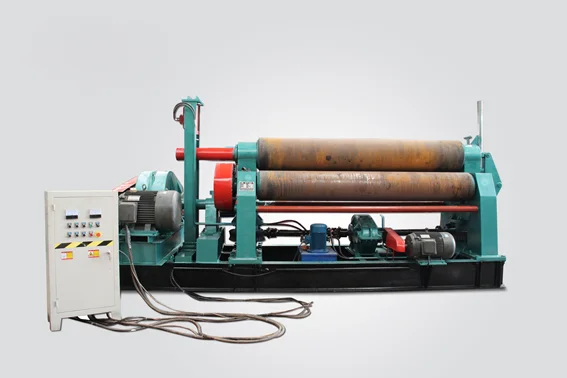

The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the nut, the worm and The lead screw, The two lower rotates, and provide the plate materials with torque through the engagement of the output gear of the moderator with the gear of the lower rollers.

Main Features

1.Mechanical 3-roller symmetrical plate rolling machine.

2.The machine is composed by two main parts, there are working parts and transmission parts. Working parts include two lower roller and one upper roller with roller bearings. The lower roller is the capstan, the upper roller is driven roller. Height of upper roller can be adjusted freely. Besides, the transmission part contain main motor, reduction box, etc.

3.The main motor drive the main reduction box, and then the main reduction box drive the lower roller. Direction of rotation of the lower roller can be controlled by the main motor.

4.Subsidiary motor drive the subsidiary reduction box, then the upper roller could perform vertical movement.

5.Unloading equipment can help operater take out finished products.

Packing
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Company

Jiangsu PLSON Metalforming Equipment Co., Ltd. is located in the Binhai Industrial Zone of Haian County, Jiangsu Province. The company mainly produces "Prison" brand series hydraulic press, press brake, shearing machine, rolling machine, etc. The products are manufactured according to German technical standards, and the performance of the machine has reached the advanced level in China.Some products have entered the international market, through Nantong, Southeast Asia, the Middle East, Africa and other areas of the product launch. Thanks for your business and welcome to visit our factory.

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ

1.Q: How about your manufactory in CHINA?
A: PLSON located in NanTong CITY,Jiangsu province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 18 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.

2. Q: Are you the manufacture?
A: Yes, we are manufacturer factory, so you can get factory price directly. Don't need pay some extra agent price.

3.Q: Can we visit your factory?
A: Of course.We welcome our customers from all over the world. And we hope to cooperate with you for a long time.

4.Q: I want to buy this machine, what suggestion can you give?
A:Please tell me what material do you process? What's the size of your material?
