WAW-300Y (300kN) Computer Control Electric-Hydraulic Servo Universal Testing Machine

FOB Reference Price:Get Latest Price
$12,000.00 - $35,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
TST
Model Number:
WAW-1000Y
Power:
Hydraulic, hydraulic servo
Usage:
Tensile Testing Machine, Material Universal Testing Instrument, Testing Instrument
Control:
computer
Specimen:
metal material, steel, iron, wire rope,aluminum, alloy,copper
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export wooden case
Port
QINGDAO



WAW-300Y (300kN)



Computer Control Electric-Hydraulic Servo Universal Testing Machine



Product Description



WAW-300Y (300kN) Computer Control Electric-Hydraulic Servo Universal Testing Machine, compared with a ball screw type electric mechanical UTM, is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. So it is very suitable for tension, compression, bending and shearing strength test for various metal or nonmetal materials under high toughness and hardness against extreme big loading force.



Features:

1. By using oil pressure transducer and photoelectric encoder, computer can timely collect the testing parameters like loading force, stroke etc.

2. Equipped with the computer &Software & printer, it can display, record, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time.

3. The servo system will provide on line close loop control and constant parameters control.



Application:

WAW-300Y (300kN) Computer Control Electric-Hydraulic Servo Universal Testing Machine is widely used in different inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.

Standards

Computer control Electro-Hydraulic Servo Material Tension Testing Instrunent can meet standards ASTM, DIN, ISO, GB and so on.

Specifications



Model

WAW-300Y

Max Load Capacity (kN)

300

Host Machine Structure

Four-column & Two-lead screw

Load amplification

Auto Range

Range of Testing Force

2%-100% of max load

Load Accuracy

±0.5%

Load Resolution

1/100000

Accuracy of Deformation

Error less than ±1%

Displacement Accuracy

Error less than ±1%

Max Tensile Space (mm)

800

Max Compression Space(mm)

700

Effective Test Width(mm)

550

Piston Stroke(mm)

250

Clamping Diameter of Round Specimen(mm)

Φ6-Φ26

Clamping Thickness of Flat Specimen(mm)

0-15

Piston speed: (mm/min)

100

Jaw clamping method

Hydraulic clamping

Control Mode

Displacement Control, Load Control, Deformation Control

Dimension of Host machine(L*W*H) (mm)

1100×650×2325

Oil pump Motor Power(kW)

1.5kW

Power Supply

3phs, 380V, 50Hz

Net Weight(KG)

3000

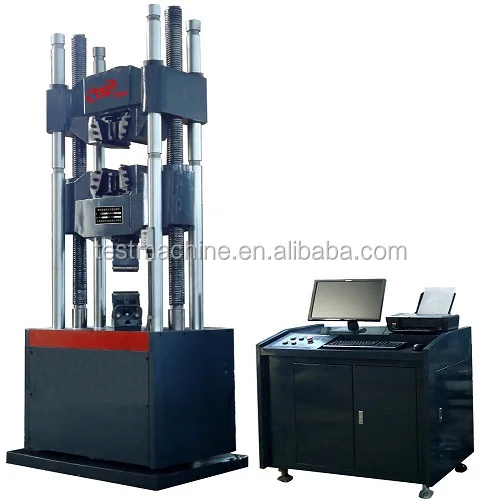

WAW-300Y (300kN) Computer Control Electric-Hydraulic Servo Universal Testing Machine

WAW-1000 Computer control Electro-Hydraulic Servo Universal Testing Machine












Packaging & Shipping

1. Inner package: dust-proof plastic bag.

2. Outer package: standard export wooden case with pallet.

3.Special package: according to buyer's requirements.

4. The packages suitable for international transport by sea, by air or any other delivery methods.

5. Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.

Our Services

 1. We supply 24 hours on line services.

2. We guarantee the quality of our machines.

3. We deal with customers’ questions in the first time.

Company Information

 Jinan Test Machine Co., Ltd. is a professional manufacturer for all kinds of testing machines for about ten years, which is located in Jinan City, Shandong Province. China.



Our company has successfully passed ISO9001 quality control system certification and was regarded as one of the high-tech enterprises of Jinan. Now we have owned our independent import and export rights. Many of our products have been exported into many foreign countries, such as  Italian, Canada, Argentina, Brazil, Vietnam, Malaysia, Thailand, Iran, Pakistan Southeast Asia, South Asia., South America, African countries and so on.



Our company has developed more than ten series and one hundred kinds of testing machine products, such as:

Electronic Universal Testing Machine series, Computer Control Electronic Universal Testing Machine series, Hydraulic Universal Testing Machine series, Electro-hydraulic Servo Universal Testing Machine series, Concrete and Cement Compression Testing Machine series, Charpy Impact Testing Machine series, Impact Sample Gap broaching machine series, Charpy Projector, Steel Bar and Pipe Bend Testing Machine series, Cupping Erichsen Testing Machine series, Electronic torsion testing machine series, Friction and Wear Testing Machine Series, Carton Box Compression Tester series.
