WAW-600B casting testing machine

FOB Reference Price:Get Latest Price
$9,000.00 - $9,500.00 / Set | 1 Set/Sets WAW-600B Testing Machine for material test (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Chenda
Model Number:
WAW-600B
Usage:
Tensile Testing Machine
Power:
Hydraulic
Product name:
casting testing machine
Test force:
600kn
Display:
Computer Display
Control:
Manual control or computer servo control
Load accuracy:
Within ±1%
Test:
Tensile test, compression test, bending test
Application:
for material test
Certificate:
SGS CE
Power supply:
380v OR 220V
Warranty:
2 years
Supply Ability
Supply Ability:
300 Set/Sets per Month WAW-600B casting testing machine
Packaging & Delivery
Packaging Details
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
Port
Qingdao
Lead Time :
Shipped in 5 days after payment
Video Description
Product Description

WAW-600B casting testing machine

Brief Introduction:


WAW -600B Series Computer Control Electro-hydraulic Servo Hydraulic Universal Testing Machine, compared with a ball screw type electric mechanical UTM, is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. Therefore it is very suitable for making test to different metal and nonmetal materials under high toughness and hardness against extreme big loading force. By using oil pressure transducer and photoelectric encoder, the computer is timely collecting the testing parameter like loading force, stroke etc. The servo system will provide on line close loop control and constant parameters control. The test software is able to create customized testing methods and setup testing report in only a few steps. WAW series is widely used in different inspection department, engineering area, universities and institutes.

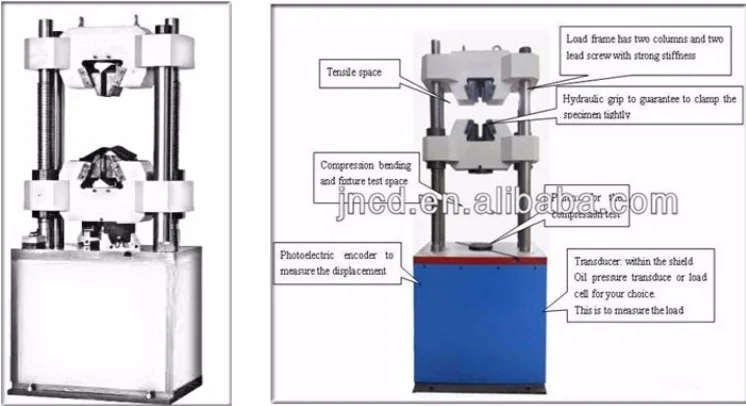

Load Frame:

The oil cylinder is at the bottom of the load frame. Tension space is at the upside and compression & bending spaces are between   m, m,lower crosshead and working table. It is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair to realize the adjustment of testing space.

Load Frame:


The oil cylinder is at the bottom of the load frame. Tension space is at the upside and compression & bending spaces are between lower crosshead and working table. It is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair to realize the adjustment of testing space.

Measuring System:

The machine adopts oil pressure transducer to measure load and use photoelectric encoder to measure the displacement. The loading force display on computer

Features:

1> Full computer controlled of testing process.

2> Overload protection will secure operators

3> Adopt oil-hydraulic automatic clamps which can be operated from separate control box

4> Programmable testing software makes LCF testing or cyclic testing become available

Wedge tension jaw processed by advanced technology; increase the stiffness of crosshead under high load and high intensity test.

5> Powerful multifunctional control software will provide more testing methods to meet ASTM, ISO and other testing standards.

6> Report guide will create your testing report in only three steps
Technical parameters:
Specification
WAW-600B
Max. capacity (KN)
600
Relative error of reading
≤±1%
Clamping method
Hydraulic clamping
Round specimen clamping range(mm):
Φ6~Φ13Φ13~Φ26 Φ26~Φ40
Flat specimen clamping thickness(mm):
0-15 15-30
Flat specimen clamping width(mm):
80
Max. tension test space (mm)
600
Max. compression test space (mm)
500
Frame dimension(mm)
750*600*2100
Safety devices
Software and machinery protection
Diameter of bending roller (mm)
Φ40
Compression platen size (mm)
205*205
Max. piston stroke (mm)
155
Power supply (KW)
380V 50HZ


Tensile Grip

Round specimen clamping range:

Φ6~Φ13Φ13~Φ26 Φ26~Φ40 mm

Flat specimen clamping thickness: 0-15  15-30mm

Bending accessory


Span of bending roller: 400mm

Width of bending roller:140mm

Diameter of bending roller : 40mm


Compression platen


Compression platen size: Diameter 140mm


Software

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.





Test report can print with excel
Also can do one set test.
The software can Comparative and analysis test data
UTM Machine detail

                        Crosshead

                        Oil piston

            Columns and Screws

                 Bending Accessory

                           Oil Pipe

           Tensile test accessory

Packing & Delivery
Packing material
Plywood
Host packing dimension
750*630*2170mm
Inner packing
dust-proof plastic bag
Transportation
Usually by sea; also can by air according to the customer demands

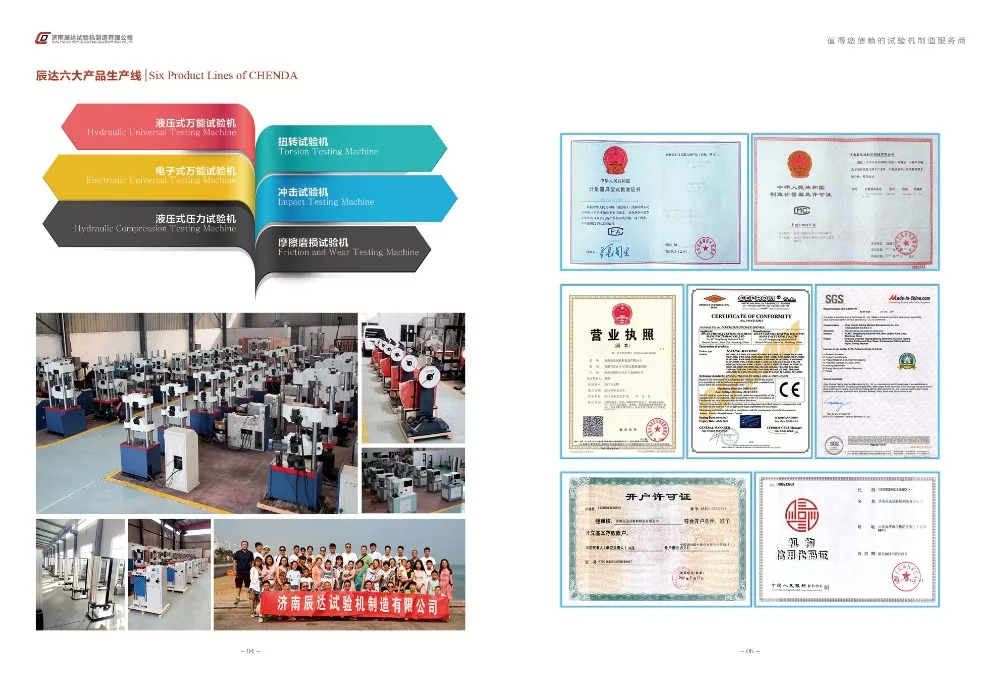

Certifications

        CE Certificate

Certificate No.: 743-CI-32015

         SGS Certificate

Certificate No.:QIP-ASI145774

       Business License

License No.:91370104553713668R

Cooperation Customer

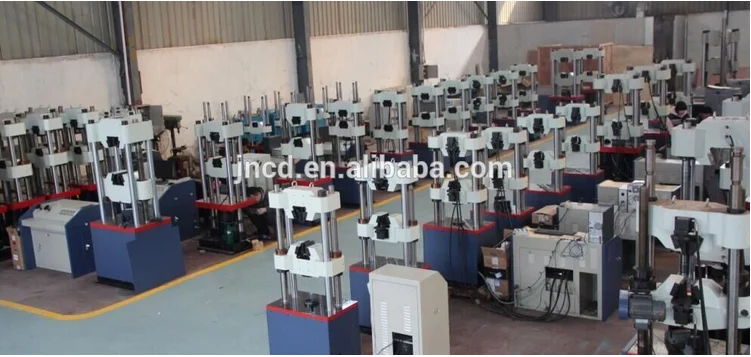

Our Company

Jinan Chenda Testing Machine Manufacturing Co., Ltd. was established in 2003, and is a professional comprehensive company which integrates research and development, production, marketing and service. Our products are applied widely in many fields such as scientific institutions, colleges, metallurgical, construction materials, railway trains, highway traffic, rubber plastic, wire and cable, and fire facilities.

Our company is located in the beautiful spring city - Jinan, which is the center for developing testing machines in China as well as the largest testing machines producing base at home.

We are specialized in providing:

1. Hydraulic universal testing machines, including computer controlled servo hydraulic universal testing machines, computer display hydraulic universal testing machines and digital display hydraulic universal testing machines

2. Electronic universal testing machines, including computer controlled electronic universal testing machines, electronic tensile testing machines, spring testing machines, panel testing machines, fire door testing machines, insulation material testing machines, Ring rigidity testing machines, electronic power testing machines, pellet testing machines, film testing machines, and so on

3. Friction and wear testing machines, such as computer screen display four-ball friction testing machines, computer display vertical universal friction and wear testing machines, and screen display type friction and wear testing machines

4. Complete impact testing equipment and bending testing machines
