WHIII-S500 Automatic sachet bag paste packing machine

FOB Reference Price:Get Latest Price
$4,000.00 - $10,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
WHIII-S500
Lead Time:
Quantity(Units) 1 - 1 2 - 5 >5
Est. Time(days) 15 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Overseas service center available
Application:
Beverage
Packaging Material:
Plastic
Type:
Other, Other
Condition:
New
Packaging Type:
Bags
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
1.8KW
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Wanhe
Weight:
450KGS
Dimension(L*W*H):
1700*1100*2100
Certification:
CE
Mateiral:
SS304
Product Certification Verified
CE Certified.
Valid from 2018-01-03 until 2023-01-03
Supply Ability
Supply Ability:
30 Unit/Units per Month
Packaging & Delivery
Packaging Details
WOODEN CASE of tomato paste sachet packing machine
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 2 - 5 >5
Est. Time(days) 15 30 To be negotiated
Video Description
Product Description

Product Application

WHIII-S500 Automatic filling and sealing tomato paste sachet packing machine

WHIII-S Series Paste-State Packaging Machine adopts Computer Controll System completly, it can finish the production's process automatically such as making bags, counting, filling, sealing, cutting, printing batch number, making the rip, and so on. It also adopts the adjustable quantificational plunger pump, and it special uses for something which easy to drawbench or dript as shampoo.

Sealing type:The bag can be sealed on three sides, four sides, or pillow.

Packaging material :Paper/pe pet/al foil/penylon/pe,tealeaf filtering paper&ect.

Option:Hot stamp ribbon coder(color style,ink wheel style);micro-computer controller

SPECIFICATIONS
Type
WHIII-S100
WHIII-S300
WHIII-S500
Bag-making length
50-150 mm
50-300 mm
80-300 mm
Bag-making width
25-120 mm
70-190 mm
90-190 mm
Packing film width
60-240 mm
160-380 mm
200-380 mm
Packing capacity
5-100 ml
50-1000 ml
200-2000 ml
Packing speed
30-60 bag/min
20-40 bag/min
15-30bag/min
Power
1.6kw
1.6 kw
1.6 kw
Air power
0.65Mpa
0.65Mpa
0.65Mpa
Air consumption
150 L/MIN
180 L/MIN
200 L/MIN
Overall dimension
760×1380×1700mm
900×1800×2040mm
900×2000×2040mm
weight
300kg
480kg
650kg

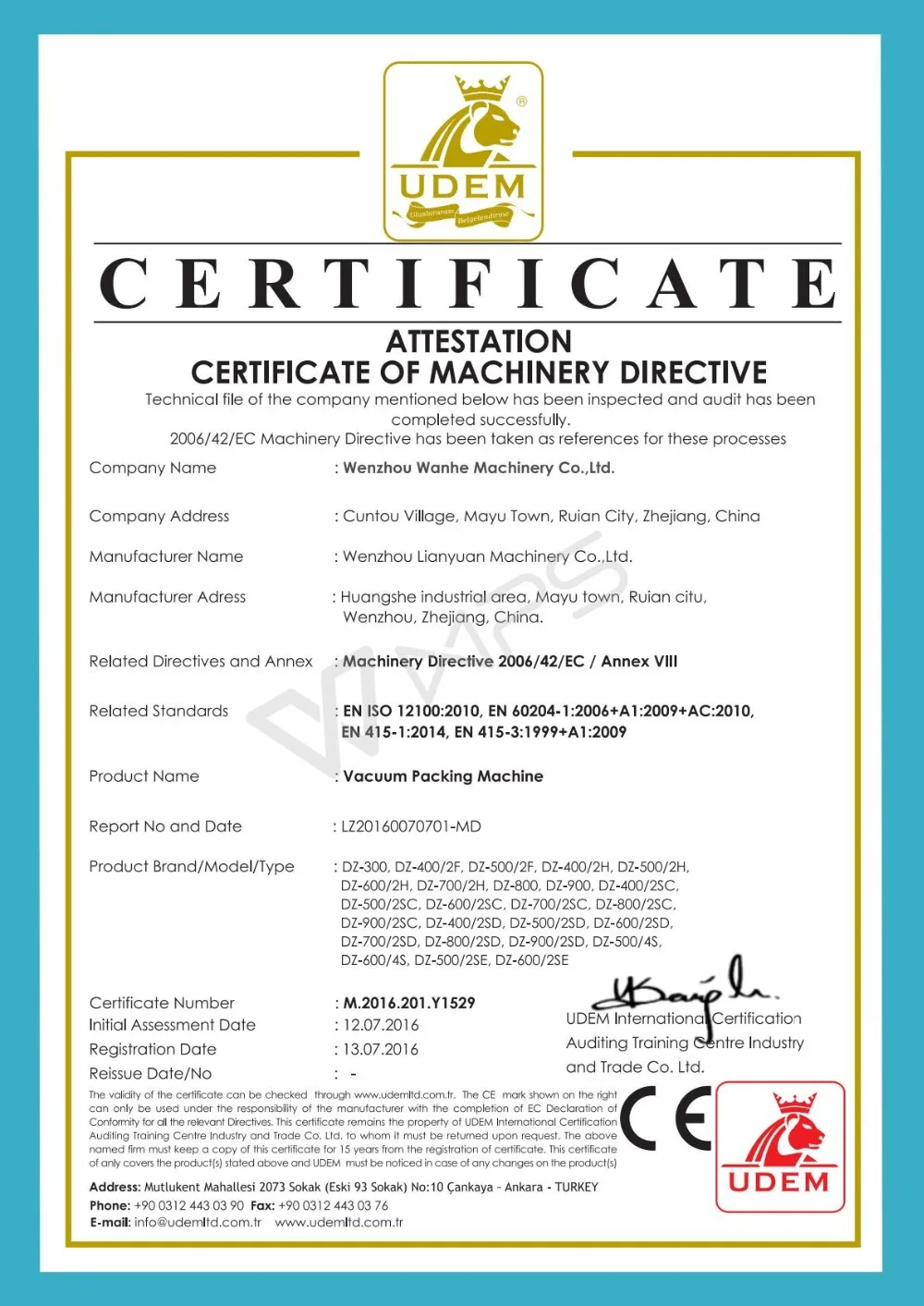

Certifications
Detailed Images

Machine Parts

Name: piston Cylinder

Brand:WANHE

Original: CHINA

Domestic famous engines, strong driving force, low fuel consumption, high economic

Main Features

 all conact part with material are SS304


 High quality sealing jaw



Machine Parts

Name: PLC TOUCH SCREEN
Brand:  WANHE


BEST QUALITY TOUCH SCREEN

EASY OPERATION

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
