WIFI GSM 3G Home Security Alarm System Touch Screen WiFi GSM Wireless Intelligent Alarme Home Anti-theft Protection Alarm System

  • >=10 Pieces
    $44.50
Usage:
Alarm System
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Samples - $59.90 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
YB106
Packaging & Delivery
Packaging Details
Color Box
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 3 To be negotiated

Wifi+GSM+GPRS Security Alarm System
 APP Remote Control
Up to 100 storage locations for the learning of remotes and wireless detectors.

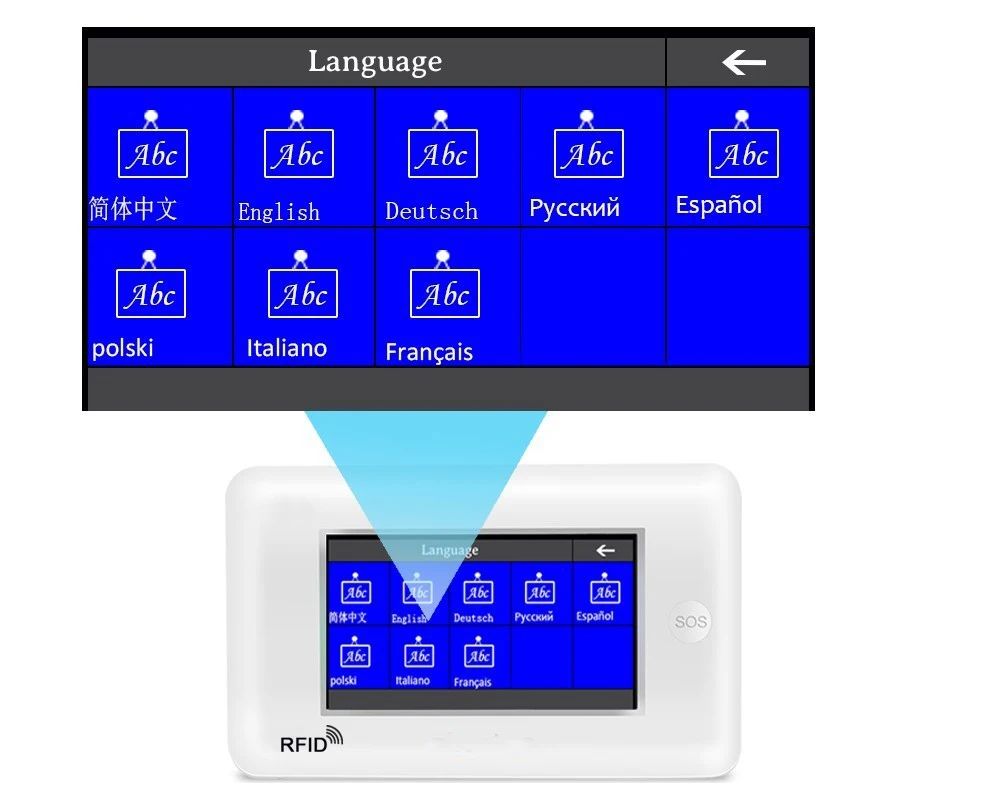

Support Multi-Language for optional
Such as: English/Russian/German/Polish/Spanish/French/Italian etc.





>>Daily Operation Nouns:

DO THIS FIRST.Things to Note Before Getting Started
Please check the following conditions for a successful set-up:
You have selected a 2.4GHz Wi-Fi network. The hub does not support the 5GHz Wi-Fi. Select the 5GHz band instead of the 2.4GHz band is the most common mistake when setting up the hub for the first time.
Your Wi-Fi password must not contain space or other special characters.
Place your hub as close as to your router when setting up.
A slow network speed will also affect the performance of your hub. It is recommended to have an upload speed of at least 2Mbps or faster.
Make sure that the AP isolation setting in your router is disabled.


>>System Requirements:

Support 2G/3G Module For Option
To set up and use Alarm System, you’ll need a compatible iOS or Android phone, the Smart Security System app, an unused indoor power outlet, a Wi-Fi 802.11  b/g/n(2.4GHz) network connection, and a micro SIM card supporting 2G/GSM(for 2G  version) ,3G( for 3G Version)

Notes:2G/GSM Alarm must work with 2G SIM Card, 3G Alarm must work with 3G SIM card

 If using 3G/4G SIM card to 2G Version, Make sure the 2G network of your wireless service provider is still available in your country. You should purchase the hub with 3G/4G cellular communicator if the 2G network is unavailable.



>>Product Description:

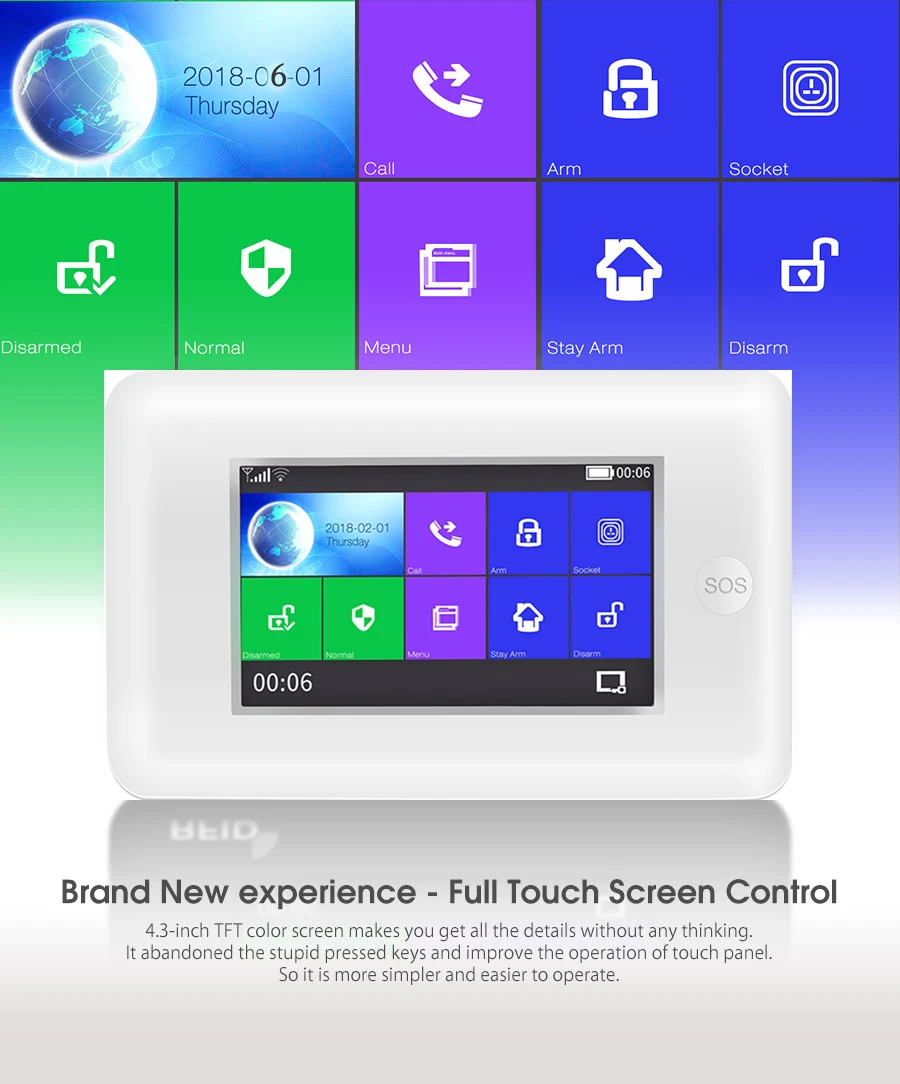

1.This is a dual network system that utilizes both Wi-Fi and cellular GSM,4.3inch TFT Touch Display screen,concise user interface and menu hint disign.
2.All sensors are wirelessly connected to the hub. In the event of alarm activation, for example, when a sensor is triggered, a push notification will automatically be sent and an alarm call will be made to all registered users.
3.The system can be controlled and monitored both on-site by using the remote control supplied or remotely from anywhere with our free dedicated mobile application.
4.The system can connect with up to 90 wireless sensors and 10 remote controls.Support RFID Keyfobs
5.Smart Hub:Alarm, display, touchscreen and the brains of the system.
6.*WIFI/GSM//GPRS intranet alarm system,support different alarm channels.like APP push/SMS/voice monitoring/intranet center etc. to ensure the alarm performance stable and reliable.
7.Main interface status bar,date/clock indication,fairly obvious alarm host status.
8.Support SMS arm/disarm and voice arm/disarm.Compatible with Amazon Alexa
9.Support many defense zones ,such as gate ,SOS,bedroom,window,balcony,perimeter,smoke,gas,carbon monoxide,water leaking.etc.
10.Support the main power malfunciton ,backup power shortage,tamper alarm and other extended alarm.
11.Support entry/exit zone,indoor zone,perimeter zone,24-hour zone etc.
12.Up to 5 groups preset alarm phone numbers ,SMS on/off and dial on/off can be set respectively.
13.Support external wireless siren.
14.Support timing arm and disarm.
15.Can store and inquire daily operation records and alarm records.
16.GSM Network clock synchronization,to ensure accurate clock ,and support country time zone setting.
17.Support multi-language menu display,voice prompts and alarm SMS setting.
    Support Chinese/English/Dutch/Russian/Spanish/Polish/Italian/French Language For Option
18.Can record 20 seconds voice message and alarm voice.
19.Telephone function,support 5 groups re-dial number.
20.User-friendly APP operation experience and user interface. Push Arm/disarm message to APP
21.Support APP remote arm/diarm,parameter setting and accessory management.
22.Online GPRS to obtain equipment status,automatic alarm when offline.
23.Reserved remote GPRS TCP/UDP protocol channel ,compatible with multiple alarm center networking protocol to facilitate network alarm.

NOTE: The hub does not support the 5GHz Wi-Fi band. If you have a dual-bandrouter (5GHz and 2.4GHz) and both the 2.4GHz and 5.0GHz networks are under
the same name, you will need to separate those two bands into different names in your router settings.Android users may need to disable cellular (mobile) data before proceeding to this step. This setting is normally found in your smartphone’s settings under DataUsage, or Mobile Networks.If you’re unable to find the setting location, we suggest using a search engine with the following syntax: Disable (Phone Model) cellular data.


>>Feature:
Power Supply: Micro USB 110/220VAC to 5V, 1000mA
Backup Battery: 3.7V, 500mAh Rechargeable Lithium Battery
Consumption: <150mA@normal
Siren Output: <300mA
Radio Frequency: 433Mhz
GSM: 850/900/1800/1900MHz
Wi-Fi: IEEE802.11b/g/n
Operation Temperature: 0~55℃


>>Smart Hub Feature:

Battery backup:
If the building has lost electrical power, Smart Hub includes a backup battery that will last for more than 6 hours. So even if the power is out, Smart Hub can still detect when an intruder is in your home and sound the alarm.
The battery icon in the upper-right corner shows the battery level or charging status,this level is just for reference.
If the backup battery is very low, the battery icon turns red,and for up to 15 minutes before the hub works well. And Low Battery notifications will be sent to the registered

Users.
The battery is fully charged in 8 to 12 hours.

Loss/Restoration of AC power
If the event of AC power loss or restoration, the hub will send you an alert notification to let you know.

Tamper detection

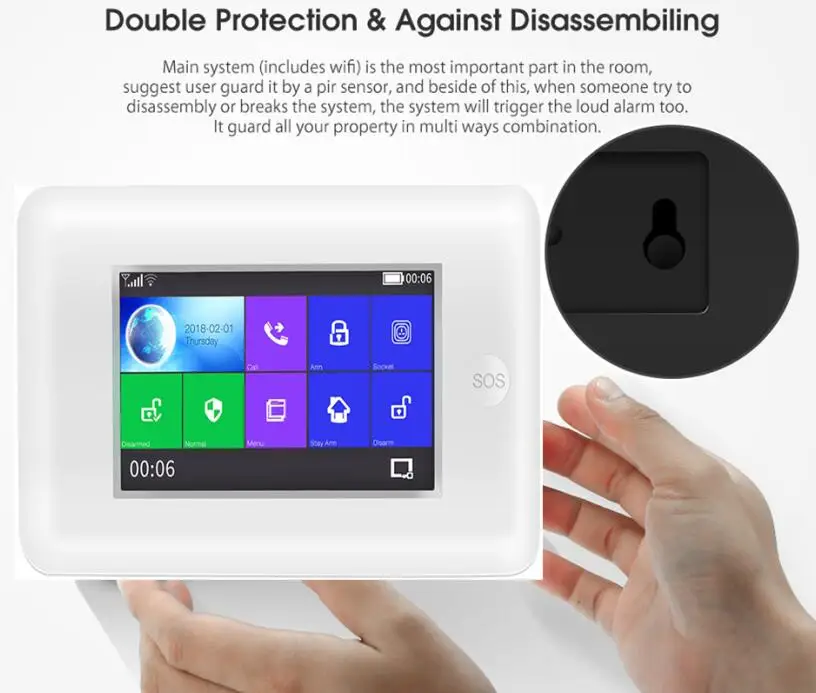

If someone tampers with Smart Hub and removes it from the back plate, the hub will send you an alert notification to let you know.

RESET TO FACTORY SETTINGS
You have two ways to reset Smart Hub to factory settings.
Go to Menu>Settings>Initialization> and enter, or press the ON/OFF button on the panel 5 times.

Note: You won’t be able to reset if Smart Hub is locked. All the paired accessories and event logs will be deleted when reset is done.

>>Package contents:
1* Alarm host+2*RFID Keyfobs+Adapter+Manual  (no include other accessories)
