Wall-mounted Barometric Atmospheric Pressure Sensor For Weather Station

1-49 Pieces

$51.40
50-99 Pieces

$49.60
>=100 Pieces

$42.20

Accuracy:: ±0.15Kpa@25℃ 75Kpa

Type:: Atmospheric pressure sensor

Pressure Range:: 0~120Kpa

$

- +

available

0piecesselected, US $in total

View Details

Shipping fee:: Depends on the order quantity.

Lead Time:: 5 day(s) after payment received

Customization:: Customized logo (Min. Order: 100 Pieces)

Customized packaging (Min. Order: 100 Pieces)
More

Graphic customization (Min. Order: 100 Pieces) Less

Samples: $51.40 /Piece, 1 Piece (Min. Order): Buy Samples

Contact Supplier

Samples - $51.40 /Piece, 1 Piece (Min. Order): Buy Samples

Loading... Add To Cart

Product Details

Company Profile

Report Suspicious Activity

Overview

Quick Details

Place of Origin:: China

Brand Name:: RENKE

Model Number:: RS-QY-*-2-*

Product Name:: Barometric Atmospheric Pressure Sensor For Weather Station

Key words:: atmospheric pressure sensor

Warranty:: 2 years

certificate:: CE ROHS FCC ISO9001

Power supply:: 10~30V DC

Air pressure range:: 0~120Kpa

Accuracy:: ±0.15Kpa@25℃ 75Kpa

output signal:: RS485/0-10V/0-5V/4-20MA

Measurement medium:: air

Application:: Water Oil Air Pressure Measurement

Packaging & Delivery

Selling Units:: Single item

Single package size:: 11X8.5X4.4 cm

Single gross weight:: 0.25 kg

Package Type:: atmospheric pressure sensor with EPE packing

Lead Time :

Quantity(Piece)	1 - 200	201 - 500	>500
Est. Time(days)	5	7	To be negotiated

Wall-mounted Barometric Atmospheric Pressure Sensor For Weather Station

Product Description

Product Description

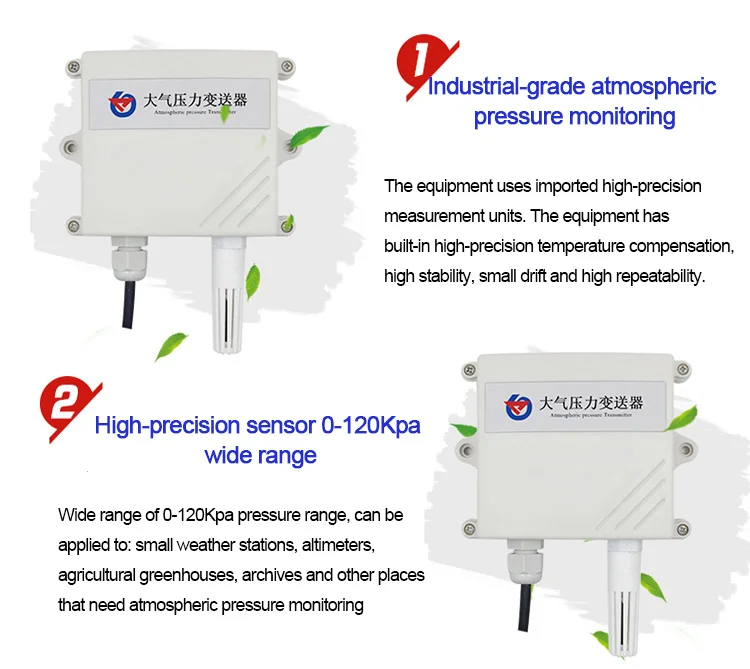

Our RS-QY-N01-2 atmospheric pressure transmitter adopts imported high-precision measuring unit. The device has built-in high-precision temperature compensation, high stability, low drift and high repeatability. It can be easily fixed to the wall by wall-mounted housing. Applicable to small weather stations, altitude meters, agricultural greenhouses, archives and other places that require atmospheric pressure monitoring and temperature measurement.

RS485 OUTPUT					4-20ma, 0-5V, 0-10V OUTPUT
Power supply	10~30V DC			Power supply	10~30V DC
Power consumption	≤0.5W			Power consumption	Current output	1.2W
Power consumption	Air pressure	0~120Kpa		Power consumption	Voltage output	1.2W
Power consumption		Temperature	-40℃~80℃	Measure range	Air pressure	0~120Kpa
Operating temperature	-20℃~+60℃，0%RH~80%RH			Measure range		Temperature	-40℃~80℃
Accuracy	Air pressure	±0.15Kpa@25℃ 75Kpa	Operating temperature	-20℃~+60℃，0%RH~80%RH		-20℃~+60℃，0%RH~80%RH
Accuracy		Temperature	±0.5℃	Accuracy	Air pressure	±0.15Kpa@25℃ 75Kpa
Long-term stability	Air pressure	-0.1Kpa/year		Accuracy	Temperature	±0.5℃
Long-term stability		Temperature	≤0.1℃/year	Long-term stability	Air pressure	-0.1Kpa/year
Output signal	485 communication (modbus) protocol Baud rate: 2400, 4800 (default), 9600 Data bit length: 8 bits Parity check mode: None Stop bit length: 1 bit Default ModBus communication address: 1 Support function code: 03			Long-term stability		Temperature	≤0.1℃/year
						output signal	4~20mA/0~5V/0~10V
						load capacity	Voltage output	≤250Ω
						load capacity		Current output	≤600Ω

Detailed Images

1.10-30V wide DC voltage supply atmospheric pressure sensor

2. Standard ModBus-RTU communication protocol atmospheric pressure sensor

3. Atmospheric pressure and temperature are measured simultaneously

4. Wide range of 0-120Kpa air pressure range, can be applied to various altitudes

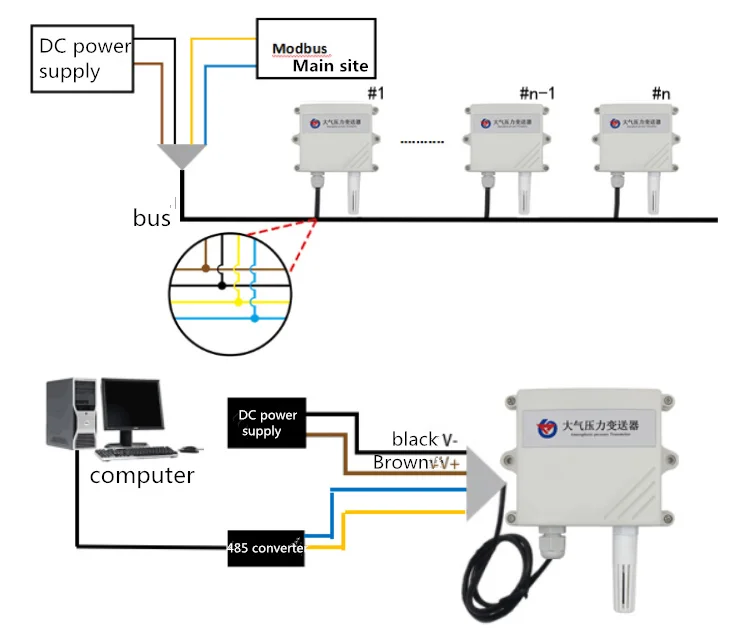

Electrical Wiring

RS485 OUTPUT
	Line color	Description
power supply	brown	10~30V DC
power supply		black	Negative power supply
communication	yellow	485-A
communication		blue	485-B

4-20ma, 0-5v, 0-10v OUTPUT
	line color	Description
Power supply	brown	Positive power supply
Power supply		black	Negative power supply
Output	blue	Positive temperature signal
		green	Negative temperature signal
		yellow	Positive air pressure signal
		white	Negative air pressure signal

Application

Related Products

Company Introduction

Shangdong Renke Control Technology Co.,Ltd. is a leading environmental monitoring high technology enterprise in China. Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service. Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.

WHY CHOOSE US?

Before-sale service:
1.OEM price,delivery sensors in 3 days.
2.Offer CE, ISO, FCC, ROHS Certificats.
3.24 hours service online.
4.Welcome to visit our factory.
5.Sample is avaliable.

After-sale service:
1.2 years warranty for our sensors.
2.Offer 24 hours free technical support
3.Free cloud server

FAQ

Q: Are you manufacturer?  atmospheric pressure sensor atmospheric pressure sensor
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience with CE, ROHS, FCC, ISO and 11patents.  atmospheric pressure sensor atmospheric pressure sensor atmospheric pressure sensor
Wall-mounted Barometric Atmospheric Pressure Sensor For Weather Station
Q: Do you offer the OEM service? atmospheric pressure sensor   atmospheric pressure sensor
A: Yes, we can offer OEM service and design the shell and logo for you.
Wall-mounted Barometric Atmospheric Pressure Sensor For Weather Station
Q: Do you offer free samples?  atmospheric pressure sensor   atmospheric pressure sensor
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.
Wall-mounted Barometric Atmospheric Pressure Sensor For Weather Station
Q: What payment ways do you accept?  atmospheric pressure sensor atmospheric pressure sensor
A: You can pay us by T/T , PayPal , and West Union .  atmospheric pressure sensor
Wall-mounted Barometric Atmospheric Pressure Sensor For Weather Station
Q: What is your delivery time?  atmospheric pressure sensor atmospheric pressure sensor
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.
Wall-mounted Barometric Atmospheric Pressure Sensor For Weather Station
Q: How is your quality assurance service?  atmospheric pressure sensor   atmospheric pressure sensor
A: 24 months quality guarantee. atmospheric pressure sensor atmospheric pressure sensor
Wall-mounted Barometric Atmospheric Pressure Sensor For Weather Station
Q: Could we make a visit to your factory? atmospheric pressure sensor atmospheric pressure sensor
A: Yes, you are welcomed .
