Warehouse 48V 140Ah 750kg solid tires new mini electric forklift price

FOB Reference Price:Get Latest Price
$5,000.00 - $5,500.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
ANSION
Model Number:
CPD075
Certification:
CE
Overall Dimensions:
2040x800x1820 mm
Power Souce:
AC Motor
Rated Loading Capacity:
750 kg
Fork Length:
920mm
Fork Width:
100 mm
Max. Lifting Height:
2500 mm
Min. Lifting Height:
35mm
Free lift height:
80 mm
Load center:
300 mm
Front tyre:
15x4 1/2-8
Rear tyre:
3.50-5
Max. drive speed (unload):
13 km/h
Max. drive speed (load):
12 km/h
Service Weight:
1100 kg
Battery voltage/capacity:
48 V / 140 Ah
Driving motor:
AC 3kW
Oil pump motor:
DC 3kW
After-sales Service Provided:
Engineers available to service machinery overseas
Type:
Powered Pallet Truck
Supply Ability
Supply Ability:
3000 Set/Sets per Year
Packaging & Delivery
Packaging Details
1 set packed by box ,nude pack ( 6 sets by 20GP and 16 sets by 40HQ )
Port
Qingdao Port
Lead Time :
3 days

ANSION brand new 0.75 TON mini electric forklift CPD075





Main Features

1.Mini electric forklift with small turning radius of 1200mm which can pass through 760mm width aisle.
2.No pollution,energy efficiency and environmental protection.
3.Super low cost,power consumption:3kw/h per day.
4.Own 22 national patents,more competitive and imitation is prohibited.
5.Various optional tools can meeting customer's different working condition.



Main Specification



ANSION ELECTRIC FORKLIFT TRUCK

CPD075

Power type

Battery

Rated lifting capacity

750 kg

Loading center

300 mm

Driving type

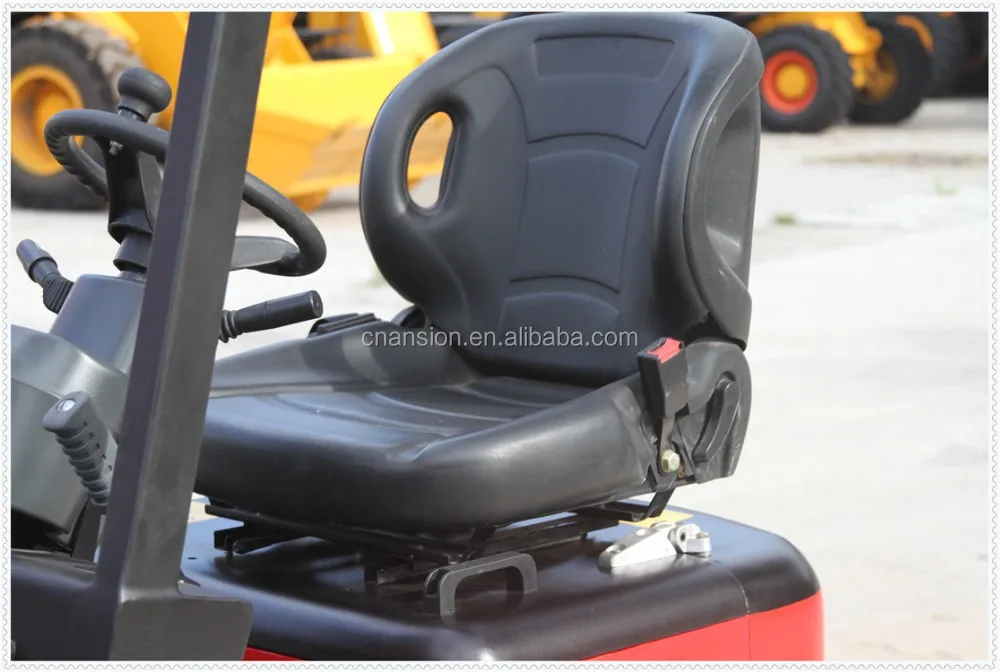

Seat , overhead guard

Full length (with fork)

2040 mm

Full length (without fork)

1400 mm

Full width

800 mm

Full height (unrisen mast)

1680 mm

Full height (Overhead guard)

1820 mm

Full height (Max. Working height)

3070 mm

Distance from the seat face to the top of

 overhead guard

970 mm

Wheel base

860 mm

Front overhang

300 mm

Rear overhang

290 mm

Front wheel tread

700 mm

Rear wheel tread

668 mm

Min.ground clearance

90 mm

Standard lifting height

2500 mm

Free lifting height

80 mm

Fork adjusting scope

703 / 190 mm

Min. Turning radius (outside)

1200 mm

Min. right angle aisle width

1600 mm

Mast tilting angle (forward / backward)

6 / 12 o

Max. Lifting speed (unload)

400 mm/s

Max. Lifting speed (load)

350 mm/s

Max. Travel speed (unload)

13 km/h

Max. Travel speed (load)

12 km/h

Max. Grade ability (load)

≤ 10 %

Standard machine weight (unload)

1100 kg

Wheel x = driving wheel (front / rear)

2x/2

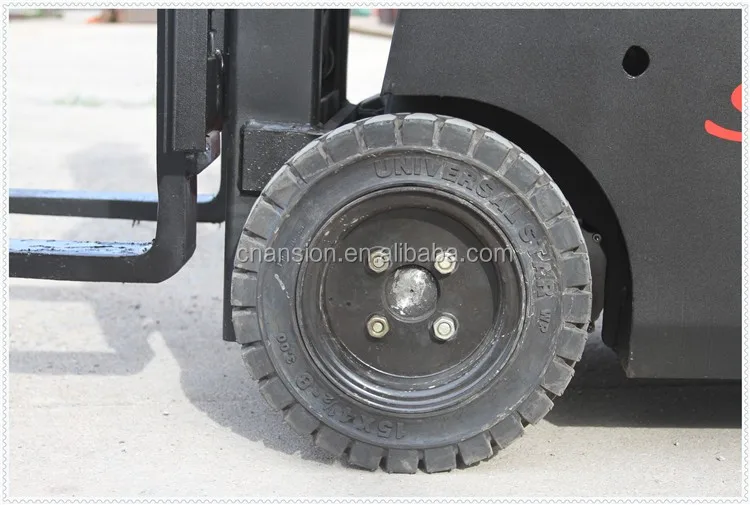

Front tyre

15x4 1/2-8

Rear tyre

3.50-5

Service brake

Hydraulic pedal

Parking brake

Mechanical manual

Battery voltage / volume

48 V / 140 Ah

Driving generator power

AC 3 kW

Oil pump generator power

DC 3 kW





Packaging & Shipping

1.PORT: QINGDAO PORT or other port requested by our customers.
2.PACKAGING: nude package,polywood box in container,international standard or as customers' requierments
3.Delivery time: 3 days after receiving the payment.
4.PAYMENT TERMS: T/T L/C Alibaba Trade assurance
5.Warranty: 12 months.

Factory



We supply full range Forklifts

Diesel Forklift: 1.5 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 8 ton, 10 ton

Electric Forklift: 0.75ton, 1 ton, 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton

Heavy Duty Forklift: 10ton, 12 ton, 13 ton, 14 ton, 15 ton, 16 ton, 18 ton, 20 ton, 25 ton, 32 ton, 46 ton

Rough Terrain Forklift : 3ton, 3.5ton, 5ton, 10ton
