Water Pump Triplex Car Wash High Pressure 150- 250 Bar pressure washer pump

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    US $110.00
  • >=5 Sets
    US $99.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
BOTUO
Model Number:
BM Series
Theory:
Jet Pump
Structure:
Triplex Ceramic-Coated Plunger
Usage:
Water
Power:
Electric, 7.5 HP (5.5KW)
Standard or Nonstandard:
Standard
Fuel:
electric
Pressure:
High Pressure, 250Bar (3625PSI)
Application:
Water
Item:
Car Wash High Pressure Water Pump
Flow Rate:
11 L/min (2.92 GPM)
Rotation Speed:
1450 r.p.m
Solid Shaft:
24 mm
Inlet Port:
1/2"
Discharge Port:
3/8"
Lubrication:
Oil Bath
Warranty:
1 Year
SupplyAbility
SupplyAbility:
30000 Set/Sets per Month Car Wash High Pressure Water Pump
Packaging & Delivery
Packaging Details
Standard Carton Box, Single In One Box
Port
Ningbo
Lead Time :
Within 2-4 weeks after receipt of payment
Product Details

Layers Puzzle Type Parking Equipment

2 layers puzzle type are very popular in China, it makes your parking spaces quantity much more than it was with low cost and short installation time.

With the lifting and sliding movements of pallets, the cars could be parked and retrieved. The driver only needs to swipe a card or push the buttons at operational box, the retrieving process will be applied automatically.

There are 4 chains to hang a pallet, also there are anti-fall devices to prevent falling down of cars.

There are sensors to detect car or people that go inside equipment area when parking equipment is running.

Product Introduction

Triplex Car Wash High Pressure Water Pump

 Car Wash High Pressure Water Pumps is designed for varieties of high pressure cleaning applications. The construction of the pump has die-cast crankcase, forged brass head, the internal components include solid ceramic-coated plungers, tapered roller bearing, one-piece connecting rod, and stainless steel checking valves.

The pump has the options of gearbox , belt drive, or coupling drive with electric motor, or gasoline, diesel engine

Product Parameters
Model
Flow

Pressure

Power

Speed
Plunger Dia
Stroke

l/min
gpm
bar
psi
hp
kw
rpm
mm
mm
BM 12.15N
12
3.17
150
2175
4
3
1450
18
10
BM 12.20N
12
3.17
200
2900
5.5
4
1450
18
10
BM 12.25N
12
3.17
250
3625
7.5
5.5
1450
18
10
BM 15.15N
15.5
4.1
150
2175
5.5
4
1450
18
14
BM 15.20N
15.5
4.1
200
2900
7.5
5.5
1450
18
14
BM 15.25N
15.5
4.1
250
3625
10
7.5
1450
18
14
Product Details Show
Application

car washer

misting machine

Agriculture & Food Processing

Misting, Cooling & Fogging

Commercial Contractor Cleaning


Why Choose Us

About us

1, rigorous work attitudestable,More than 20 years of manufacturing experience

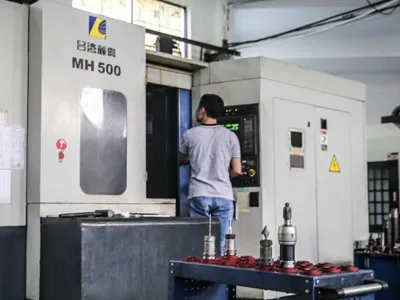

Equipment & technology

2, Only sophisticated manufacturing equipment can produce high quality Pump

Service

3, product quality , supply, the good faith management

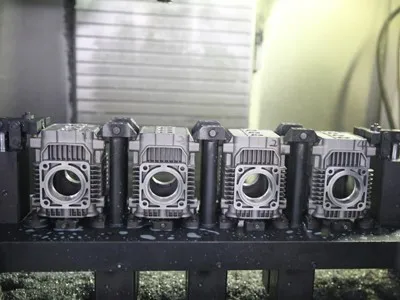

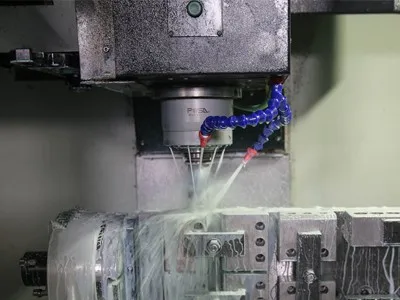

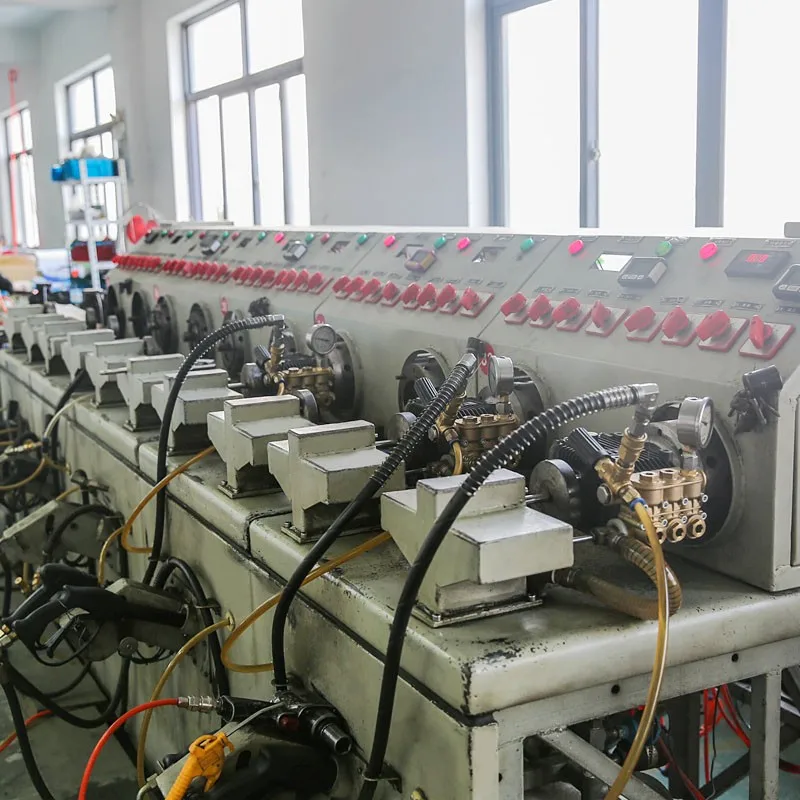

Product Processing
Product Packing
