Weintek Weinview MT8101IE 10.1 inch MT Series Ethernet Touch Screen HMI

$350.00 / Piece | 1 Piece (Min. Order)
Model Number:
MT8101iE
$350.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Weintek Weinview
Screen Size:
10.1"
Type:
Other
Interface Type:
Serial, USB, Ethernet
Resolution:
800 x 480
Product name:
hmi touch screen
Display:
10.1" 800*480 color TFT LCD
CPU and core logic:
32Bit Risc cortex-A8 600Mhz
Memory:
Flash 128MB , Ram 128MB
Backlight life time:
>30000hrs
I/O COM PORT:
COM1:RS-232, COM2:RS 485 2W/4W COM3: RS-485 2W
I/O Port Ethernet:
N/A/ Base-T*1
I/O USB host:
USB 2.0*1
RTC:
Built-in
Power input:
24+/-20%VDC 400mA
Products Status:
Stock

Packaging & Delivery

Selling Units:
Single item
Single package size:
40X30X15 cm
Single gross weight:
2.5 kg
Package Type:
one pc in inner box, in export standard carton
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 To be negotiated

Weintek Weinview MT8101IE 10.1 inch MT Series Ethernet Touch Screen HMI

Product Description

Feature

  • 10.1" 800 x 480 TFT LCD, LED Backlight
  • Fan-less Cooling System
  • COM2 and COM3 RS-485 support MPI 187.5K, please use one at one time
  • PCB coating process ensures high reliability to resist
  • from corrosion in harsh environment
  • Built-in Power Isolation
  • NEMA4 / IP65 Compliant Front Panel
Technical Specifications

Display

Display

10”TFT

Resolution

800*400

Brightness (cd/m2)

300

Contrast Ration

500:1

Backlight Type

LED

Backlight Life Time

>30000hr

Colors

262K

Touch Panel

Type

4-wire Resistive Type

Accuracy

Active Area Length(X)±2%  Width(Y)±2%

Memory

Storage (MB)

128

RAM (MB)

128

Processor

-

Cortex-A8 32Bit RISC 600MHz

I/O Port

USB Host

USB 2.0*1

Ethernet

1 RJ45 port (10/100 Base-T)

COM Port

COM1: RS-232

COM2: RS-485 2W/4W

COM3: RS-485 2W

RTC

-

Built-in

Power

Input Power

24±20% VDC

Power Consumption

400mA@24VDC

Voltage Resistance

500 VAC (1 min)

Isolation Resistance

Exceed 50MΩ at 500VDC

Vibration Endurance

10~25Hz(x,y,z direction 2G 30 minutes)

Specification

Enclosure

Plastic

Dimensions (W*H*D)

271*213*40mm

Panel Cutout (mm)

260*202

Weight (kg)

Approx. 1.3kg

Environment

Protection Structure

NEMA4/IP65

Storage Temperature

-20℃~60℃(-4℉~140℉)

Operating Temperature

0℃~50℃(32℉~122℉)

Relative Humidity

10~90%@40C(non-condensing)

Certificate

CE

CE marked

Software

-

EasyBuilder Pro V4.10.04 or later versions

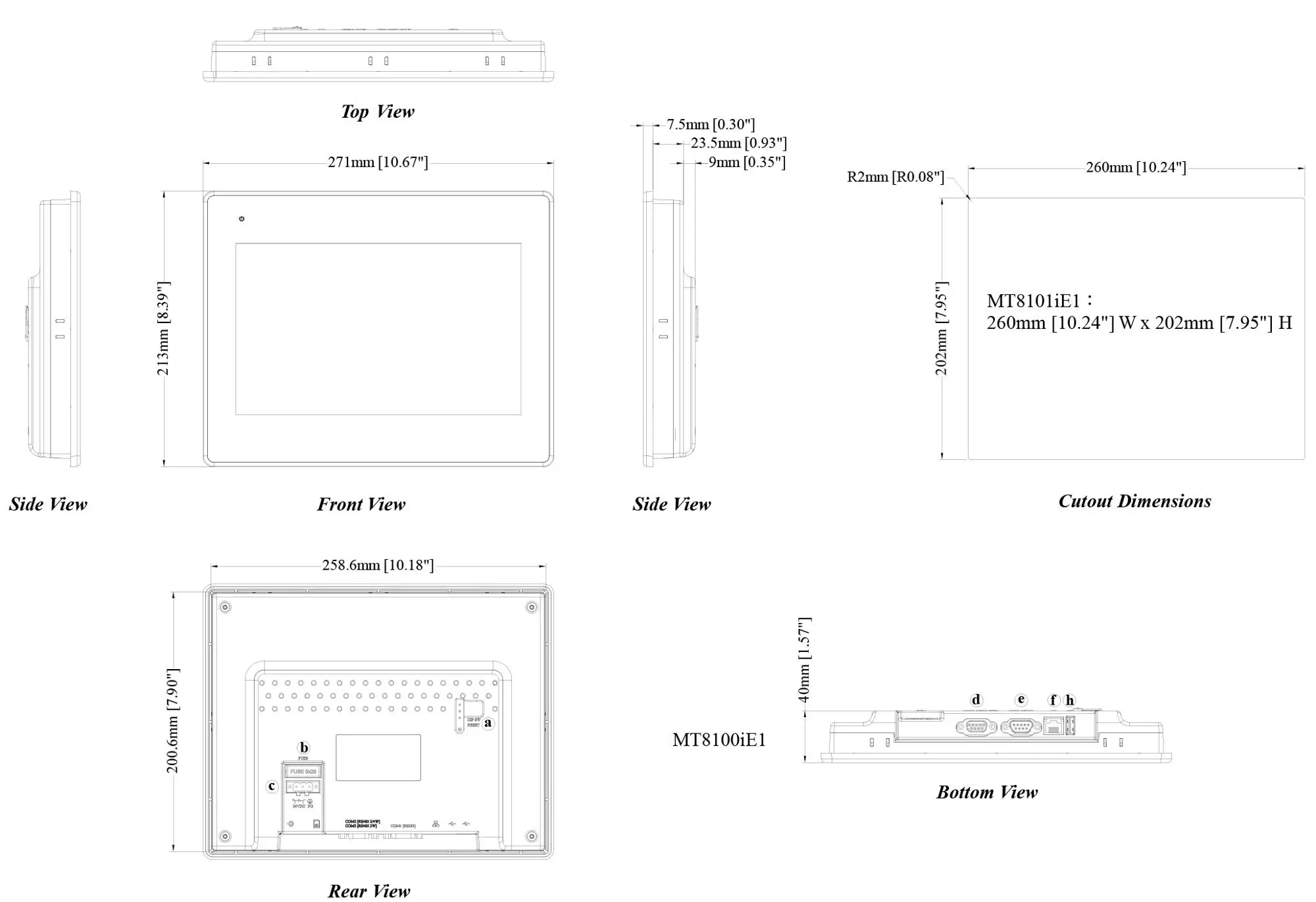

Dimensions.

MT8101 iE.jpg

a DIP SW
b Fuse
c Power Connector
d COM2 RS-485 2W/4W, COM3 RS-485 2W
e COM1 RS-232
f Ethernet Port
h USB Host Port



Pin Assignment:

COM1 [RS232] 9 Pin, Male, D-sub

PIN# SymbolCOM1 [RS232]
1Not used
2RxDReceived Data
3TxD  Transmitted Data
4Not used
5GND  Ground
6Not used
7RTS  Ready to send output
8CTS  Clear to send input
9Not used



COM2 / COM3 [RS485] 9 Pin, Female, D-sub

 PIN#

 Symbol Com2 [RS485]2w Com2 [RS485]4wCom3 [RS485]
 1 Rx-Data- Rx-
RX+ Data+ Rx+
Tx-  Tx-
Tx+  Tx+
GND  Ground
Data-   Data-
Not used
8Not used
9Data+  Data+
