Wheat flour mill plant,wheat flour mills

FOB Reference Price:Get Latest Price
US $5,600 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Jinbao
Model Number:
JB-20B/30B/40B/60B/80B
Voltage:
All countries are OK
Certification:
CE,ISO
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Material:
stainless steel
Applicantion:
chemical, food and pharmaceutical line
SupplyAbility
SupplyAbility:
33 Set/Sets per Month
Packaging & Delivery
Packaging Details
Flour Mill
wooden packing
Port
Shanghai China
Lead Time :
Shipped in 30 days after payment
Wheat flour mill plant,wheat flour mills

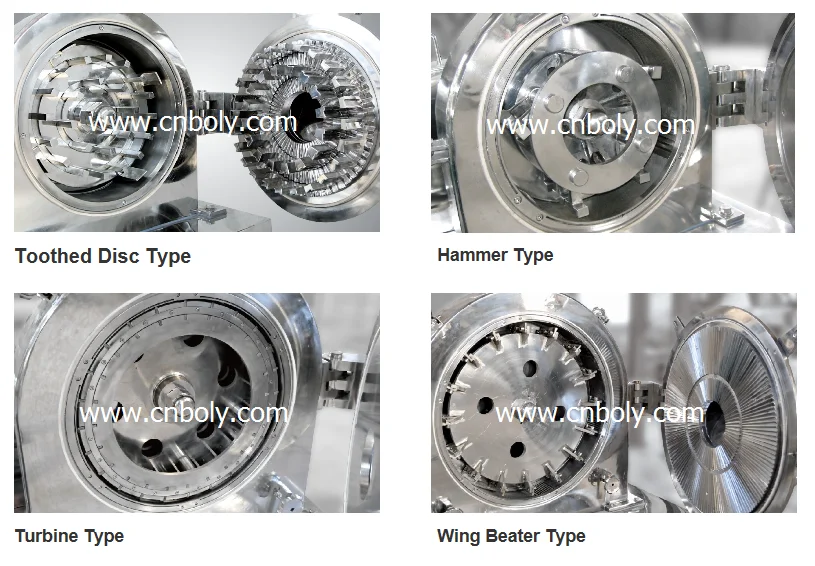

 Machine pics:

 Detailed Product Description:

This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc.It is a new-generat

Specialty:

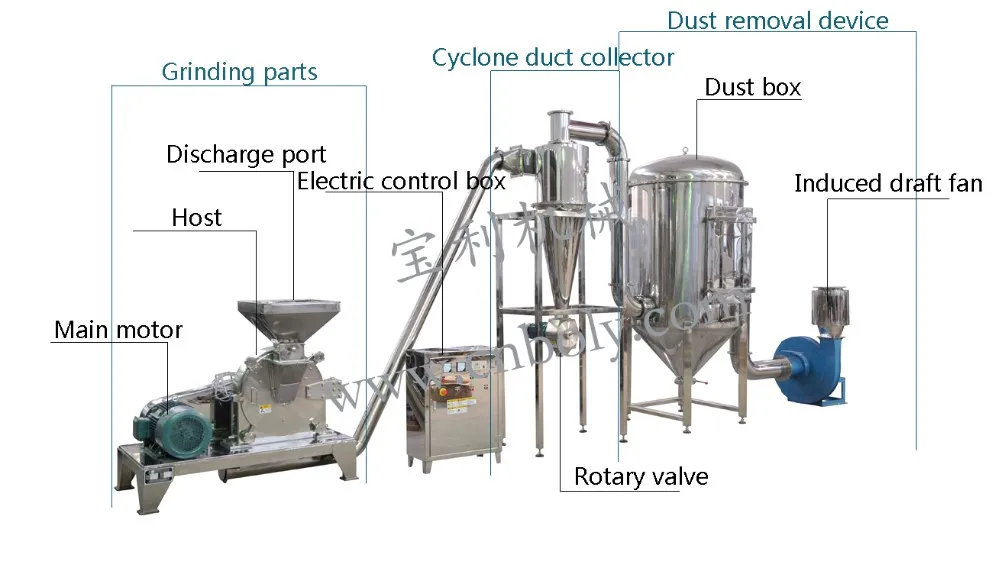

 This machine is made up of crusher, cyclone separator, pulse dust-evacuator box and blower fan etc. By means of relative motion between flexible and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower. Dust comes into the pulse dust evacuator box, filtered and recycled by the filter cylinder. The crushing size can be adjusted by the screen.Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.



Technical Data:



Model

JB-20B

JB-30B

JB-40B

JB-60B

JB-80B

Capacity(kg/h)

65-150

100-400

160-1000

300-1500

500-2000

Speed of principal axis (rpm)

4500

3800

3400

2800

2100

Size of input granules (mm)

6

6

10

12

15

Crushing fineness (mesh)

60-150

60-120

60-120

60-120

60-100

Crushing Motor(kw)

5.5

7.5

11

22

30

Dust collecting Motor (kw)

1.5

3

4

7.5

15

Discharge motor(kw)

0.75

0.75

0.75

0.75

0.75

Overall Size(L *W*H)(mm)

2800*850*2300

3500*850*2480

3800*900*2550

4500*1100*2800

5800*1400*3600

Weight(kg)

580

800

1200

1800

2900

Material

SS304

SS304

SS304

SS304

SS304





Machines in Stock



Our Packing Details

Our Factory &The   Exhibitions We  Attended



Certification







If you want to send inquriy to me about our product, could you please tell me?



 1)  What material you want to grind, is it dry, what is the size of feed material ?



2)  What capacity you expect ? (kg/h)



3)  What mesh or mm or micron(size) of the powder you want?



4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.

     (We only provide 3P, because our machines are all for industrial use,not for family.)



5)  Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.



 Then our communication will be more efficient.
