White Clear DIN 43650 Connector

Feedback Ratings
  • 10-99 Pieces
    $0.40
  • 100-999 Pieces
    $0.30
  • >=1000 Pieces
    $0.25
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Contact Supplier
Samples - $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
EPSolid
Model Number:
DIN43650
Type:
DIN
Application:
Automotive
Gender:
Female
Color:
Black,Dark Brown,White
PLUG FOOT TYPE:
2+1,3+1 GND
PROTECTION CLASS:
IP65(IEC 60529)
VOLTAGE:
AC / DC
RATED CURRRENT:
10A
RESISTANCE:
≤5mΩ

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
0.1 kg
Package Type:
Carton
Lead Time :
Quantity(Piece) 1 - 100 101 - 1000 1001 - 10000 >10000
Est. Time(days) 3 10 20 To be negotiated
Product Description

Product Application

DIN Connector for Solenoid Coils.

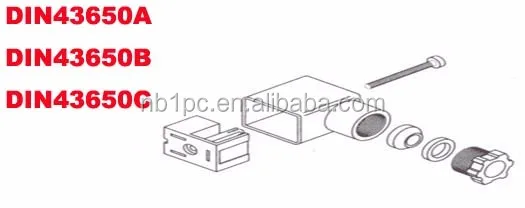

DIN43650A

DIN43650B

DIN43650C

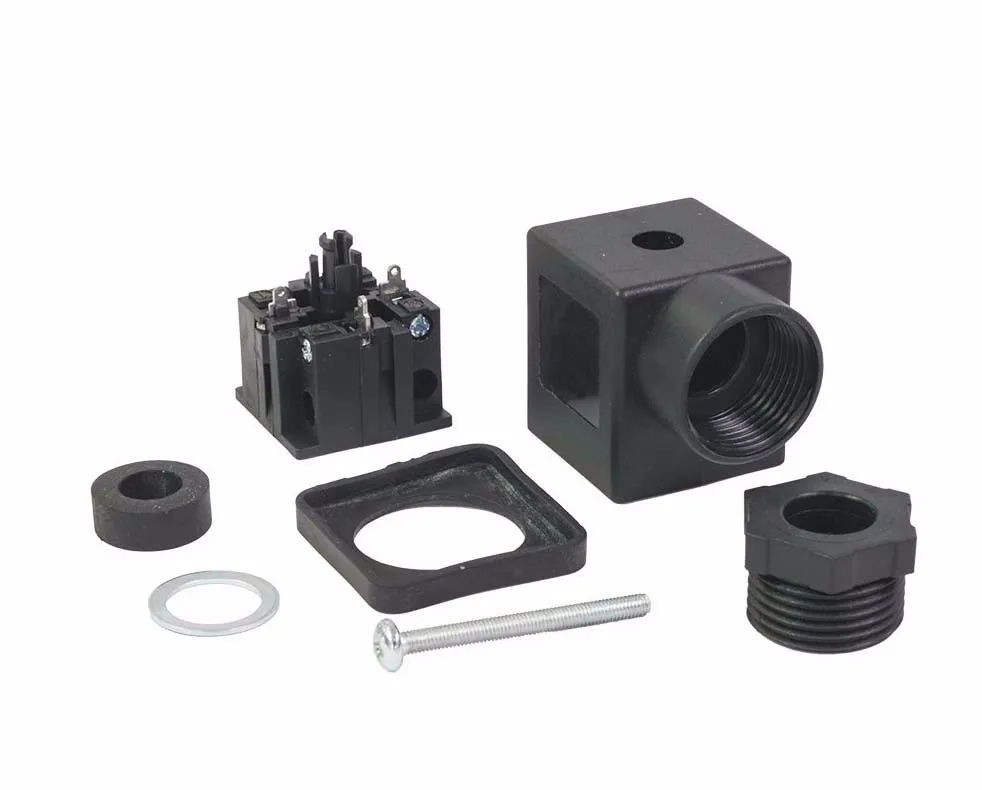

1set Junction Box with Screw & Washer

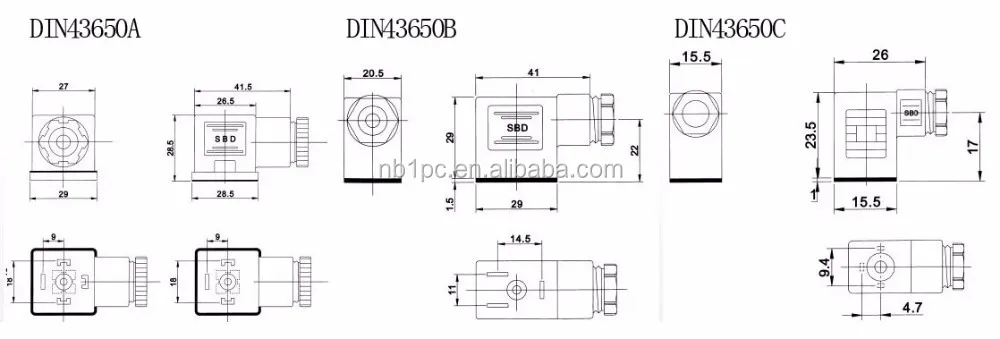

SPECIFICATIONS DIN Connectors



DIN43650A/B/C
PROTECTION CLASS
IP65(IEC 60529),F CLASS
WORKING VOLTAGE
AC / DC
RATED CURRRENT
10A
ESISTANCE
≤5mΩ
MAX. LEAD WIRE LENGTH
3x1.5mm2

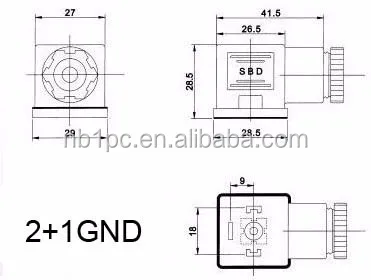

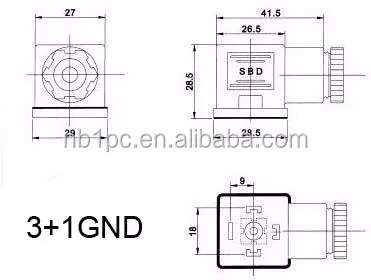

DIN43650A
PLUG FOOT DISTANCE
18mm
PLUG FOOT TYPE
2+1 GND, 3+1 GND
INSTALL SCREW
M3x30

DIN43650B
PLUG FOOT DISTANCE
11mm
PLUG FOOT TYPE
2+1 GND, 3+1 GND
INSTALL SCREW
M3x30

DIN43650C
PLUG FOOT DISTANCE
9.4mm
PLUG FOOT TYPE
2+1 GND, 3+1 GND
INSTALL SCREW
M3x30

Main Features

2+1 GND, 3+1 GND

Certifications

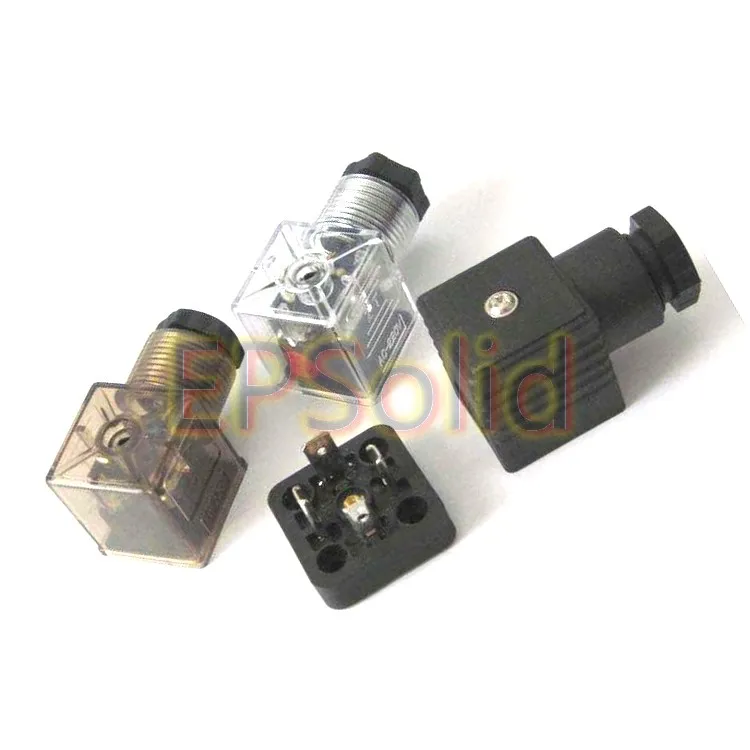

Detailed Images

Machine Parts

Name: DIN Connector

Brand: EPSolid

Original: China


Our Service

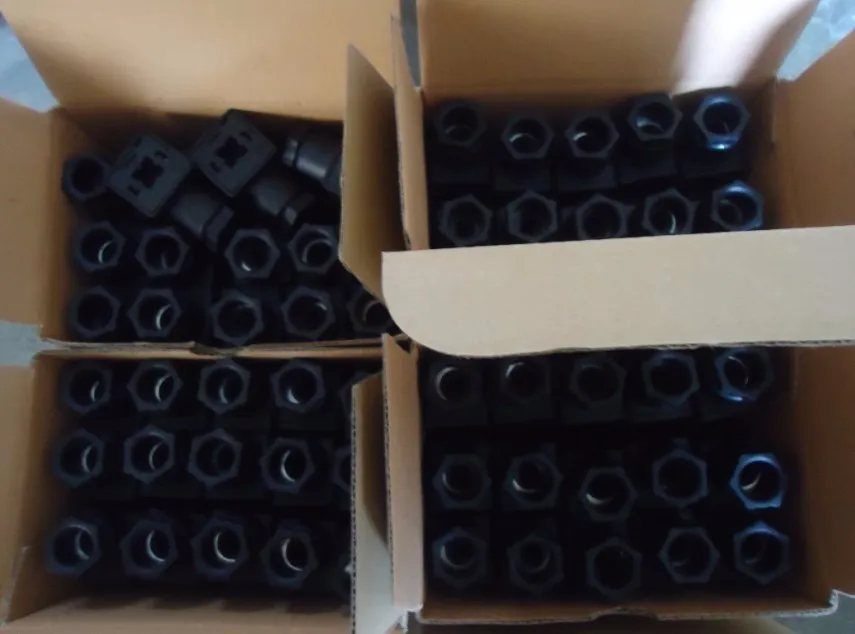

Packing & Delivery
Packaging
Size
as model
Weight
-



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
