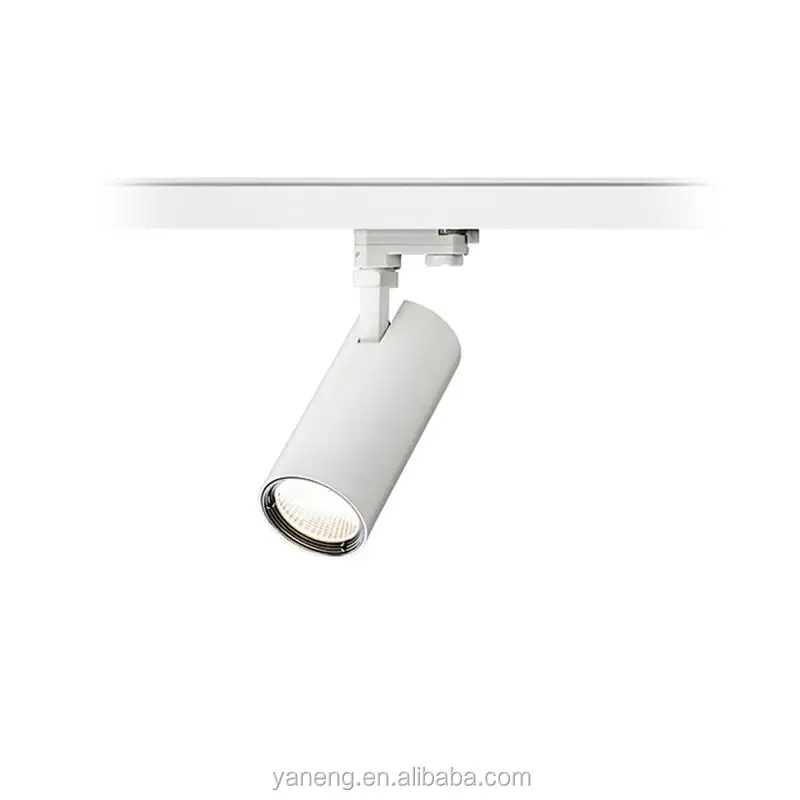

White LED Line Track Light System for Showcase

$17.00 - $22.30 / Piece | 100 Pieces (Min. Order)
Color:
White Black
Lamp Power(W):
28 35
Emitting Color:
Cold White
$17.00
- +
available
Warm White
$17.00
- +
available
White
$17.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
12 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Track Lights
Lighting solutions service:
Lighting and circuitry design
Luminous Efficacy(lm/w):
100
LED Light Source:
CREE COB
Input Voltage(V):
AC100-265V
Lamp Luminous Flux(lm):
2700
CRI (Ra>):
80
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
Certification:
CE, EMC, LVD, RoHS
Base Type:
2 line/ 3 line/ 4 line
Place of Origin:
Guangdong, China
Brand Name:
Alight
Model Number:
AL-TL0735
Application:
Hotel
Warranty(Year):
3-YEAR
Finish Color:
White / Black / Silver
CCT:
2700K 3000K 4000K 5000K
Ra:
80 / 90 / 97
Power:
28W / 35W
Dimming Type:
DALI / TRIAC Dimming
Beam angle:
15 /24 /36
SIZE:
92*200*280mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
11X11X35 cm
Single gross weight:
1.500 kg
Package Type:
neutral packing / Customized packing
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 12 To be negotiated
Specification
Setting Information
Item No.:
AL-TL07 series
Finish Color
White / Black / Silver
rated voltage
110V/220V
Power
28W/35W
CCT
2700K/3000K/4000K/5000K
installation
embedded
CRI
80/90/97
Base Type
2 line/ 3 line /4 line
Warranty
3 years
Product Description

Product Details

1. High quality die-casting aluminum material; sturdy and durable, ensure the long lifespan of the product.
2. This new lamp is a compact LED track light which with unique light distribution and high efficiency.
3. It can save more 50% energy than traditional lighting fixture. Excellent optical design makes the light even and soft.
4. Good heat sink and easy for maintain result from lamp's
good structure.Besides this lamp could work in AC/DC.

Technical Description

LED Dimming offers both perfection & peace of mind.

-Soft Dim Technology offers both conventional phase dimming
and DALI controlled solutions.
-Soft Dim allows you to create the perfect balance between visual comfort and ambience.
-Soft Dim Technology not only reduces both the luminous intensity and colour temperature of the light source when dimmed , but also so following the curve of a halogen closely. The result is gradual and smooth transformation between 2800K and 6500K over the dimming range of 1% - 100%.

-Remarks: Dual color COB LEDs , they only can reach around 80lm/W for whole lamp. If you don't need color temperature adjustable, only need normal dimmable(e.g 2700K,3000K,4000K,5000K), we can reach 100lm/W.

Technical Description

-The triac dimming circuit, a diode alternating current switch (diac) and an LRC circuit generate a pulse that turns on the triac for some portion of the ac cycle. (The diac can conduct current in either direction, but not until breakdown voltage has been exceeded.) A potentiometer adjusts the point at which the diac to send the triac a trigger signal.

-Triacs make up the heart of AC light dimming controls. Triacs used in dimmers have normally been characterized and specified for incandescent lamp loads, which have high current ratings for both steady-state conditions and initial high in-rush currents, as well as very high end-of-life surge current when a filament ruptures.

Model
Power
Size(mm)
LED
CRI(Ra)
CCT
Luminus Flux
Beam Angle
Driver
AL-TL0728
28W
92*200*268
CREE CXA1820
≥80
2700-6500K
2700
15°/24°/36°
Build in
AL-TL0735
35W
92*200*268
CREE CXA1820
≥80
2700-6500K
3200
15°/24°/36°
Build in

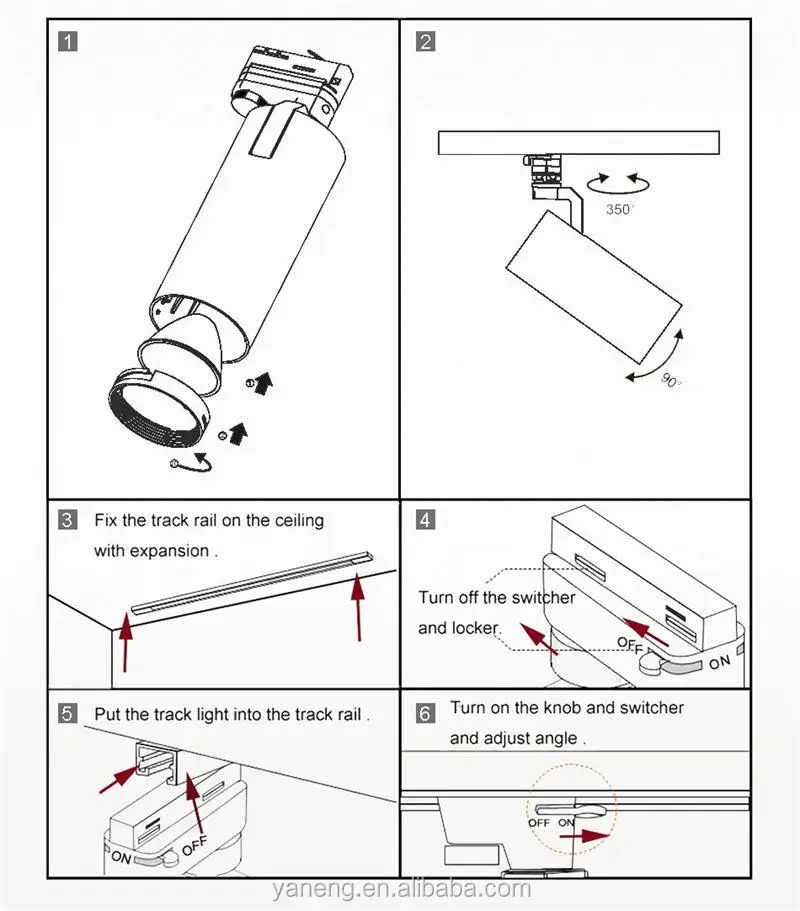

Installation Process

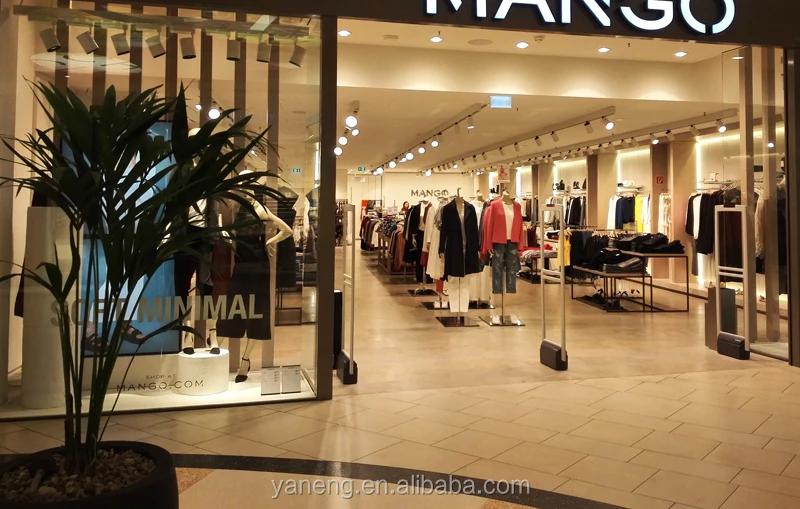

Applications
Certifications
Company Information
FAQ

Q1. What is special about your light?

Specially Made in our own mould. Different and more fashionable design.
Adopting cree chip, with 3 Years International Warranty.
Customized Beam Angle. Rotating 320 degrees. All makes it easier for spotlighting.

Q2. What is your payment term?

Paypal or T/T. 30% as doposit, and the rest 70% should be paid before delivery.

Q3. What is your delivery term?

After confirming PI, Goods would be ready within 15 Working days and will be sent after confirmation of payment.
Cooperation Express: DHL, UPS, FEDEX.

Our services

1. OEM & ODM, superior bespoke product only for you!
2. Your inquiry related to our products will be replied within 24 hours.
3. Protection of your sales area, ideas of design and your private information.
4. Any suggestion or comment of our product or our service will be highly appreciated.
