Wholesale 2018 New Arrival Semi-Automatic Inner Hole Paper Box Waste Stripping Machine

  • 1-2 Sets
    $4,200.00
  • 3-4 Sets
    $4,000.00
  • >=5 Sets
    $3,800.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Contact Supplier
Samples - $4,200.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
No overseas service provided
Application:
Food
Packaging Material:
Paper
Type:
Other
Condition:
New
Packaging Type:
Cartons
Automatic Grade:
Semi-Automatic
Driven Type:
Pneumatic
Voltage:
220V/380V
Power:
5KW
Place of Origin:
China
Brand Name:
Graphic
Model Number:
GR-650
Weight:
250 kgs, About 250kg
Dimension(L*W*H):
1300x1100x1850mm
Certification:
other
Working desk size:
1100*650mm
Machine size:
1300x1100x1850mm
Electricity:
220V/380 V, 50hz
Power Control Department:
Large diameter solenoid valve
Locked version of the Department:
CNC positioning punch
Side regulations Department:
Locating screw hole
Delivery Department:
Slopes design
Automatic air pressure control:
Large cover type foot switch
Air compressor:
5KW, 5P(the bigger, the stronger)

Packaging & Delivery

Selling Units:
Single item
Single package size:
132X112X188 cm
Single gross weight:
250.0 kg
Lead Time :
10
Video Description
Features

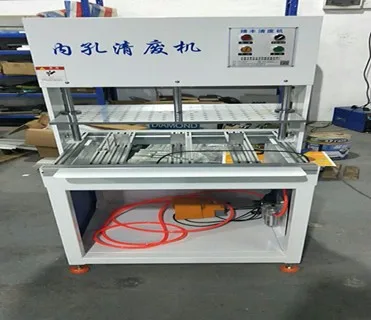

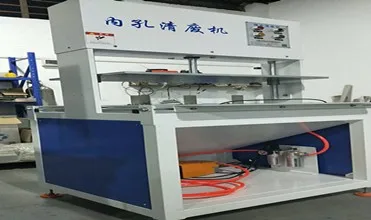

Semi-automatic stripping inner hole machine is mainly used in color printing packaging enterprises of all kinds of color box carton after die cutting clear of inner hole of the waste residue, such as the plane hole, round hole, square hole, long holes etc

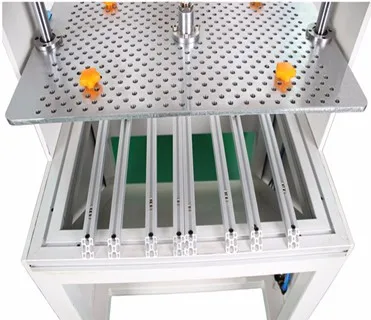

Semi-auto stripping hole cleaning machine has many key parts through the perfect design and fine processing, ensure the accuracy of the mechanical work and easy operation. Adjustable locking plate can put dozens of mould at the same time to achieve a clean up dozens of waste hole, greatly saves man power, and improve the work efficiency

Product advantages

1. Reduce artificial waste
2. Reduce manpower waste when damage to the product
3. 30%-50% higher production efficiency
4. The more holes, the higher efficiency cos it’s done in one go. Quite different from man hand waste stripping one by one. Special mould and needles are available upon demands.
5. It moves an waste more than 40-70 cartons on the hole, and can accurately remove area smaller than 100 square meter(25mmx4mm rectangle holes or ∮11 circular hole) position. Which include installation between the rack on both sides of the workbench has a blanking hole, connecting the rack installation cylinder, cylinder piston rod through the bracket and the stamping connection, stamping parts are installed on the punch. By pressing left and right before and after the two short board and two long plate connection, the installation punch through the stamping connection rod on activities.

How to use

1)According to die-finished product specifications, the size of the production of wooden bottom template. The size of each side of the bottom of the mold is 3mm to 5mm smaller than that of the die-cut product, and the thickness of the single bottom mold is 15mm. Five identical wooden bottom molds are made for each die-cutting product, Block the bottom template fixed together, the total height of about 75mm

2)Will be fixed at the bottom of a wooden template in the open on the bottom plate , the first fixed a die-off pair of open proofing on the bottom plate, set the position and then put the wood template on proof Center position and fixed well

3)In the open front of the rule and side gauge fixed position of the wooden block, you can carry out the work of cleaning up.

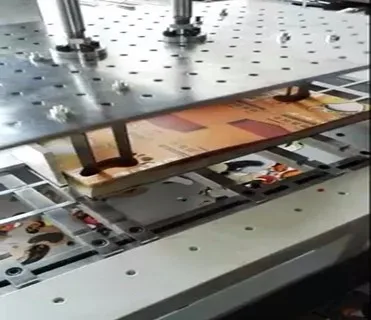

4)According to the quality of the die-cutting quality, a certain number of die-cut proofs in the wood template on a one-time positioning installed , the total thickness of proofs is generally 40 ~ 70mm (easily knock the waste proofs can be more Put some) with a hammer in the sample area on the waste area of the major connections percussion, the waste fell into the hole in the bottom of the template, and then receive the finished product, and then clean up the waste

About us

       Beijing Graphic International Trade Co., Ltd is a joint venture created by Changzhou Machinery Blade Co.,ltd and ChangZhou Xinyitong Electrical & Mechanical Technology Co.,ltd, who is one of the world's leading and professional supplier of printing equipments and consumables in China, providing its customers with Graphic Arts Consumables, Machines and Spare Parts for diversified jobs.
Since its establishment in 2008, Beijing Graphic International Trade Co., Ltd is firmly in accordance with the Business Spirit"Excellent Quality, First-class Service, Honest Commitment"and remain committed to heartfelt Management Principles"Customers Supreme, Reputation First", meanwhile, we undertake"Action Priority, Efficiency Persistence"as our Enterprise Criterion.
We are always striving for new ideas and innovative solutions. Beijing Graphic Trade stands for efficient processing ,printing and die cutting systems for most versatile applications with highest customer benefits.
Here,Beijing Graphic International Trade Co., Ltd works on things that matter. The best people and the best technologies are taking on the toughest challenges. You will find exactly the right solution for every application and material.

Exhibition


Certification


Related Products
Packing & Delivery

Packing: 1set/wooden case
               Weight: 250 kgs more or less;
               Machine size: 1300x1100x1850mm
              Outer wooden size: 1320x1120x1880mm;

Delivery:Delivery Time:Within 7-15 days upon receipt of payment
