Wholesale AC 220V Permanent Magnet Synchronous Motor fan motor AC fan motor

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $411.76
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jenvos
Model Number:
BLDC-Y255IC-220V
Output Power:
0.18KW-315KW
Type:
Synchronous Motor
Frequency:
50/60Hz, 50HZ/60HZ
Phase:
Three-phase
Certification:
CCC, CE, ROHS, UL, VDE
Protect Feature:
Waterproof
AC Voltage:
208-230 / 240 V
Efficiency:
IE 1
Application:
Industry
Fan Diameter:
7.3M/24FT
Product name:
Industrial Ceiling Fan
Motor brand:
Jenvos
Material:
Steel
Usage:
Air Ventilation/ Air Cooling
Coverage Area:
1200 Square Meter
Color:
Silver White Green Customized
Ventilation Fan:
High Volume Low Speed Fans
Supply Ability
Supply Ability:
1000 Set/Sets per Day
Packaging & Delivery
Port
Shenzhen Port
Lead Time :
10-15 days
Product Description
 Wholesale AC 220V Permanent Magnet Synchronous Motor fan motor AC fan motor

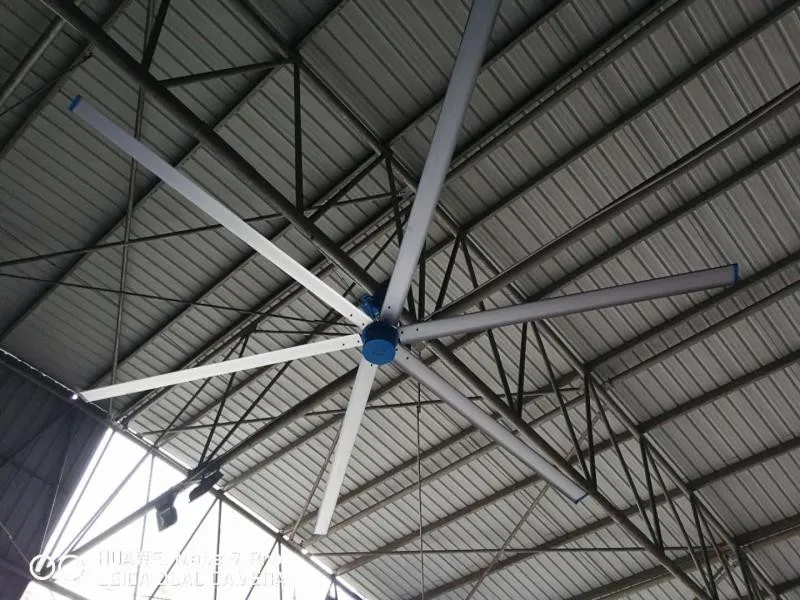

Jenvos permanent magnet synchronous fan is a super large energy saving ceiling fan with a maximum diameter of 7.32 meters. It is made of high strength materials such as forging steel and aviation aluminum which is strong and safe. The maximum capacity to power the fan is 1.5 kw, This is enough to drive a large amount of air and create a large area of natural breeze , which can serve as a dual function of ventilation and cooling. It covers an area of 1200m.
    Wholesale AC 220V Permanent Magnet Synchronous Motor fan motor AC fan motor

Detailed  Information

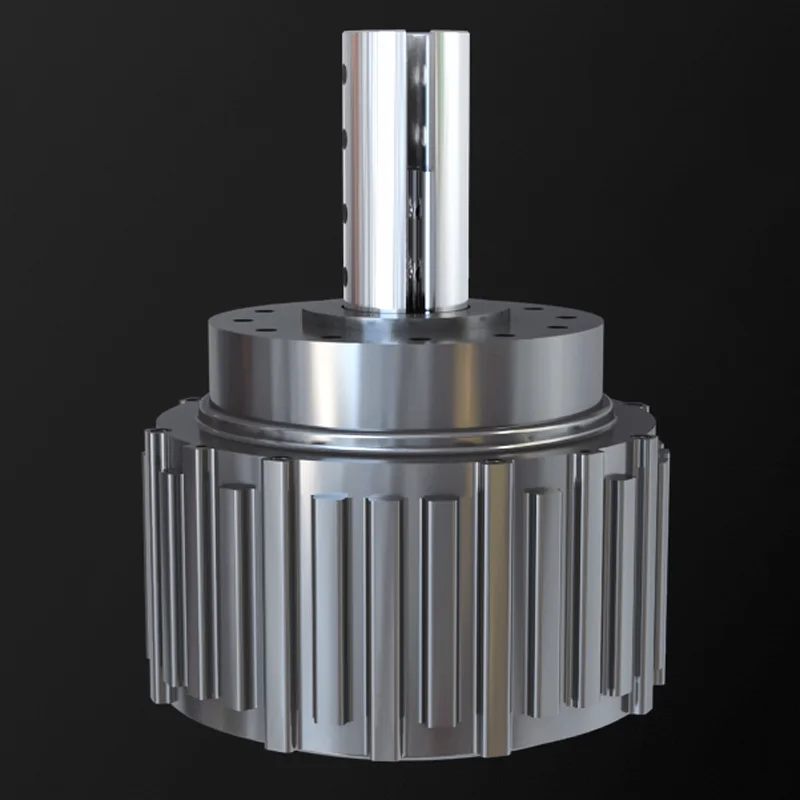

 Permanent Magnet Synchronous Torque Motor


1.PMSM adopts unique electromagnetic structure design and modular automatic production line process.

2.The internal coil circuit adopts the module splicing scheme design and the automated winding, splicing, and welding process.

3.Optimize the electromagnetic circuit design so that the cogging torque ripple is 0. The motor operation speed fluctuation is plus or minus 1 rpm, making the motor operates more smoothly and reliably. It also has extremely high control accuracy. The torque curve is smoother.

4.The unique heat dissipation structure design enables the motor surface temperature rise ≤55°C (including ambient room temperature) during long-term full-load operation.

5.High efficiency and energy saving; efficiency ≥ 90%
Rated voltage
DC315v
Rated torque
140N.m
Rated power
2000w
Noise
60db
Rated speed
150rpm
Max speed
300rpm
Protection grade
IP56
Operation mode
S1
Insulation grade
F
Vibration
1.0mm/s
Detailed Information
Model numaber
Voltage (V)
Power
(W)
Speed
(rpm)
Blade
Diameter(meter)
Air Volume
(m³/min)
Noise
Blade Quality
(pcs)
Weight
(Kg)
PMSM330-735
220/380
1560
50
7.35
13185
40
6
113
PMSM330-675
220/380
1152
55
6.75
12862
40
6
110
PMSM330-625
220/380
1000
60
6.25
12261
40
6
106.5
PMSM330-350
220/380
      800
65
5.5
11963
40
6
103.1
PMSM330-520
220/380
750
70
5.2
11715
40
6
99.65
PMSM255-470
220
700
75
4.7
7075
40
6
96.3
PMSM255-420
220
530
80
4.2
5213
40
6
79.5
PMSM255-360
220
410
95
3.6
3326
40
6
88
PMSM255-220
220
330
115
2.2
1669
40
6
79
Fan Application


Livestock husbandry: large farms, livestock farms, aquaculture

Sports industry: gym, gymnasium, sports training hall, practice room

Recreation: large playground, animal botanical garden, children's playground

Transportation hub: airport, high speed rail station, bus station, subway station, terminal

Commercial establishments: convention and exhibition center, 4S shop, large-scale professional product distribution market, large-scale shopping malls and supermarkets

Other types: office lobby, villas, canteens, museums, large outdoor commercial activities rental

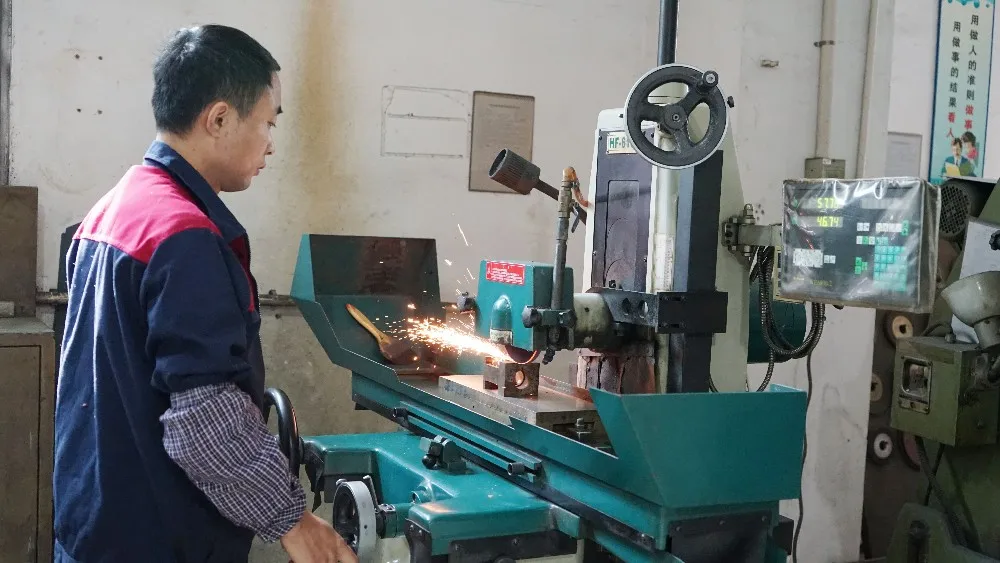

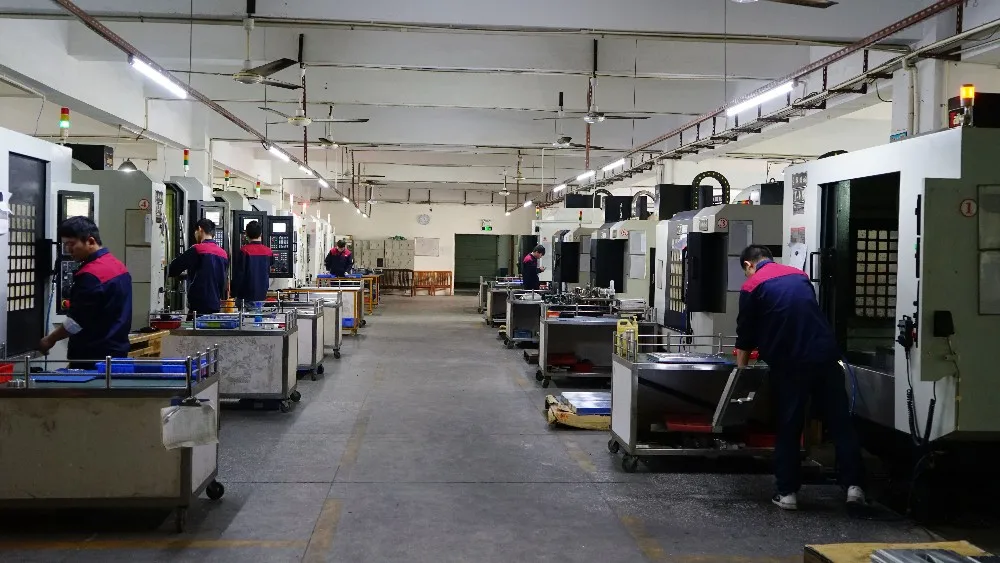

Our Company

       Shenzhen Jenvos Machinery Co. Ltd is located in Shenzhen, China. It is a high-tech enterprise integrating mechanical parts manufacturing,  industry ceilling fan, motors, drive control systems, R&D, manufacturing, and sales. The plant covers an area of 3,000 square meters. Now it has more than 200 employees, administrative staffs and technicians. Based on the excellent management concept, it always puts the credit and quality on the first.

        The company has a group of professional R&D technical teams and experienced engineering service personnel, which can provide customers with product selection, design proposal, and long-term after-sales service. The company is based on the production, R&D and sales of DC brushless, AC and DC servos, variable frequency motors and controllers, as well as the processing of precision instruments.
       Now the motor has formed 44 #, 60 #, 92 #, 110 #, 130 #, 140 #, 180 #, 200 # and other frame size.
       The controller has formed a series of voltage ranges from DC24V to AC310V at high and low voltages.
       Power can range from 50Kw to more than 100Kw power.
       Motor speed is from several hundred to tens of thousands of revolutions and other series.
       It manufactures precision parts to form photovoltaics, testing equipment, mechanical equipment fixtures, etc.
       Providing domestic and foreign customers with a variety of varieties, personalized, modular motor perfect solution.
       The company has IS09001: 2008 quality system certification, ISO14001 environmental management system certification.

International Fair

Our Team

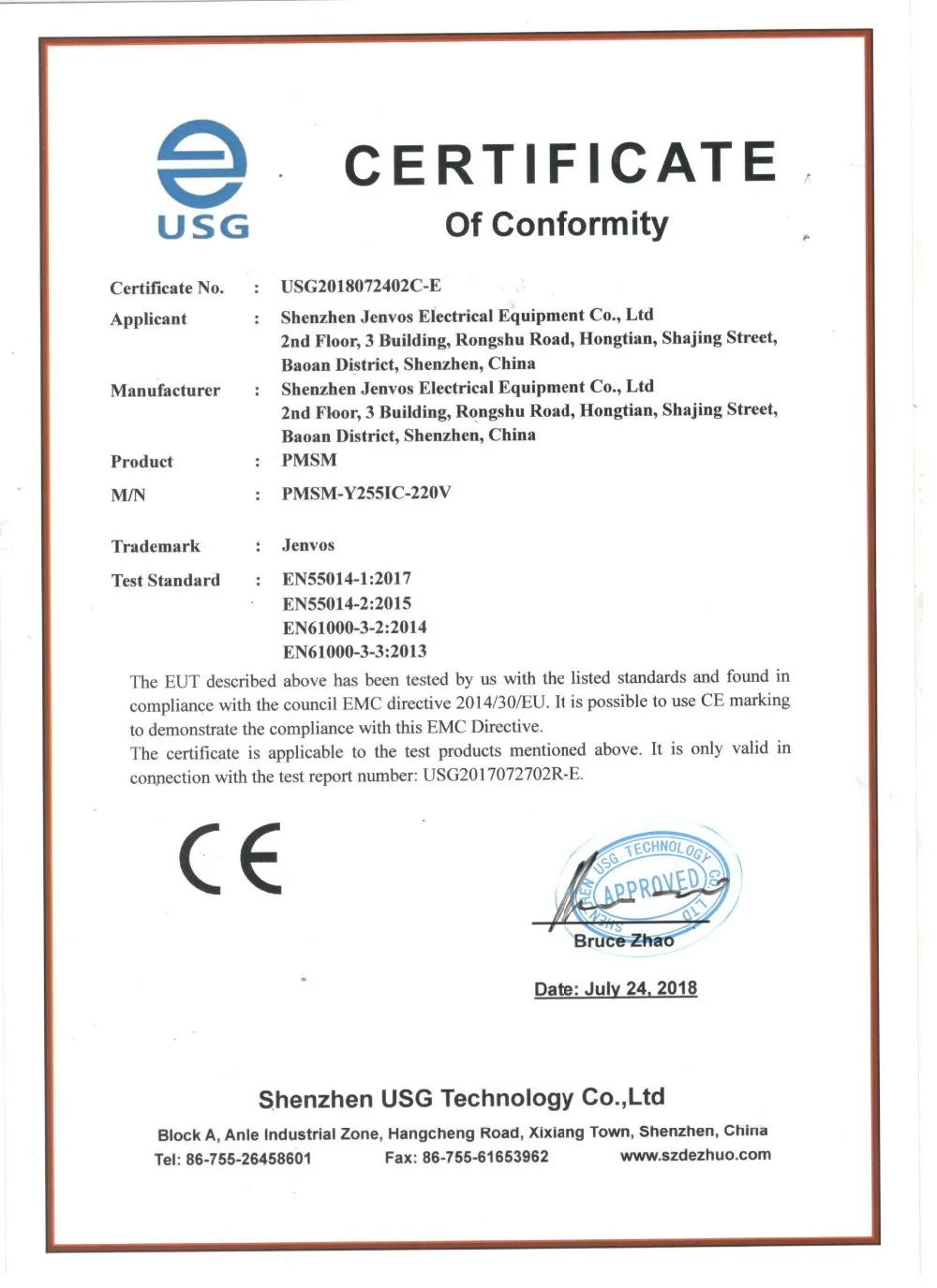

Certifications
Our Service


1. Any email or trademanager inquires will be replied within 24 hours

2.  Normal samples can be offer very quickly (within 10 days)

3.  Customized service for kinds of motor according to your requirement

4. Professional Technical support and After-sale service


FAQ

Q: Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.


Q: How do you make our business long-term and good relationship?
A: We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.


Q: How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q: Do you provide OEM services? Can I request my own logo?
A: Yes, we can provide OEM services for volume production. Feel free to talk to us about your branding needs.


Q: What is the lead time?
A: The delivery time is 20-30 days after order be confirmed.
But for the exact date, please check with our sales team.
