Wholesale China Products digital voltmeter meter ac digital voltmeter ammeter

$12.70 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Sets)
Customized packaging (Min. Order: 500 Sets)

More

Graphic customization (Min. Order: 500 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Leeyd
Model Number:
LD824
Display Type:
Analog and Digital
Accuracy Class:
0.2 class
Operating Temperature:
-10°C to 55°C (limit)

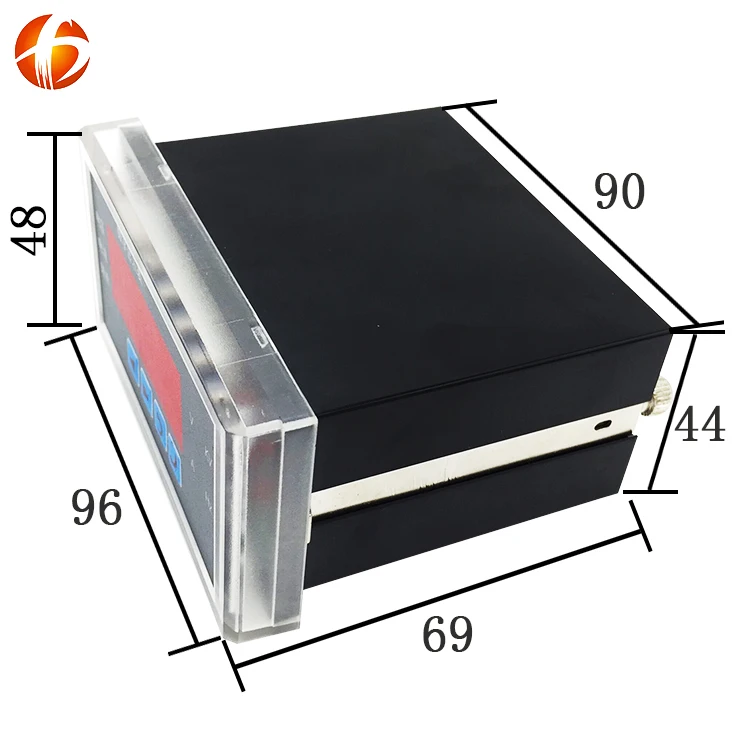

Dimensions:
96*48
AC voltage:
100V, 220V, 380V
AC current:
1A, 5A
Current overload:
2 times sustainable
frequency:
30~65Hz
Accuracy:
0.2 class
AC:
85V~264VAC, 50/60Hz
Working humidity:
5% to 95% (without condensation)

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X15X10 cm
Single gross weight:
0.5 kg
Package Type:
Export wooden packing
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 3 To be negotiated
Video Description


Wholesale Chinese Products digital voltmeter meter ac digital voltmeter/ammeter

Product Description

LD824-U/I series single-phase meter adopts AC sampling technology and is suitable for measuring and displaying current and voltage in power system and automation system. The current, voltage, frequency, etc. in single-phase power grids can be directly or indirectly measured. It can be used for local display, but also with the monitoring and control system to complete the background monitoring.

The instrument can have extended RS485 communication interface and adopt Modbus-RTU protocol. According to different use occasions, through the man-machine interface of the instrument, set parameters such as communication, ratio change, and alarm.

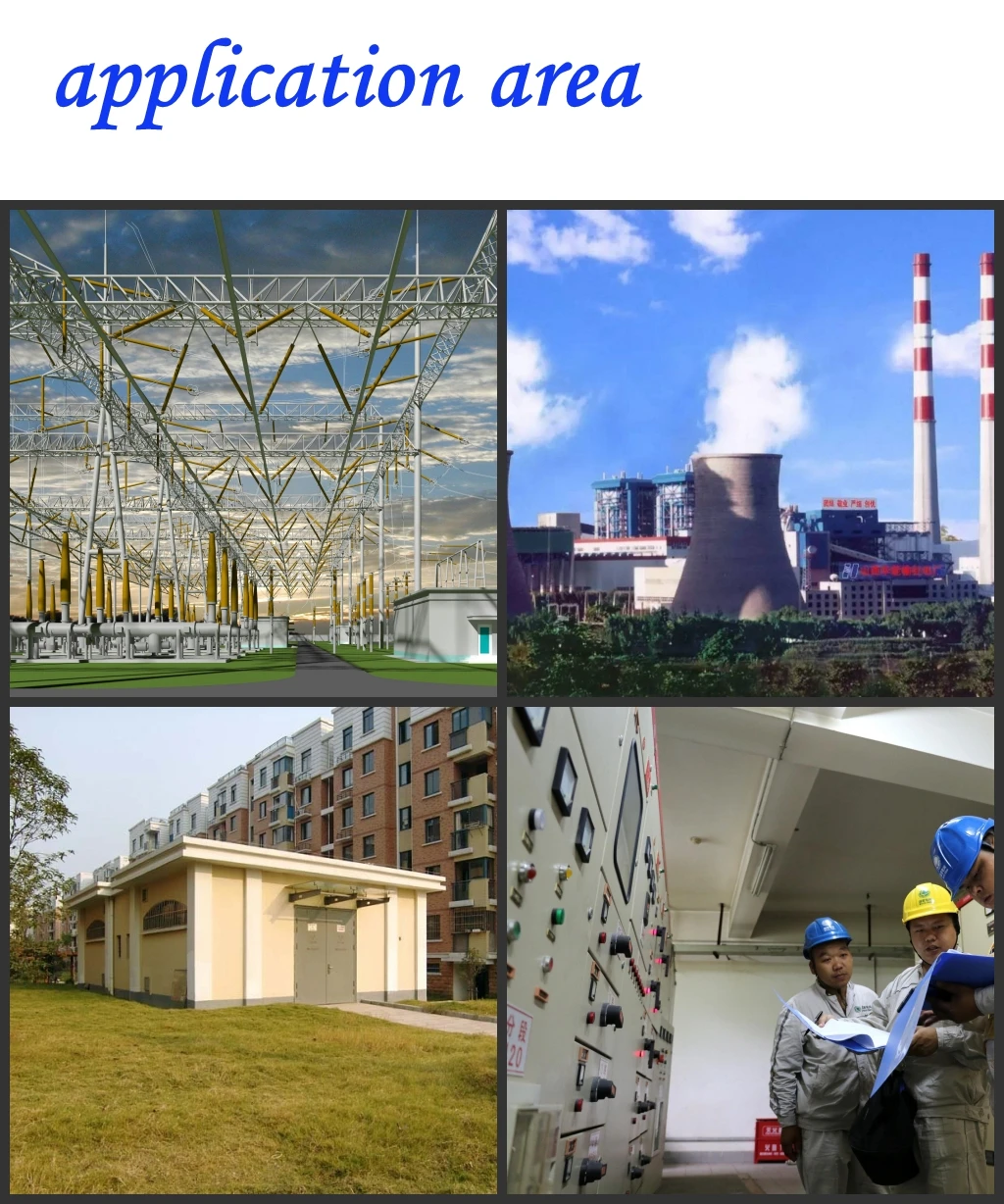

Application

Power Plant Automation, Industrial Automation, Building Automation, Power Management Systems, Substation Automation, Residential Power Monitoring, Smart City, Smart Home

Technical Parameters

Technical Parameters

Index

Input

Nominal value

AC voltage: 100V, 220V, 380V
AC current: 1A, 5A

Other custom voltage levels

Current overload

2 times sustainable

frequency

30~65Hz

Power consumption

The power consumption of each voltage and current input circuit is less than 0.1VA

Accuracy

0.2 class

Features

Communication

RS485, Modbus-RTU protocol, 1200 bps to 38400 bps

Analog quantity

DC: 4~20Ma (load less than 500Ω)

Monitoring alarm

Programmable high and low alarm

Power supply

AC

85V~264VAC, 50/60Hz

AC-DC universal type

85V~264VAC/DC,AC50/60Hz

Special custom

Other power source

Applicability

Temperature

0°C to 45°C (recommended)
-10°C to 55°C (limit)
-25°C to 70°C (storage temperature range)

Working humidity

5% to 95% (without condensation)

Terminal definition

 Non-analog output

Current input

Communication (optional)

4~20mA output
(Optional)

power supply

I+

I-

A+

B-

AO+

AO-

L

N

1

2

3

4

5

6

7

8

Single phase ammeter

Current input

Communication (optional)

4~20mA output
(Optional)

power supply

U+

U-

A+

B-

AO+

AO-

L

N

1

2

3

4

5

6

7

8

Single phase voltmeter
