Wholesale IP 67 waterproof PNP metal detector proximity switch 24V DC 3wires 2mm

Feedback Ratings
  • 5-99 Pieces
    $6.64
  • 100-499 Pieces
    $5.88
  • >=500 Pieces
    $4.85
1 batch = 5 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
F&C, F&C
Model Number:
F3L-08KS02-P R2M
Usage:
Position Sensor
Theory:
Inductance Sensor
Output:
Switching Transducer
Detection mode:
PNP NO or PNP NC
Voltage:
12-24VDC 10%; 5V customizable
Detection distance:
1mm/2mm
Application:
metal detector proximity switch
Certificate:
CE,RoHS
Entry cable:
dia4*2m/3 wires or M8/M12 connector
Material:
SUS304
Key words:
proximity switch 24V
Product name:
IP 67 waterproof PNP metal detector proximity switch 24V DC 3wires 2mm

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
18X10X12 cm
Gross weight per batch:
0.5 kg
Lead Time :
Quantity(Piece) 1 - 5 6 - 100 101 - 500 >500
Est. Time(days) 10 15 20 To be negotiated
Video Description

Wholesale IP 67 waterproof PNP metal detector proximity switch 24V DC 3wires 2mm

Product Description

Product details







Brand NameF&C
Detection modeNPN.NO; NPN NC; PNP NO; PNP NC
Voltage12-24VDC 10%; 5V customizable
Detection distance1mm/2mm/ 4mm
TheoryInductive theory metal sensing proximity sensor switch
CertificateCE,RoHS
Entry cabledia4*2m/3 wires or M8/M12 connector
MaterialSUS304; Nickel plated copper
Key wordsproximity switch 24V, metal proximity switch, PNP proximity switch
Lead timeabout one week
Product Keywordsinductive proximity sensor range,12V proximity switch, metal switch sensor, 24V sensor, switching transducer, 3 wire sensor, cylinder proximity sensor, inductive sensor

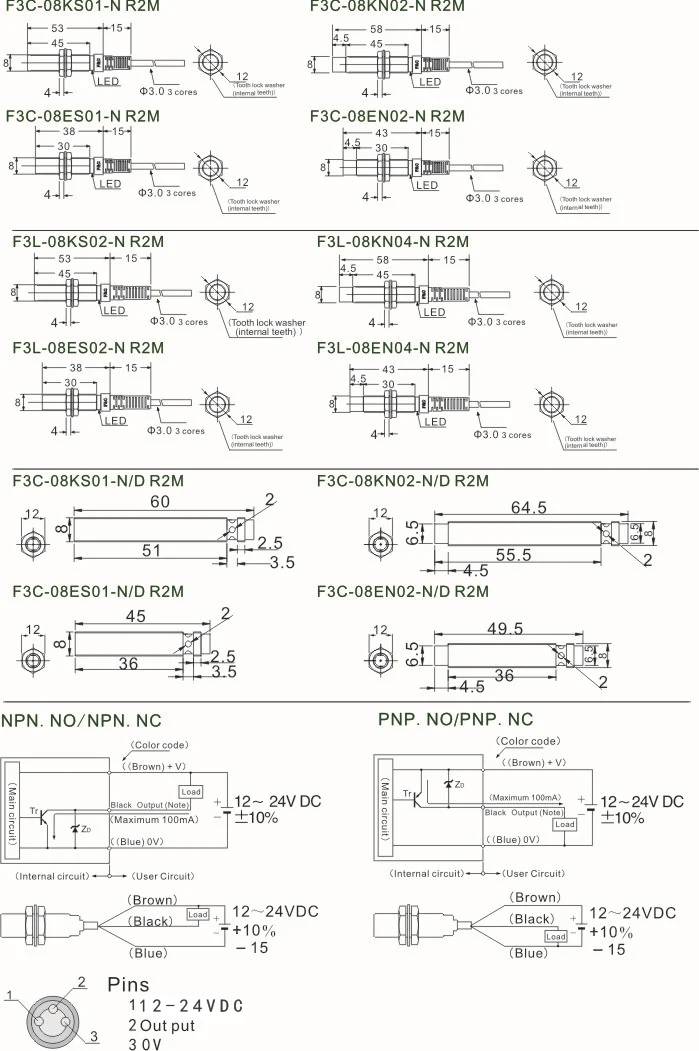

standard shell/shield;F3C-08KS01-N R2MNPN.NO1mm8×8×1(iron)φ3×2M/3-wires
F3C-08KS01-N2 R2MNPN.NC
F3C-08KS01-P R2MPNP.NO
F3C-08KS01-P2 R2MPNP.NC
standard shell/non-shield;F3C-08KN02-N R2MNPN.NO2mm8×8×1(iron)φ3×2M/3-wires
F3C-08KN02-N2 R2MNPN.NC
F3C-08KN02-P R2MPNP.NO
F3C-08KN02-P2 R2MPNP.NC
short shell/shield;;F3C-08ES01-N R2MNPN.NO1mm8×8×1(iron)φ3×2M/3-wires
F3C-08ES01-N2 R2MNPN.NC
F3C-08ES01-P R2MPNP.NO
F3C-08ES01-P2 R2MPNP.NC
short shell/non-shield;F3C-08EN02-N R2MNPN.NO2mm8×8×1(iron)φ3×2M/3-wires
F3C-08EN02-N2 R2MNPN.NC
F3C-08EN02-P R2MPNP.NO
F3C-08EN02-P2 R2MPNP.NC
standard shell/shield/double sensing rangeF3L-08KS02-N R2MNPN.NO2mm8×8×1(iron)φ3×2M/3-wires
F3L-08KS02-N2 R2MNPN.NC
F3L-08KS02-P R2MPNP.NO
F3L-08KS02-P2 R2MPNP.NC
standard shell/non-shield/double sensing rangeF3L-08KN04-N R2MNPN.NO4mm12×12×1(iron)φ3×2M/3-wires
F3L-08KN04-N2 R2MNPN.NC
F3L-08KN04-P R2MPNP.NO
F3L-08KN04-P2 R2MPNP.NC
short shell/shield/double sensing rangeF3L-08ES02-N R2MNPN.NO2mm8×8×1(iron)φ3×2M/3-wires
F3L-08ES02-N2 R2MNPN.NC
F3L-08ES02-P R2MPNP.NO
F3L-08ES02-P2 R2MPNP.NC
short shell/non-shield/double sensing rangeF3L-08EN04-N R2MNPN.NO4mm12×12×1(iron)φ3×2M/3-wires
F3L-08EN04-N2 R2MNPN.NC
F3L-08EN04-P R2MPNP.NO
F3L-08EN04-P2 R2MPNP.NC
Response frequency1000Hz/800Hz
Hysteresis10%≤sensing distance
Operating voltageDC:12~24VDC±10%/ can customize 5V
Current consumptionDC:≤8mA No—Load
Load currentDC:24V 150mA Max
Leakage currentDC:≤0.01mA no-Load
Residual votageDC:≤1.5VDC No-load
Operating temperature-20°C~+70°C
MaterialPBTand SUS304
Wiring method2M/3-wires
Protection degreeIP67
