Wholesale made in China die cutting channel creasing matrix

  • 10-49 Boxes
    $30.00
  • 50-99 Boxes
    $28.00
  • >=100 Boxes
    $26.00
Quantity:
- + Boxes available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order: 1000 Boxes)
Contact Supplier
Samples - $30.00 /Box, 1 Box (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Model Number:
GRB1.4*5.0mmP
Place of Origin:
Beijing, China
Brand Name:
Graphic
Finger tape:
Imported finger tape and glue
Punching time:
80000-100000sheets/hour
Base Color:
Black
Channel height:
1.4mm
Channel width:
5.0mm
Weight:
1.4kg/box
Certificate:
SGS
Payment Terms:
Trade Assurance Order L/C D/A D/P T/T Western Union MoneyGram
Application:
For cardboard & corrugated paper box die cutting making
Name:
Wholesale made in China channel creasing matrix

Packaging & Delivery

Selling Units:
Single item
Single package size:
71X10X4 cm
Single gross weight:
1.3 kg
Package Type:
Wholesale made in China channel creasing matrix cutter Packing:70cm/pc 50pcs/box 1.4kgs/box, 10boxes/carton Carton: 73 x 23x 22cm(length x width x height), 500-700boxes/pallet Delivery:Within 2-7 days upon receive payment
Picture Example:
package-img
Lead Time :
Quantity(Box) 1 - 100000 >100000
Est. Time(days) 2 To be negotiated
Video Description
Specifications

Name:Wholesale made in China channel creasing matrix cutter

Featrues:

 1. World’s most advanced creasing matrix made from pressboard for various die cutting jobs
2. Accurate locator – ensures perfect registration
3. Low profile chamfer – board flows freely over the matrix; board marking is reduced
4. Finger lift adhesive tape – backing paper easily and quickly removed
5. New and strong adhesive removes cleanly from the plate after use, will not move about during die cutting jobs


6. Special sizes available to suit all board types, off-centers and multi-crease for close creasing rule
7. It is extremely durable and accurate and provides benefits in time and cost.
8. Competitive price with high quality
9. Incredibly durable for short-run job with average punching times from 80,000-100,000
10. Off center, double matrix and mtrix on reels are available upon demands

Size Table:

Pressboard based Matrix Size
Unit
Base Width(mm)
GRB0.2*0.8mmP
Box
13
GRB0.3*0.8mmP
Box/Coil
13
GRB0.3*1.0mmP
Box/Coil
13
GRB0.3*1.1mmP
Box/Coil
13
GRB0.3*1.2mmP
Box/Coil
13
GRB0.3*1.3mmP
Box/Coil
13
GRB0.4*1.0mmP
Box/Coil
13
GRB0.4*1.1mmP
Box/Coil
13
GRB0.4*1.2mmP
Box/Coil
13
GRB0.4*1.3mmP
Box/Coil
13
GRB0.4*1.4mmP
Box/Coil
13
GRB0.4*1.5mmP
Box/Coil
13
GRB0.5*1.2mmP
Box/Coil
13
GRB0.5*1.3mmP
Box/Coil
13
GRB0.5*1.4mmP
Box/Coil
13
GRB0.5*1.5mmP
Box/Coil
13
GRB0.5*1.6mmP
Box/Coil
13
GRB0.6*1.7mmP
Box/Coil
13
GRB0.7*2.1mmP
Box/Coil
13
GRB0.7*2.3mmP
Box/Coil
13
GRB0.8*2.5mmP
Box/Coil
13
GRB0.8*2.7mmP
Box/Coil
13
GRB0.8*3.0mmP
Box
13
GRB1.0*3.0mmP
Box
13
GRB1.0*3.2mmP
Box
13
GRB1.0*6.0mmP
Box
13
GRB1.4*7.0mmP
Box
13
How to choose

Method to choose creasing matrix size for cardboard paper.Size table(subjct to 23.8mm die-cutting rules).

For instance:the thickness of the cardboard:0.52mm;the thickness of creasing rules:0.71mm,according to calculation formula:A=0.52≈0.5(mm);B=0.52*1.5+0.71=1.49≈1.5(mm),so we should choose the size of 0.5*1.5

Instance:

A=thickness of shoulders

B=width of channel

c=thickness of cardboard≤d

d=thickness of creasing rule

A≤B=(C*1.5)+d


Method to choose creasing matrix size for corrugated paper.Size table(subjct to 23.8mm die-cutting rules).

Remarks:The above blanks just for reference and the exact specification suitable for your job should be chasen according to your actual conditions and material thickness.

Instance:
A=thickness of shoulders
B=width of channel
c=thickness of corrugated paper
d=thickness of creasing rule

e=thickness of corrugated paper after compression≤d
A≤B=(e*2.0)+d

How to use Creasing Matrix

1.Measure the length of the creasing rule.
2.Mark the measurement and cut the matrix.
3.Mount the cut piece onto the creasing rule with locator.
4.Remove backing strip to revel adhesive membrane
5.Lock into press&index machine to place matrix on machine to place matrix on opposing platen.
6.Remove locator strip by pulling firmly upwards.
7.Mitre to suitable angle.

Product information

Item Name
High Quality Creasing Matrix( Imported Finger lift tape and glue)
Matrial
Pressboard
Base color
Black
Customer Design
Welcome
Sample
Available
Sample Price
Free
Sample Last Time
About 3 days
Payment Terms
TT/Westerm union/Money Gram
Production Time
2-5 days
Delivery Port
Tianjin or Shanghai

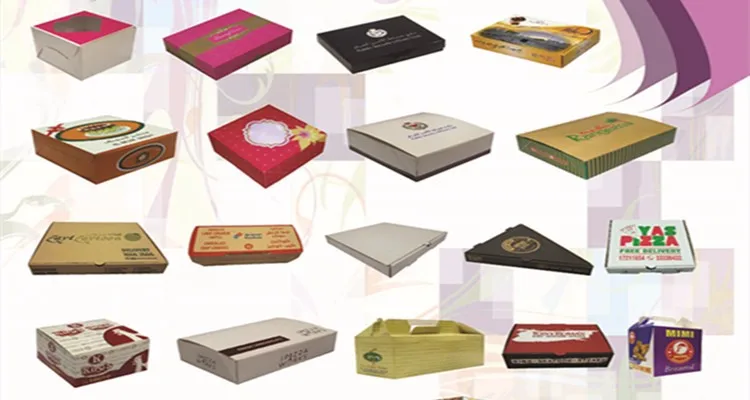

Finished products
About us

    Beijing Graphic International Trade Co., Ltd is a joint venture created by Changzhou Machinery Blade Co.,ltd and ChangZhou Xinyitong Electrical & Mechanical Technology Co.,ltd, who is one of the world's leading and professional supplier of printing equipments and consumables in China, providing its customers with Graphic Arts Consumables, Machines and Spare Parts for diversified jobs.
    Since its establishment in 2008, Beijing Graphic International Trade Co., Ltd is firmly in accordance with the Business Spirit"Excellent Quality, First-class Service, Honest Commitment"and remain committed to heartfelt Management Principles"Customers Supreme, Reputation First", meanwhile, we undertake"Action Priority, Efficiency Persistence"as our Enterprise Criterion.
    We are always striving for new ideas and innovative solutions. Beijing Graphic Trade stands for efficient processing ,printing and die cutting systems for most versatile applications with highest customer benefits.
    Here,Beijing Graphic International Trade Co., Ltd works on things that matter. The best people and the best technologies are taking on the toughest challenges. You will find exactly the right solution for every application and material.
