Wholesale weichai powered diesel generator 90kw alternators dynamos

FOB Reference Price:Get Latest Price
$1,000.00 - $19,999.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
POWER
Model Number:
WP90GF
Rated Power:
90kw
Output Type:
AC Three Phase
Rated Voltage:
380/220V, 400/230V,415/240V
Rated Current:
540A
Speed:
1500/1800rpm
Frequency:
50HZ/60HZ
Engine:
Cummins, Perkins, Deutz, Ricardo, Weichai, Shangchai, Yuchai,
Alternator:
Stamford, Marathon, Leroy somer, ABB
Type:
open frame, silent type, trailer type, container type, portable type
Controller:
Smartgen, Deep sea, ComAp, Harsen
Cooling System:
Closed circle water-cooled
Starting method:
Electrical Start
Power factor:
0.8/1
Color:
yellow, blue, green, red, also according to Customers' Requirement
Certificate:
ISO, CE, CCS, OEM
Warranty:
1 year or 1000 hours
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Protection plastic + Plywood case
Export standard packing
iron case/Wooden case
Port
QINGDAO, SHANGHAI, GUANGZHOU

Wholesale weichai powered diesel generator 90kw alternators dynamos

Product Description



1.Wholesale weichai powered diesel generator 90kw alternators dynamos with world famous brand engine, such as CUMMINSS, PERKINSS, VOLVO, DEUTZ, MAN,RICARDO, WEICHAI, YUCHAI, JICHAI,low oil consumption and low emission.
2. Alternator "STAMFORD" "MARATHON" "Leroy Somer" Brand 100% copper brushless alternator.Protection Class: IP23, Insulation Class:H
3. 8-24 hours fuel tank
4. Super silent: 65-70dB(A)-7M
5. It adopts advanced design idea and advanced technology. Featured with good ecomomic peroformance, low oil consumption, small volume, compact structure, great power, running stability, easy-installation, easy-operation and maintenance.
6. Automatic controller with ATS. can also connect to grid.
7. It is galvanized. Moistureproof and derusting processing, effectively protect the genset from humid weather
8. Type: Open skid/ Soundproof/Mobile trailer/Container/Canopy, it can meet different demand.

9. Global serviced

10. CE ISO for electric generator



Product NameWholesale weichai powered diesel generator 90kw alternators dynamos
GeneratorGenset ModelWP90GF
Rated Frequency50Hz
Power Factor0.8
Rated Voltage230V/400V
Rated Power (KW/KVA)90KW/112.5KVA
Phase/Wire 3Phase, 4Wire
Overall Size (m)1.7*0.6*1.4
Weight (kg)1400kg
Diesel EngineModel

WP4.1D115E201

Rated Power(KW)105KW
Intake Type Natural
No. of Cylinder 4
Bore×Stroke (mm)105*130
Lube Oil Capacity (L)10
Fuel consumption(g/kw.h)≤208
AlternatorModel Wattek,Marathon,STAMFORD,ENGGA
Rated Power (KW/KVA)90KW/112.5KVA
Excitation TypeBrushless
Insulation ClassH
Material100% pure copper

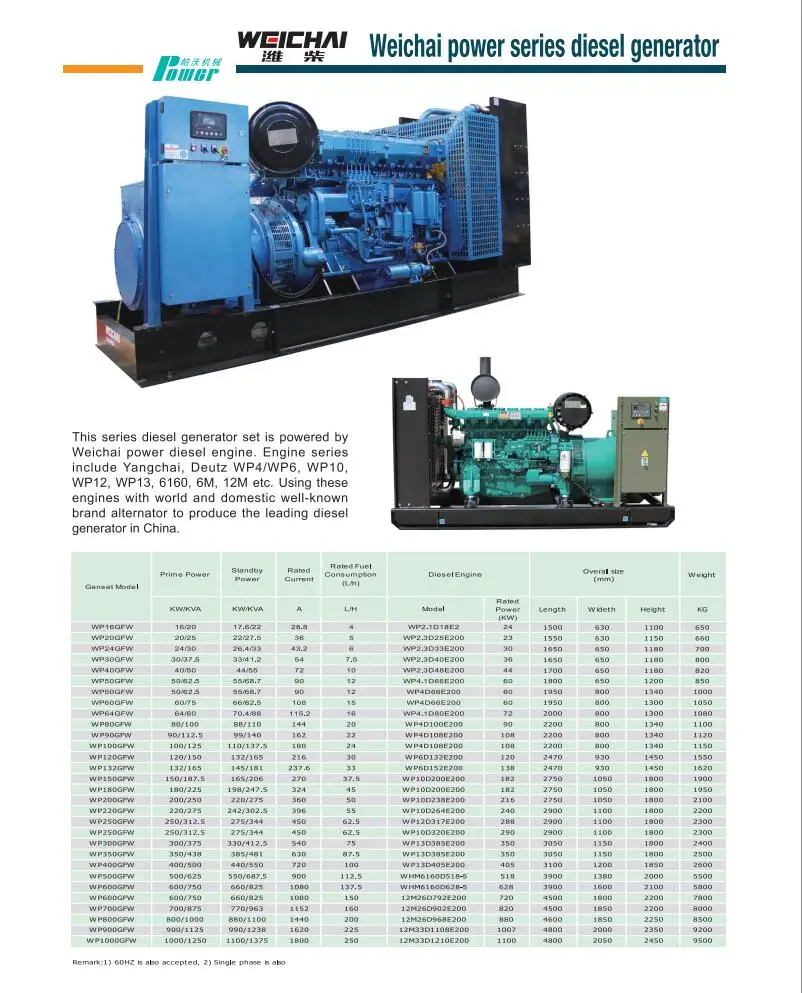

Weichai series products absorbed foreign advanced technology and then develop and design on its own, through optimizing the fuel system and the intake and exhaust system, to achieve the special requirements of generating sets, has higher reliability and better adaptability, has now become an ideal supporting power of generating set for the  fixed power plant backup power, high frequency air power plant, special power.



View more-Open type genset

View more-Silent type genset

View more-Trailer type genset





Optional automatic control digital system

1) Brand: Deepsea, Harsen, Smartgen, etc.
2)
Adopt Genset controller with LCD display, taking microprocessor as the core.
3) The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated
electricity /grid electricity.

4) The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts.

5) Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc.

Production Flow



Packaging & Shipping





Company Information



Weifang Power Machinery Equipment Co.,Ltd is based in the world beautiful kite city---Weifang City, Shandong Province, mainly engaged in R&D, producing and marketing of all kinds of diesel generator, gas generator and diesel water pump sets.

Power Machinery annual production of various types of gen-sets is more than 5000 units, power coverage 10—2000kw. It is coupled by world famous brand engine such as Perkins, Cummins, Deutz, Weichai, Yuchai etc with world famous brand alternator such as Stamford, Marathon, Simense etc. It currently widely used in the national defense, telecommunications, petroleum, medical, plateau, railway, wilderness rescue, agriculture and other fields.
