Widely Used Invisible Ink Pen with UV Light Hologram Printing

FOB Reference Price:Get Latest Price
$7.00 - $7.50 / Kilograms | 50 Kilogram/Kilograms (Min. Order)
Lead Time:
Quantity(Kilograms) 1 - 1000 >1000
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
UV curing acid resistant and anti etching ink
Printing Type:
Screen Printing
Place of Origin:
Hubei, China
Brand Name:
Nuojinsen
Model Number:
757487
Color:
Green
Fineness:
≤8m
Mixing ratio:
Base/Hardener=23/2
Viscosity after mixing (25℃):
250±50 dPas
Density after mixing (25℃):
1.20 ~1.40 g/ml
Screen mesh:
36~51T
Film thickness:
18 ~22m
Curing energy:
150℃ , 30 ~60min
Pot time after mixing:
24 hours
Pencil hardness:
≥6H
Supply Ability
Supply Ability:
800 Ton/Tons per Month
Packaging & Delivery
Packaging Details
5kg/pot;12kg or 20kg/carton or custom
Port
lianyungang or shanghai
Lead Time :
Quantity(Kilograms) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated
Product Description

Widely Used invisible ink pen with uv light hologram printing

Product details

ColorGreen
Fineness≤8m
Mixing ratioBase/Hardener=23/2
Viscosity after mixing (25℃)250±50 dPas
Density after mixing (25℃)1.20 ~1.40 g/ml
Screen mesh36~51T
Film thickness18 ~22m
Curing energy150℃ , 30 ~60min
Pot time after mixing24 hours
Pencil hardness≥6H
Product Keywordsinvisible ink pen with uv light,ink uv,hologram uv ink printing

Product Description
Operating Parameters



1.Open oil
After the ink is fully mixed to the mixing,stirring after the static 15min above,so that the ink viscosity stability in the use of ink use do not need to add a diluent,such as viscosity is too large,can be used as a special diluent debugging,but the amount can not be added more than 5%.(in order to make good adhesion to the substrate,the cleaning operation is preferred)

2.Screen printing
Screen printing:take 100-120T nylon diagonal net tension,23+1N
Rubber scraper scraping:65 degrees-75 degrees of good elasticity,sharp edges,squeegee angle of 5-20 degrees,2-6kg/cm-pressure

3.UV curing
Energy:800-1500mj/cm
Note:according to the different equipment,conveyor belt speed and energt have a greater difference,but should be completely cured ink is appropriate.

Matters needing attention
This specification in all parameters and results for the company's test data,can only be done for early reference,as a guarantee and basis,pratical application to customers for the field test conditions and test results.

Packing and Shipping





Base:920 g ; Hardener:80 g

Base:4.6 kg; Hardener:0.4 kg

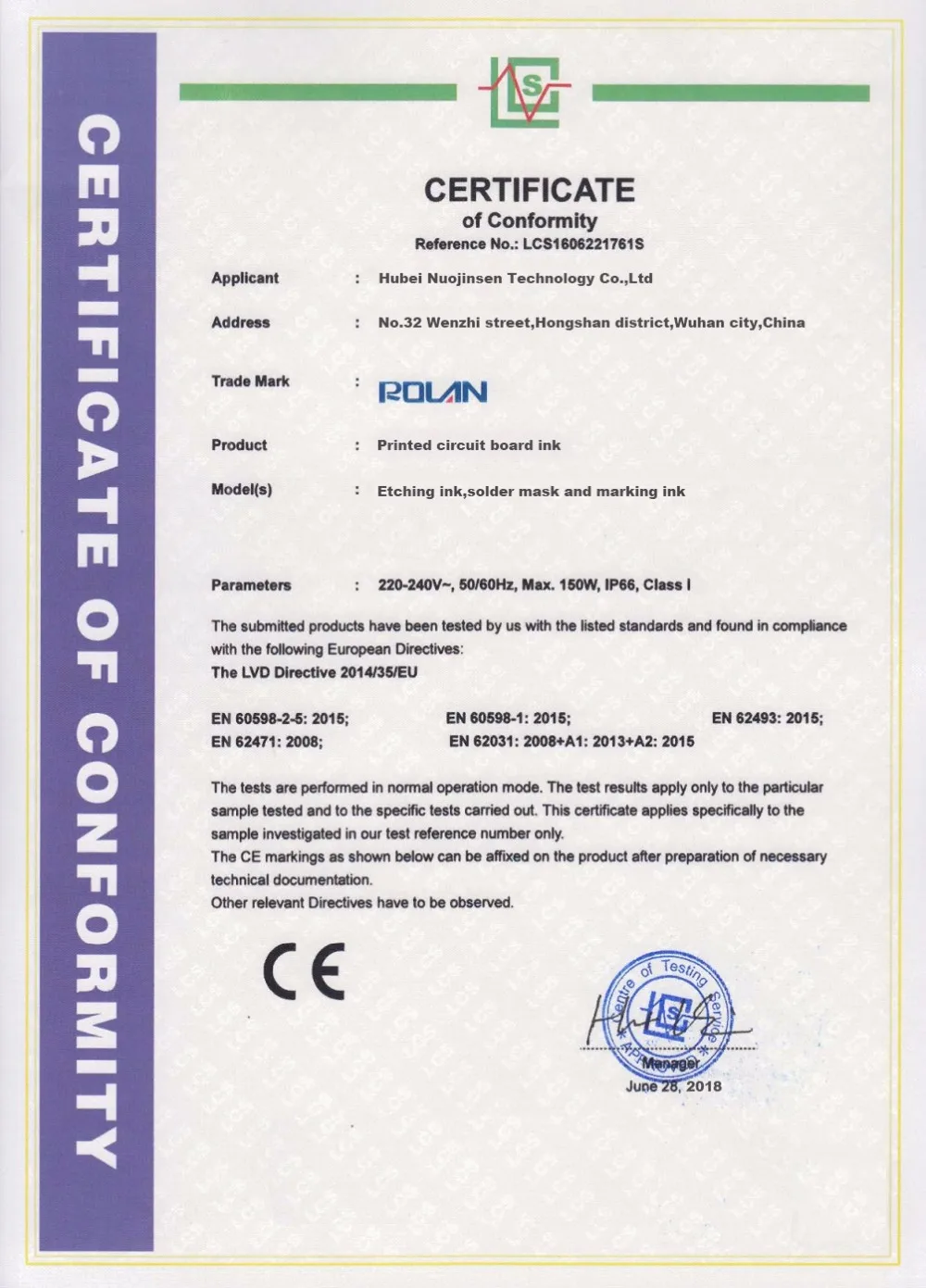

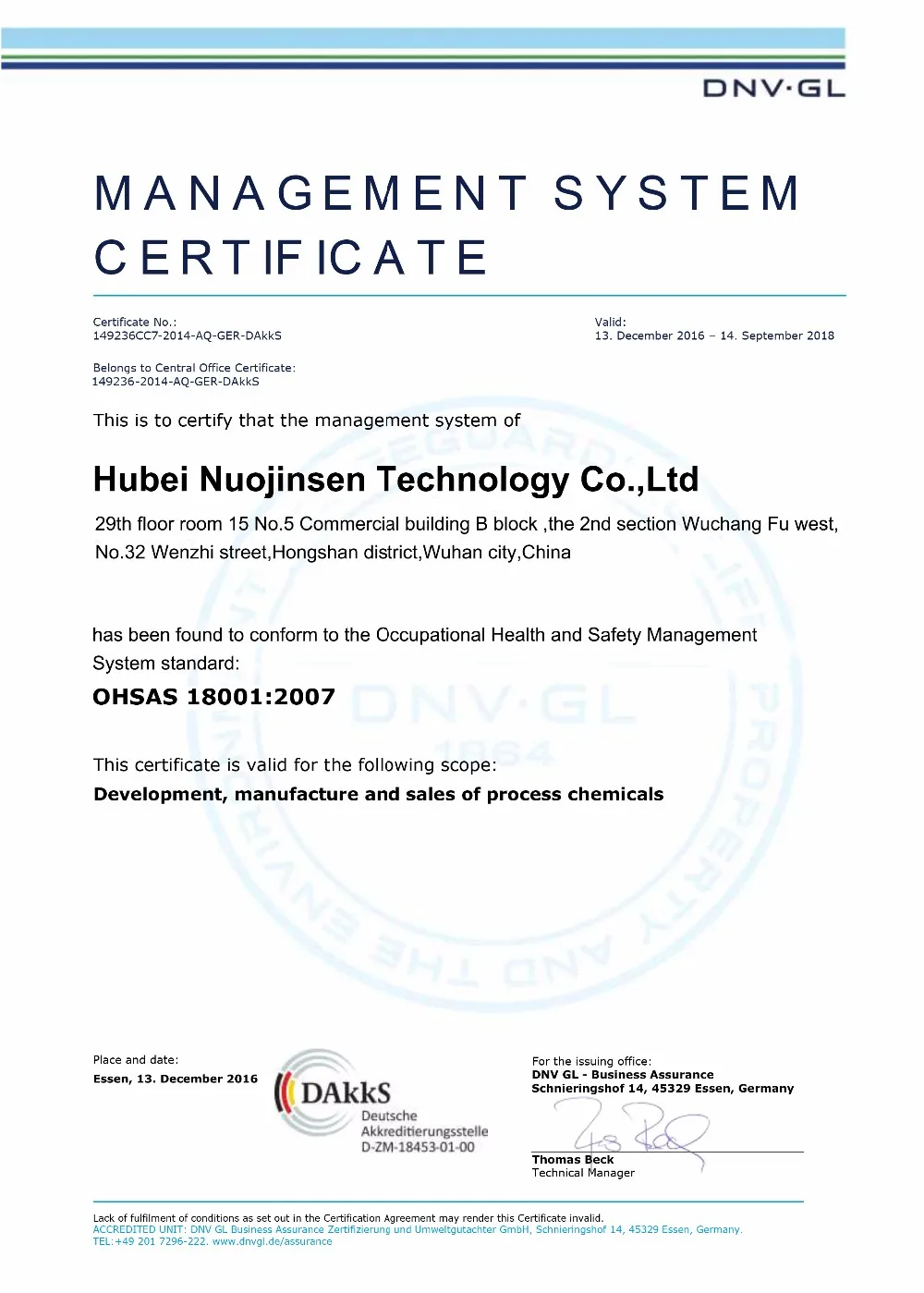

Certificates
