Wire Mesh Shot Blasting Machine /Aluminum or cast iron, ceramics and other small parts

  • 2 - 2 Sets
    $38,500.00
  • >=3 Sets
    $35,800.00
Model Number:
QWD series
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 10 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Abrator
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Dongheng
Feature:
Critical Cleaning / Residue Free, Non-Toxic, Rust / Corrosion Inhibitor
Fuel:
Electric
Certification:
ce, Patent and ISO9001
Use:
Burnishing, Container / Bottle Cleaning, Descaling / Stripping
Cleaning Process:
abrasive/grits/sand/shot
Cleaning Type:
abrasive/grits/sand/shot
Industry Used:
machinery, foundry, automobile, forging, mechanical and steel industry
Material:
Metal / Coil
Power:
Depend
Dimension(L*W*H):
depend
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training
Function:
Wire mesh belt type shot blasting and cleaning machine
Optional:
PLC control system
Electricity key parts:
Siemens, Omron, Schneider, Mitsubishi
contribute to painting and coating.:
Remove rust and corrosion
Application:
steel structure, casting, forging, aluminum alloy parts and other
Supply Ability
Supply Ability:
686 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wire mesh belt type shot blasting machine wrapped by plastic, then into MDF wooden carton, so avoid rust during shipping. Or Nude packing.
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 10 15 To be negotiated

Wire Mesh Belt Shot Blasting Machine



Product Description
QWD Series Wire Mesh Belt Type Blasting Machines for Rust Removal
  • Application: Wire Mesh Belt type continuous production shot blast cleaning machines are designed to offer high production cleaning of various parts and castings. They provide a cost effective solution  for batch cleaning, deburring, descaling, decoring and peening a wide variety of products.
  • Equipment: Wire Mesh Belt Conveyor, blasting chamber, blast wheel, abrasive recycle system, separator , dust collector,  digital control panel etc.

Design and Sequence of Operations

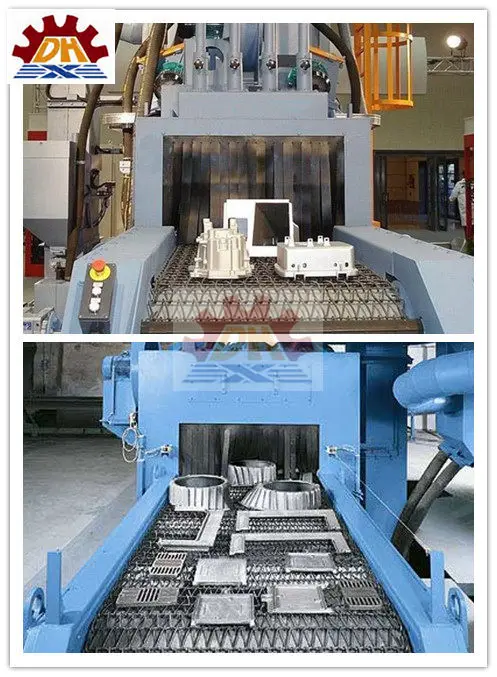

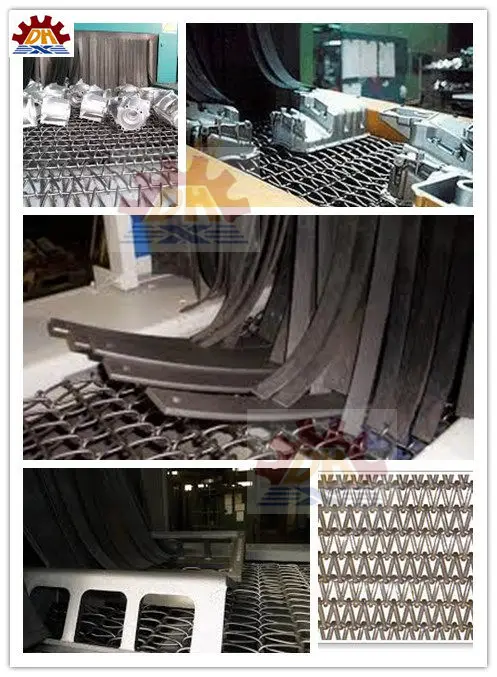

  • Parts placed on the wire mesh belt conveyor continuously pass through abrasive tight entry vestibule into the blast chamber.
  • The quantity and placement of the blast wheels coupled with the blast wheel horsepower determine the cleaning capacity and production capabilities of the machine. Blast wheels ensure complete coverage and cleaning of every angle.
  • The parts are blast cleaned passing through the blast chamber and then exit through the series of seals in the egress vestibule.

Wire Mesh Belt Type Blasting Machine Uses

  • Deflashing
  • Descaling
  • Profiling
  • Surface Finishing
Machine details:
  • We offers a complete line of stationary, airless centrifugal blast cleaning machinery that clean items at a fraction of the cost of conventional air-blast cleaning methods.
  • Our direct drive blast wheels offer consistent production and superior performance.
  • The abrasive media is cleaned and recycled, reducing disposal and minimizing abrasive costs.
  • Several product groups are available, as well as specially engineered products to meet individual requirements.
  • The number and power of the turbines are chosen according to the requirement production rate.
  • Optional PLC control system, stable quality and easy to get support from local.
  • Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi.
  • No-pit, easy for install and move and save cost.
  • Compacted structure and scientific design. Can be designed and manufactured according to the order.
  • Widely used in cleaning and strengthening for Fragile parts.
  • 20 years experienced engineers, customized service avaliable.
  • After-sale service support will be provided within 24hours.

Technical Parameter



ItemQWD60QWD80QWD100QWD120
Width of wire belt (mm)60080010001200
Cleaning speed  (kg/min)0.5-40.5-40.5-40.5-4
Abrasive flow rate (kg/min)4*1204*1204*1804*250




Contact Us
Related Products

Company Information



Our Services



Packaging & Shipping

Plastic wrap - - MDF wooden carton --  container -- ship -- your factory



FAQ

1,What is the target market for this machine?

The Blaster is designed for customers who require a more sophisticated method than just manual cleaning in preparation for further processing or painting.



2,What type of abrasive media does it use?

The Blaster is designed to use round steel shot. The shot is recycled inside the system and gets smaller and smaller during the blasting process, until it is completely consumed. Approximately two tons are required for start-up, and approximately 20 pounds are consumed per blasting hour. Replenishment is easily done as needed.

 3,What utilities are needed to run the Blaster?

The electrical system runs on three-phase input and a transformer will be provided for your supply voltage if required. Clean and dry compressed air supply is also needed.



4,What does it cost to operate?

The highly efficient turbines require much less power that competitor's shot blast machines. Including abrasive consumption, power consumption and maintenance, the total operating cost averages around $20 per hour in US. When comparing this to your current methods, keep in mind that the Blaster is at least 4 to 5 times as productive as manual cleaning and only one operator is required to load and run the machine while it is working. Labor costs are much lower, plus you will have a huge amount of extra capacity for cleaning.

 5,Are there any special operator skills required for the Shot Blaster?

No, once the machine is installed and adjusted by our technician, running the machine consists of merely switching it on and setting the speed dial for the desired surface finish. Maintenance is simple too.
