Wireless Analog Signal Gateway soil temperature-moisture sensor

FOB Reference Price:Get Latest Price
$100.00 - $300.00 / Set | 10 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1000 >1000
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 500 Sets)
Customized packaging (Min. Order: 500 Sets)

More

Graphic customization (Min. Order: 500 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hong Kong S.A.R.
Brand Name:
Easemind
Model Number:
G7-AD
Product Name:
Wireless Analog Signal Gateway soil temperature-moisture sensor
Operating Voltage:
2.6~3.6V DC
RF Wireless:
433 MHz, 4.8Kbit/s
Protocol:
Active TCP/Modbus TCP
Enclosure:
plastic
Transmission Interval:
User Programmable 5s~ 3H
Battery Life:
Average 2 year
Certificate:
CE, RoHS
application:
Wireless Analog Sensor
Output:
Analog SENSOR
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton Box,Wireless Analog Signal Gateway soil temperature-moisture sensor
Port
HongKong
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1000 >1000
Est. Time(days) 10 To be negotiated
Product Description

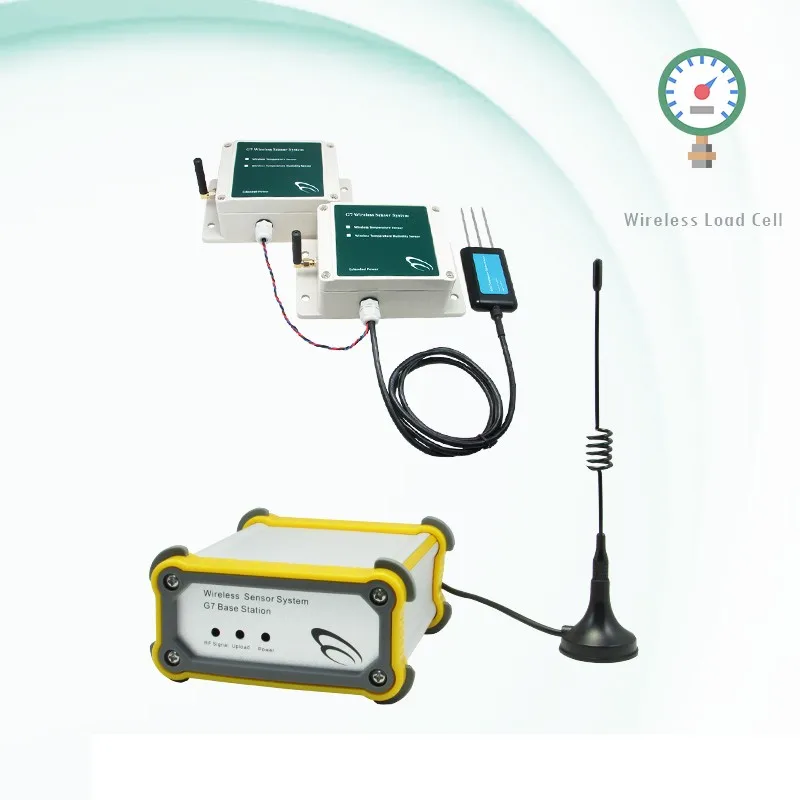

Wireless Analog Signal Gateway soil temperature-moisture sensor

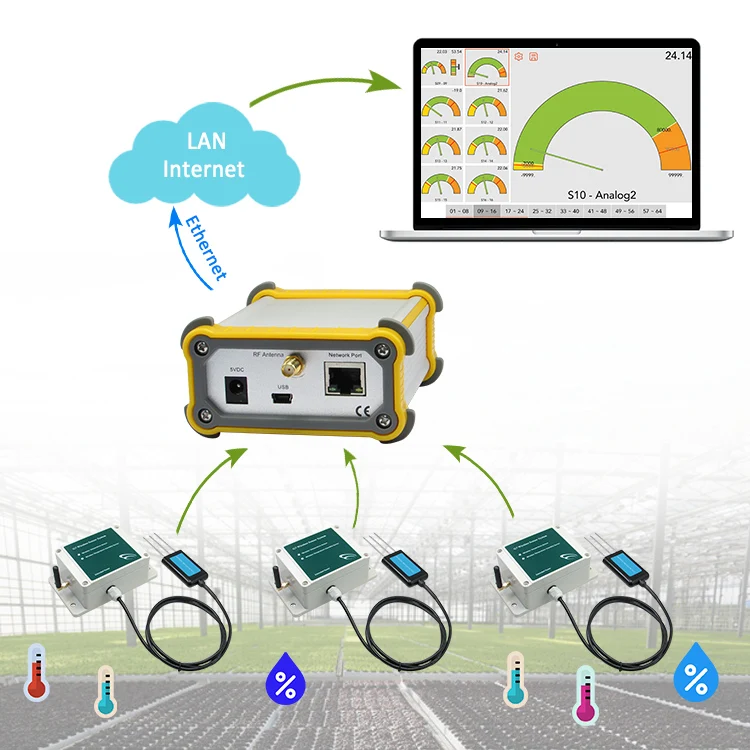

With G7 wireless analog sensor and Base Station, you can start monitoring sensor measurement online remotely.

Wireless sensor G7 transmits measurement of any industrial analog sensor with 4-20mA/0-5VDC signal to Base Station via wireless signal. Base Station collects all the wireless sensors readings and uploads to central server in interval via Modbus TCP protocol.

G7-Centre App receives data from Base Station over Internet or LAN.

G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding how measurement changes, user can be alerted by high or low level of sensor reading e.g. air pressure, water level, load cell or CO2.

G7-AD is a wireless sensor system supporting up to 60 analog sensor.
It works on 433MHz RF.

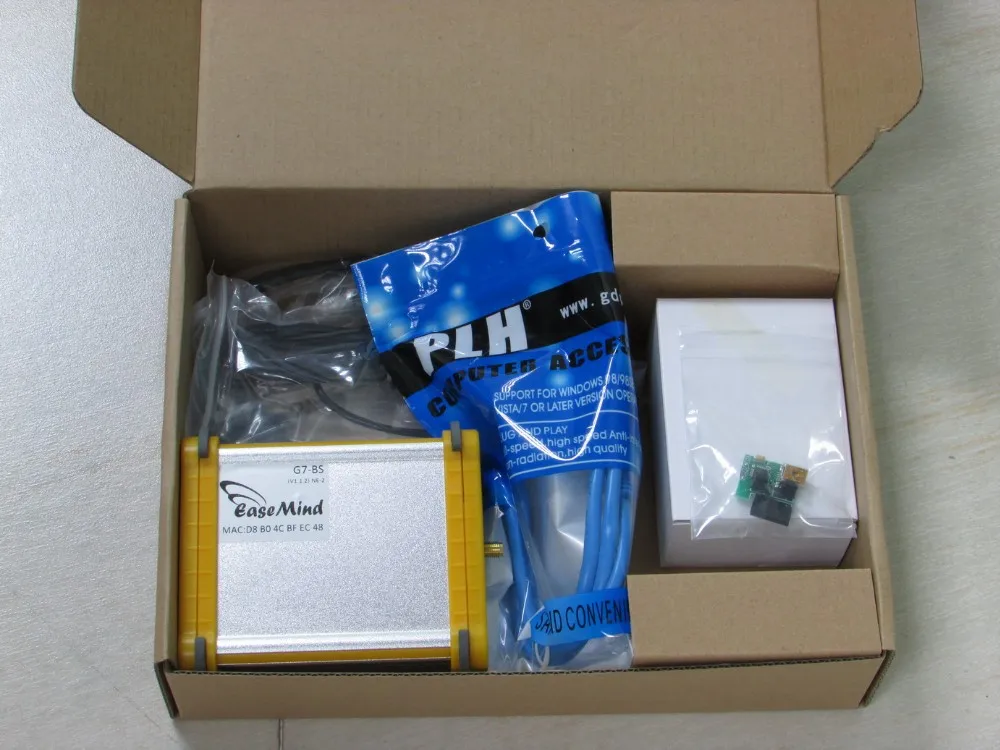

[In the Package]
1 x Base Station & RF Antenna
1 x AC/DC Adaptor
1 x Ethernet Cable
Up to 64 x Wireless Sensors in one single system

[How it Works]
(1) Wireless Sensor
The sensor transmits the analog sensor reading to Base Station wireless over radio frequency up to 1200 meter unblocked. Its internal battery operates for average one year. All sensors are waterproof and internal/external antenna adjustable.

* G7-AD Wireless Analog Sensor
* G7-D2 Wireless Digital Alarm Input
* G7-T2/TX Wireless Temperature Sensor
* G7-H2/H3 Wireless Temperature Humidity Sensor
* G7-T2/TX-Ex Wireless Temperature Sensor [Extended Power]
* G7-H2/H3-Ex Wireless Temperature Humidity Sensor [Extended Power]

(2) Base Station
It is a gateway between user and sensors. Base Station receives reading from max. 64 wireless sensors in a range of 1200m. This station is connected to the Internet or LAN connection. Information of all sensors collected in one data record is then sent to the central computer over LAN or Internet in Modbus TCP protocol.

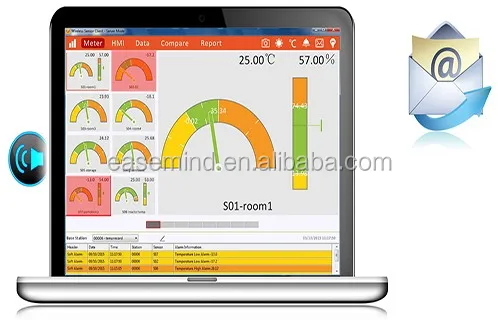

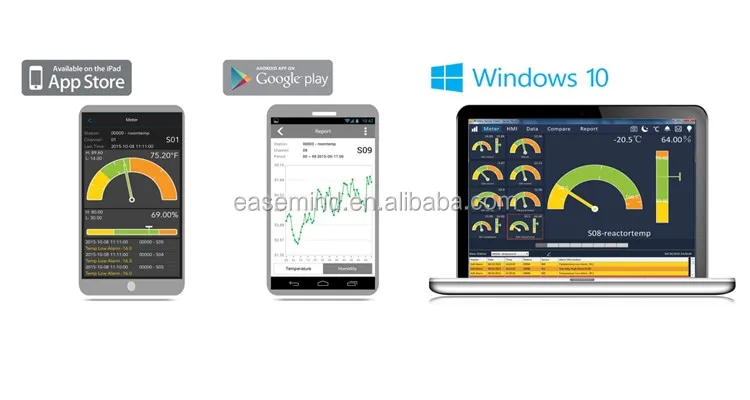

(3) G7 Wireless Client App for Windows, iPad, Android
By using free G7 Client Lite, users receive data from Base Station over LAN or Internet. Data will be saved into file for future analysis and displayed in graphics with live alarm alert.

[Applications]
* water pipes network real time monitoring – flow rate or pressure sensor
* oil/gas pipes network, pump stations – flow rate or level sensor
* underground water level real time monitoring
* environmental monitoring system - wind/CO2/pressure/light sensors
* remote Industrial equipment monitoring
* wide area equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via Wi-Fi
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry – load cell, CO2, light sensors

G7-AD
Wireless Analog Sensor
Analog Sensor
4~20mA signal input
0~5VDC signal input
Transmission Interval:
User Programmable 5s ~ 4 hours
Sensor ID:
Unique 8 digits
RF Wireless:
433 MHz, 4.8Kbit/s
RF Power:
10dBm
Wireless Distance:
1200 meter (unblock)
Operation Rating:
80mA (data transmission)
Standby Rating:
~3.0uA (sleep mode)
Operating Voltage:
7~10V DC
Battery Life:
Average 1~2 year
Dimension:
115 x 90 x 55 mm
Base Station

Protocol:Active TCP

Modbus TCP

Network Port: 10/100M Ethernet

Data Packet: Instant on incoming data of connected sensors

RF Wireless: 433MHz, 4.8Kbit/s

RF Address/Band: 255/15

Operating Voltage: 5 ~ 12V DC

Rating: < 130mA

Operating Temperature: -35 ~ 75 °C

Dimension: 80 x 60 x 35 mm
Protocol
Active TCP
Modbus TCP
Network Port
10/100M Ethernet
Data Packet
Instant on incoming data of connected sensors
RF Wireless
433 MHz, 4.8Kbit/s
RF Address/Band
255/15
Operating Voltage
5 ~ 12V DC
Rating
< 130mA
Operating Temperature
-35 ~ 75 °C
Dimension
80 x 60 x 35 mm
Detailed Images
Packing & Delivery
Our Company

Easemind Technology Ltd. is established by a team of engineers and programmers specialized in industrial and telecommunication fields.

We have been in business of hardware and software development of wireless data logging devices and industrial telemetry equipment since 1989.

The business and marketing concept of the company consists of:
• Development according to the actual market needs and customer demands,
• Utilization of reliable, trust-worthy and right-to-the-edge technology,
• Turn-around product delivery and service fulfillment within time limits,
• Cost-effective solutions: the right price for the right product, and
• One Stop Solution of hardware, software and user applications

EASEMIND is now a group of companies specialized in RF wireless sensor & mobile data tracking devices for consumer and industrial sectors. Our sales offices are located in US, Hong Kong and China with manufacturing facilities in Zhejiang and Shenzhen, China.
