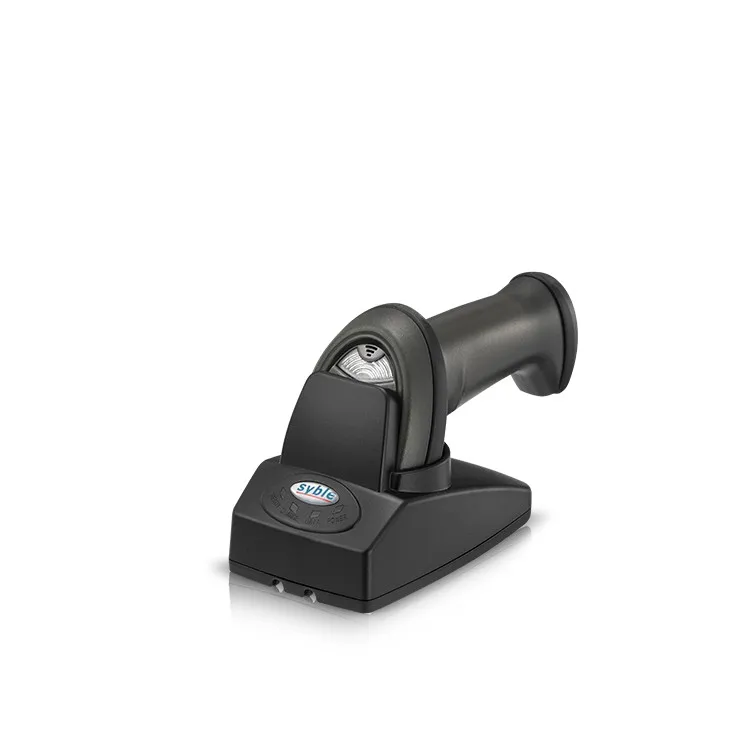

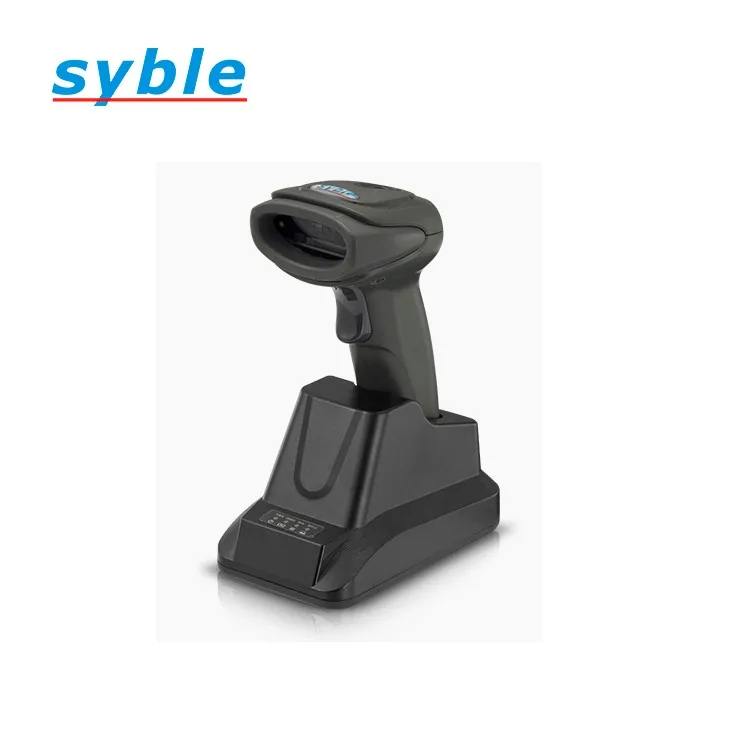

Wireless Handheld XB-6266MBT 2.4G 2d bluetooth barcode scanners module with charging base

$50.00 / Set | 1 Set (Min. Order)
Model Number:
XB-6266MBT
$50.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
1 day(s) after payment received
Customization:
Customized logo (Min. Order: 200 Sets)
Customized packaging (Min. Order: 500 Sets)

More

Graphic customization (Min. Order: 1000 Sets) Less
Contact Supplier
Samples - $50.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CMOS
Colour Depth:
32 Bit
Interface Type:
PS/2, USB
Max Paper Size:
A4 Size
Optical Resolution:
5mil
Scan Speed:
>25 in/63cm per second
Brand Name:
Syble
Place of Origin:
Guangdong, China
Color:
deep grey
Dimensions:
50*42*60CM
Interface:
USB,PS2,RS232
Materials:
ABS+PC
Error rate:
Less than 1/5million
Battery:
lithium 2200mAh
Scan type:
Image COMS
Light source:
617nm LED Aimer,White LED
Scan angle:
Yaw 60°,Rotation 360°,Pitch 60°
Gross Weight:
26KG

Packaging & Delivery

Selling Units:
Single item
Single package size:
19X10X8 cm
Single gross weight:
0.5 kg
Package Type:
Standard packing list 1*barcode scanner 1*manual 1*charging base 1*adaptor 1*box 20 Units/ Carton
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 3000 >3000
Est. Time(days) 1 To be negotiated
Video Description
Product description
Wireless Handheld XB-6266MBT 2.4G 2d bluetooth barcode scanners module with charging base

Model:XB-6266MBT

Specification

Model Number

XB-6266MBT
Performance Parameters
Light Sources617nm LED Aimer,White LED
Supported Symbologies

1D:Codabar、Code 11、Code 39/Code 93、UPC/EAN、Code 128/EAN128、Interleaved 2 of 5、Matrix 2 of 5、MSI Code、Industrial 2 of 5、GS1 Databa

2D:QR code、Data Matrix、PDF417

Scan TypeImage COMS
Scan MethodManually/Contnuous/Automatic inductive scanning
Scan AngleYaw 60°,Rotation 360°,Pitch 60°
Precision≥5mil
Depth of scan field6-250mm
Error RateLess than 1/5 million
InterfaceUSB-HID,USB-COM
Operating FrequencyBluetooth V2.1+EDR(Class 1)
Transmission Distance≤100M(Open yard)
Storage Ability512000Bytes
Pairing ModelOne to one,Many to one,(Max 7 channels)
Receiving EndDedicated Bluetooth receiving base, Android、IOS Mobile devices
Physical Parameters
Dimensions85mm*62mm*154mm
Weight323g
MaterialABS+PC
Cable Length1.2M
Environmental Parameters
Operating Temperature-20℃~60℃
Storage Temperature-40℃~70℃
Relative Humidity5%~95%(Non-condensing)
Electrical Parameters
VoltageDC5V±5%
Current300mA
Lithium battery2200mA
Battery Working Times7h
Charging Time5h
Standby Current2mA


Related Products

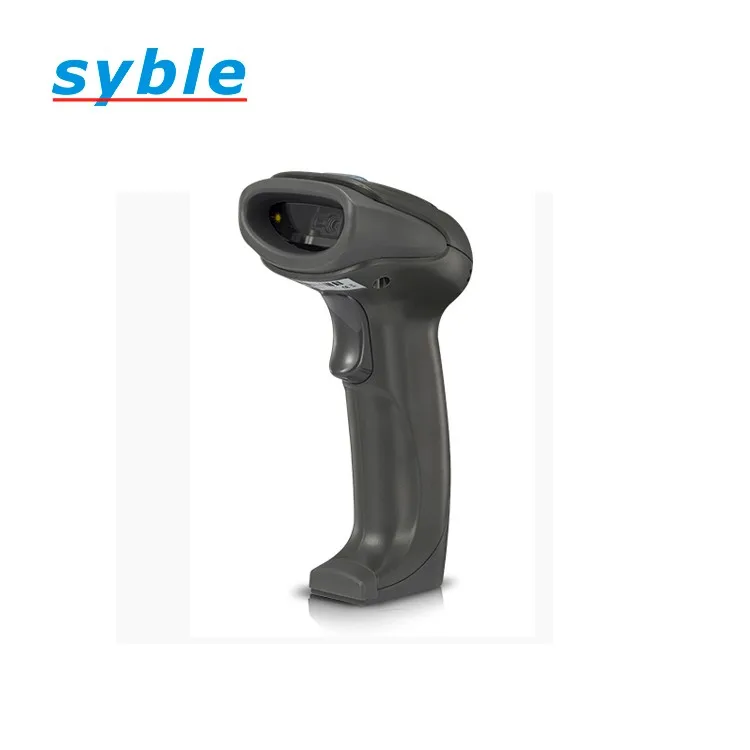

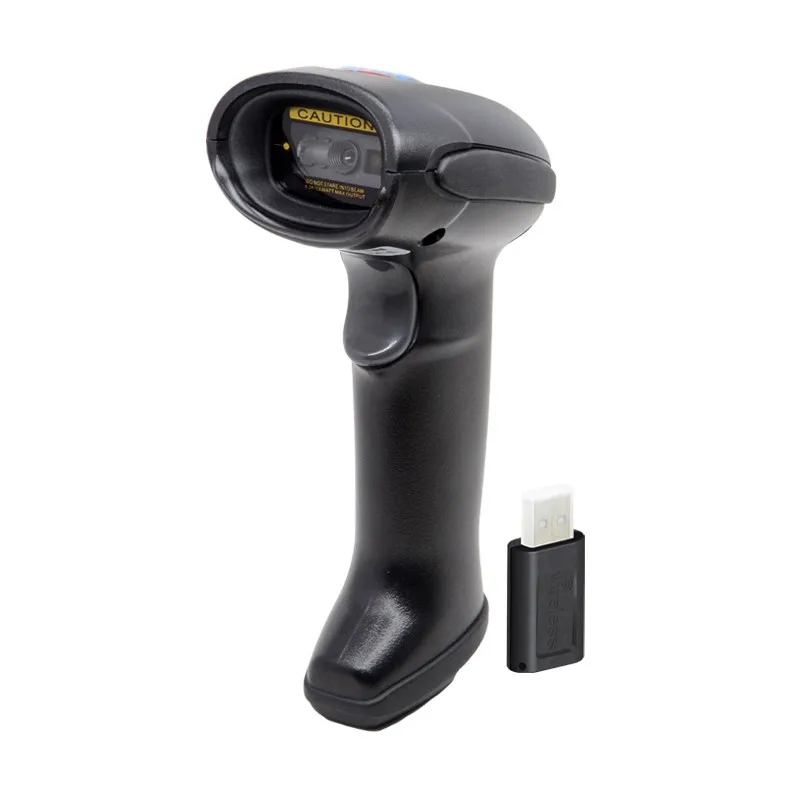

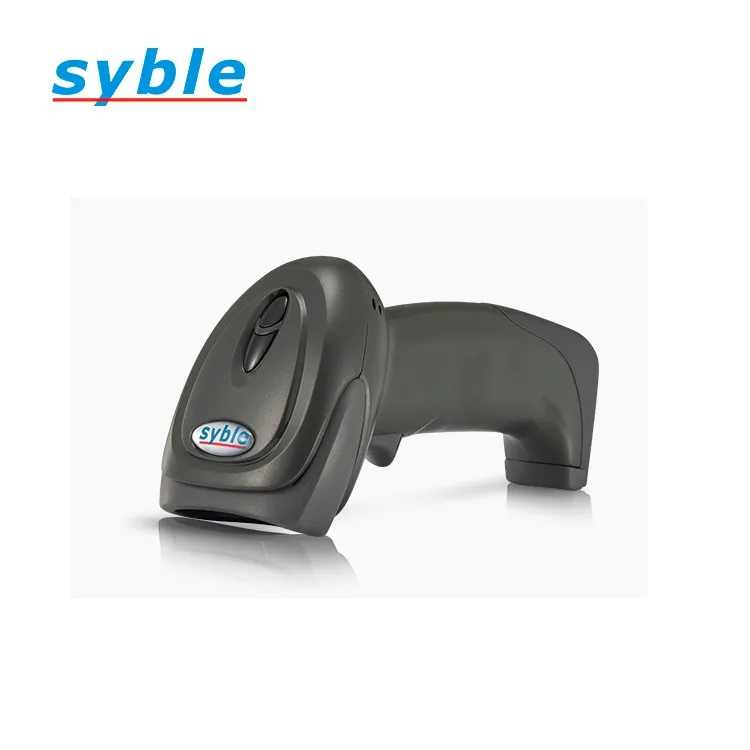

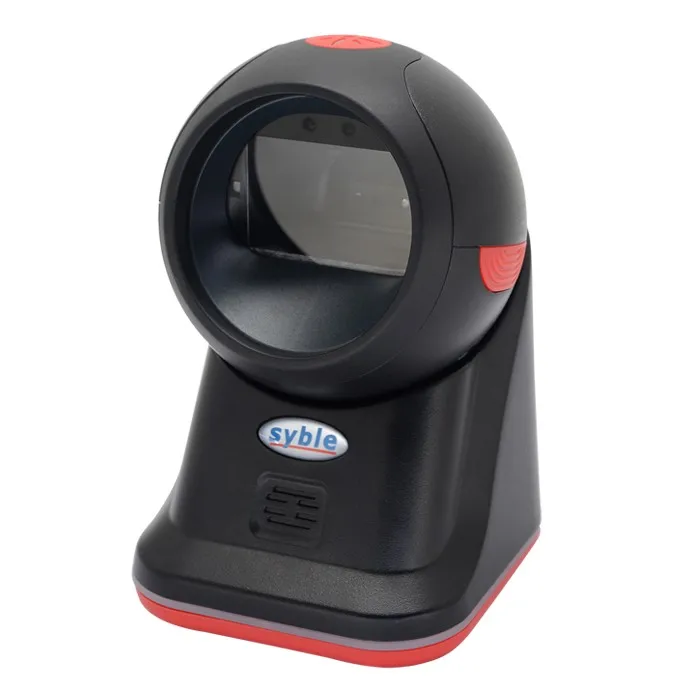

2D Barcode scanner ( wired/wireless/bluetooth)

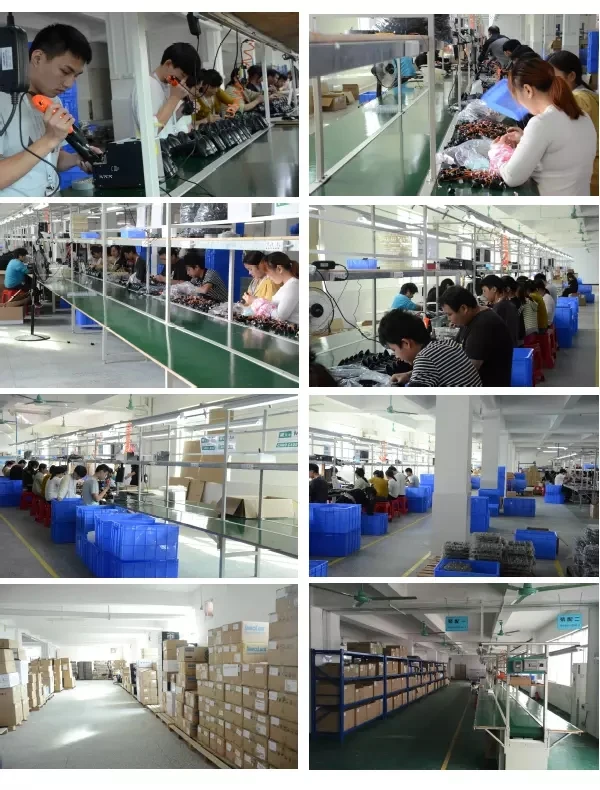

Our Company

Guangzhou Xunbao Electronics Technology co., LTD is located in Guanzhou .It is a high-tech enterprise that specializes in the R&D, manufaturing , supplying ,and service of automatic identification products .



We are professional in manufacturing and designing barcode scanner with strong R&D team . Our team have an average of many years' working experience in barcode identification industry .

Main products cover 1D/2D barcode scanner , 1D/2D scan engine , wired/wireless scanner ,product quality comply with international standard.

Our barcode scanners have been widely used in many industries , such us Auto, Electronic ,and payment ,etc.

Our company is developing rapidly , so we are looking for reliable and qualified partner from all over the world to open up more market .

Certifications

Certificates Approved :

ISO9001:2008,CE,ROHS,FC,FDA,DOC,SGS,IP54Waterproof Test, IEC60825 etc.

Aplication
More information

our company website: www.syble.cn

Our barcode scanners have been exported to many countries:

Singapore, India,Philippines, Vietnam, Indonesia, Malaysia, Thailand,

Dubai, Saudi Arab, Turkey, Russia, Ukraine, Germany, UK, France, Denmark,

 Netherland, Peru, Columbia, Canada, USA, Australia, Newzeland, etc.

Looking forward to your joining!
