Wireless Uart bluetooth 4.0 Wifi BT Combo module on data transmission for iot

FOB Reference Price:Get Latest Price
$3.00 - $6.00 / Pieces | 2 Piece/Pieces (Min. Order)
Samples - $6.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
D/C:
FSC-BW226
Package:
Pallet Package In Carton
Model Number:
FSC-BW226, FSC-BW226
Type:
Other
Brand Name:
Feasycom
Place of Origin:
Guangdong, China (Mainland)
Version:
Bluetooth 4.0
module:
bluetooth module and wifi module
Application:
beacon, printer
Product Size:
13*26.9*2.0mm
Power Supply:
3.3V
product name:
Wireless Uart bluetooth 4.0 wifi module on data transmission
Function:
Data Transmission
Wifi Frequency:
2.400~2.4835GHz
Bluetooth Frequency:
2.402 - 2.480 GHz
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Pallet Package In Carton
Port
Shenzhen

Wireless Uart bluetooth 4.0 Wifi BT Combo module on data transmission for iot



The FSC-BW226 is a highly integrated WiFi + BT Combo module, it features a 2.4GHz ISM RF transceiver, Bluetooth V4.0 baseband controller, single-Chip low power 802.11n WLAN network controller(combines an ARM-cortex M3);With on board antenna for BT(External Antenna is optional); Need external antenna for WIFI or Equipped with the RF Connector, connect to the external antenna.

With Feasycoms Bluetooth stack running on a host, designers can easily customize their applications to support different Bluetooth profiles.

The FSC-BW226 is an appropriate product for designers who want to add wireless capability to their products.





Feature



 *Bluetooth v4.0, Class 1.5

COMS MAC,Baseband PHY,and RF in a single-Chip for 802.11 b/g/n compatible WLAN

 *UART programming and data interface (baudrate can up to 921600bps)

 *PCM/I2S audio interface(BT only)

 *I2C/AIO/PIO/PWM control interfaces

 *Postage stamp sized form factor

 *Embedded Bluetooth stack profiles support: SPP/iAP,HID,GATT,ANCS,A2DP,AVRCP,HFP, etc

 *WiFi Maximum data rate 54Mbps in 802.11g and 150Mbps in 802.11n

 *WiFi : Light Weight TCP/IP protocol

 *Support External Antenna





Application



Wireless POS

*Measurement and monitoring systems

Industrial sensors and controls

Analogue and USB Multimedia Dongles

*Asset Tracking

*Beacon

*Printer







Feasycom FSC-BW226



Categories

Features

Implementation















Wireless Specification







Bluetooth



Version :  V4.0 Dual Mode

Frequency :  2.402 - 2.480 GHz

Transmit Power:  +5.5 dBm (Maximum)

Raw Data Rates (Air):  3 Mbps(Classic BT - BR/EDR)

Wifi

IEEE 802.11 b/g/n compatible WLAN

Frequency : 2.400~2.4835GHz

Transmit Power: 17.5dBm(11 b),  15.5dBm(11 g),  13.5dBm(11 n)

802.11e Qos Enhancement

WiFi WPS & Direct support

Light Weight TCP/IP protocol

Maximum data rate 54Mbps in 802.11g and 150Mbps in 802.11n

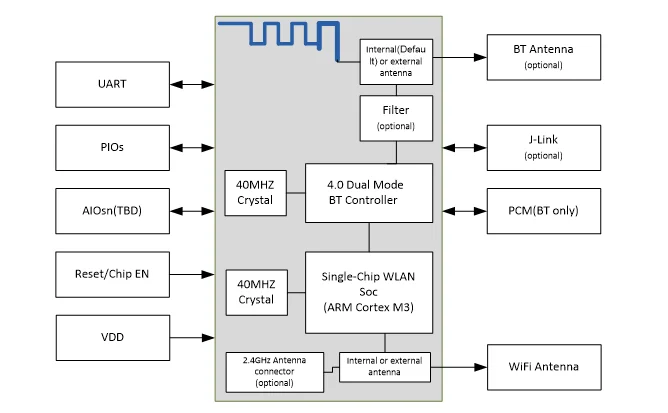

FSC-B226 Block Diagram







Things You Need To Know For Bluetooth Modules:



1 What is Bluetooth 4.0:

Bluetooth 4.0 is consists of Bluetooth Basic Rate (BR)/Enhanced Data Rate (EDR), High Speed (HS) and Low Energy (LE), Bluetooth 4.0 covers the Bluetooth 2.0,2.1,3.0 Versions. Nowadays, there are a lot of devices powered by Bluetooth 4.0, such as Bluetooth Earphone, Speakers, Vehicle Electronic Equipment, OBD, Printer, Barcode Scanner, Mobile Medical Device, Bracelet, Pedometer, etc.



2 What is Bluetooth 5.0:

Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.

Effective work distance can be 300m, 4 times of Bluetooth V4.2.



3 What is Bluetooth Dual Mode Module:

Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate (EDR)/Low Energy (LE) Functions.



4 What is BLE Module:

BLE Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Low Energy (LE) Function.



5 What are the Bluetooth Dual Mode Advantages:

There are two most frequently applied Bluetooth Profiles for the general data communication between Smart Device and Bluetooth Peripheral: BLE and SPP.



In iOS, SPP is Only Available after the Bluetooth Peripheral passed the MFi Certification, in view of the high cost and complex process of the MFi Certification, BLE is much good to use. In Android Camp, BLE is Only supported by Android 4.3 and later versions of the Android OS, this lead to the serious system fragmentation issues and make a lot of Android devices has the bad compatibility for the BLE, so SPP has a huge advantage for data communication in android.



In Summary, If one product need to support iOS and Android devices simultaneously, our Bluetooth dual mode modules are the best choice.



6 What is the transmission distance for Bluetooth Modules:

Class 2 : 10M                 Class 1:  100M



7 What is the transmission speed For Classic Bluetooth Module SPP & BLE 4.0

Under Ideal Condition:

SPP: About 80KBytes/s

BLE: About 8KBytes/s



(Remarks: When starts the audio transmission ,the transmission speed for both types will be decreased. When music on, BLE transmission speed is about 1~2KBytes/s )







Company Introduction:



Shenzhen Feasycom Technology Co.,LTD

Feasycom focus on the researching and developing of IoT (internet of things) products, including Bluetooth Modules, WiFi and LoRa Modules, Bluetooth Beacon, etc. With more than 10-year experiences in the wireless connectivity, which ensure us have the capability for providing low-risk product development, reducing system integration cost and shortening product customization cycle to thousands of diverse customer worldwide.



Feasycoms engineering and design services include:



SDK

APP Support

PCB Design

Development Board

Firmware Development

Depth Customization

Certification Request

Turn-Key Production Testing & Manufacturing



Our products and services mainly apply to Automotive, Point of Sale, Home Automation, Healthcare and Engineering, Banking, Computing, Vending Business, Location, Lighting and more.



Aiming at “Make Communication Easy and Freely, Feasycom is dedicated to design and develop high-quality products, efficient services to customers, for today, and all days to come.

 Packaging & Shipping



1.Material delivery will be arranged by DHL/UPS/Fedex/TNT/EMS,normally it will take 3-7 working days

to arrive in most of the countries.



2.We can also help you ship the goods by air line, then you fetch the packet from your local airport ,normally it takes about 2-7 days.





FAQ:



Q1. Do you have any MOQ limit for an order?

No MOQ Limit, we welcome any client to purchase the sample for test purpose.



Q2: How to proceed an order?

Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and pay deposit for the official order.

Finally, we arrange the production and shipping.



Q3: Do you accept Alibaba online orders?

Sure! We prefer to fulfill orders under Alibaba Trade Assurance system, since both parties will be protected.



Q4: Do you provide samples? Is it free or extra?

No, we are not offer the free sample, however once the order confirmed after sample approval, we will return the sample cost to you.
