Wood log debarking and rounding machine plywood making machine

FOB Reference Price:Get Latest Price
$3,800.00 - $9,600.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Spindle Speed:
52m/min
Wood Diameter Range:
80-500mm
Peeling Rate:
95%
Wood Loss Rate:
2% Wood Log Debarker
Wood Length Range:
1000-1300mm
Place of Origin:
Shandong, China
Brand Name:
TAIFU
Model Number:
TF-5620L
Voltage:
380V/415V
Power(W):
24KW
Dimension(L*W*H):
3000*2000*1380MM
Weight:
2100KG
Certification:
CE ISO
Diameter of pressurebar roller:
150mm
Power of driving roller:
11kw
Power of pressurebar roller:
7.5kw
Warranty:
One Year
Raw material:
Wood Tree Log
Color:
Customer Demand
Capacity:
10-15t/h
Feature:
High Debarking Efficiency
Loading Port:
Qingdao Port
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Standard Packing or as customer requirement
Port
Qingdao Port
Lead Time :
26days after recieve the deposit

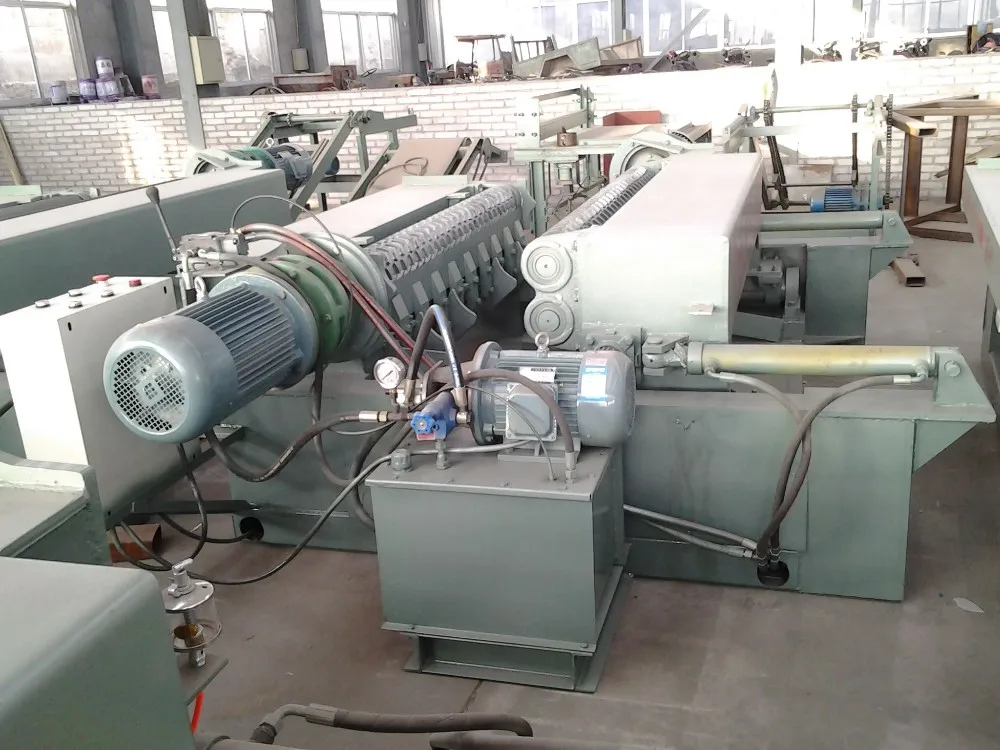

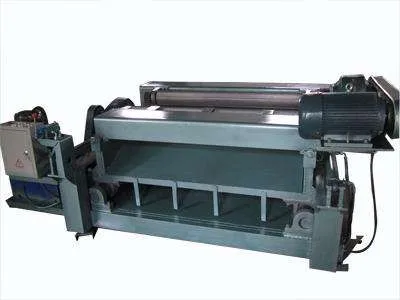

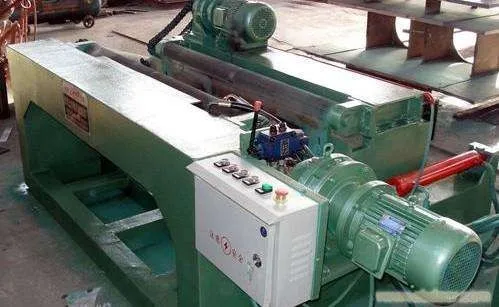

log debarker debarker and rounding mahcine
Log debarker is used forlog for round before peeling. And it is suitable for the eucalyptus, pine, cotton wood with principle of peeling, removing the log’s skin and straighten logs. Hydraulic driven feed mechanism, can quickly, efficiently put log removal of bark, round. One set debarker can supply 2 set peeling machine .it saves the original manual peeling, rounding procedure, save 5-6 workers.
SPECIFICATIONS FOR LOG DEBARKER
Configuration
Hydraulic Feed Simple Type
Length of peeler log
1000-1300mm
Diameter of peeler log
Φ80-Φ500mm
Length of blade
1400mm
Thickness of veneer peeler
1-3mm
Linear speed of host machine
52m/min
Diameter of driving roller
150mm
Diameter of pressurebar roller
150mm
Power of driving roller
11KW
Power of pressurebar roller
7.5KW
Power of cutting feed
5.5KW
Total power
24KW
Total weight
2100kg
Overall dimensions
3000*2000*1380mm

Main Features

1.Increase of single and double roll’s diameter, improving the speed of remove skin .
2.Single, double roll surface with chrome plating, improve wear resisting of roller.
3.The hydraulic feeding mechanism, a cutter, rapid, and feed pressure can be adjusted and display, adapt to different wood .
4.Simple operation, convenient maintenance, requirements for operators and workers is not high technology.

Our engineers have improved the debarker technology
1.Our CNC log debarking and rounding machine is very usefull and efficient to rotarily cut off the majority bark from the pine branch material or wood and make them straightly and smoothly.

2.The debarker machine has two fixed roller and the knife block moves with the power of two hydraulic hands.Deatils Part Introduction

1.Electric control box


Emerson technology,variable speed advanced conveyor.


2.Operating system


Advance CNC and user friendly operating system.
3.Roller

Stable roller running speed.

4.Servo motor


Harden helical gear and heavy duty gear box,servo motor

 FAQ
1. All kinds of mold can be made by customer's requirements
2. All price are based on FOB, QINGDAO, China
3. Payment: by T/T 30% down payment, 70% upon machinery completion.
4. Delivery: After finishing all the payment
5. All the parameters above just for reference, for they are updating all the time
6. Package: Standard packing
7. Warranty: All the machine enjoys one year’s warranty, in this period.
Any problems of machine, please feel free to contact us. We will try our best to make it.
Finally, We sincerely hope to establish good relations of cooperation with the friends from all over the world!  Welcome you  , my friends!! I am waiting for you...
