World Top High speed Low Power Fiber Metal Laser Cutting Machine

FOB Reference Price:Get Latest Price
$23,500.00 - $46,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CX-MFC-4115/3015/2513
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Video technical support, Engineers available to service machinery overseas
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
410*150/150*300/250*130cm
Cutting Speed:
400mm/s
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Cutting
Condition:
New
Cutting Thickness:
0-8mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Cypcut
Place of Origin:
Hubei, China
Brand Name:
CX Laser
Certification:
CCC, CE, ISO, SGS
Warranty:
2 Years
Laser power:
500W / 1000W / 2000W / 3000W
X Axis Running Distance:
1520mm/1520mm/1320mm
Y Axis Running Distance:
4130mm/3030mm/2530mm
Z Axis Running Distance:
120mm
Dimensions:
4600*2000*1500mm/3500*2000*1500mm/3000*1800*1500mm
Positioning Accuracy:
0.01mm
Machine Weight:
6800kg/6500kg/6000kg
Working area:
4100*1500mm/1500*3000mm/2500*1300mm
Keyword:
Fiber Laser Cuting Machine
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Whole film packaging machine;
2.Anti-collision package edge;
3.Fumigation-free plywood wooden box with iron binding belt.
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 To be negotiated
Video Description
Product Review
Model
CX-MFC-4115
CX-MFC-3015
CX-MFC-2513
Processing size Length* width
4100*1500mm
3000*1500mm
2500*1300mm
Laser type
Fiber Laser Generator
X Axis running distance
1520mm
1520mm
1320mm
Y Axis running distance
4130mm
3030mm
2530mm
Z Axis running distance
120mm
Max.cutting speed
400mm/s
Dimensions
4600*2000*1500mm
3500*2000*1500mm
3000*1800*1500mm
Positioning Accuracy
0.01mm
Machine Weight
6800kg
6500kg
6000kg
About Laser

The state in which different laser power density materials are present:

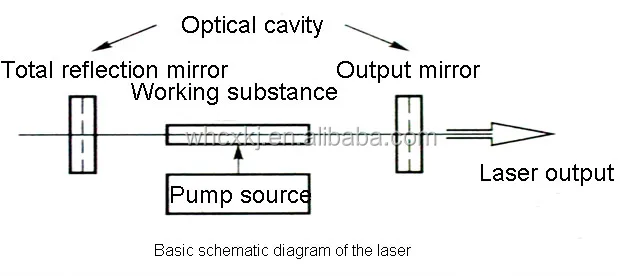

Laser generation:

Three elements:

A laser working substance - An activation medium having a metastable energy level structure

External pump source - providing energy to achieve population inversion;

Laser cavity - maintain laser oscillation;

Metal material absorption of laser light:

Reflection and absorption of metal surfaces - strong absorption and strong reflection, opaque

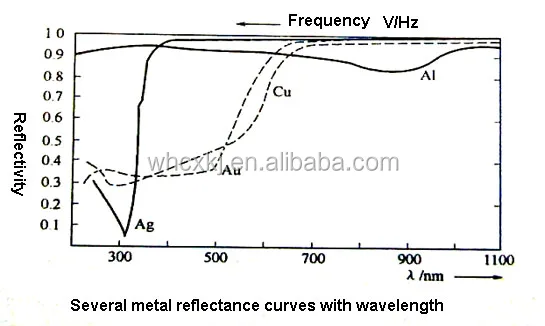

Relationship between reflectivity of metal surface and wavelength

Effect of metal properties and surface state - rough surface or surface treatment

Increase absorption;

Non-metallic materials absorption of laser light:

Non-metallic materials have low reflection and high absorption on laser; non-metallic materials have lower melting point and poor thermal conductivity, which is beneficial to laser processing.

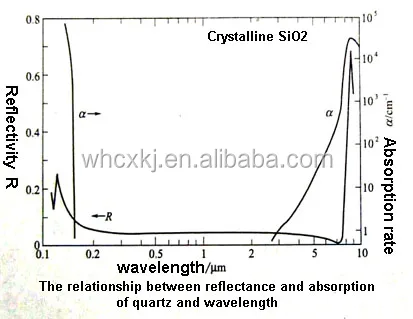

The absorption of laser light by the insulator material has a great relationship with the wavelength; for example, quartz SiO2, silicon Si is a common laser material; and glass, plexiglass is transparent to the YAG laser and absorbed by the CO2 laser.

Company Information
Shipping and Packing

1.Our wooden case is fumigated, which is inspect-free,saving shipping time.

2.All the spare parts of the machine were covered by soft materials,mainly using pearl wool to avoid damages that could happen in the delivery process.Then we'll cover them tightly by plastic wrapper, which is also waterproof.

3.The outmost is wooden case with fixed formwork.

4.The bottom of the wooden case has firm irony stand, which is convenient to handle and transport.

Our Service
Contact us

WUHAN CHANGXIN SCIENCE &TECHNOLOGY DEVELOPMENT CO.,LTD

Factory:

Plant A5,Wuhan East Lake Bonded Area,

No.777 Guanggu 3rd Road,

Wuhan East Lake High-Tech Development Zone,Wuhan,China

Tel:0086 27 8588 8025

Sales Center:

15F Modern WTC,No.70 Guanggu Ave,

Wuhan East Lake High-Tech Development Zone,Wuhan,China

Tel:0086 27 5927 7827

www.cxlaser.cn

FAQ

1,How to choose a machine?
   Please let us know your request,then we can recommend the suitable machine for you .Such as:

    1.What kind of material will be cut or engraved? (For choosing suitable laser type.)
    2.What the thickness of your material?               (For choosing suitable laser power.)
    3.What is size for the process material?             (For choosing suitable working size.)

2,How to use it ?

     We will send you the instruction manual  in English version  and CD video with machine.
     If you still have some doubts, we can talk by telephone or skype. Our engineer also can face to face  to install or adjust machine if necessary.

3,If some problems happened  during warranty period ?
     We will supply free parts for this machine during the warranty period if machine have any problems without man-made reasons, We also supply free after service forever.

4,How long is the delivery time?
     For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

     It is our duty to help you offer some documents to client for customs clearance,like invoice,packing list,B/L,and other certificates,etc.

5, What is the price?

    As you know, the price is a little different according to the configuration and models. If you want to know the details, please send message right now.
