Worm gear closed loop nema 24 stepper motor with brake

FOB Reference Price:Get Latest Price
$1.00 - $20.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
MIGHTY
Model Number:
Nema 24 60mm
Step Angle(degrees):
1.8°
Holding Torque:
9.5-32kg.cm
Phase:
2
Type:
Hybrid
Current / Phase:
2.8-4A
Certification:
CCC, CE, ISO, ROHS, UL
Voltage/Phase:
2.2-4.5V
Resistance/Phase:
0.55-1.6Ω
Inductance/Phase:
1.6-7mH
Length:
45-100mm
Weight:
0.55-1.6kg
Lead wires number:
4/8
Product name:
nema 24 stepper motor
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
We use standard export carton and pallet, but we can also pack it as per your special requirements
Port
Any port in China

Worm gear closed loop nema 24 stepper motor with brake



Product Description

APPLICATION

At present, the application of stepping motor covers office automation (printer, copier, compound machine, typewritter, fax machine), factory automation equipment (FA), medical machinery, automatic control system astronomical telescope, textile, measuring instruments, bank ATM equipment, automobile, entertainment equipment, communication equipment, air-conditioner, stage lighting and so on. With the emergence of new industries, stepper motor applications are constantly enriched, such as 3D printing, solar power generation, intelligent detection and control, etc.

SPECIFICATIONS



Model No.

Step

Angle

(°)

Voltage

/Phase

(V)

Current

/Phase

(A)

Resistance

/Phase

(Ω)

Inductance

/Phase

(mH)

Holding

Torque

(kg.cm)

Rotor

Inertia

(g.cm²)

Motor

Length

(mm)

Lead

Wires

 No.

Motor

Weight

(kg)

24HS18-30041.82.430.81.69.52004540.55
24HS22-30041.82.430.82.4163005640.8
24HS26-40041.82.240.551.8205906741
24HS26-28081.83.42.81.24215906781
24HS35-40041.83.240.83.5308608841.4
24HS35-28081.84.52.81.67308608881.4
24HS39-35041.83.23.50.93.832120010041.6




ItemSpecifications
Step Angle 1.8°
Temperature Rise 80℃ Max
Ambient Temperature -20℃ Max∼+50℃
Insulation Resistance 100M ΩMin.,500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02Max (450g-load)
Shaft Axial Play0.08Max (450g-load)
Max. Radial Force 75N (20mm from the flange)
Max. Axial Force 15N

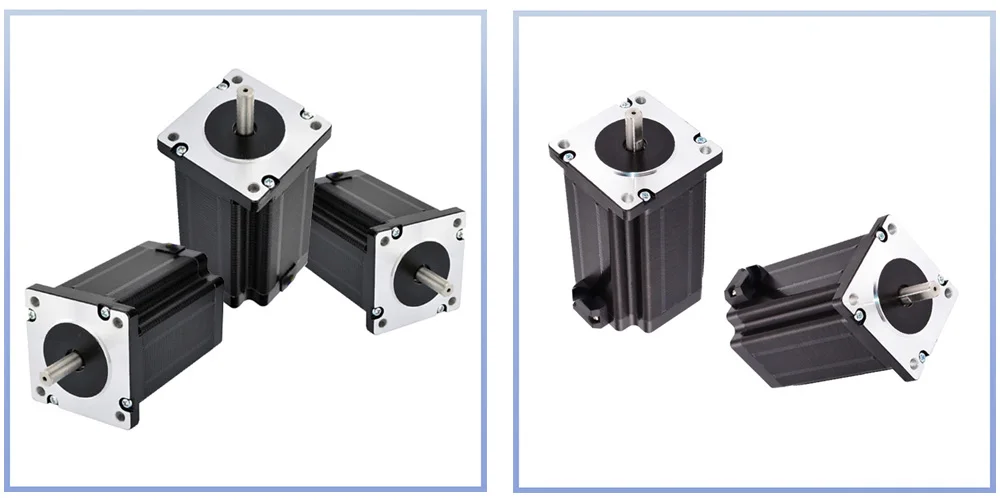

Product Display



Packing & Delivery



Packaging
Packaging DetailsWe use standard export carton and pallet, but we can also pack it as per your special requirements










Our Company

About Mighty Machinery

Sichuan Mighty Machinery Co., Ltd. specializes in offering best service and the most competitive price for our customer.

After over 10 years' hard work, MIGHTY's business has grown rapidly and become an important partner for oversea clients in the industrial field and become a holding company for three manufacturing factories.


MIGHTY's products have obtained reputation of domestic and oversea customers with taking advantage of technology, manageme
nt, quality and very competitive price. Our hybrid stepper motor are widely used in office automation, factory automation equipment, medical machinery, textile, measuring instruments, bank ATM equipment, communication equipment, air-conditioner, stage lighting, 3D printing, solar power generation, intelligent detection and control, etc.



Your satisfaction is the biggest motivation for our work, choose us to get high quality products and best service.
