X86 Fanless N2830 N2940 Quad core processor dual lan nano itx mini-itx motherboard for 2 lan

  • 5-99 Units
    $82.00
  • >=100 Units
    $80.00
Model Number:
K6-2 LAN
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Units)
Customized packaging (Min. Order: 1000 Units)

More

Graphic customization (Min. Order: 1000 Units) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Vnopn
Application:
Desktop
Graphics Card Type:
Integrated
Form Factor:
Mini-ITX
Hard Drive Interface:
SATA
Memory Type:
DDR3
Chipset Manufacturer:
Intel
Ports:
Ethernet, SATA, USB 3.0, VGA, WiFi
CPU Type:
Pentium 4, Celeron
Chipset:
H61
Maximum Ram Capacity:
16GB
CPU:
Integrated Intel Celeron n2840/N2940
AES-NI:
Support
RAM:
1*SO-DIMM DDR3 1600MHz Memory
Storage:
1*mSATA
Operating System:
Windows 7 , Windows 8 , Windows 10 , Linux, Pfsense
Warranty:
1 years
COM:
4*COM pin
Network Support:
1* Intel Gigabit Ethernet
Model number:
K6-2 LAN
keywords:
mini-itx motherboard
Products Status:
Stock

Packaging & Delivery

Selling Units:
Single item
Single package size:
32X26X8 cm
Single gross weight:
2.0 kg
Package Type:
cartons
Lead Time :
Quantity(Units) 1 - 2 3 - 100 101 - 1000 >1000
Est. Time(days) 2 5 8 To be negotiated

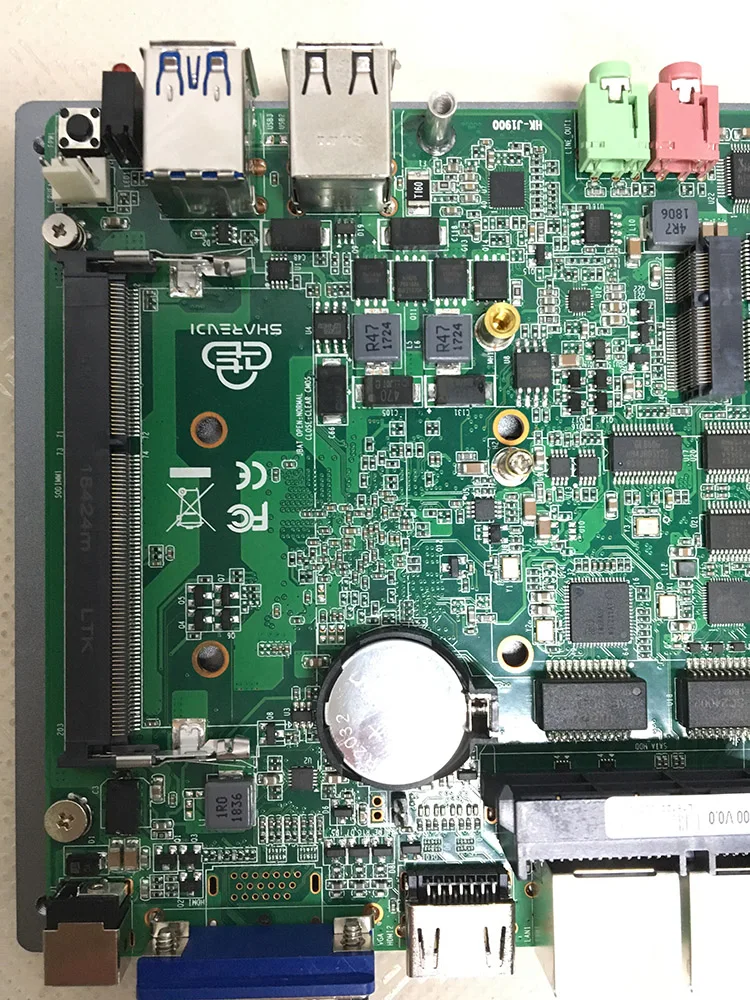

Fanless N2830 dual core processor dual lan nano itx mini-itx motherboard for 2 lan



Notice: This link's price is barebone system price for N2840, if you need motherboard with N2940, please contact us, we will give you the best price









nano motherboard 2nano motherboard 5nano motherboard 6nano motherboard 4nano motherboard 3nano motherboard 1



Specification:

X86 Fanless N2830 Quad core processor dual lan nano itx mini-itx motherboard for 2 lan

Model No.

K6-2LAN

Processor

Integrated Intel®Celeron N2830 2.16GHz dual core processor, TDP 15W

Compatible with Intel® Skylake-U/Kabylake-U Celeron/Pentium/I3/I5/I7 dual core processor

Chipset

SOC

Memory

1*DDR3L SODIMM memory slot, support 1600MHz memory, up to 32GB

Graphics



Integrated Intel® HD Graphics 610 support DirectX 12 OpenGL 4.4, support 4K

1 *VGA+1*HD

Network

1* Intel Gigabit Ethernet, support Wake On LAN,PXE function

1* Realtek RTL8111E Gigabit Ethernet

Storage

1* 7pin SATA3.0 HDD port, transmission rate up to 6Gbps

3* MSAS port, support 12*SATA3.0 HDD, transmission rate up to 6Gbps

1* MSATA slot, support Intel protocol SSD, transmission rate up to 6Gbps

Audio

Integrated ALC662 6 channel high fidelity audio controller, support MIC,Line_out ,Line-in

Expansion Slot

1* PCIEx8 slot

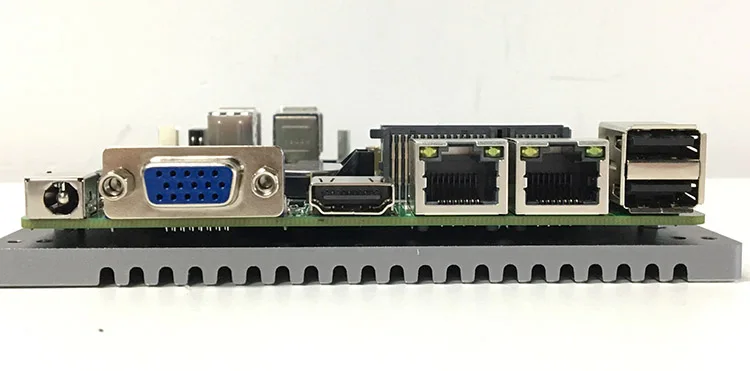

Rear I/O













1* VGA++1*HD

2* USB3.0+4*USB2.0

2* RJ45 Gigabit LAN port

1* Line-out (green), 1*MIC(red),1*Line-in(blue)

1* Double deck PS/2 KB/MS port

4* RS232 COM Pin

Fan Connector

1*4pin CPU fan connector

GPIO

Support 4 way input output GPIO function

BIOS

64MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Operating System

Windows 7 , Windows 8 , Windows 10 , Linux, Pfsense

Power Type

Adopt 20pin ATX power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

120mm X120mm

1011



FAQ

Q1. Can I get a sample for testing?

Re: Yes  you can. After paid sample and shipping cost, we will deliver it according to your request.

Q2. What's your MOQ?

Re: MOQ 1 set.

Q3. Do you ever export to some country?

Re: Yes, all over the world, such as America, UK, German, Finland, South Africa, India, Canada, Austrilia, South Korea etc.

Q4. This is my first time buying computers, could you provide some advice?

Re: Yes, it's our pleasure. Different use have different options, pls contact us to get more details

Q5. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?

Re: Yes we can. The charges for OEM service depends on the different level of customize. Pls contact us to get more information, thanks.

Q6. Can you print my logo on the mini computer and customize logo on boot-screen?

Re: Yes, we can silkscreen logo on computer case, and customize logo on boot-sreen.

Q7. How can I choose the specification?

Re: This is barebone price (no ram/hard disk/wifi/bt), the capacity of ram & hard disk and WIFI/BT can be changed according to your requests, just only price difference, pls contact us to get more information, thanks.

Q8. Can your device work 24h*7 days? And what about the temperature range it can operate in?

Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.

Q9. Can this computer support 2 monitors?

Re: Yes, it support 2 monitors display via 1 hd-mi and 1 VGA.

Q10. What is the lead time of your products?

Re: Sample order within 1~3 business days .

Bulk order within 3~15 business days ( depends on order qty)
