XD020 hot sell 20m3/h 220v 50hz xd 20 single stage rotary vane vacuum pump

FOB Reference Price:Get Latest Price
$400.00 - $500.00 / Set | 1 Set/Sets (Min. Order)
Type:
VACUUM PUMP
Maximum Head:
/
Maximum Flow Rate:
/
Samples:
$200.00 /Set | 1 Set (Min. Order) | Buy Samples
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Sets) 1 - 50 >50
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 50 Sets)

More

Graphic customization (Min. Order: 50 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Brand Name:
LZ
Model Number:
XD-020
Place of Origin:
Zhejiang, China
Application:
Automotive Industry, Mining industry, Pharmaceutical industry, Vacuum
Horsepower:
1HP
Power Source:
Electric
Pressure:
5mbar
Structure:
Single-stage Pump
Voltage:
220V, 220V 1 stage pump
Power:
0.9KW, Electric
Certification:
ce
Theory:
Vacuum Pump
Standard or Nonstandard:
Standard
Pumping rate:
20m3/h 1 stage pump
Ultimate vacuum:
200Pa
Motor power:
0.9Kw
Pump speed:
2800r/min
Oil filling level:
0.5L high viscosity chemical gear pump
Supply Ability
Supply Ability:
1000 Set/Sets per Month xd 20 single stage rotary vane vacuum pump
Packaging & Delivery
Packaging Details
Plywood case package for XD020 hot sell 20m3/h 220v 50hz xd 20 single stage rotary vane vacuum pump
Port
Ningbo or Shanghai Port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(days) 25 To be negotiated

XD020 hot sell 20m3/h 220v 50hz xd 20 single stage rotary vane vacuum pump



Description xd

XD series xd 20 single stage rotary vane vacuum pump :



 Product Description:



SV (XD) single stage rotary vane vacuum pumps combining with many years of experience in vacuum engineering and the latest international vacuum technology developed to meet requirements of both the industry and the environment.



They are being used in all areas of vacuum engineering.

They are equally suited for both industrial production and research applications.



They may be used to generate a rough and medium vacuum or as backing pumps in pump combinations with Roots pumps or high vacuum pumps.



The comprehensive range (pumping speeds ranging from 10 to 750 m 3 / h) allows every customer to select the right pump for his particular needs.



Model XD-020 XD-025 XD-040 XD-063 XD-100 XD-160 XD-202 XD-250
Pumping speed(m³/h) 20 25 40 63 100 160 202 250
Utimate pressure(Pa) 200 150 20 20 20 50 50 50
Power(KW) 0.75/0.9 0.75/0.9 1.5 2.2 3 4 5.5 7.5
Motor speed (r/min) 2800 2800 1440 1440 1440 1440 1440 1440
Oil Capacity (L) 0.5 0.5 1 2 2 5 5 6.5
Inlet diameter (in) G1/2 G1/2 G1 1/4 G1 1/4 G1 1/4 G2 G2 G2
Weight(Kg) 20/23 23/26 45 56 70 125 125 200




 Note:“Oil Capacity”in the table are for reference only, specific according to the Oil window 3/4 point shall prevail.

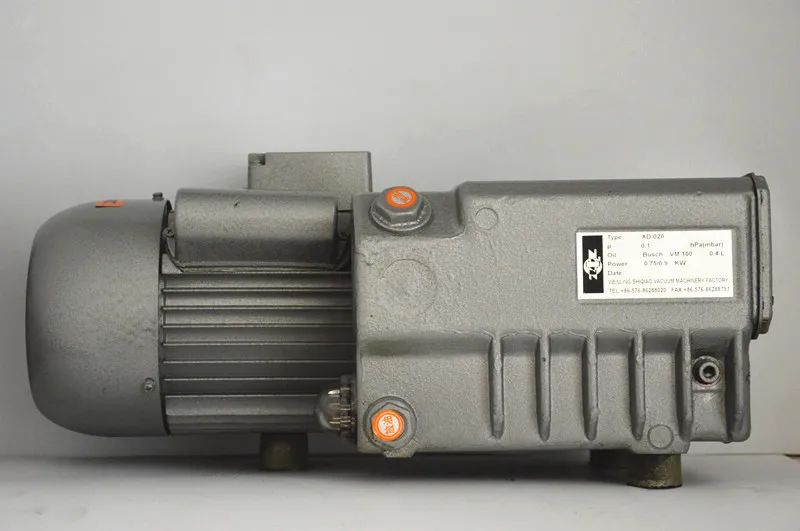

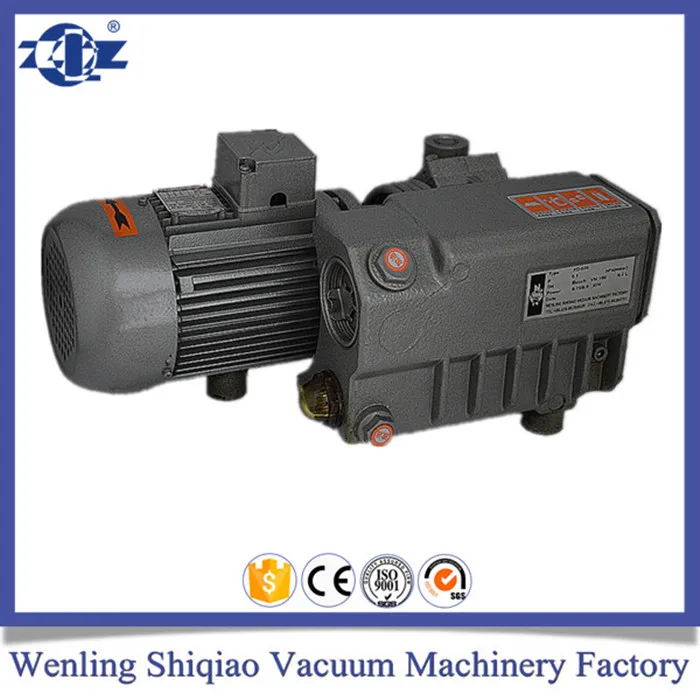

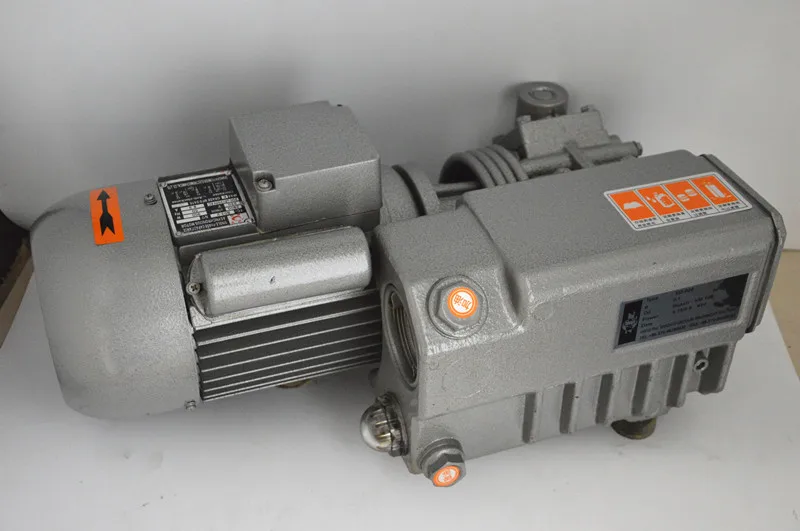

 Product Pricture




 Installation dimensions:





Operation:

 Operation:





1.The pump should be placed on the flat position horizontally. The pump has screw holes used for fixing the pump at the bottom cushion block.





2.Please check the oil level before starting the pump. Fill oil to the oil window 3/4 position.





3.Electrical wiring should be carried out by a professional electrician, Vacuum pump standard 380v50hz three phase motor, please look at the motor nameplate.After completion of three phase asynchronous motor wiring must rotate to check the motor,running in the direction shown by the arrow .





4.Inlet pipe cross section size should not be less than the suction mouth size and link length as short as possible.Otherwise it will affect the efficiency.





5.If the pumped gas have impurities,steam or foreign matter,you need to install a vacuum filter on pump air inlet. You also can join an exhaust pipe if necessary, the exhaust pipe need to slope down.





6.The oil level must be check after startup,please insure the oil level in the oil window 3/4 place. When the pump is operating at high temperature, do not touch!







 Internal structure:



Scope of application

 Scope of application:

1:Car industry



2:Food industry



3:Furnaces and plants



4:Laser technology



5:Medicinal technology



6:Metallurgy



7:Power engineering, long-distance energy



8:Space simulation



9:Vacuum coating



Vacuum packaging, drying, distillation, concentration, loading and unloading, and attract, vacuum forming, etc







Packaging & Shipping

 Packaging & Shipping



Packaging:

Standard export wooden cases packing



Shipment:

Sea transport /Air transport ( DHL ,TNT , Fedex... )



Delivery time:

15 working days




Company Information

 Company information:





Wenling Shiqiao Vacuum Machinery Factory was established in 2001, specialized in producing TRD series direct vacuum

pump, XD series single-stage one stage high pumping speed vacuum pumps, 2X series belt type vacuum pump, etc.

Over the years, our company has been committed to producing high performance products. We are concerned with the design,

development and production of vacuum pump. Our products are widely used in chemical industry, medicine,

equipment leakage, vacuum packaging, vacuum heat treatment, vacuum coating and so on.

We win high admiration and are widely trusted at home and abroad.

Customers' satisfaction is our pursuance. We always uphold professional, performance, good quality and good faith to provide

high quality products and services for customers. Our business objective is: "Quality First, the user is supreme."

We will meet every challenge with our own wisdom and efforts.

Excellent quality, perfect service is a bridge between us. We sincerely hope to advance hand in hand together with fellow

merchants.







Factory picture:
