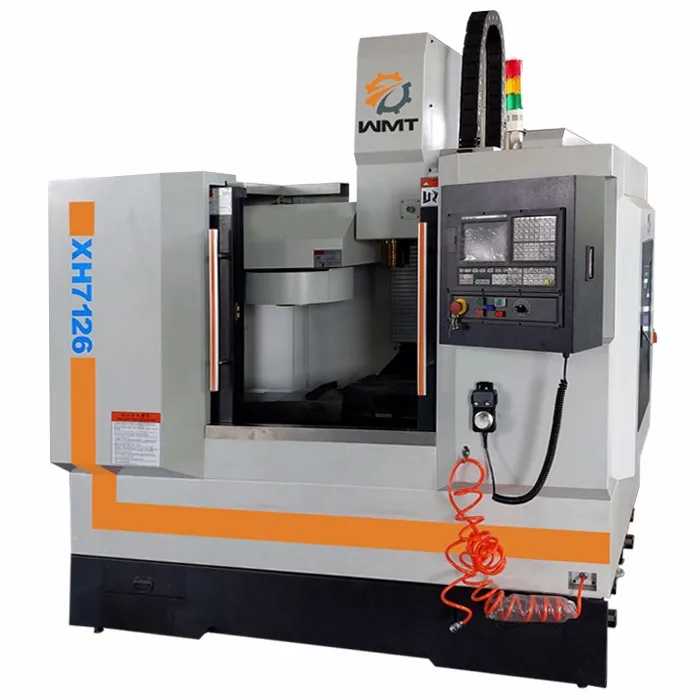

XK7126 Small size vertical mini hobby CNC milling machine with CE certificate

$10,000.00 / Set | 1 Set (Min. Order)
Table Size:
800x260mm
$10,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Range of Spindle Speed(r.p.m):
20 - 8000
Spindle Taper:
BT40
Repeatability (X/Y/Z) (mm):
0.01
Positioning Accuracy (mm):
0.005
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
WMT
Model Number:
XK7126
Table Travel (mm):
450/320/450mm
Type:
Vertical
CNC or Not:
CNC
Voltage:
380V
Dimension(L*W*H):
1510X1200X2050
Certification:
CE
Weight (KG):
2400
Power (kW):
3.7
CNC Control System:
GSK
Warranty:
13 months
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
High-accuracy
Name:
CNC milling machine
Logo printing:
Available
Spindle speed:
6000 rpm or 8000 rpm
Spindle taper:
BT40
CNC milling machine:
semi-enclosure or full enclosure
CNC mchine price:
Wholesale Price
machine type:
machining center
Weight:
1800KGS
Power(W):
3.7KW

Packaging & Delivery

Selling Units:
Single item
Single package size:
2050X1900X2450 cm
Single gross weight:
2600.0 kg
Package Type:
Mini CNC milling machine packed in plywood case.
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Video Description
Product Description

Product Application

The machine can be used in factory and workshop to make molds.

Specification
XK7126
Worktable size(LxW)
800x260mm
T-slot (NxWx D)
3/14/80mm
X axis travel
450mm
Y axis travel
320mm
Z axis travel
450mm
Distance from spindle nose to worktable surface
90-470mm
Distance from spindle center to column
360mm
Rapid feed speed(X/Y/Z)
15/15/15 m/min
Spindle taper
BT40
Spindle speed range
20-6000rpm
Main motor power
3.7kw
AC servo motor torque(X/Y/Z)
6/6/7.7N.m
Over size(LxWxH)
2100x1800x1960mm
Net weight
2400kgs

Main Features

XK7126 Small size vertical CNC milling machine with CE certificate
CNC milling machine price include the following:
BT40 spindle
Function:drilling , tapping, chamfering, bearing, milling face thread, handle and tower
Aesthetic and elegant modeling.
High efficiency for automatic knife changing.
The spindle frame is used in the lathe pedestal to increase its stability and stiffness.

Certifications

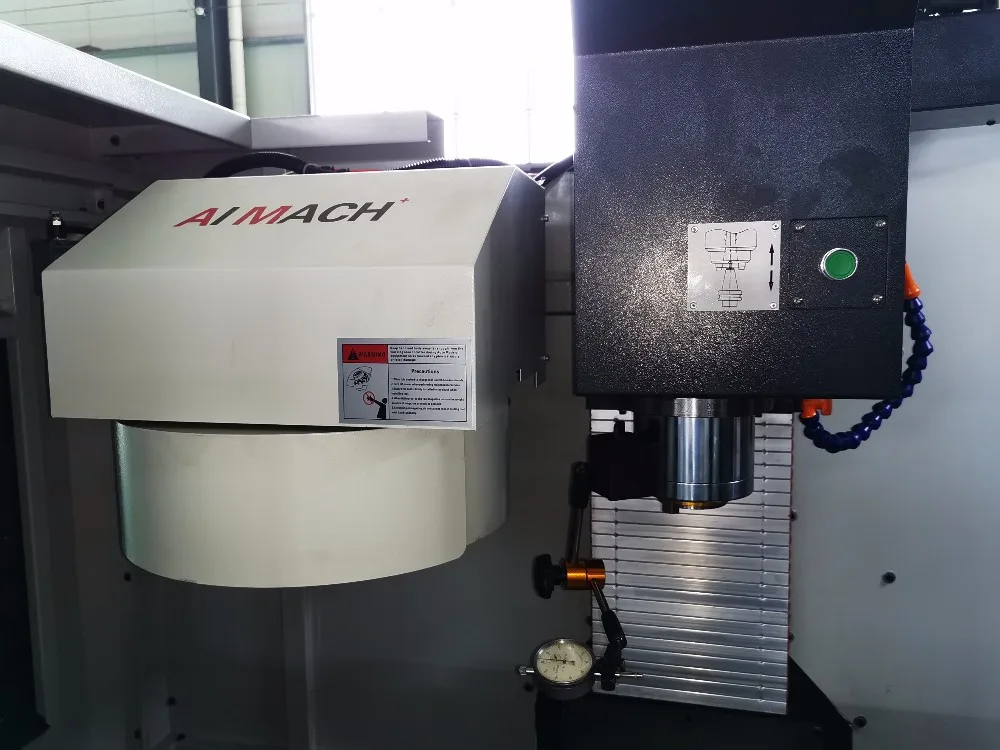

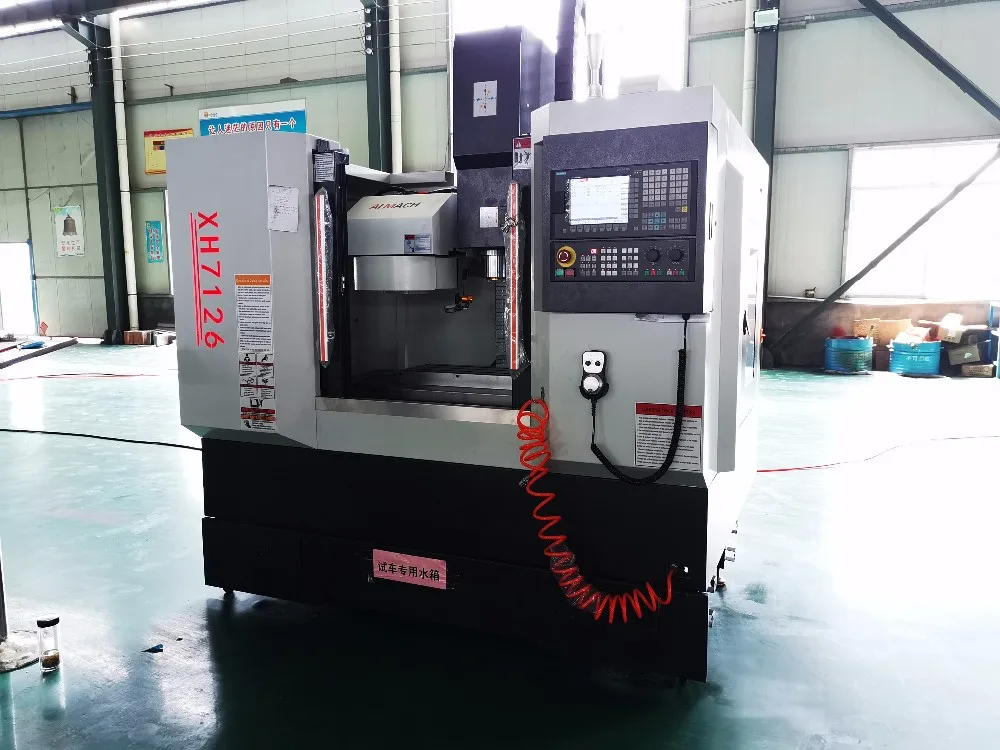

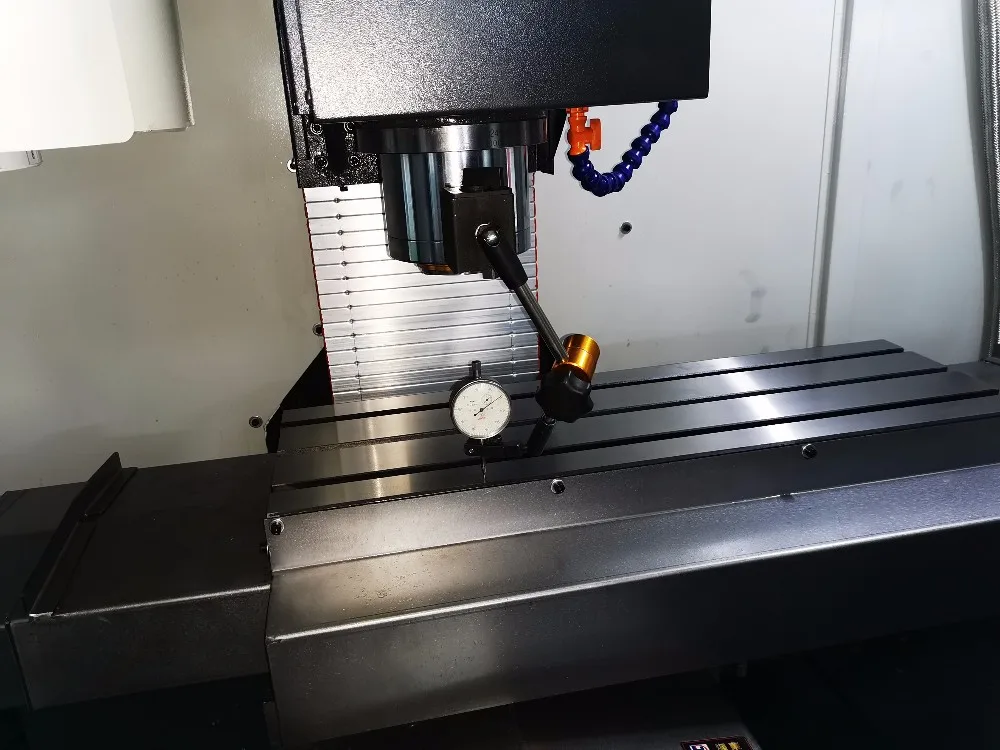

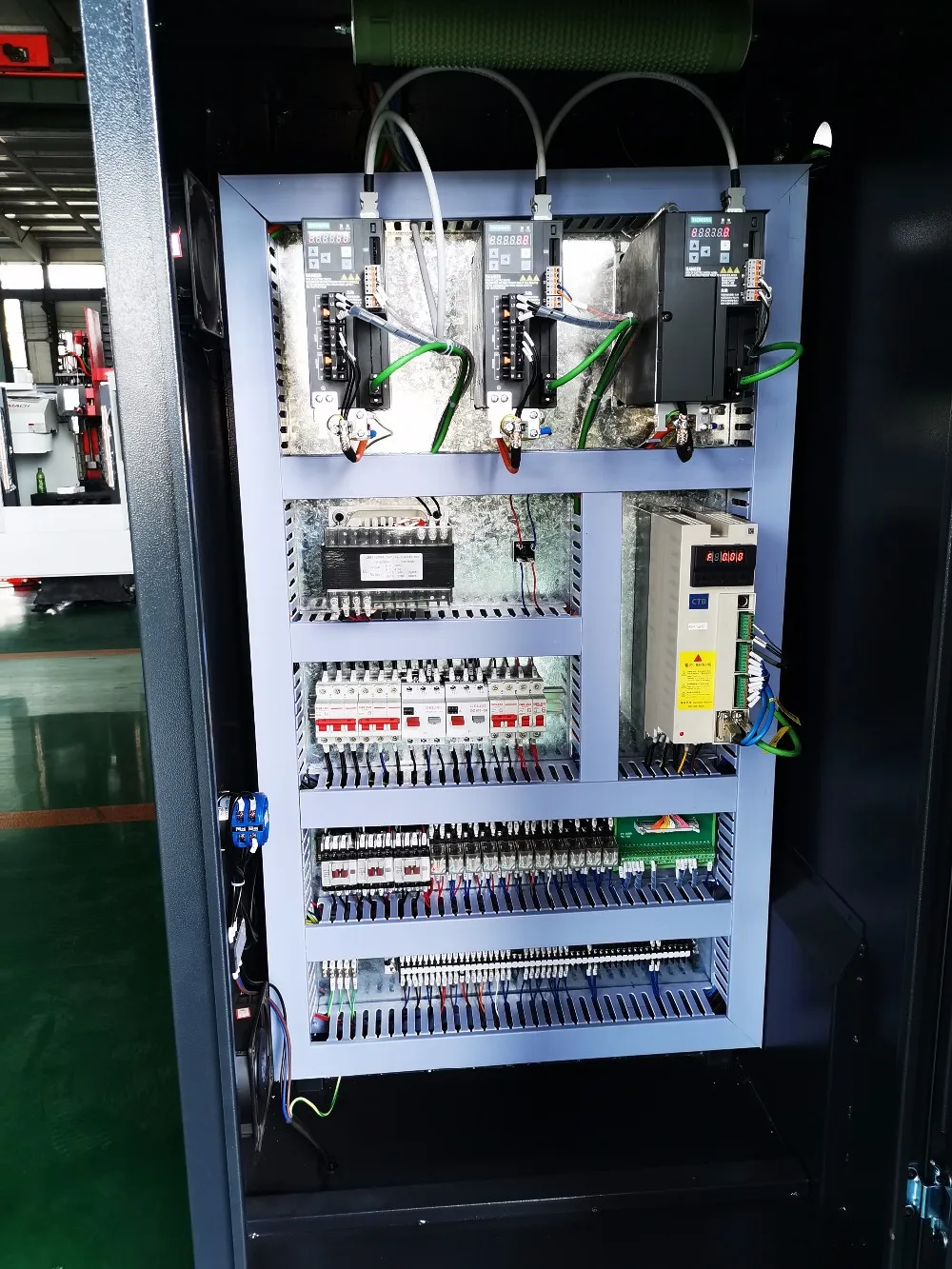

Detailed Images

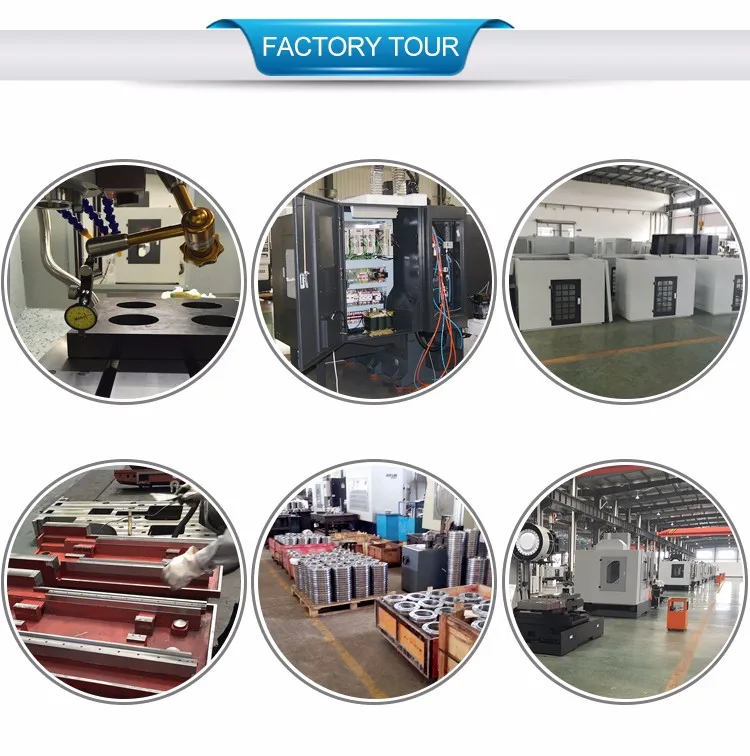

Company profile
