XLPE Armoured Power Cable 4x16mm 4x25mm 4x35mm 4x50mm 4x95mm 4x120mm

FOB Reference Price:Get Latest Price
  • 500 - 9999 Meters
    $0.99
  • >=10000 Meters
    $0.10
Lead Time:
Quantity(Meters) 1 - 100000 >100000
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Da Yuan
Model Number:
DY-YJV-Y06015
Insulation Material:
XLPE
Type:
Low Voltage
Application:
Industrial
Conductor Material:
Copper
Jacket:
PVC
Factory:
Yes
Product name:
Electric/Power Cable
Standard:
IEC60502
Rated voltage:
0.6/1.0 KV
Core:
1/2/3/4/3+1/5/3+2
Armoured:
Available
Screened:
Available

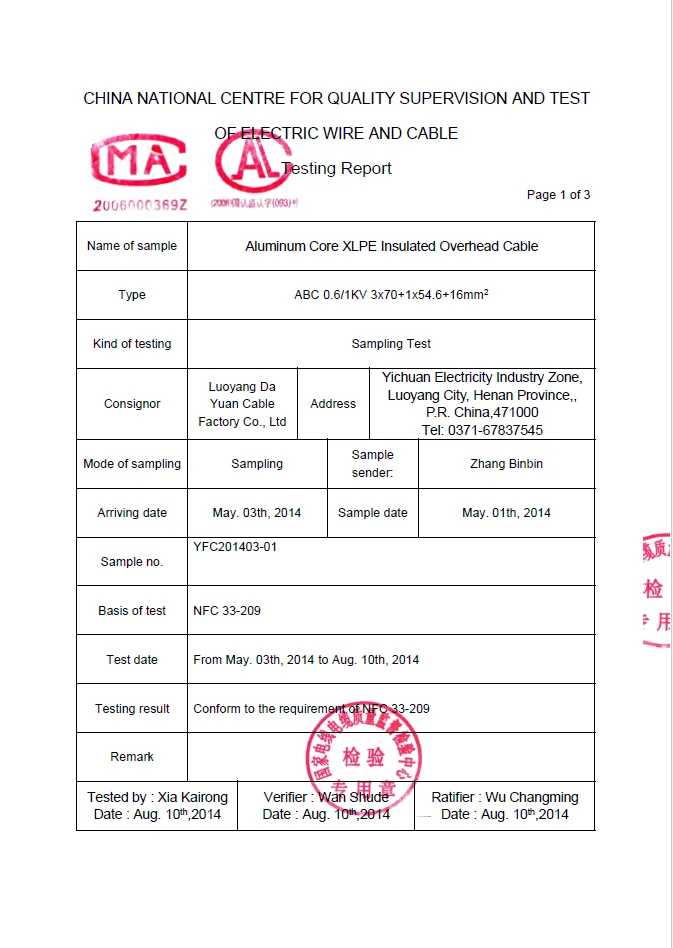

Test report:
Yes
Certificate:
CCC
Original:
Luoyang, Henan, China
Supply Ability
Supply Ability:
100000 Meter/Meters per Day
Packaging & Delivery
Packaging Details
Wooden drums
Port
Qingdao
Lead Time :
Quantity(Meters) 1 - 100000 >100000
Est. Time(days) 10 To be negotiated
Video Description

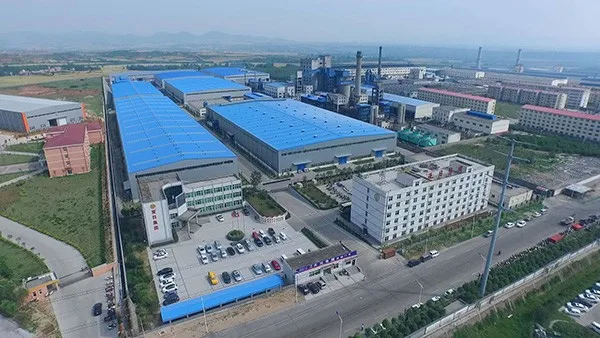

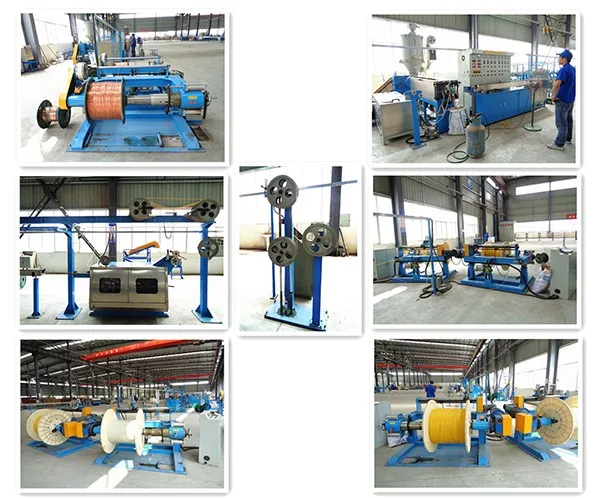

Our Company

Yjv 5 Core Xlpe And Pvc Insulation 150Mm2 70Mm2 Power Cable

Luoyang Asian Sun Industrial Group Co., Ltd. was established in 2006 with RMB 50 million registerde capital in Luoyang, Henan Province, China. Now our total assets is RMB 300 million. The company covers an area 61,081 square meters, and has 4 affiliates with more than 300 employees including 15 engineers and technicians.

Product Description
Type
Name of product
Applicability and surroundings
Cu
Al
VV
VLV
PVC insulated PVC sheath power cable
For laying indoors, in tunnel or cable trench, unable to bear external machan-inforces.Single-
core cable in magnetic duct is not permissible
VY
VLY
PVC insulated PE sheath power cable
VV22
VLV22
PVC insulated steel tape armored PVC sheath power cable
 For laying indoors, in tunnel, cable trench, or direct in ground,able to bear external mechanical forces, but unable to bear large pulling force.
VV23
VLV23
PVC insulated steel tape armored PE sheath power cable
VV32
VLV32
PVC insulated thin steel-wire armored PVC sheath power cable
For laying indoors, in tunnel, cable French, well or direct in ground,able to bear external mechanical forces, and certain force.
VV33
VLV32
PVC insulated thin steel-wire armored PE sheath power cable
VV42
VLV42
PVC insulated thin steel –wire armored PVC sheath power cables
VV43
VLV43
PVC insulated thin steel –wire armored PE sheath power cables
Type
Name of product
Applicability and surroundings
Cu
Al
YJV
YJLV
XLPE insulated PVC sheath power cable
For laying indoors, in tunnel or cable trench,unable to bear external mechanical forces,Single-core cable in magnetic duct is not permissible.
YJY
YJLY
XLPE insulated PE sheath power cable
YJV22
YJLV22
XLPE insulated steel tape armored PVC sheath power cable
For laying indoors, in tunnel, cable trench, or direct in ground,able to bear external mechanical forces, but unable to bear large pulling force.
YJV23
YJLV23
XLPE insulated steel tape armored PE sheath power cable
YJV32
YJLV32
XLPE insulated thin steel-wire armored PVC sheath power cable
For laying indoors, in tunnel, cable french, well or direct in ground,able to bear external mechanical forces, and certain force .
YJV33
YJLV33
XLPE insulated thin steel-wire armored PE sheath power cable
YJV42
YJLV42
XLPE insulated thin steel –wire armored PVC sheath power cables
YJV43
YJLV43
XLPE insulated thin steel –wire armored PE sheath power cables

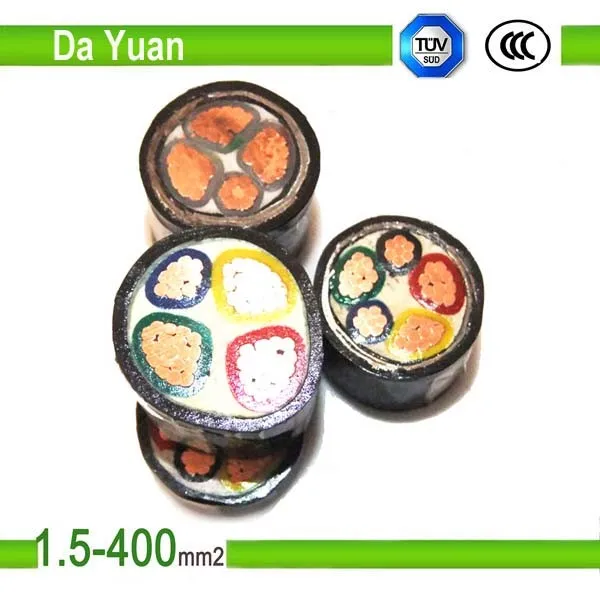

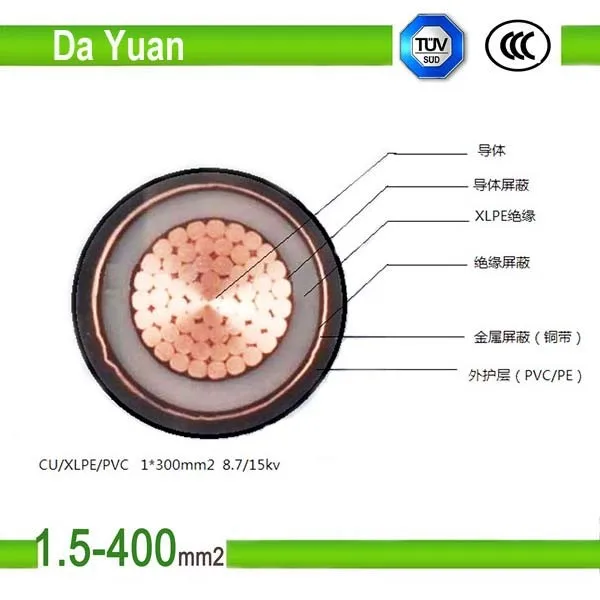

Detailed Images

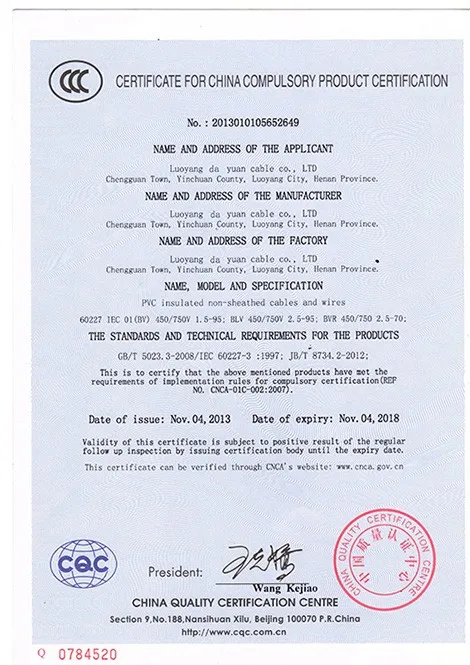

Certifications

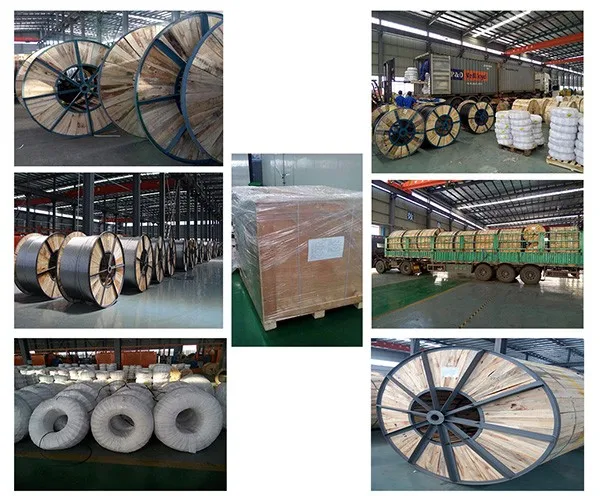

Packing & Delivery

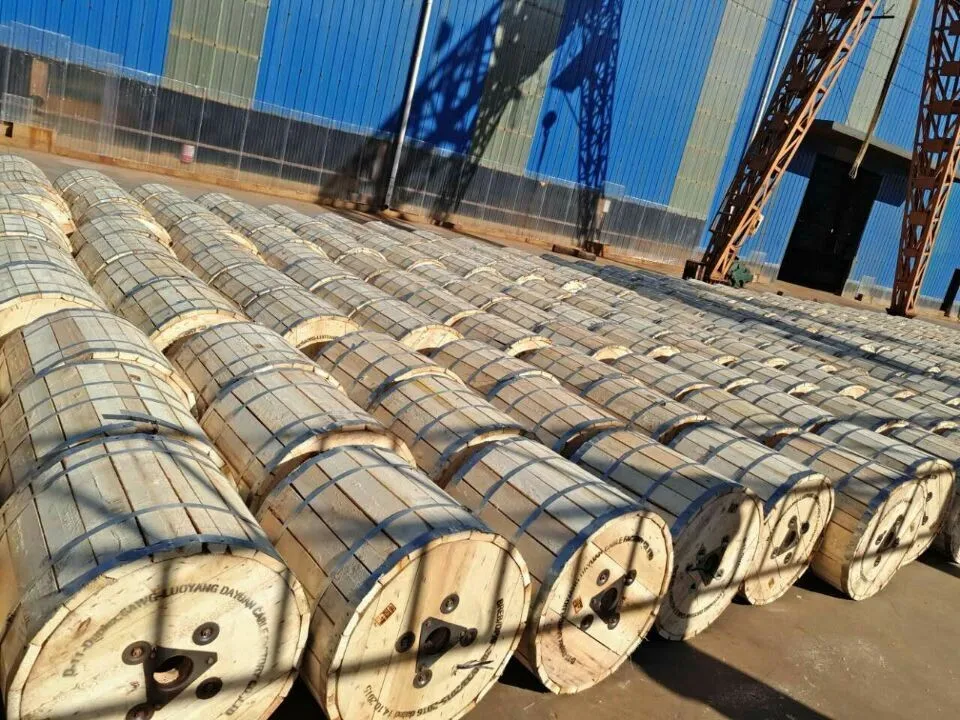

 It will be package according to its outside diameter and weight by drum or wooden reel.
1.We use the fumigated &treated timber wooden box to package cables,
2. Wooden package optional:
     Size: 0.5*0.5*0.5m or as you required.
             0.6*0.6*0.6m
             0.7*0.7*0.7m
            1.1*1.1*0.8m
             1.8*1.8*1.1m
             2.2*2.2*1.8m
3. Wooden plate sealed.
4. Suitable meters according to your size.
5. 72 pcs of 0.7m wooden reel can be put in one 20FCL.
    28 pcs of 1.1m wooden reel can be put in one 20FCL.
    6 pcs of 1.8m wooden reel can be put in one 20FCL.

Related Products

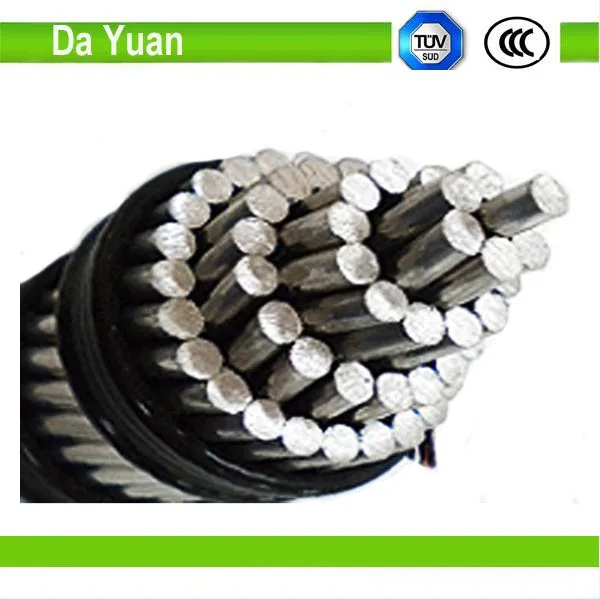

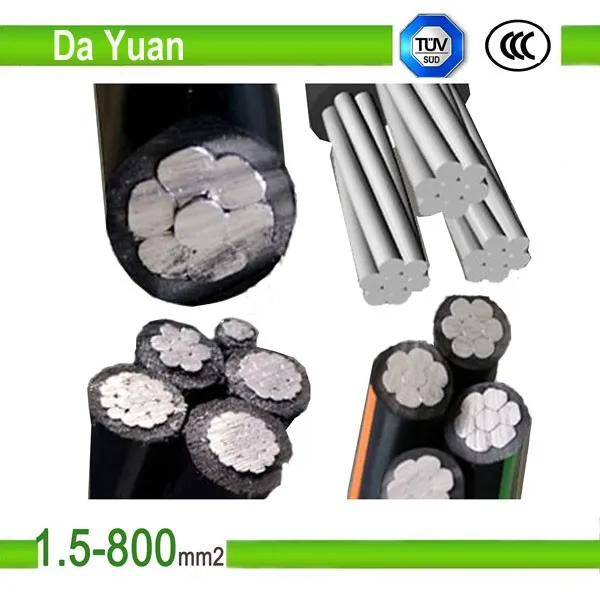

ABC Cable

Aerial Cable, Aerial Bundled Cable

Phase Conductor AAC/XLPE

Messenger AAAC

ACSR

Rabbit Dog Wolf Drake Apple Cherry

Raw material

Most competitive price

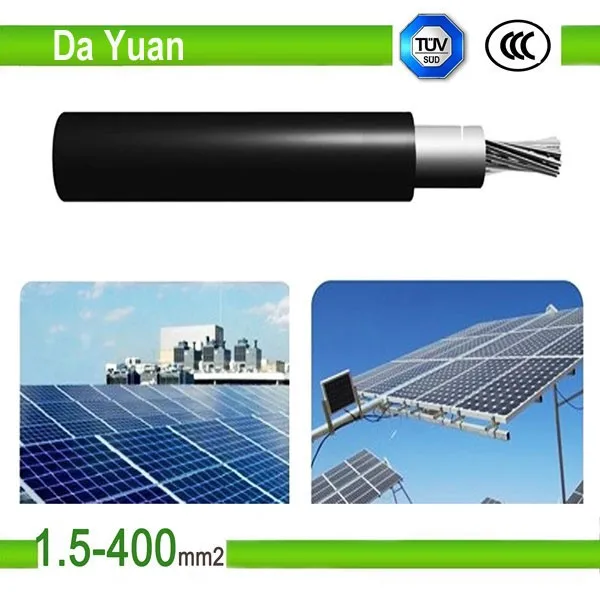

Solar Cable
