XLPE insulationHalogen free Flat ribbon cable UL 4411 wire

FOB Reference Price:Get Latest Price
$0.10 - $0.30 / Meter | 6100 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 100000 100001 - 500000 500001 - 1000000 >1000000
Est. Time(days) 15 20 30 Negotiable
Samples:
$0.10 /Meter | 1 Meter (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
DIANHANG
Model Number:
ul4411
Type:
Insulated
Application:
Heating
Conductor Material:
Copper
Conductor Type:
Solid
Insulation Material:
XPLE
Product name:
UL4411 Flat ribbon cable
Rated temperature:
125'C
Rated voltage:
300V
Reference standard:
UL758,UL1581,CSA C22.2No.210.2
Jacket:
XLPE
Color:
Optional
Flame Test:
CSA FT1 JQA F-Mark,UL vw-1
Packing:
Roll 305m/Roll, 610m/Roll
MOQ:
6100m
Conductor:
Tin plated copper,99.995%purity of copper 99.995%
Supply Ability
Supply Ability:
100000 Kilometer/Kilometers per Year
Packaging & Delivery
Packaging Details
According to different OD, there will be different standarded packing length as 610m/Roll, 305m/Roll, 100m/Roll,1830m/Spool,3660m/Spool. Usually, wire diameters above 1.0 are rolled and axles below 1.0 are rolled.
Port
shanghai
Lead Time :
Quantity(Meters) 1 - 100000 100001 - 500000 500001 - 1000000 >1000000
Est. Time(days) 15 20 30 To be negotiated
Video Description



Product Description

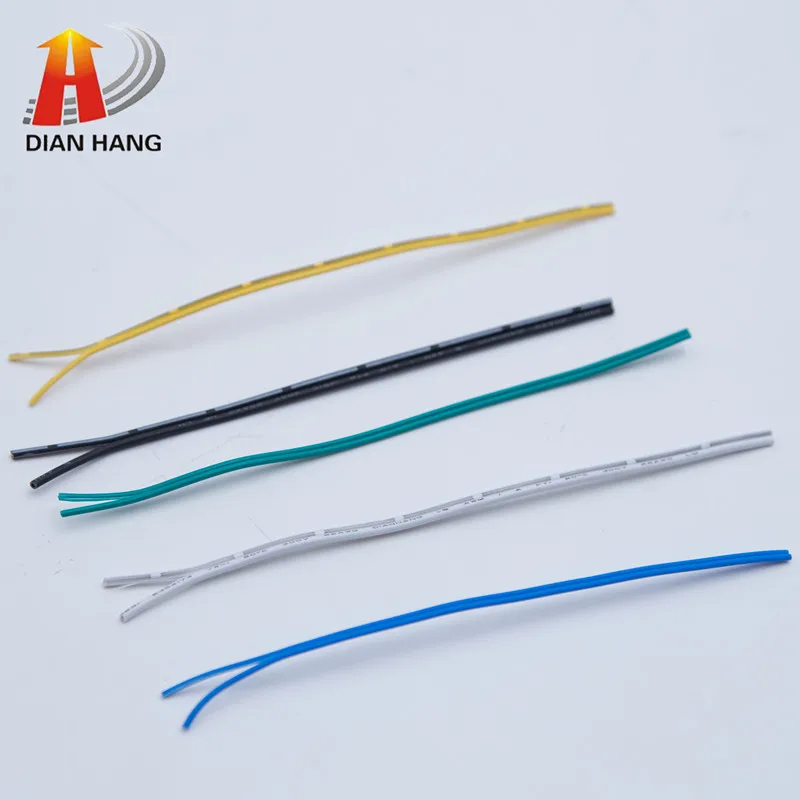

UL4411  Halogen free flat ribbon cable

Rated temperature:125℃

Rated voltage:300V

Reference standard:UL758,UL1581,CSA C22.2No.210.2

Solid or stranded, tinned or bare copper conductor 30~10AWG

XLPE insulation, comply with ROHS, REACH environmental standard

Passes UL Horizontal and CSA FT2 flame test

Uniform insulation thickness to ensure easy stripping and cutting

Application:

For general purpose internal wiring of appliance

UL 4411.jpgUL4411 2.pngUL4411 3.png

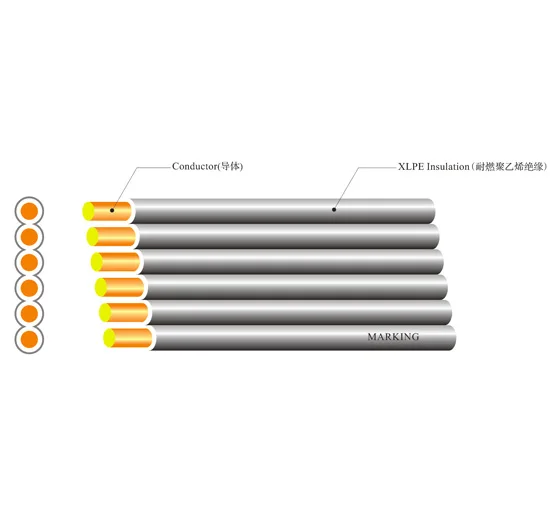

UL4411 Multi-line structure drawing

UL

4478,4411,4412,4413

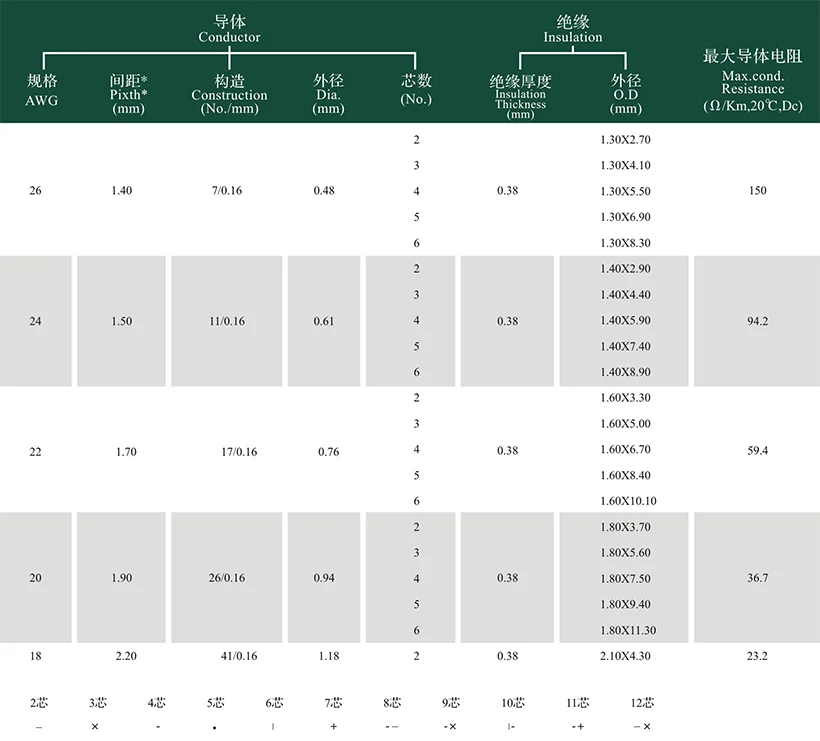

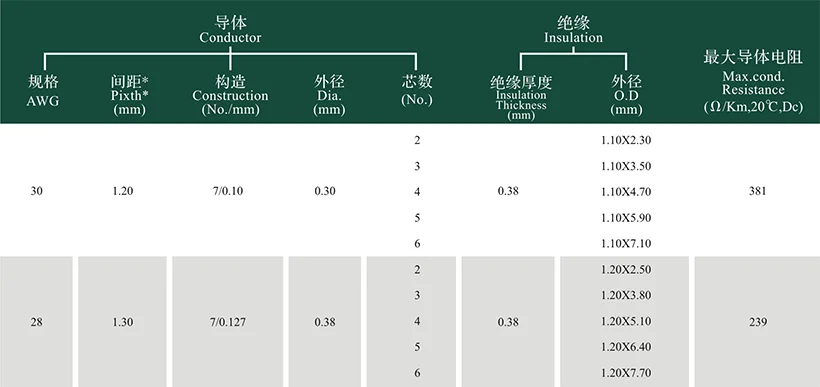

Specification

30-18AWG

Cores NO

OD

*3.50,Customized according to UL standard

Insulation

XLPE

Temperature

105℃,125,150

Voltage

300V

Application

For general purpose internal wiring of appliance

6
