Xindun Best Price Controlador de Carga Solar MPPT LCD Display 10A-100A 12V 24V 48V Rated Voltage Solar Charge Controller

  • 1 - 50 Pieces
    $48.00
  • >=51 Pieces
    $44.00
Rated Voltage:
12V/24V/48V
Maximum Current:
10A-100A
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Xindun
Model Number:
MPPT 10A-100A
Type:
MPPT, wind controller
Application:
Charger Controller, Wind Controller, Solar System Controller
Work Time (h):
1-24H
Max PV Power:
-
Max PV Voltage:
48V
Certificate:
CE RoHS
Warranty:
12 months
Charge mode:
Low Voltage
Display:
LCD Display
Product name:
solar charge controller
System voltage:
12v 24v 48v
Name:
12v 24v 48v Solar Controller
Color:
Orange
Function:
wind controller
Keywords:
solar charge controller
Control Mode:
MPPT Temperature Controller
Supply Ability
Supply Ability:
38880 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Xindun best Price LCD display 96V 220V 240V 380V Rated high Voltage Solar Charge Controller for wind system packing in carton box
Port
GuangZhou, Shenzhen, Foshan
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Discription
Feature



12V 24V 48V MPPT Solar Charge Controller (10A-100A) Description

1. Intelligent control

2.Digital LCD display

3. TUV and CE certificates

12V 24V 48V MPPT Solar Charge Controller (10A-100A) Feature

1.Advanced MPPT tracking, 99% tracking efficiency.  Compared  with PWM,  the  generating  efficiency increase near 20%;

2.LCD display PV data and chart simulates power generation process;

3.Multiple working modes to adapt different working occasion;

4.Wide PV input voltage range, convenient for system configuration;

5.Intelligent battery management function, extend battery life;

6.12V/24V/48V automatic recognition, users are more flexible and convenient to use;

7. RS485 communication port optional.



Product Details



Parameters



Model: Wonder1 150/10, 150/20, 150/30 150/40, 150/50, 150/60 150/80, 150/100
Rated Current 10A/20A/30A 40A/50A/60A 80A/100A
Rated System Voltage 12V/24V/48 auto recognition
Max Pv Input Voltage(at 25°c) 150V
MPPT Tracking Voltage Range 12V system:15V-120V;24V system:30V-120V;48V system:60V-120V
Recommended operating voltage range 12V system:15V-20V;24V system:30V-40V;48V system:60V-80V
PV array Max power 12V system: 140W/280W/420W/560W/700W/840W/1120W/1400W;
24V system: 280W/560W/840W/1120W/1400W/1680W/2240W/2800W;
48V system: 560W/1120W/1680W/2240W/2800W/3360W/4480W/5600W
Battery Type Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification)
Floating Voltage 13.8V/Single battery
Charge Voltage 14.2V/Single battery
Charging Protection Voltage 15V/Single battery
Promote recovery voltage  13.8V/Single battery
Recovery voltage after low voltage disconnect 12.5V/Single battery
Discharge Limited voltage 10.5V/Single battery
Temperature Compensation Coefficient -3mV / ℃ / 2V (25℃ is base line) (Optional)
Charging Mode MPPT maximum power point tracking
Charging Method Three stages: constant current(MPPT); constant voltage; floating charge
Protection Over-voltage/under-voltage/over-temperature/PV anti-reverse protection
Conversion Efficiency >98%
MPPT Efficiency >99%
Machine Size(L*W*Hmm) 185*135*65 240*143*74 280*180*100
Package Size(L*W*Hmm)    235*185*116(1pc)
383*249*246 (4pcs)
290*203*126(1pc)
419*304*266 (4pcs)
330*240*153(1pc)
487*345*166 (2pcs)
N.W(kg) 1.15(1pc) 1.8(1pc) 3.7(1pc)
G.W.(kg) 1.35(1pc) 2(1pc) 4.0(1pc)
System Parameter
Display LCD
Thermal Method Cooling fan in intelligent control
Type Of Mechanical Protection IP20
Operating Temperature -15℃~+50℃
Storage  Temperature -20℃~+60℃
Elevation 2000m(Dreating above 2000m)
Humidity 5%~95%(No condensation)
Communication  RS485(Optional)
Note: All specifications are subject to change without prior notice



Wiring Diagram

Different current, the location of RS485 communication interface may be different



Application

Packaging & Shipping



Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.



Payment
T/T EXW 30% T/T in advance, balance paid before dispatch
FOB
CNF(CFR) 30% T/T in advance, balance paid against copy of B/L
CIF
L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional)

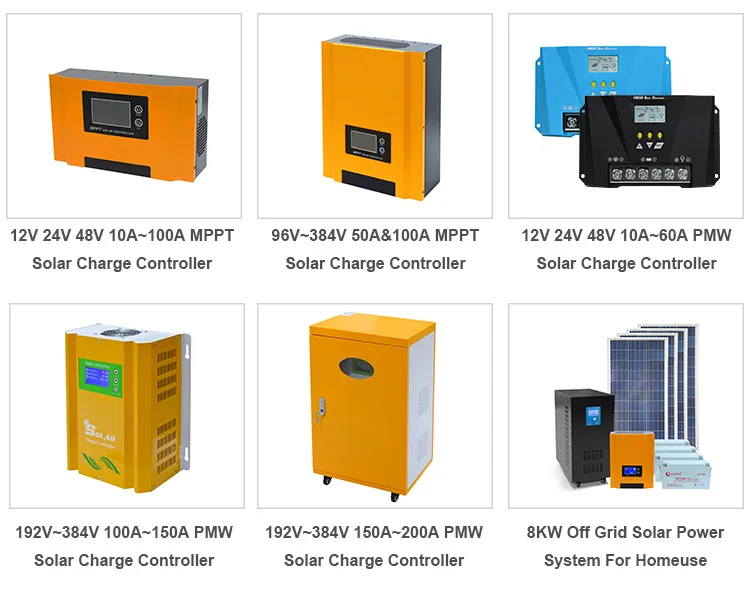

Related Products
Company Information
Why choose us





About us





Guangdong Xindun Power Technology Co.,Ltd

Factory Location

Foshan,Guangdong,China

Industry Experience

13-year manufacturer, 16-year trading, 8-year alibaba gold supplier

Product Range

solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system
Main Market Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.)
Factory 6000 Square Meters, 60+ workers
Department R&D, Production,  Sales, Marketing, Purchasing, QA, After-sale service department
Certificate ISO9001:2015, CE, IEC, etc.
Patent Software Paten, Design Patent, Project Pantent



Workshop

Process



Exhibitions





Certificates

Our team



FAQ

Q1: Are you a factory?
A: Yes, we are ISO9001:2015 manufacturing with qualifications of TUV, CE, ROHS & CCC. main products including inverter, solar controller and solar energy system solution.



Q2: Are you inverter pure sine wave output?
A: Yes, all of our inverter are pure sine wave output.



Q3: What kind of output you can do?
A: Normally, we produce inverter with 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz, 240V/50Hz.
If you have special requirements, pls tell us for engineer consulting.



Q4: What appliances your inverters can load?
A4: Our inverter can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.



Q5: How long is your factory?
It's over 10 years. at the beginning our factory focused on domestic market.
From 2012, we set up our oversea sales department.



Q6: What' s the difference between low frequency and high frequency inverter?

A: Low frequency inverter has various protections, strong ability to adapt to the environment. more reliable, with voltage regulation.



Q7: What's the difference between pure sine wave inverter and modified sine wave inverter?

A: Pure sine wave output inverter is just as good as the Public power grid. Even better. Low repaired rate, long lifespan, Without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output has a negative impact on appliances and can't load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don't like the modified wave.



Q8: How to solve the technical problem?

A: 24 hours after-service consultancy just for you and to make your problem to solveeasily.



Q9: What to do if the product is broken?

A: Usually we do standard exporting package and insurance in case of broken. If any product is faulty, please send us the picture or video, we will study it and supply the spare parts of PCB board free for after sale service.
