Y Type Lab Insect Olfactometer / insect olfactory Research Instrument

FOB Reference Price:Get Latest Price
$1,000.00 - $2,500.00 / Sets | 1 Set/Sets insect olfactometer (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Classification:
Other
Brand Name:
BIOLAND
Model Number:
BL-3-150
Place of Origin:
Shaanxi, China (Mainland)
Product name:
lab testing Lab Insect Olfactometer / insect olfactory Research
Diameter Of Activity Room:
150MM
Quantity Of Path:
3
Quantity Of Drying Tower:
3pcs * 500ml
Quantity Of Pyriform Glass Bottle:
25ml, 50ml, 100ml, Each Has 3pcs
Quantity Of Glass Rotameter:
3
Quantity Of Medical-use Silicone Tube:
3
Activated Carbon:
1kg / Bag
Optional:
Mute Oil Free Vacuum Pump
Application:
detect and measure odor dilution
Supply Ability
Supply Ability:
1000 Set/Sets per Month insect olfactometer
Packaging & Delivery
Packaging Details
export packing of insect olfactometer
Port
shanghai port
Lead Time :
within 3-5 days
Product Description

lab testing Y Type Lab Insect Olfactometer / insect olfactory Research Instrument

Insect olfactometer by the company and the Shanghai Institute of Entomology, well-known professor of collaborative R & D.


An olfactometer is an instrument used to detect and measure odor dilution. Olfactometers are used in conjunction with human subjects in laboratory settings, most often in market research, to quantify and qualify human olfaction. Olfactometers are used to gauge the odor detection threshold of substances.


Applications of Y Type Lab Insect Olfactometer / insect olfactory Research Instrument

Study on the relationships between insects and plant chemical substances.


Feature of Y Type Lab Insect Olfactometer / insect olfactory Research Instrument

Use of imported completely transparent thicker Plexiglas and Teflon material,Forming a sealing performance.
Can be customized more than one suction hole, or made to order multiple insect channel, designed to study insect olfactory odor.

Product Name
lab testing  Y Type Lab Insect Olfactometer / insect olfactory Research Instrument
Diameter Of Activity Room
150mm
Quantity Of Path
3
Quantity Of Drying Tower
3pcs * 500ml
Quantity Of Pyriform Glass Bottle
25ml, 50ml, 100ml, Each Has 3pcs
Quantity Of Glass Rotameter
3
Quantity Of Medical-use Silicone Tube
3
Activated Carbon
1kg / Bag

lab testing  Y Type Lab Insect Olfactometer / insect olfactory Research Instrument

Insect Olfactometer is an instrument applied in studying the behavior of insects with strong ability of activity. Insets communicate with the host plant via odor about the information of spawning, feeding and other activities, so odor is very important for insects. The insects olfactory behavior could reveal the chemical relationship between pest and host plant, and could also provide a new way to the prediction, monitoring and prevention of pests.

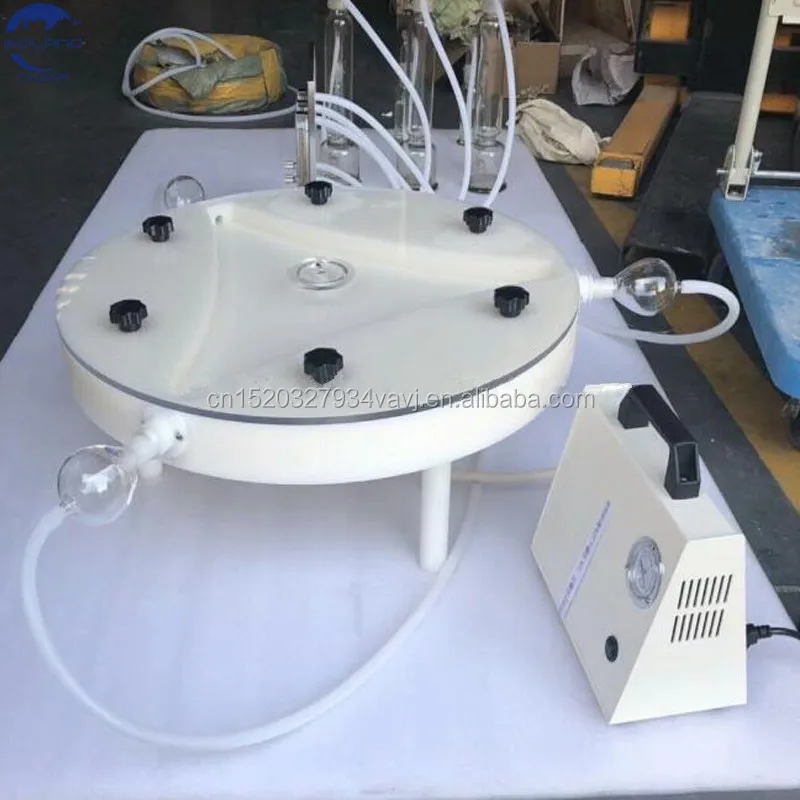

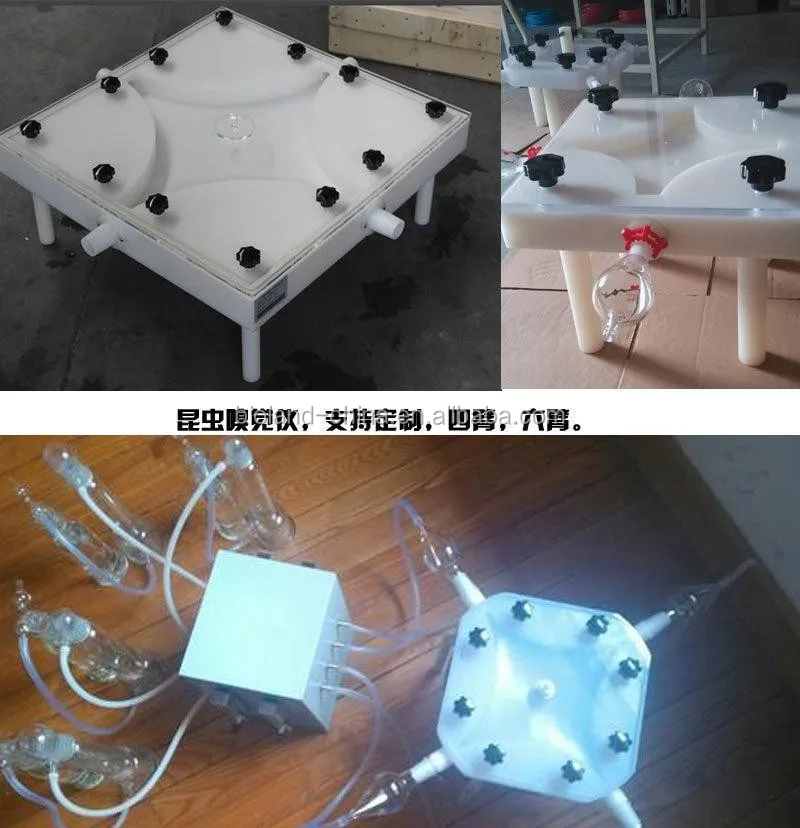

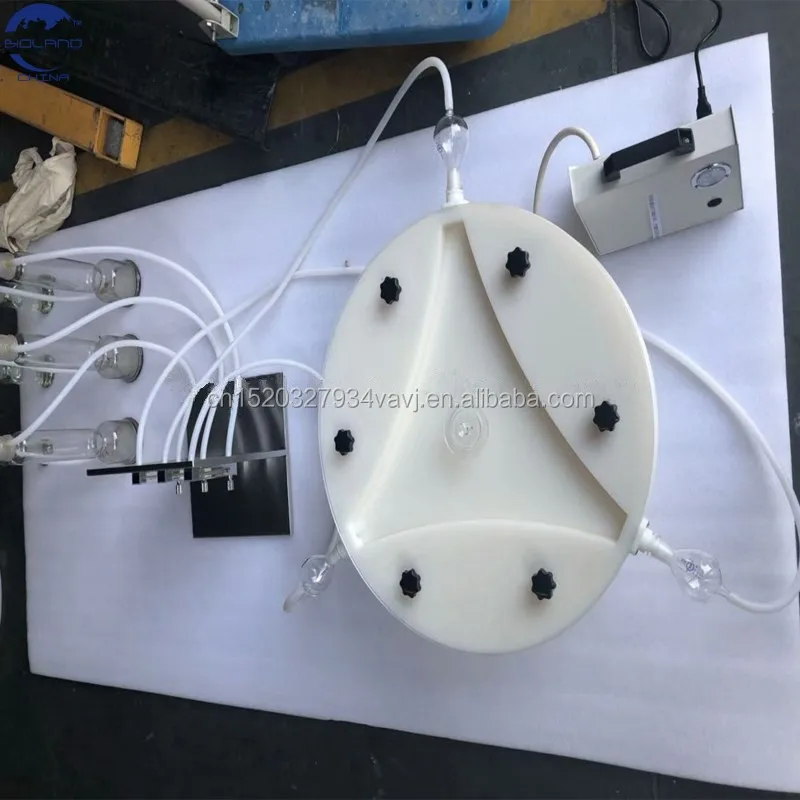

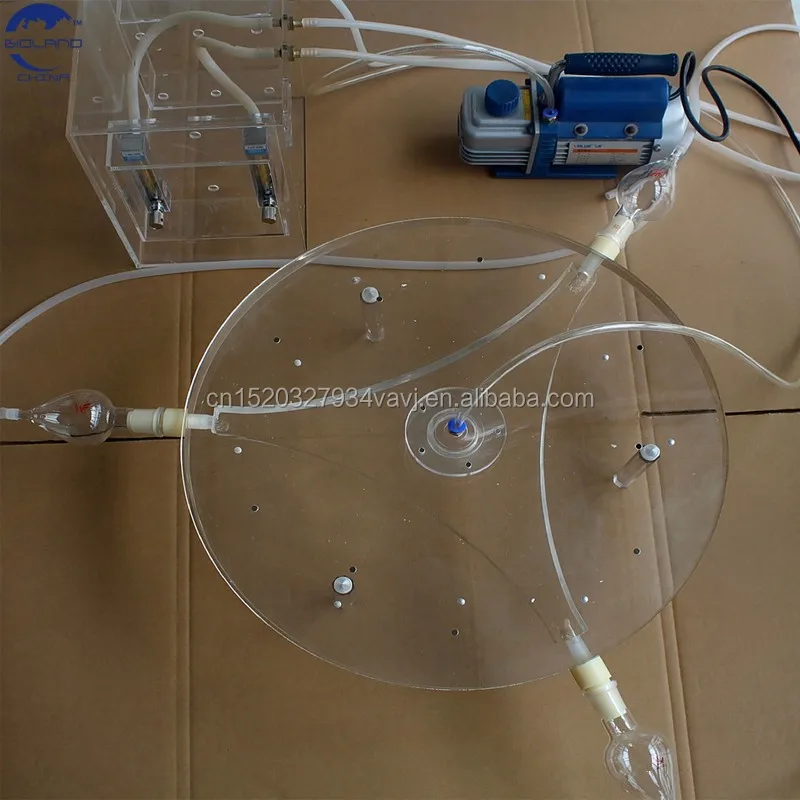

Products Show
Principle

Principle of  Y Type Lab Insect Olfactometer / insect olfactory Research Instrument


Each insect like the different taste of different types of gases, in the end of each channel, connect a different odor source, insects will creep like the smell at one end, from performance to know all sorts of insect olfactory.


The air and mixed gas flow throw the four odor channels into the activity room, and the vacuum pump will extract the mixed air through a vent hole. When the experiment starts, insect will be placed in the center of the activity room, and the vacuum pump begins to work after closing the activity room. The air and mixed air will flow into the room under constant pressure, the tested insect will react differently to different odors, if the insect is sensitive to one odor, it will creep to the odor source.



Testing Process of lab Insect Olfactometer: Before testing, place tested insects with the same physiological indices in the center of the activity room, after opening the vacuum pump, the insect will meet the odor air, and creep according to the odor density, at this time, record the quantity of creeping insects.

Packing & Delivery

Packing Details  : wooden packing of Insect Olfactory Apparatus

Delivery Details : 3-7 days after order of Insect Olfactory Apparatus
