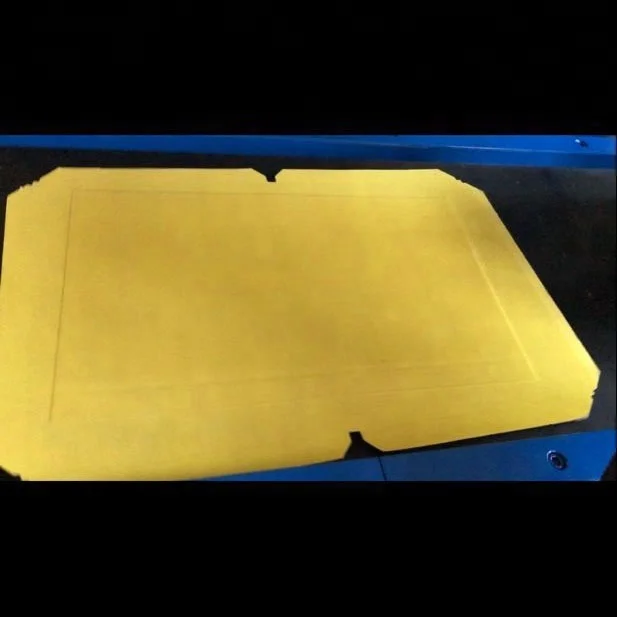

This machine is designed for making Rat traps on boards with hot melt adhesive.
Board size Min. and Max.
10" max. width and 4" min. width
210mm (Max.) X 100mm (Min.)
Max. Machine Speed
30 Pcs/min @ 28gms per pad
2 KW (VFD adjusted speed)
Max Gluing Width
Glue Tank Capacity
10 Kw, 380V, 50HZ, 3 Phase
a) Glue melt tank 1. The glue pump speed is controlled by gear motor 2. Temperature of each layer is controlled by PID system independently 3. Max. temperature is 220℃ 4. Melt glue speed: 45kg/hr 5. Heating power: app. 6 KW 6. Main Motor:0.4KW
b) Hot Hose 1. A 3m length hot melt hose provided. 2. 220V AC , 900 w power.
c) Slot die 210mm 1. Coating head: use 3 valves Independent control 2. Mounted on Pneumatic piston for up – down moment 3. Coating width adjustment with shimps insert 4. Levelling in transfers direction to conveyor is provided.
d) Auto Feeder 1. An automatic system for feeding one board at a time is provided. 2. An adjustable edge guiding scale provided for change in size. 3. A PVC belt conveyer belt provided for carrying the board.
e) Transmission part 1. Main motor: 2 KW 1 set 2. Negative pressure fan power: 1.1KW 1 set 3. Main machine driven by use of belt, chain and gear to transmit.
f) Pneumatic control part 1. Cylinder on slot die, feeding and stopping with head: diameter 50mm for each 2. Suitable solenoid valves, flow control and connectors.
g) Electric part 1. Main machine VFD: 2 KW; 1 piece 2. Glue tank VFD: 1 KW; 1 piece 3. Temperature controller: digital PID 4. Heaters: 8KW 5. Touch screen: 10" 1set 6. PLC: 1 set
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
1100 (L) * 800 (W) *1600(D)
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
