YUMO ISMM1468-001-100-B-5-L Manual Encoder for CNC Machine Tool hand wheel encoder

  • 1-9 Pieces
    $80.00
  • >=10 Pieces
    $76.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
YUMO
Model Number:
ISMM1468-001-100-B-5-L
Output:
Switching Transducer
Theory:
hand wheel
Usage:
Speed Sensor
Material:
Plastic
Color:
Black
Certificate:
CE RoHS
Application:
cnc machine
Warranty:
12 Months
Product name:
2 Channel Hand-Held Pulse Generator
Item:
100 pulse
Capacity:
6 axis
Name:
hand wheel encoder

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X15X15 cm
Single gross weight:
1.2 kg
Package Type:
Carton
Lead Time :
2

 YUMO ISMM1468-001-100-B-5-L Manual Encoder for CNC Machine Tool hand wheel encoder

Product Description



Suitable for manual pulse input type such as NC or Milling machinery
High reliability, terminal connection type
Power supply: 5V DC, 12V DC
Customer's logo is available



Application:
Industrial tooling machinery



1. ELECTRICAL SPECIFICATIONS

A). Output wave: Square wave

B). Output signals: A, B, (Line driver output A, A, B, B phase)

C). Current consumption: d100mA

D). Response Frequency: 0~20KHz

E). Output phase difference: 90*

F). Supply voltage: 5V DC, 12V DC

G). Signal level: IVHe85%Vcc, VLd0.3V

H). Number of pulses: 100 (Other number of pulse available on request)

I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage


2. MECHANICAL SPECIFICATIONS

A). Signal position: 2 kind

B). Speed without sealing: 500rmp

C). Starting torque without sealing: 2.0x 10-2~6.0x 10-2Nm (+25*C)

D). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ

E). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ

F). Working life: MTBFe10000h (+25*C, 2000rpm)

G). Weight: Appraisal 883g

3. ENVIRONMENTAL SPECIFICATIONS

A). Working humidity: 30~85% (No condensation)

B). Storage temperature: -30*C~85*C

C). Working temperature: -10*C~70*C

D). Protection class: IP54

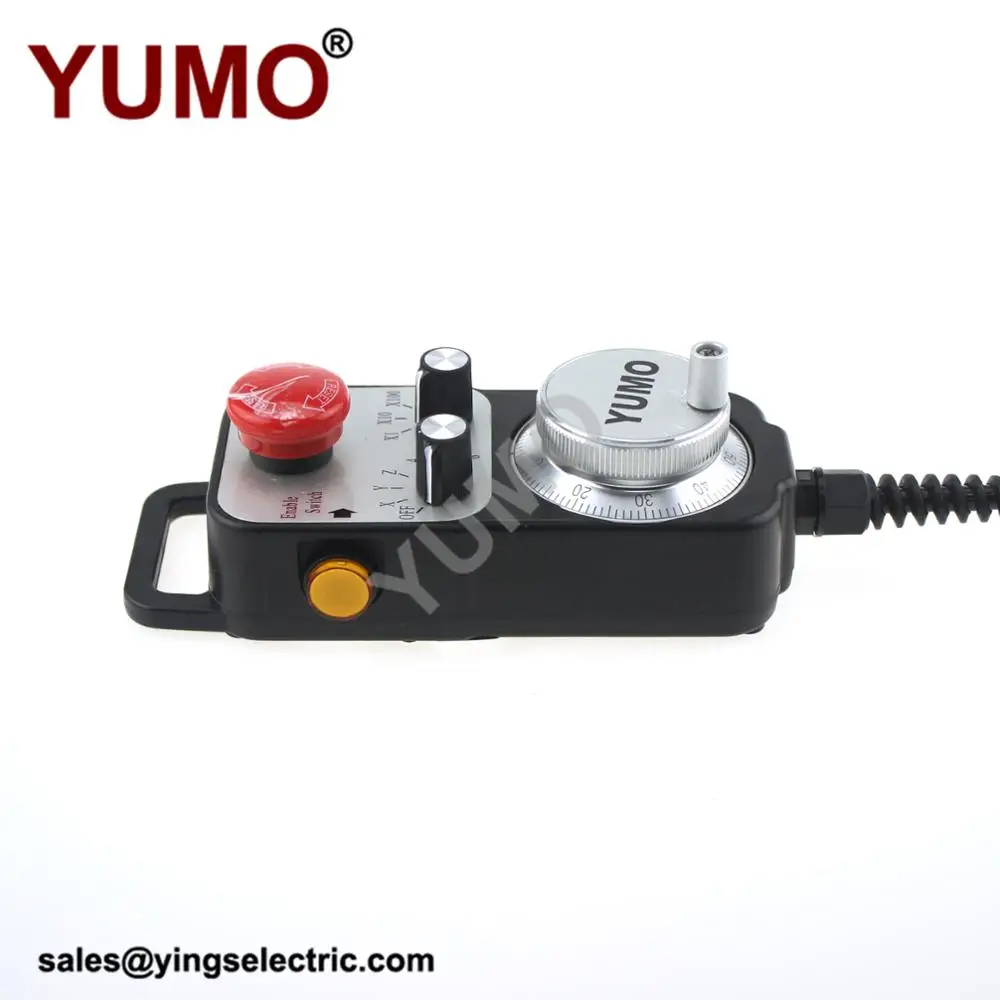

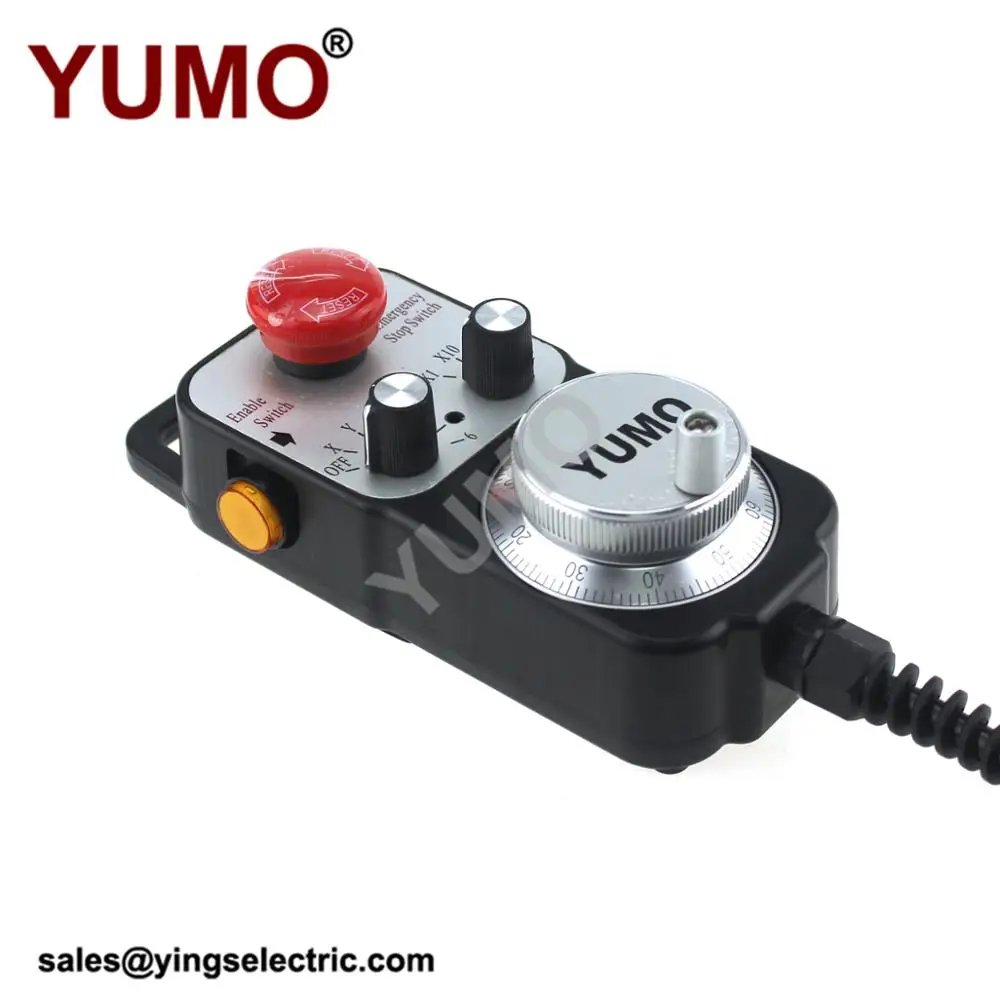

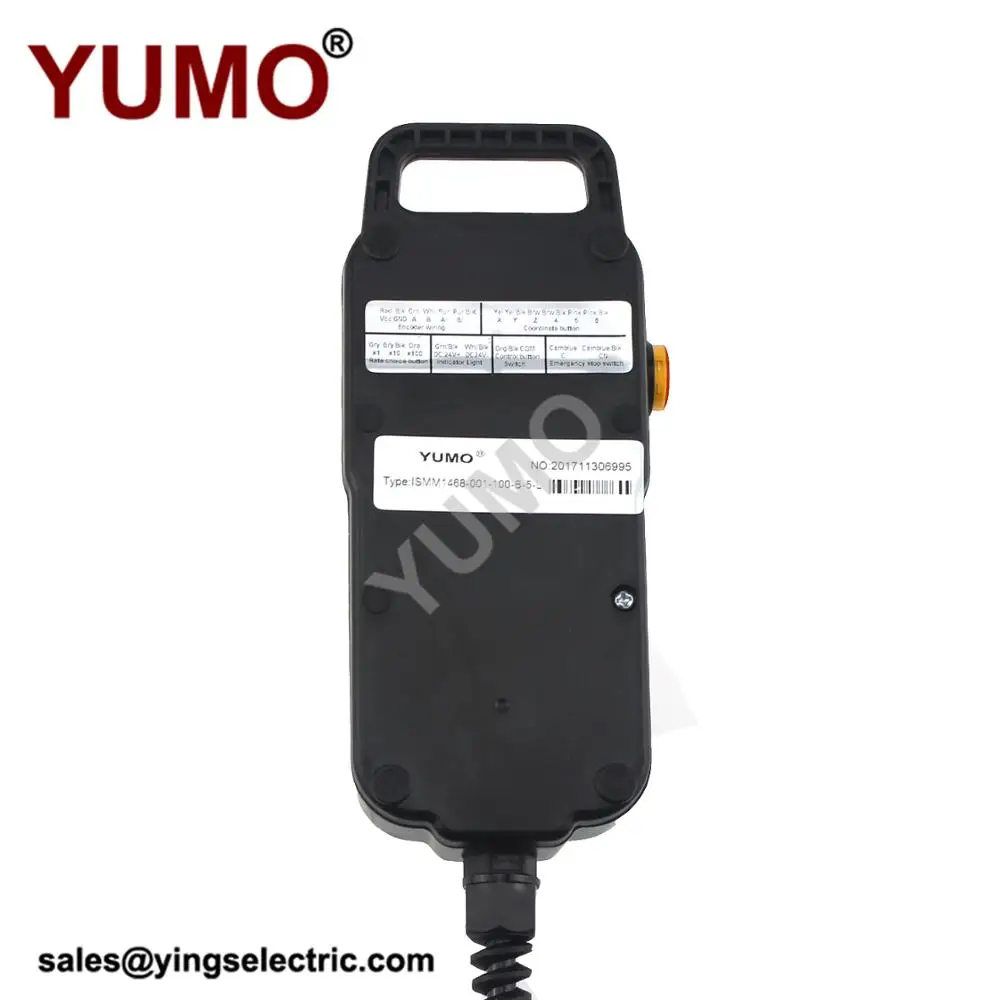

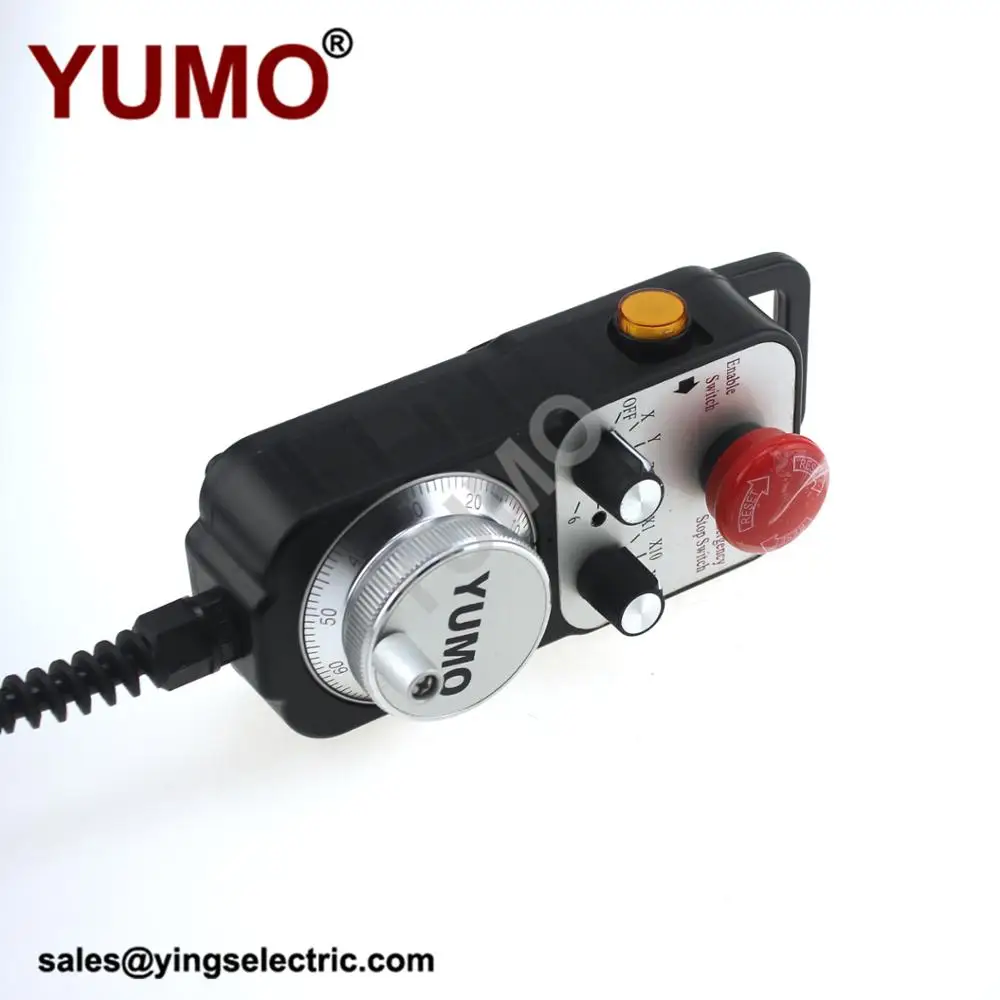

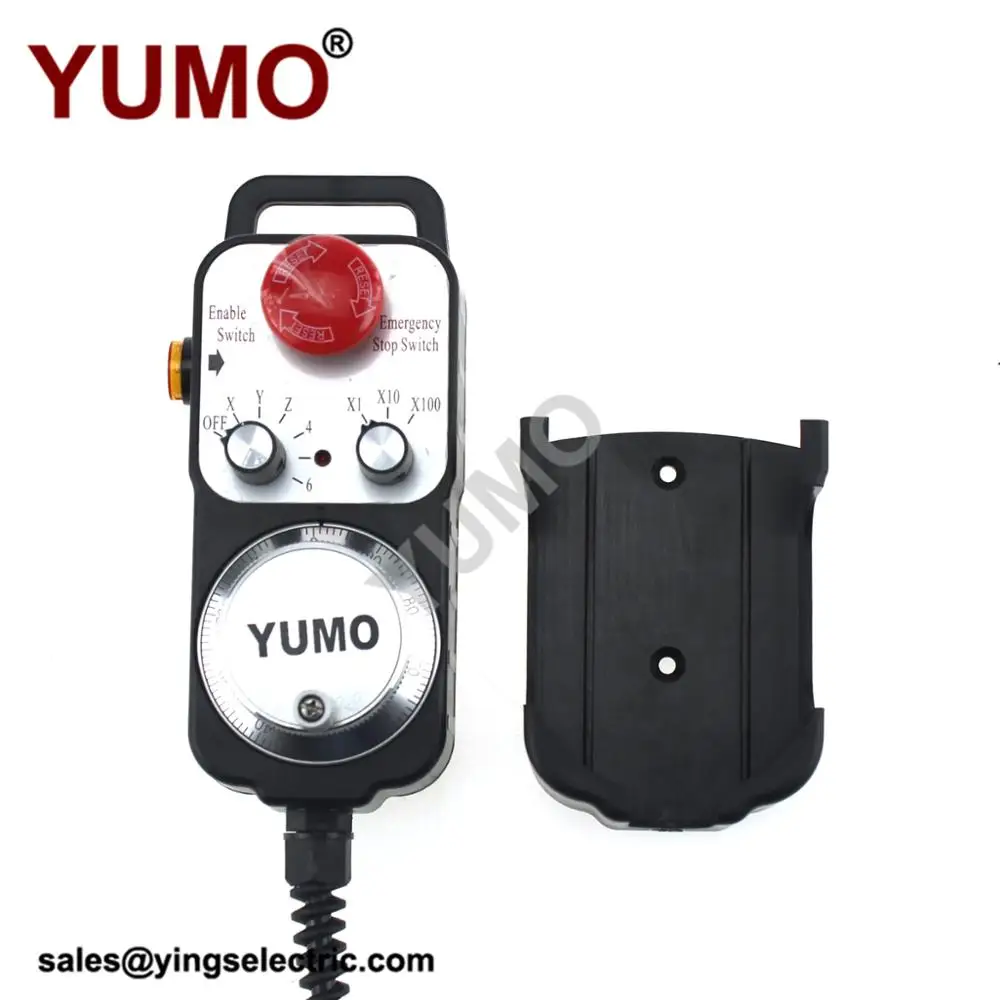

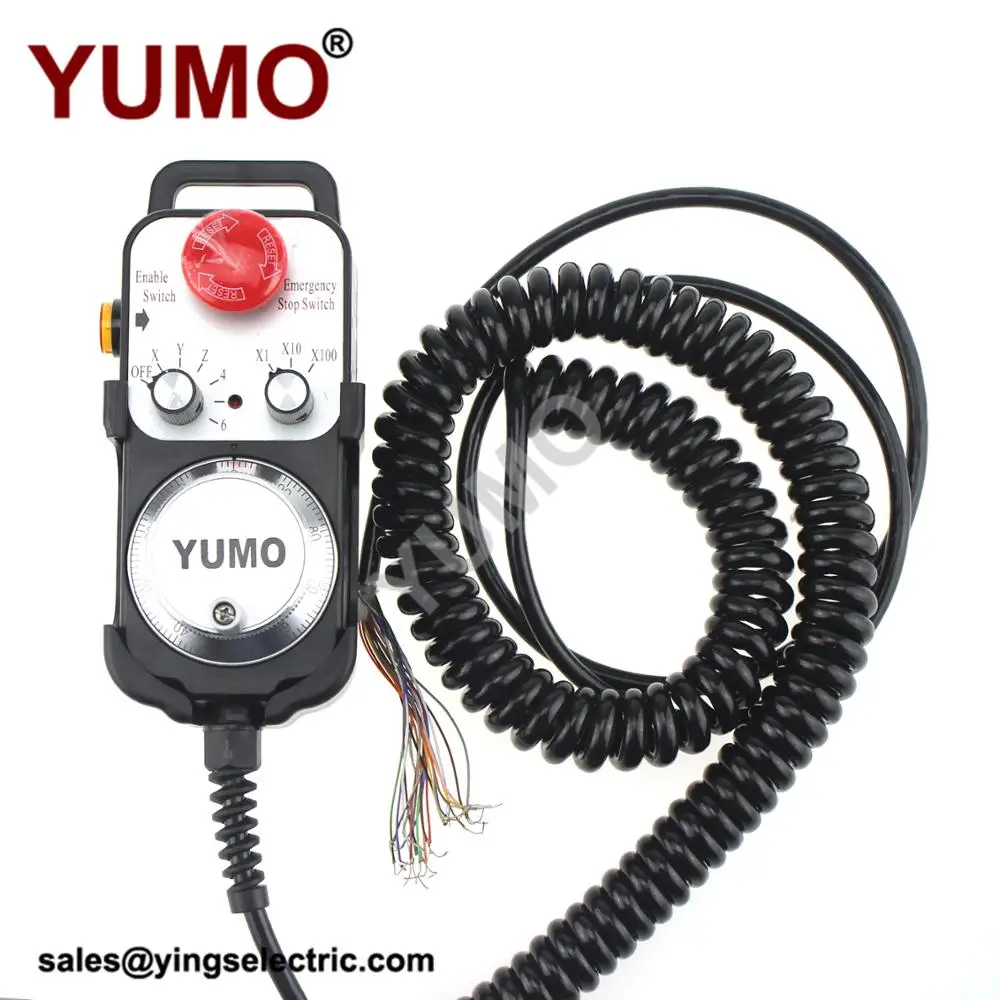

Hand wheel encoder picture:

ISMM1468 hand wheel 01.JPGISMM1468 hand wheel 02.JPGISMM1468 hand wheel 03.JPGISMM1468 hand wheel 04.JPGISMM1468 hand wheel 05.JPGISMM1468 hand wheel 06.JPGISMM1468 hand wheel 07.JPGISMM1468 hand wheel 08.JPG
