ZGB Series Solid Copper Mining Centrifugal Slurry Pump horizontal single stage slurry pump

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Tech-Macro
Model Number:
ZGB Series
Theory:
Centrifugal Pump
Structure:
Multistage Pump,single-stage pumps or multi-stage
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Nonstandard
Fuel:
Diesel
Pressure:
High Pressure
Application:
mine,coal,metallurgy
color:
according to customer' requirement
SupplyAbility
SupplyAbility:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export packing and according to custmer' requirement
Port
Tianjin Port
Lead Time :
35 working days after the first payment

ZGB Series Solid Copper Mining Centrifugal Slurry Pump



The type ZGB(P) pump is of horizontal single-stage, single-suction, cantilever, double-casing, centrifugal slurry pump. Among them, the ZGBP pumps are for stage 3 or 4 pumps in multi-stages. The pump is suitable for handling abrasive and corrosive slurry, widely used in electric power, metallurgy ,mine, coal, constructional material and chemical industry departments especially for removing ash and sludge in electric power station.







 Application:

It can be widely used for handling the mixture contained of abrasive and corrosive solids in electric power, metallurgy ,mine, coal, constructional material and chemical industry departments especial for removing ash and sludge in electric power station.



Technological Characteristic :

Advanced hydraulic performance, CAD modern design, high efficiency and lower abrasion rate.

 Expeller seal combined with packing seal and mechanical seal have be adopted to guarantee the slurry from leakage.

The metric bearing with oil lubrication, reasonable lubricating and cooling systems ensure the bearing to be operated under the lower temperature.

 The materials of wet parts had the good performance of anti-wearing and anti-corrosion.

The pump can be operated in series with multi-stage within permissible pressure ( the permissible maximum working pressure is 3.6 Mpa).

 The pump can be used for seawater ash-removing to prevent it from the corrosion of sweater, salt and mist ,and electrochemical corrosion.





Features:

Reasonable construction , high efficiency, reliable operation and easy maintenance.



Type notation:

100-ZGB(P)

100------- outlet diameter(mm)

Z----------Slurry pump

G---------High head

B---------Series code

(P)------- Multistage series

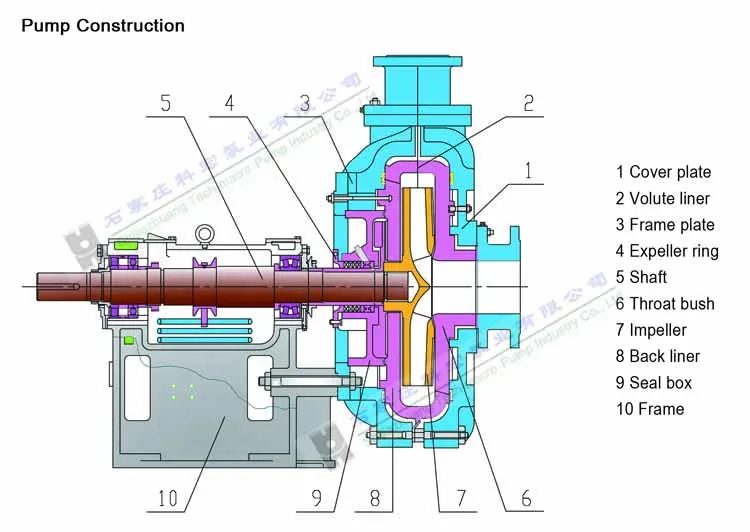

Construction diagram:





 Materials:
    Metal:

      Wear-resistant metal: A61, A05, A07, A11, A01

      Anti-abrasive, anti-corrosive metal: A49, A33

      Anti- abrasive metal: A22, A23, A25

      Other optional metals or alloys: Duplex stainless steel, stainless steel, nickel cast iron, brass, bronze, etc.

      Ceramics



(Note: The materials could be changed according to the customer’s requirements. )
