ZGSM SAA CE RoHS IP66 IK10 Outdoor Solar LED Street Light with 7 Years Warranty

  • 2-99 Units
    $75.00
  • 100-999 Units
    $74.00
  • >=1000 Units
    $67.00
Emitting Color:
Cold White
- +
available
Warm White
- +
available
White
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Units)
Customized packaging (Min. Order: 100 Units)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
AC: 90-305V
Lamp Luminous Flux(lm):
6500
CRI (Ra>):
70
Working Temperature(℃):
-40 - 50
Working Lifetime(Hour):
100000
IP Rating:
IP66
Certification:
BV, CCC, CE, EMC, FCC, GS, LVD, RoHS, SAA, SASO
Warranty(Year):
7
Place of Origin:
Zhejiang, China
Brand Name:
ZGSM or OEM
Model Number:
ZGSM-LD50H5
Beam Angle(°):
50*160 / 65*155 / 80*160 / 110*110
Application:
ROAD
Color:
Light Grey, Black, Customized
Power Supply:
SOLAR / AC / DC
Lamp Body Material:
Aluminum Alloy
Color Temperature(CCT):
3000K or 4000K or 5000K or 5700K
LED Light Source:
Lumileds 3030/5050
Maximum Current:
AC 1.03A -120V, 0.51A -240V, 0.45A -277V
LED Driver:
Meanwell HLG series
Driver Efficiency:
> 90%
Power Factor (PF):
> 0.95
Operating Humidity:
10% to 90%
Heat Radiator:
Anodized Aluminum
Lens:
PC
Product Certification Verified
CB Certified.
Valid from 2015-10-16 until 2049-12-31
CE Certified.
Valid from 2015-04-08 until 2049-12-31

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X39X22 cm
Single gross weight:
6.3 kg
Package Type:
1unit/ctn
Lead Time :
Quantity(Unit) 1 - 50 51 - 100 >100
Est. Time(days) 7 10 To be negotiated
Video Description
Similar recommend

1. Wide power range: 25W~200W
2. Special circuit design, single LED's damage won't affect others' normal work
3. Tool-less open for easy installation, replacement and maintenance.
4. Power-off protection make the Power automatically be off when fixture be opened.
5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.
6. level bubble makes it easy for the installer to adjust the position of the lamp
7. Breather ensures air balance inside and outside of the lamp
8. High Lumen output up to 150lm/w with high quality LED chips
9. Pass the 1000 hour salt spray test
10. Vertical and horizontal installation both available, adjustable by ±15°in both directions.
11. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell
12. Designed to last at least 100,000 hours at L70
13. Multiple lighting distributions available
14. ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79
15. 7 years limited warranty available.


If you are interested, please click to view details

Spec-50w
Model
ZGSM-LD50H5
ZGSM-LD100H5
ZGSM-LD150H5
ZGSM-LD200H5
ZGSM-LD240H5
Modules
1
2
3
4
5
Power
50w
100w
150w
200w
240w
Luminaire efficacy
130-160 lm /w
130 -160 lm /w
130-160 lm /w
130-160 lm /w
130-160 lm /w
Lumen
5500-8000 LM
11000-16000 LM
16500-24000 LM
22000-32000 LM
26400-38400 LM
Optic
TypeI, Medium; TypeII, Medium; TypeIII, Medium; TypeV, Short
CCT
4000K (Nature White), 5000K (Pure White), 5700K (Cool White)
Material
Housing: Die-cast aluminum; Heat sink: Stretched Aluminium Alloy; Lens: PC
Shell Color
Silver (RAL9022) or Black (RAL9005), other RAL colors available on request
Warranty
7 YEARS
Applications
Product Description



High Efficacy LED Source

ZGSM H series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of 5050 chips is more than 185 lm/w.




High-end LED Driver

High-end MeanWell HLG Series Flicker free LED driver
Optimal stabilityperformance and lifespan.


Flexible Modules Design

Modular structure making the lamp more easier and faster to be designed ,easy to do replacement and maintaining.A variety of combinations can multiply increase the brightness and illumination.
Modular concept, piece combinations as your require. Can satisfy any number of lanes and width combinations. With IP67 Protection, adapt to any weather conditions.




Post Top or Side Entry Mount

The H Series LED Street Light can both support vertical post top mount and horizontal side entry mount. and the installation angle can be adjusted 0-15 degrees



Variety Light Distribution

ZGSM provides different light distribution lens for the H Series street light to achieve best lighting effect in different applications.
follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III and Type V.




Surge Protection Device

ZGSM brand TUV approved 10KV surge protection device is the standard configuration in all of our LED Street Light.



Remote Smart Control System

ZGSM provides a total solution for intelligence street lighting system. Communication via GPRS/CDMA/WCDMA wireless network or cable network & monitor center and proceeds with communication via ZIGBEE/PLC/ROLA.

Installation Process

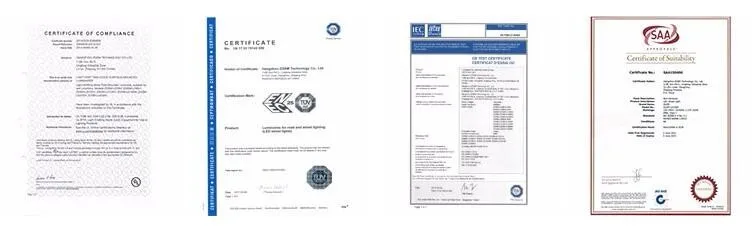

Certifications
Company Information

Customer Reviews

FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements . Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-7 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less  than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.


Solar system street lights, please contact us for details
