ZK5 CCD Colour Camera Industrial plastic Color Sorting Machine

FOB Reference Price:Get Latest Price
$1,000.00 - $90,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ZK5
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hubei, China (Mainland)
Brand Name:
Dingxin
Production Capacity:
7.5-15TPH
Voltage:
220V/50HZ
Power(W):
1.5-3.5KW
Weight:
950KG
Dimension(L*W*H):
2110x1550x1840MM
Certification:
ISO9001
Name:
Industrial Color Sorting Machine
Channel:
64
Chute:
5
Accuracy:
≥99.98%
Pressure:
0.6-0.8MPA
Consumption:
< 3000L/min
Optimized carryover:
bad:good≥8:1
Application:
sort pure color from mixed colors
Feature:
High Efficiency and accurate
OEM/ODM:
yes
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
ONE YEAR
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden case package
Port
shanghai, China
Lead Time :
Shipped in 7-10 days after payment
Product Description

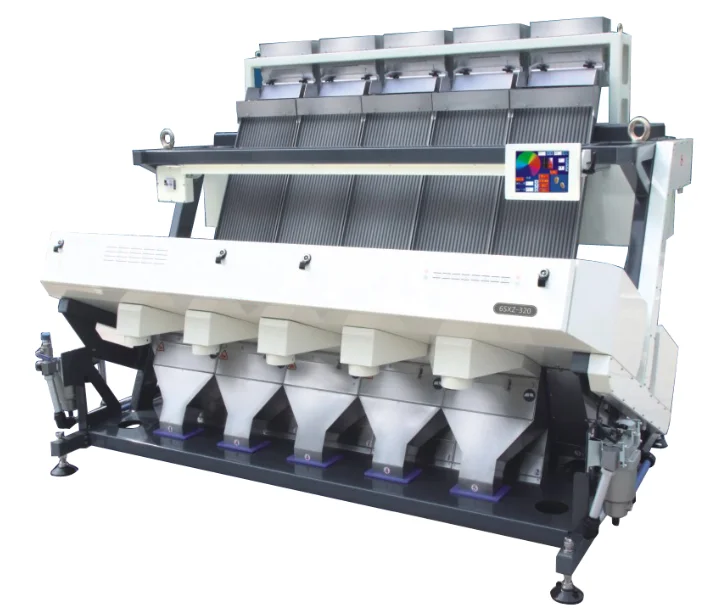

ZK5 CCD Colour Camera Industrial Color Sorting Machine

ZK5 CCD Colour Camera Industrial Color Sorting Machine adopts high quality special industrial lenses designed and manufactured for color sorting, the high speed DSP technology provides the sorter with fact detection and high identification rate, overall unit adopts intelligent closed-loop control, widely used for plastic, nuts, wheat, barley, chickpeas, coffee beans, soybeans and buckwheat.


Model
192
256
320
Type
ZK3
ZK4
ZK5
Output(T/h)
4-8
6-12
7.5-15
Accuary
>99.99
>99.99
>99.99
Voltage
220V/50HZ
220V/50HZ
220V/50HZ
Power(kw)
1.0-2.7
1.2-3
1.5-3.5
Air pressure(Mpa)
≥0.6
≥0.6
≥0.6
Consumption(L/min)
1000-1800
1200-2500
1500-3000
Weight(kg)
635
750
950
Dimension(mm)
1506x1550x1840
1808x1550x1840
2110x1550x1840

Main Features

1. It uses 2048 high-performance CCD image sensor with resolution up to 0.04mm2, to perceive the tiny color difference of material.
2.It adopts high quality special industrial lens,its working parameters according to the various materials color requirements, and optimize the optical path design, to ensure the each size has a perfect image on the image sensor.
3.The high speed DSP Digital image processing technology provides the sorter with fast detection and high identification rate.
4.According to the spectra characteristics and identification of characteristics of rice.specifically design flexibility and robustness of both special grain detection algorithm start from the spectra analysis to meet slight color detection to improve robustness, to avoid interference with other factors of material surface.
5.The main control system adopts ARM9 high-end embedded processor.it effectively enhances processor speed and color selection precision.
6.The machine adopts intelligent closed-loop control, industrial data bus line can ensure the reliability of the communication and control system, strong anti-interference ability.
7.Super 10 inch screen for color and black-and-white,more flexible in touch and quick in operation. Many setting modes to meet the demand for the more color sorting algorithm.
8.The professional high speed solenoid valve , with more speed and high frequency, low power consumption and longer service life.
9.Double sides cameras and multiple modes can adapt to different demands. and high stability,high precision and low carryover.
10.Using intelligent temperature and pressure control technology to ensure the machine runs in the best working condition.
11.Auto fault-alarming ,modular structure and easy to maintain.

Certifications
Detailed Images

Machine Parts

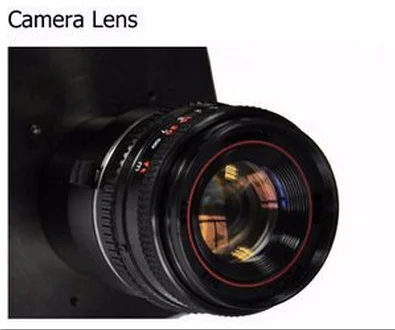

Name: Nikon camera 2048 pixel

Brand: Nikon

Original: Japan

High-precision 2048 pixels high-speed line scan CCD, high-fidelity identifying and high-speed sorting

Main Features

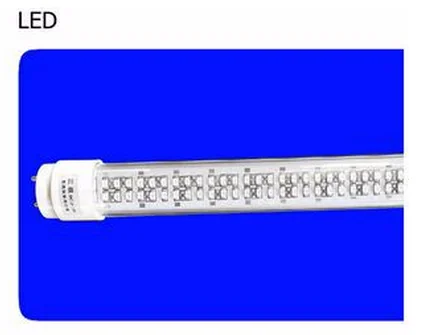

Name: LED light
Brand: LED
Original: China
High-brightness and long-service-life LED light, durable and stable; better color sorting effect;

Machine Parts

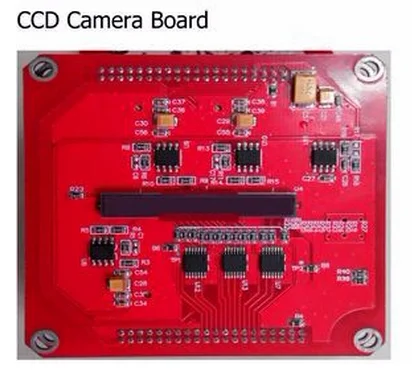

Name: CCD Camera board
Brand:  CCD
Original: Germany
Processing system based on the frontier CCD technology; good sorting of light yellow, tiny rice macula, needle spots; and good simultaneously sorting of yellow and milky grain;

Main Features

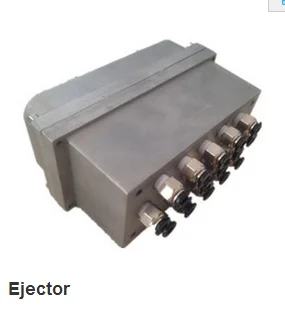

Name: Ejector
Brand: DX
Original: China
The highest frequency:800~100 time /secord
Lifetime:NLT 50 thousand hours under the normal condition

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2130*1830*1950MM
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
2050*550*550/1800*880*980MM
Weight
0.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
