ZL-C One Screw PP PE ABS Die Face Cutting Waste Plastic Film Recycling Granulation Pelletizing Washing Lines Machine Price

  • 1-4 Sets
    $16,000.00
  • >=5 Sets
    $15,000.00
Model Number:
ZL-C
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 5 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Production Capacity (kg/h):
100
Applicable Industries:
Garment Shops, Building Material Shops, Retail, Construction works , Energy & Mining
Condition:
New
Automatic Grade:
Automatic
Place of Origin:
CHINA
Brand Name:
LIFENG
Voltage:
380V
Dimension(L*W*H):
4500*2000*4500mm
Power (kW):
22KW
Weight (T):
5
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Key Selling Points:
Competitive Price
Name:
Plastic Recycling Granulator Machine
Plastic Type:
PP/PE
Capacity:
100-500kg/h
Material Processed:
Crushing-washing-drying
Weight:
2000kg
Power(W):
22kw
Production Capacity:
100kg/h

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X50X50 cm
Single gross weight:
68.0 kg
Package Type:
Plastic Stretch Film Packaging. ZL-C One Screw PP PE ABS Die Face Cutting Waste Plastic Film Recycling Granulation Pelletizing Washing Lines Machine Price
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 2 >2
Est. Time(days) 15 To be negotiated
Video Description

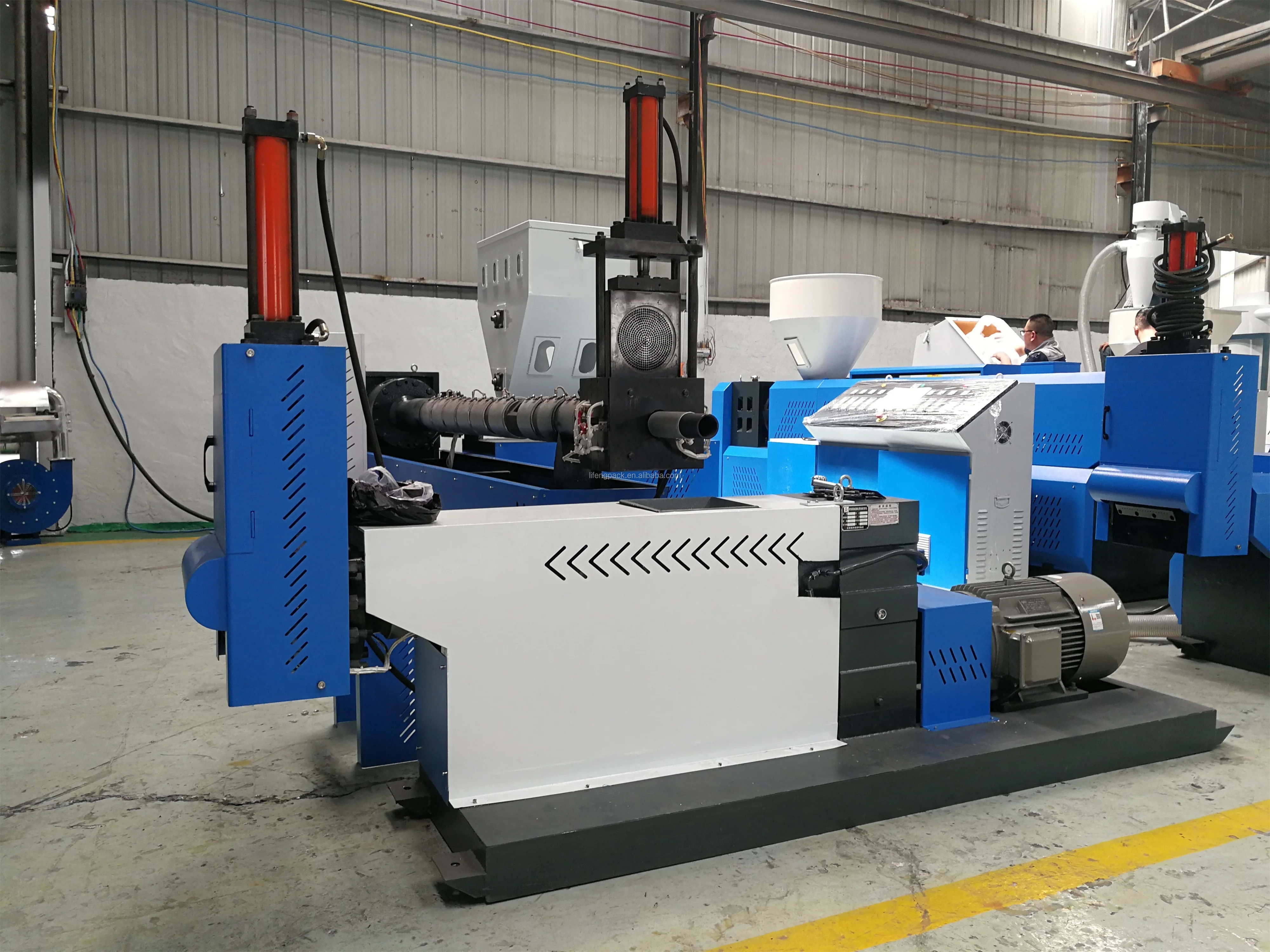

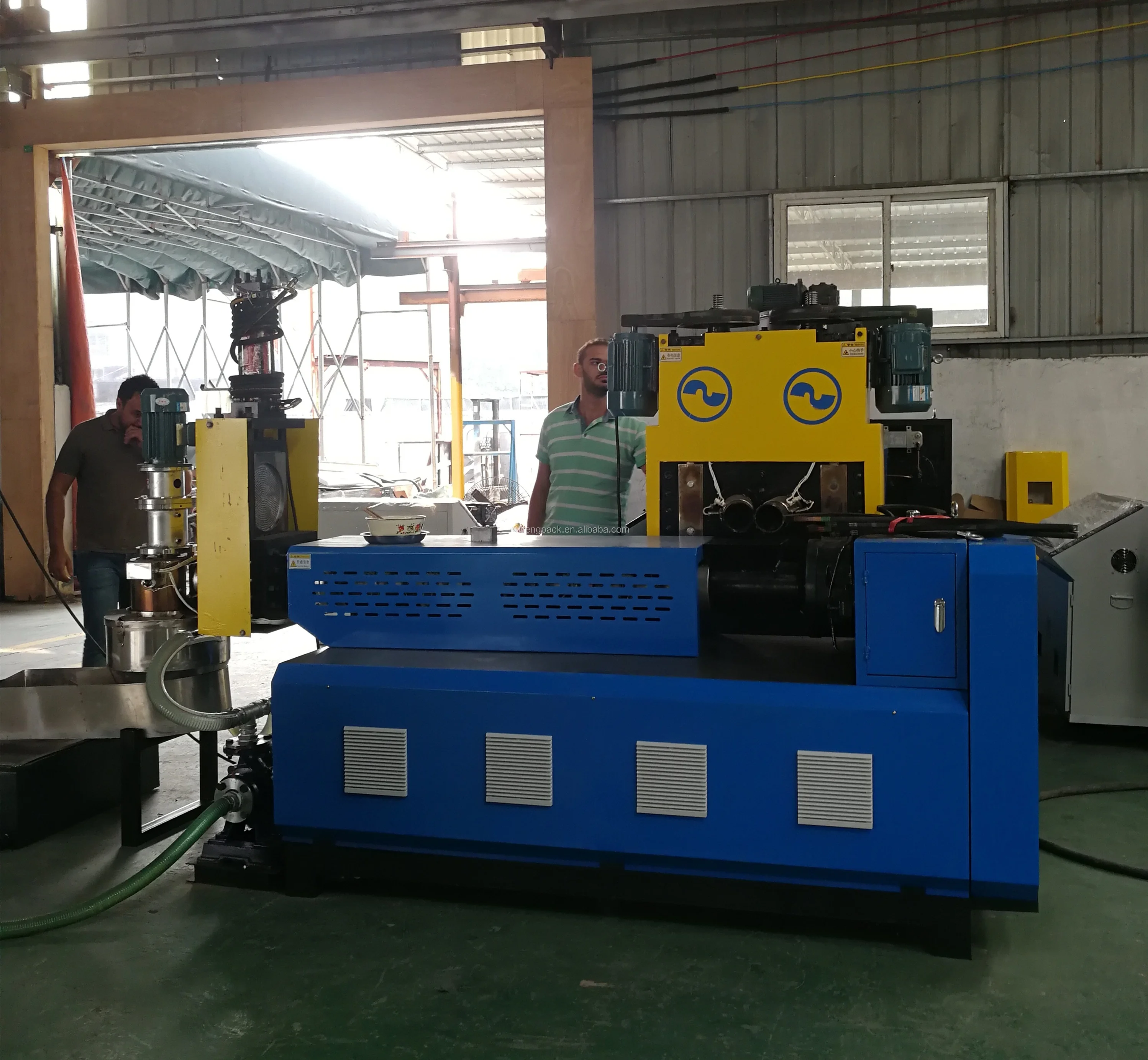

ZL-C One Screw PP PE ABS Die Face Cutting Waste Plastic Film Recycling Granulation Pelletizing Washing Lines Machine Price

Produce process : force feeder---extruding-water cooling----air blower----cutter ---material receiver

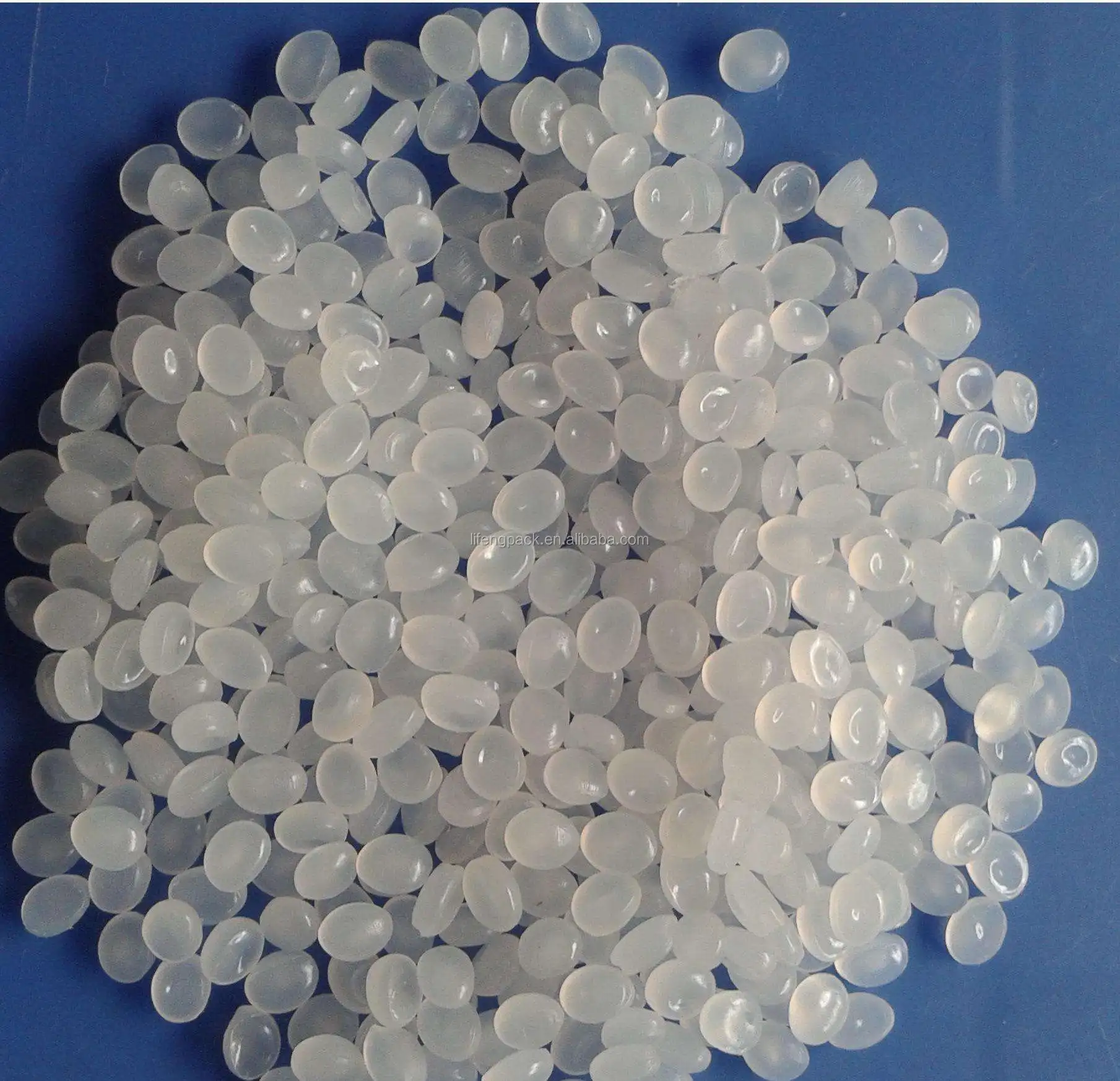

Function: for PE ,PP film ,bag crushed material recycling pelletizing
The PE,PP crushed material must clean and dry before put it into the feeder .


Model
ZL-C100
ZL-C120
ZL-C140
ZL-C160
capacity
50-100KG/H
120-150KG/H
180-250KG/H
250-350KG/H
Power
3Phase/380V/50HZ (can be your request)
Gear box
173#
200#
250#
280#
38Cr cast alloy Screw
Φ90mm length:1800mm
Φ120mm length:2400mm
Φ140mm length:2800mm
Φ160mm length :3200mm
Driving
Motor:22KW
Motor:37KW
Motor:55KW
Motor:75KW
Filter
Double Screen filter, Hydraulic Change Screen
Control box
5 zones
5 zones
6 zones
7 zones
Cooling system
Size :2500*400*600mm material :stainless steel(with fan)
Cutter system
Hob cutter machine(speed can be control)Diameter :200mm Motor :3.0KW cut size :3-4MM
Totally power
40KW
60KW
75KW
110KW
