ZONESUN 10-200ml pneumatic volumetric Softdrink liquid filling machine oil water juice honey soap filler supply

Feedback Ratings
$475.00 - $900.00 / Piece | 1 Piece (Min. Order)
Power:
100W
Model Number:
10-200ml filling machine
$485.00
- +
available
5-100ml filling machine
$475.00
- +
available
10-300ml filling machine
$495.00
- +
available
All 8 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Bags, Bottles
Packaging Material:
Paper
Type:
Filling Machine
Condition:
New
Application:
Apparel, Chemical, Food
Automatic Grade:
Semi-Automatic
Driven Type:
Pneumatic
Voltage:
220V or 110V
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZONESUN
Dimension(L*W*H):
110 CM* 50 CM * 50CM
Weight:
30
Certification:
CE SGS
After-sales Service Provided:
Free spare parts, No overseas service provided
name:
filling machine

Packaging & Delivery

Selling Units:
Single item
Single package size:
110X50X50 cm
Single gross weight:
30.0 kg
Package Type:
Our products are packed in cartons. We will check that if the machine can run before it is sent out. When you receive the goods, please open the package to check out if the goods are in good condition before the courier. If the cartons are damaged or other situations happen, please contact us in time.
Lead Time :
Quantity(Piece) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
Product Description

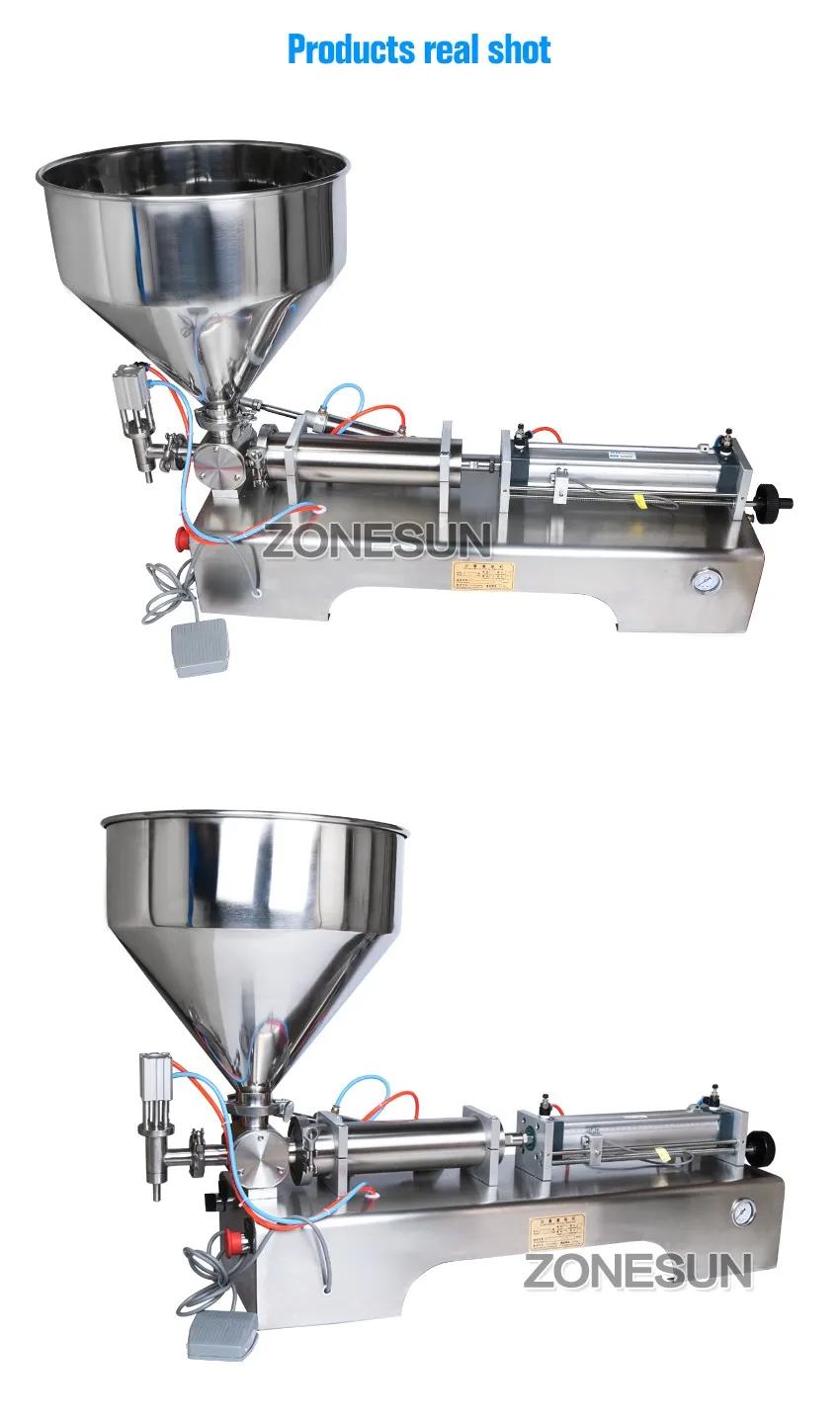

Equipment Introduction

This series filling machine is foreign advanced filling machine technology transformation and innovative products, its structure is simple and reasonable precision, easy to operate, user-friendly design more in line with the requirements of the modern enterprise. Widely used in pharmaceutical, cosmetic, food, pesticides and special industries, is a high-viscosity fluid, paste quantitative filling the ideal equipment.

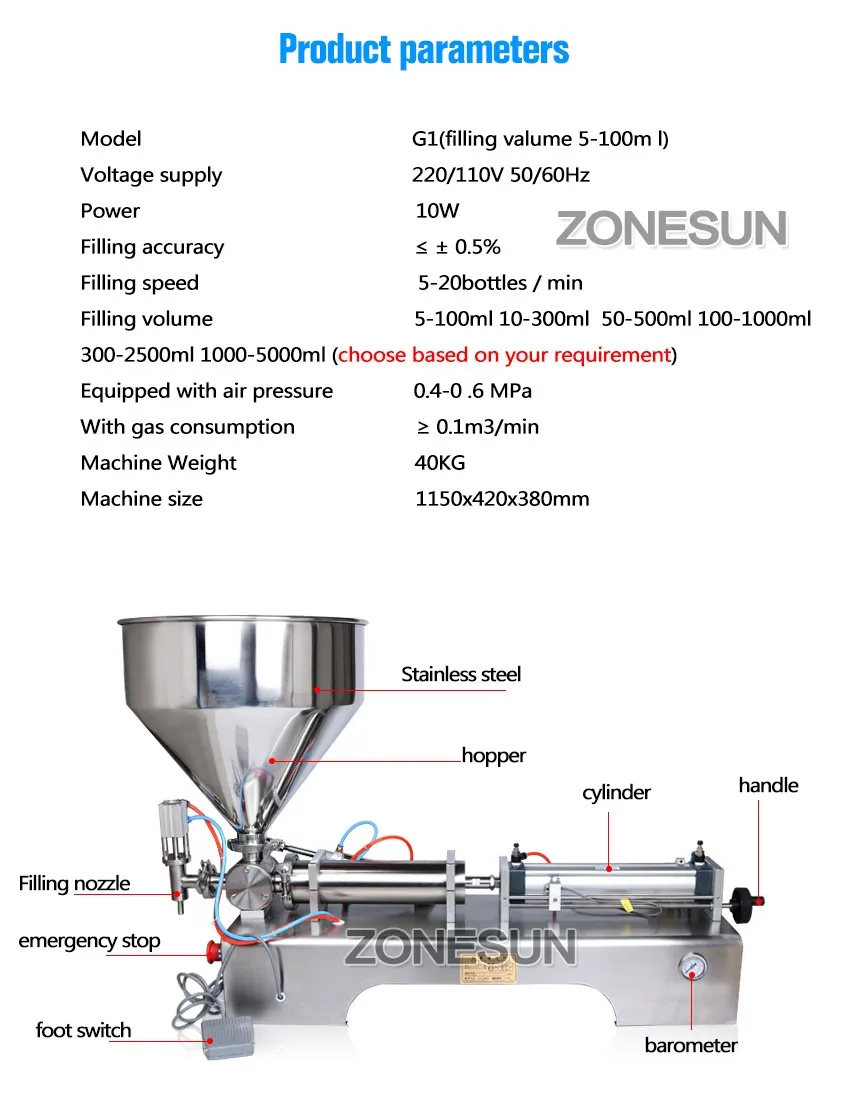

SPECIFICATIONS FOR FILLING MACHINE
Model
 300-2500m
Voltage supply
220/110V 50/60Hz
Power
10W
Filling accuracy
 ≤ ± 0.5%
Filling speed
5-20bottles / min
Filling volume
 5-100ml,10-300ml,100-500ml,100- 1000ml 300-2500ml 1000-5000ml(choose based on your requirement)
Equipped with air pressure
0.4-0 .6 MPa
With gas consumption
≥ 0.1m3/min
Machine Weight
 40KG
Machine size
1150x420x380mm

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

.This is suitable for 10-200ml pneumatic volumetric Softdrink liquid filling machine.

Main Features

220/110V 50/60HZ (if you need 110v , please inform us ,then we will make 110v for you )
· Approximate Speed 20-40 pcs/min (depending on operator speed, product density, draw length, a fill speed, among others)
· All Parts in Contact with Product are Food Grade (SS 304/316)
· Includes one 30Liter Hopper
· Stainless Steel Construction
· Rugged Rotary Valve System Design
· Pneumatic Operation
· Silica gel O-ring System(cam bear 200 Celsius degree)
· Piston Feed Speed Adjustment
· No-drip Option Included and Installed
· Extremely Accurate (+/- 1%)
· Extremely Easy to Clean and Maintain
· Sanitary Stainless Steel Quick Disconnect Fittings
· Extremely Easy to Operate
· Quick Connect/Disconnect Pneumatic Fittings.

Control Panel:

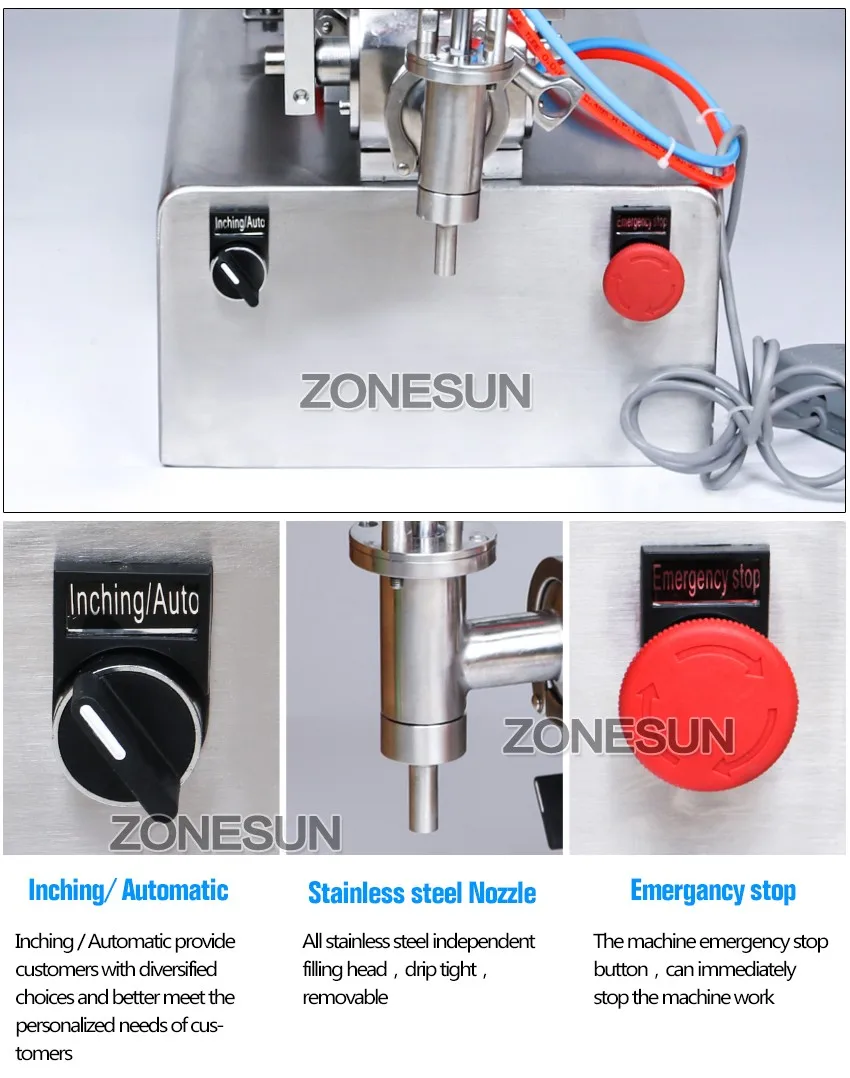

Semi Auto/Continuous Operation Selector Switch

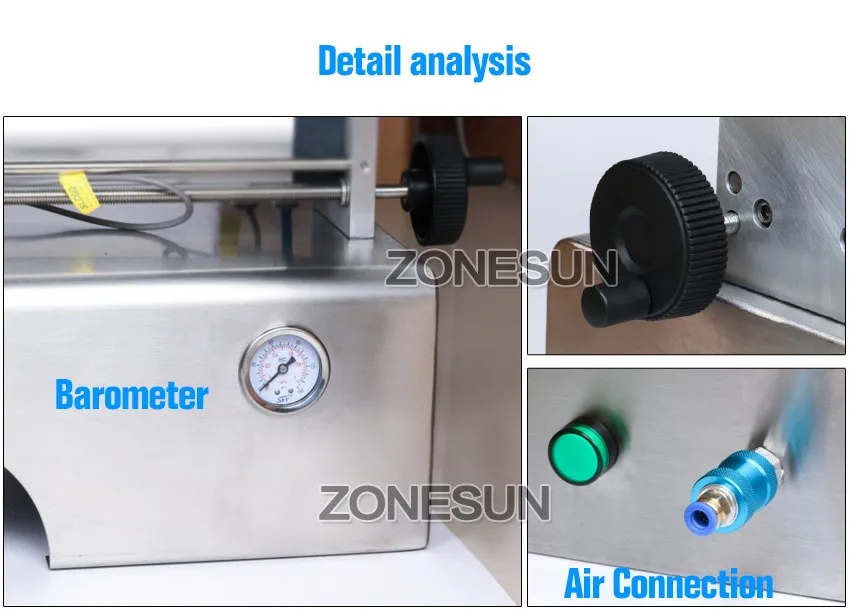

Air Pressure Gauge
Air Intake Pressure Adjustment
Piston Volume Adjust

Accessory

Air Consumption 3-5KG 0.4-0.6MPa
Wearing parts : Silica gel O-ring System (when delivery, we will prepared enough for you use in one year. Customer can buy in the future in their country)

Related Products

6 Heads Flling Machine

Water / Beverage / Pouch bag liquid

4 Heads Flling Machine

Products of various viscosity such

Pneumatic Filling Machine

Chili sauce / sauce bag

Title goes here.

Only use for sealant

Double head filling machine

Cosmetic oil / Moisturizer lotion

Grain Or Powder Flling Machine

Coffee - Beans Dry - Spice - Nuts

Powder Flling Machine

Flling automatically / More efficient

Double head filling machine

Liquid only go through the filling tube

6 head filling machine

Each head can work alone

Our Company
FAQ

Q1: Are you factory or trading company?
A: We are factory or manufacturer.

Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.

Q4: How could I get the spares on machines?
A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.

Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection. Our factory already highest stars of the grade.


Q6.What's the payment terms and trade terms for new customers?

A: Payment terms:T/T,L/C,D/P,O/A, Western Union etc.

Q7:What's the Minimum Order Quantity and warranty?

A:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
