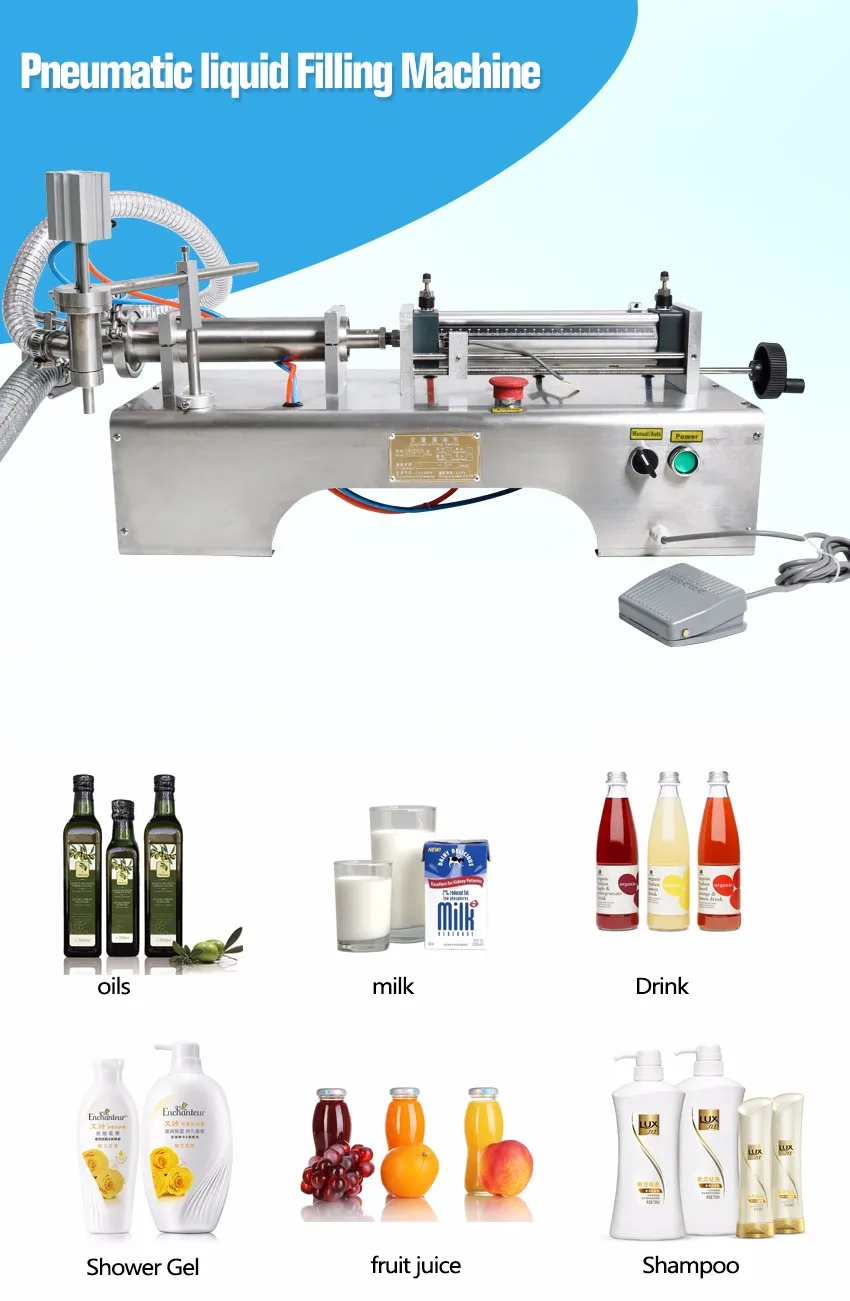

ZONESUN Pneumatic piston liquid filler shampoo gel water wine vinegar coffee oil drink detergent filling machine supply

Feedback Ratings
  • 1-4 Sets
    $560.00
  • >=5 Sets
    $550.00
Power:
750W
Model Number:
filling machine
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Barrel, Bottles, Cans
Packaging Material:
Paper
Type:
Filling Machine
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
220V
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZONESUN
Dimension(L*W*H):
85cm x 75cm x 30cm
Weight:
30kg
Certification:
CE SGS
After-sales Service Provided:
Free spare parts, No overseas service provided
Name:
Liquid Filling Machine

Packaging & Delivery

Selling Units:
Single item
Single package size:
120X50X50 cm
Single gross weight:
50.0 kg
Package Type:
wrapper
Lead Time :
Quantity(Set) 1 - 50 >50
Est. Time(days) 7 To be negotiated
Product Description

Product Application

· Approximate Speed 20-40 pcs/min (depending on operator speed, product density, draw length, a fill speed, among others)
· All Parts in Contact with Product are Food Grade (SS 304/316)
· Stainless Steel Construction
· Rugged Rotary Valve System Design
· Pneumatic Operation
· Silica gel O-ring System(cam bear 200 Celsius degree)
· Piston Feed Speed Adjustment
· No-drip Option Included and Installed
· Extremely Accurate (+/- 1%)
· Extremely Easy to Clean and Maintain
· Sanitary Stainless Steel Quick Disconnect Fittings
· Extremely Easy to Operate
· Quick Connect/Disconnect Pneumatic Fittings.


Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.


NOTE:We also have other size filling machine :5-100ml 10-200ml 50-500ml 100-1000ml 500-2500ml 1000-5000ml ,the price is different


Control Panel
· Semi Auto/Continuous Operation Selector Switch
· Air Pressure Gauge
· Air Intake Pressure Adjustment
· Piston Volume Adjust

Air Consumption 3-5KG 0.4-0.6MPa

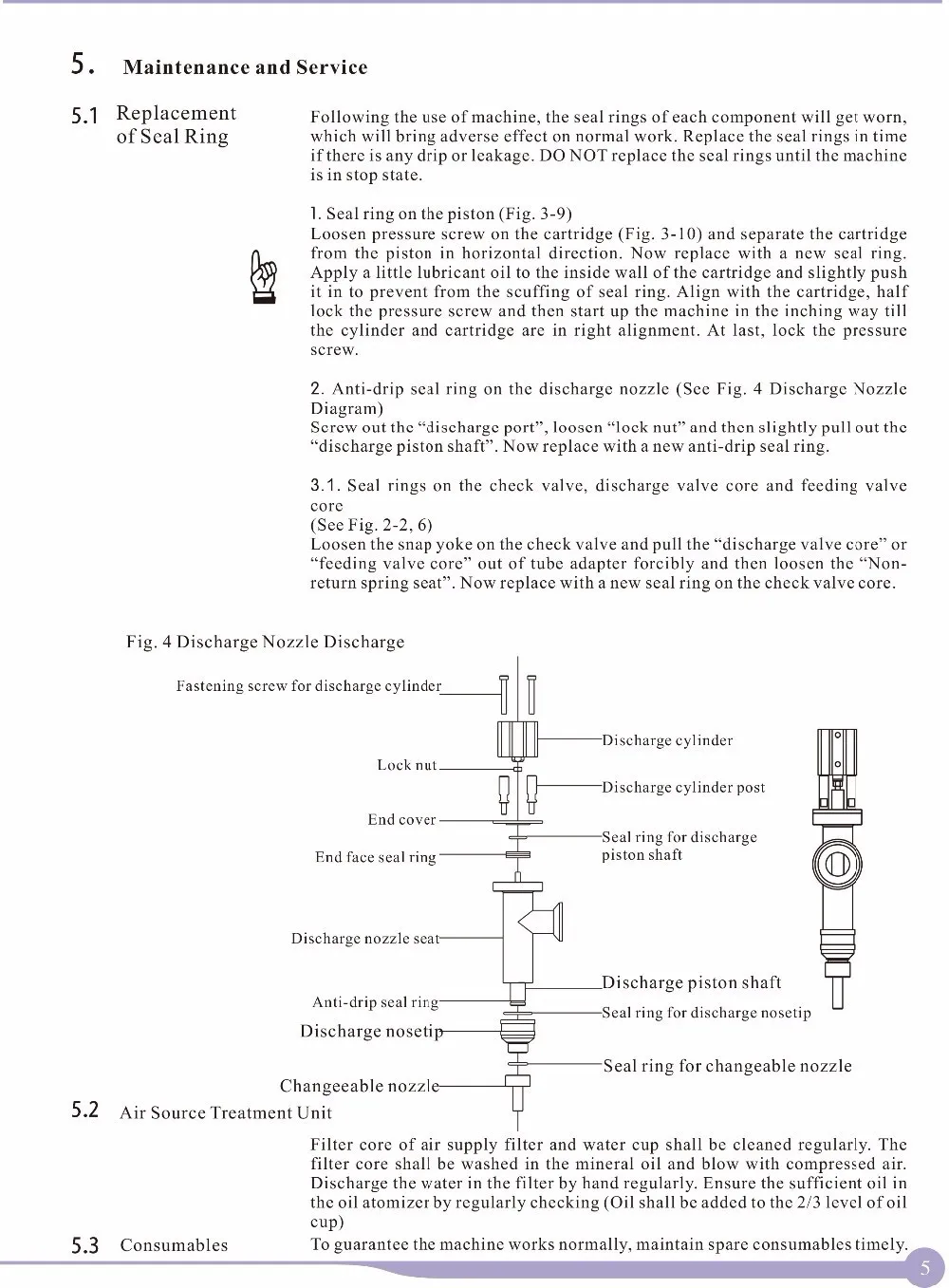

Wearing parts : Silica gel O-ring System (when delivery, I will prepared enough for you use in one year. Customer can buy in the future in their country)

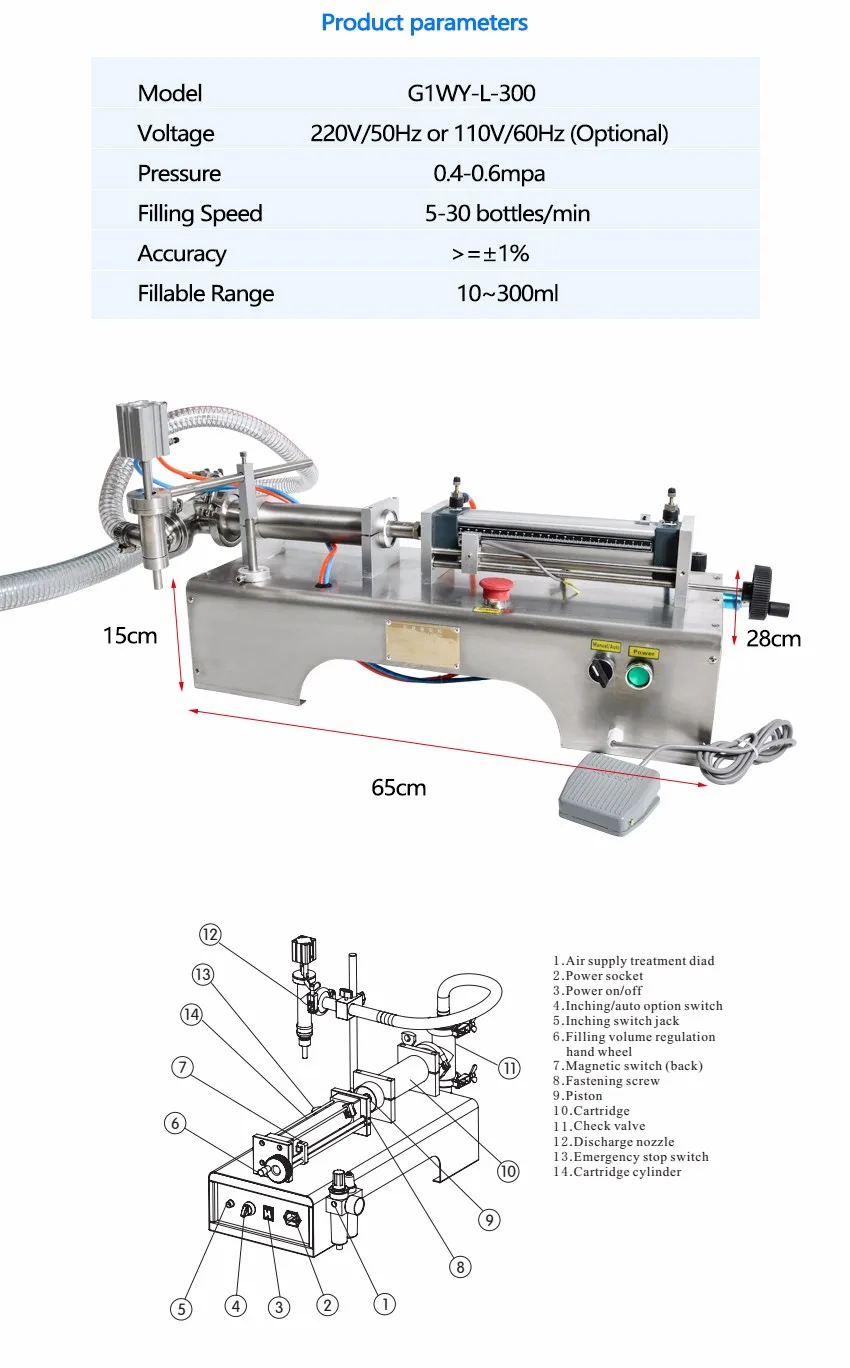

SPECIFICATIONS FOR FILLING MACHINE
Model
G1WY-L-2500
Voltage
220V/50Hz or 110V/60Hz
Pressure
0.4-0.6mpa
Filling Speed
5-30 bottles/min
Accuracy
>=±1%
Fillable Range
500~2500ml

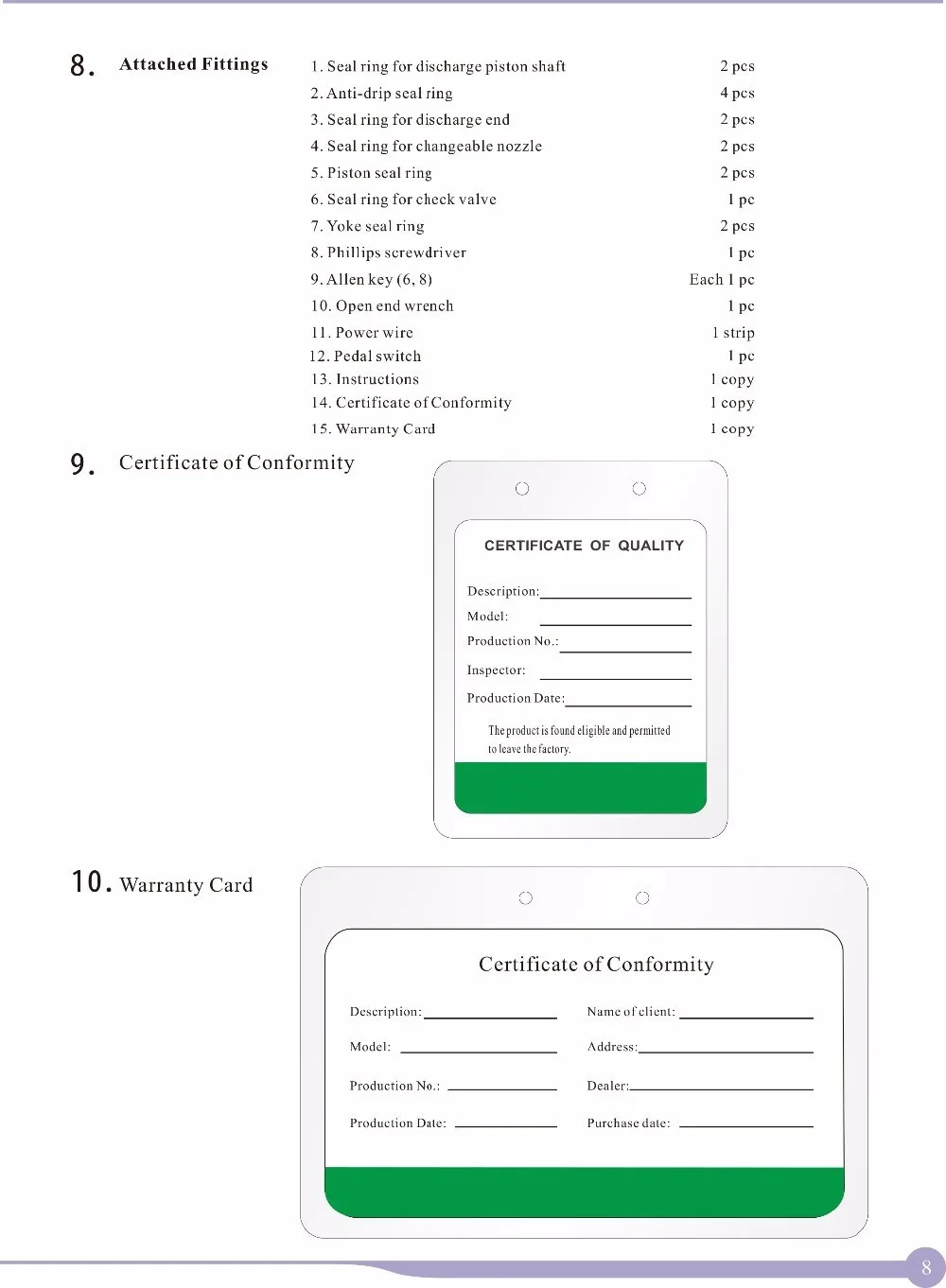

Packing List
Discharge piton shaft seal ring
2pcs
Anti-drip seal ring
4pcs
Seal ring for discharge end
2pcs
Piston seal ring
2pcs
Yoke seal ring
2pcs
Phillips screwdriver
1pcs
 Allen key (6,8)
 1pcs
Open end wrech
1pcs
Seal ring for changeable nozzle
2pcs
Seal ring for check valve
1pc

Main Features

(1) Only for liquid filling,not for paste filling;
(2) Adopts pneumatic working principle, simple operation, high filling precision;
(3) A certain concentration or certain size granular materials ideal filling equipment;
(4) Stainless Steel Construction;
(5) Rugged Rotary Valve System Design;

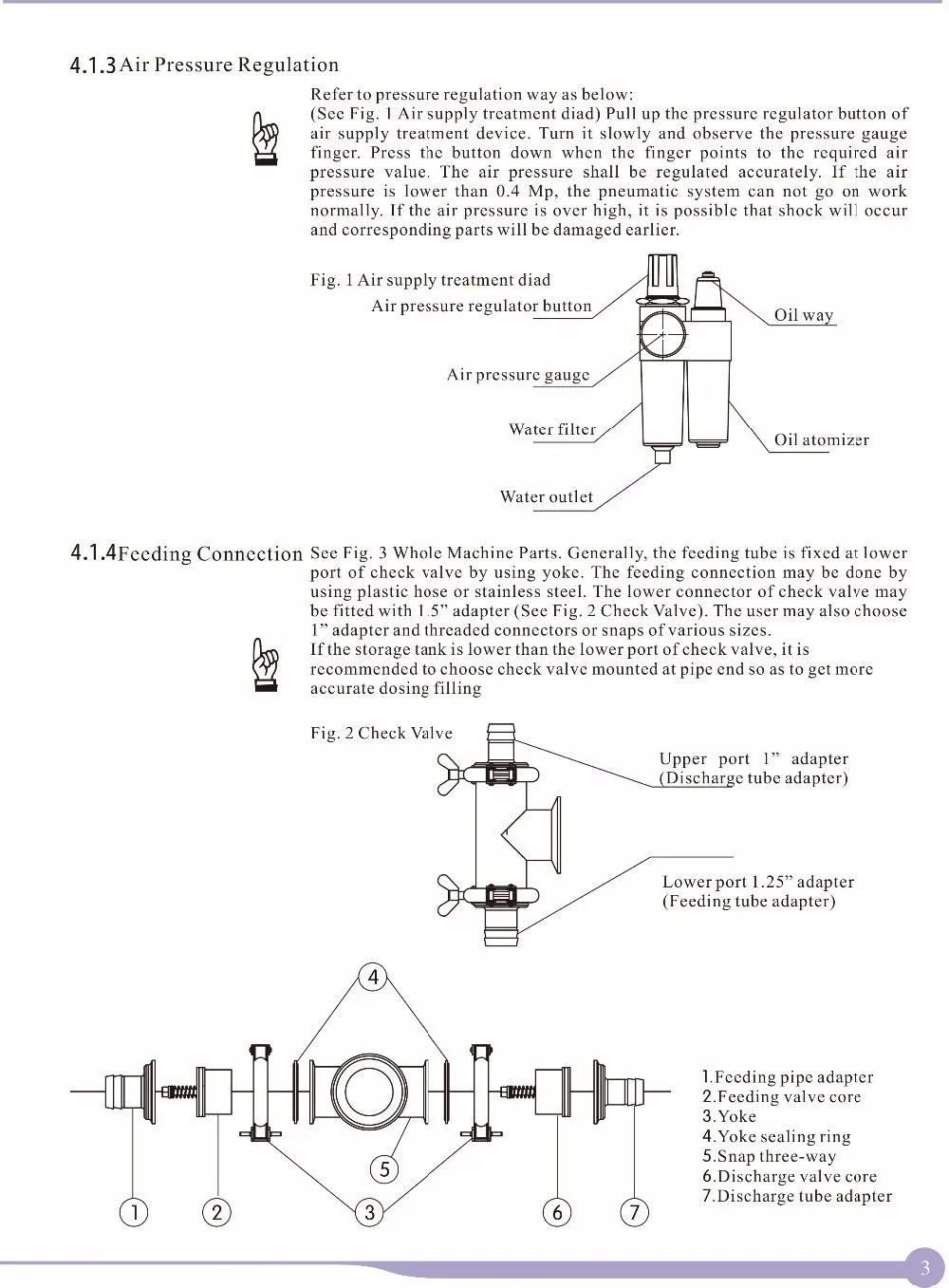

(6) Pneumatic Operation, the air compressor should be prepared by the buyer. The requirement of the air compressor:
Pressure: 0.4-0.6MPa;
Power: 750W;
Gas Capacity: >30L
(7) Piston Feed Speed Adjustment;
(8) No-drip Option Included and Installe;
(9) Extremely Easy to Clean and Maintain;
(10) Sanitary Stainless Steel Quick Disconnect Fittings;
(11) Extremely Easy to Operate;
(12) Quick Connect/ Disconnect Pneumatic Fittings;

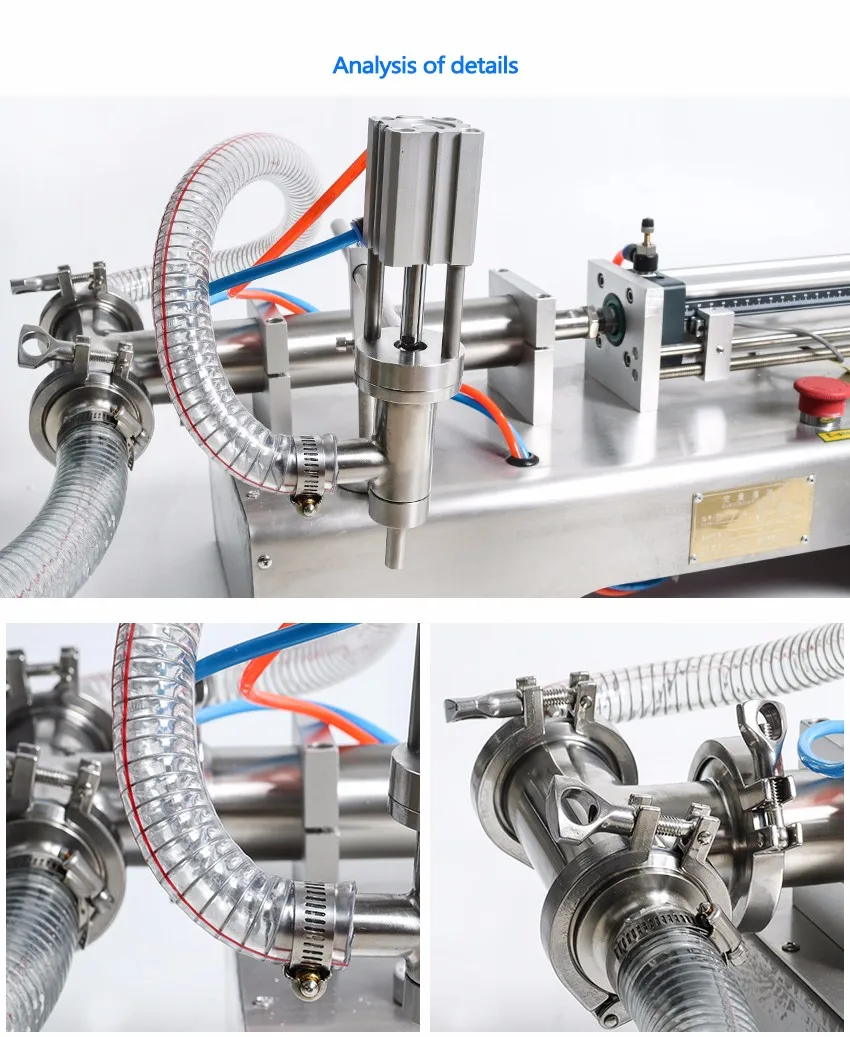

Detailed Images
Related Products

6 Heads Flling Machine

Water / Beverage / Pouch bag liquid

4 Heads Flling Machine

Products of various viscosity such

Pneumatic Filling Machine

Chili sauce / sauce bag

Title goes here.

Only use for sealant

Double head filling machine

Cosmetic oil / Moisturizer lotion

Grain Or Powder Flling Machine

Coffee - Beans Dry - Spice - Nuts

Powder Flling Machine

Flling automatically / More efficient

Double head filling machine

Liquid only go through the filling tube

6 head filling machine

Each head can work alone

Our Company
FAQ

Q1: Are you factory or trading company?
A: We are factory or manufacturer.

Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.

Q4: How could I get the spares on machines?
A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.

Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection. Our factory already highest stars of the grade.


Q6.What's the payment terms and trade terms for new customers?

A: Payment terms:T/T,L/C,D/P,O/A, Western Union etc.

Q7:What's the Minimum Order Quantity and warranty?

A:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
