1×10/100 Mbps WAN + 4×10/100 Mbps LAN, Ethernet RJ45
1×Serial Port (RS232/RS485)
1×DC Power Connector
1×Reset Button 2×External Antennas
1×Sim Card Slot
Flash/RAM: 128Mb/512Mb (16MB/64MB)
DC 12V/1.5A (7.5V-32V)
For Ready to Ship Order:
1. The default product ZR5000-EUW support "4G+Ethernet+WiFi", and it adopt Cellular Frequency Bands of Europe、Middle East、Africa、Korea、Thailand、Southeast Asia area.
2. This router provide a serial port(use for serial data transfer, if you don't need it, please select RS232), please select RS232 or RS485 in the "Model Number".
3. If you have special request, please leave a message or contact us.
Industrial Grade Design, high-performance
Adopt industrial grade high speed 4G wireless communication module and industrial 32 bits CPU, high EMC level, wide operating temperature range, serial interface RS232/485, VPN function. Adapting to high and low temperature, moisture-proof and lightening protection, able to work stably in harsh environment.
Failover, backup and load balance, stable work for 7 * 24 hours
Qixiang router with strong WDT, self-recovery, schedule reboot function, and provide failover/backup/load balance between Cellular/WiFi/Wired network, keeping always online.

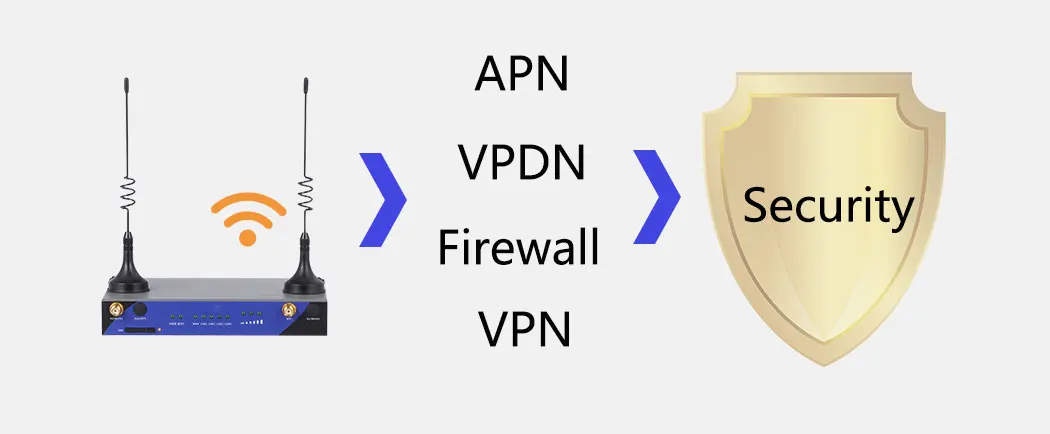

Secure solutions, data transmission meet financial requirement
Qixiang industrial 4G wireless router supports APN/VPDN, Firewall, IPSEC, PPTP, L2TP, GRE, OPENVPN, N2N etc., Make sure the security and accuracy of data transmission and management.

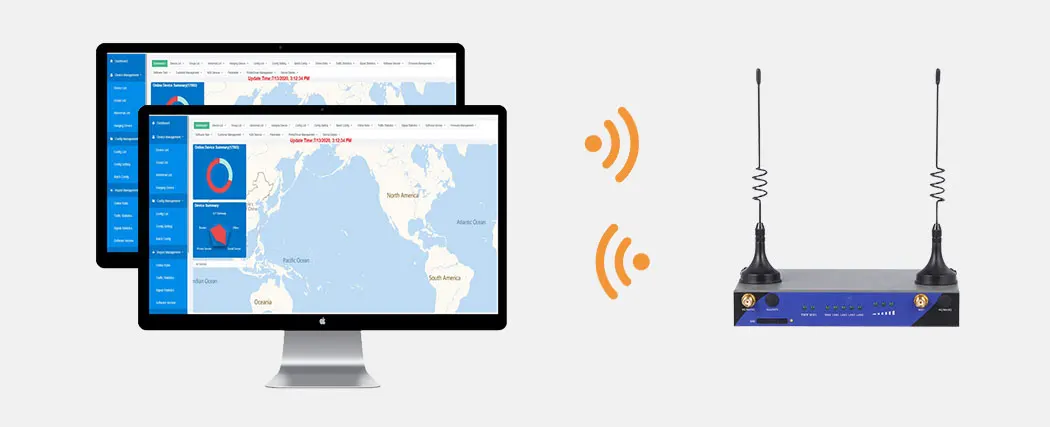

IoT Platform Management, high efficiency
Qixiang router connect with IoT platform, provide remote online mornitoring, configuration, upgrade, reboot, log query, parameter backup. Significantly reduce maintenance costs of operators, system integrators, equipment providers, improving the efficiency of management.
Industrial Grade Design
√ High-performance industrial wireless module
√ High-performance industrial 32-bit processor
√ Support low-consumption mode, including sleep mode, scheduled online/offline mode
√ Metal housing, excellent heat dissipation, IP41 protection
√ Desktop or Wall mount
√ Wide voltage:7.5V~32V DC(Max36V)
Stable and Reliable
√ Hardware and Software WDT and multi-link detection make it self-recovery from unexpected failure and guarantee reliable communication
√ Port ESD protection, avoid Static Electricity Shock
√ VPN protocols: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE
√ Always keep online, reboot automatically if disconnected to ensure continual connection
√ Full bands 4G LTE, compatible with 3G/2G WCDMA GPRS, EDGE
√ Port flux detection, Link real-time monitoring √ Support APN and VPDN private network access √ Serial port offer Data Transfer Unit(DUT) function and support Modbus protocol √ Support multi online trigger ways, including ring, SMS, or data trigger √ Support QOS, UPnP protocol, Port forwarding, UDP broadcast relay
√ Failover, Backup and Load balance between WAN and Cellular network √ Support DHCP, DDNS, Firewall, NAT, and DMZ host √ Support SNMP, ICMP, TCP, UDP, Telnet, SSH, FTP, HTTP, HTTPS protocol √ Support scheduled reboot
