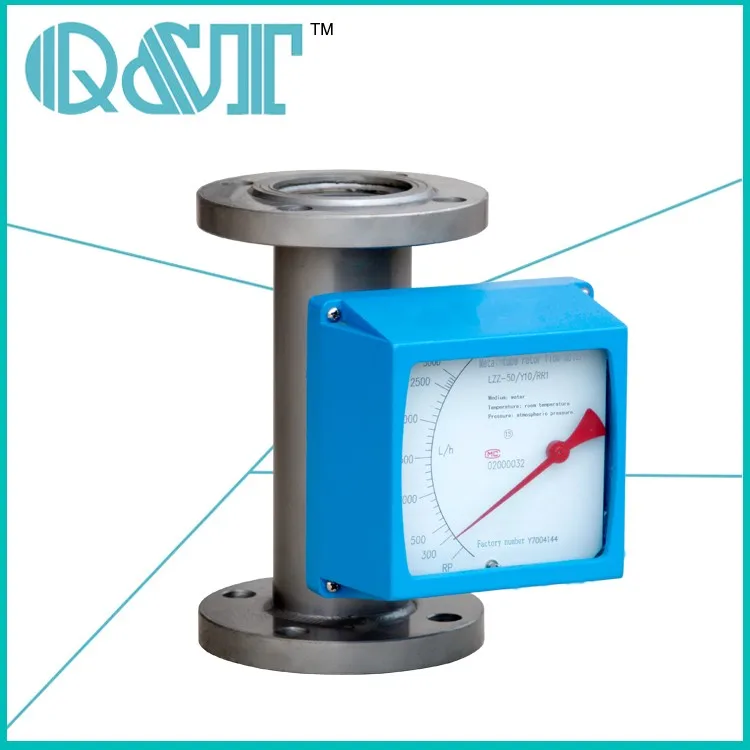

acid solution 304+ptfe 4-20ma rotameter metal tube flowmeter

FOB Reference Price:Get Latest Price
$99.00 - $4,999.00 / Sets | 10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
QINGTIANYIBIAO
Model Number:
LZZ
Caliber:
15mm-250mm
Color:
SS304 sand blast or polishing
Power supply:
24VDC
Output:
4- 20 mA, pulse
Communication:
RS-485,MODBUS, HART
Temperature:
-40°C - +80 °C
Nominal pressure:
1.6 Mpa ,2.5Mpa ,4.0Mpa ,6.3 Mpa
Accuracy:
+/-2.5% (Standard)
Installation type:
Flange, thread, tri-clamp
Material::
SS304,SS316, PTFE
Supply Ability
Supply Ability:
3001 Set/Sets per Month
Packaging & Delivery
Packaging Details
acid solution 304+ptfe 4-20ma rotameter metal tube flowmeter: Standard packing of export according to the buyer's requirements
Port
Shanghai
Lead Time :
one week after received L/C at sight or T/T in advance

acid solution 304+ptfe 4-20ma rotameter metal tube flowmeter

Introduction

It has 0-10mA or 4-20mA standard analog signal output and local indiction, accumulation flow, digital communication, field modification and measure parameters, different power supply function, it is widely applicable in petrol, chemical, power supply, pharmacy, food, water treatment industry etc.

Features

Measuring MediumLiquid, gas, steam etc
Environment Temperature-25℃~+100℃, High Temperature Type:300℃
AccuracyNormal type:±2.5%, high accuracy type:±1.5%
Medium ViscosityDN15:≤5mPa.s ≤30mPa.s;
DN25:≤250mPa.s;
DN50-150:≤300mPa.s
Flow Range Ratio10:1
Power Supply24VDC,3.6V lithium battery power
Power voltage influence≤±0.1%F.S
Load Influence≤±0.1%
Max Working PressureDN15~DN50:4.0MPa; DN80~DN150:1.6MPa
Pipe ConnectionFlange,Thread,Quick coupling
ShellAluminum Alloy
Protection ClassIP65,IP67
Explosion ProofExiaIICT1~T6



Diameter

(mm)

work numberflow rangePressure loss kpa
Water L/hAir m3/hWater KpaAir
normal typeAnti-corrossion typenormal type
Anti-corrossion type

normal type

Anti-corrossion type
151A2.5~25--0.07~0.76.5-7.1
1B4.0~402.5~250.11~1.16.55.57.2
1C6.3~634.0~400.18~1.86.65.57.3
1D10~1006.3~630.28~2.86.65.67.5
1E16~16010~1000.48~4.86.85.68.0
1F25~25016~1600.7~7.07.05.810.8
1G40~40025~2501.0~108.66.110.0
1H63~63040~4001.6~1611.17.314.0
252A100~100063~6303~307.05.97.7
2B160~1600100~10004.5~458.06.08.8
2C250~2500160~16007~7010.86.812.0
2D400~4000250~250011~11015.89.219.0
404A500~5000300~300012~12010.88.69.8
4B600~6000350~350016~16012.610.416.5
505A630~6300400~400018~1808.16.88.6
5B1000~10000630~630025~25011.09.410.4
5C1600~160001000~1000040~40017.014.515.5
808A2500~250001600~1600060~6008.16.912.9
8B4000~400002500~2500080~8009.58.018.5
10010A6300~630004000~40000100~100015.08.519.2
15015A20000~100000--600~300019.2--20.3


PHLZXXXXXXX
Indicatorcode
local indicatorZ
LCD indicator with ouputD
norminal calibercode
DN15-15
DN25-25
DN40-40
DN50-50
DN80-80
DN100-100
DN150-150
structureCode
bottom-top/
Left-right (horizontal)H1
right-left (horizontal)H2
side-sideAA
bottom -sideLA
thread connectionS
quick coupling connectionM
body materialCode
304SSR4
316SSR6
316LSSR6L
hastelloy CHc4
TitaniumTi
liner F46(PTFE)F
indicator typeCode
linear indicatorM7
nonlinear indicator(local indicator display instataneous flow)M9
combination functionCode
24VDC;remote transfer 4~20mA standard current signalS
24VDC;remote transfer 4~20mA,local LCD display instantaneous & accumulative flowZ
local lithium battery power ;local LCD display instantaneous & accumulative flowD
added functionCode
measuring tube with thermal preservation / heat insulation jacketT
measure medium temperature higher than 120.CHT
