aluminum foil Capsule Blister aluminum foil medicine cartoning machine

FOB Reference Price:Get Latest Price
$25,000.00 - $45,000.00 / Sets | 1 Set/Sets one machine (Min. Order)
Model Number:
HTH- 100T
Report Suspicious Activity
Overview
Product Hightlights
Application Packaging Material Warranty
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles Plastic, Paper --
Specifications
Type:
Multi-Function Packaging Machine, horizontal
Condition:
New
Function:
Filling, Wrapping, Labeling, Sealing, Boxing, Embossing, Gluing
Packaging Type:
Cartons, Cans, Case
Automatic Grade:
Automatic
Driven Type:
Electric pneumatic
Voltage:
110v, 220v, 240v, 380v
Power:
1.5KW
Place of Origin:
China
Brand Name:
HONETOP
Dimension(L*W*H):
3500*1350*1900mm
Certification:
CE, ISO
Main Function:
automatic carton box packing
Machine Material:
#304 stainless steel
Dimension Range:
(55-200)mmX(14-90)mmX(13-65)mm
Encasing Speed:
30-150box/min
Speed:
Adjusted
Frequence:
50HZ(60HZ)
Machine Warranty:
One Year
Machine weight:
1500kg
Enviroment Temperature:
25±10℃
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
High Quality Capsule Blister Box Wrap Packing Carton Machine
(standard exporting packing)
Oil the machine to anti-rusting,
then film pack the whole set,
final pack into wooden case.
Port
NINGBO
Video Description
Product Description

Material in box packing

This machine can pack various finished products into boxes.Such as tablets ,pills,capsule blister ,etc.

The final output product

These are just a few boxes, and this machine can also pack many other types.

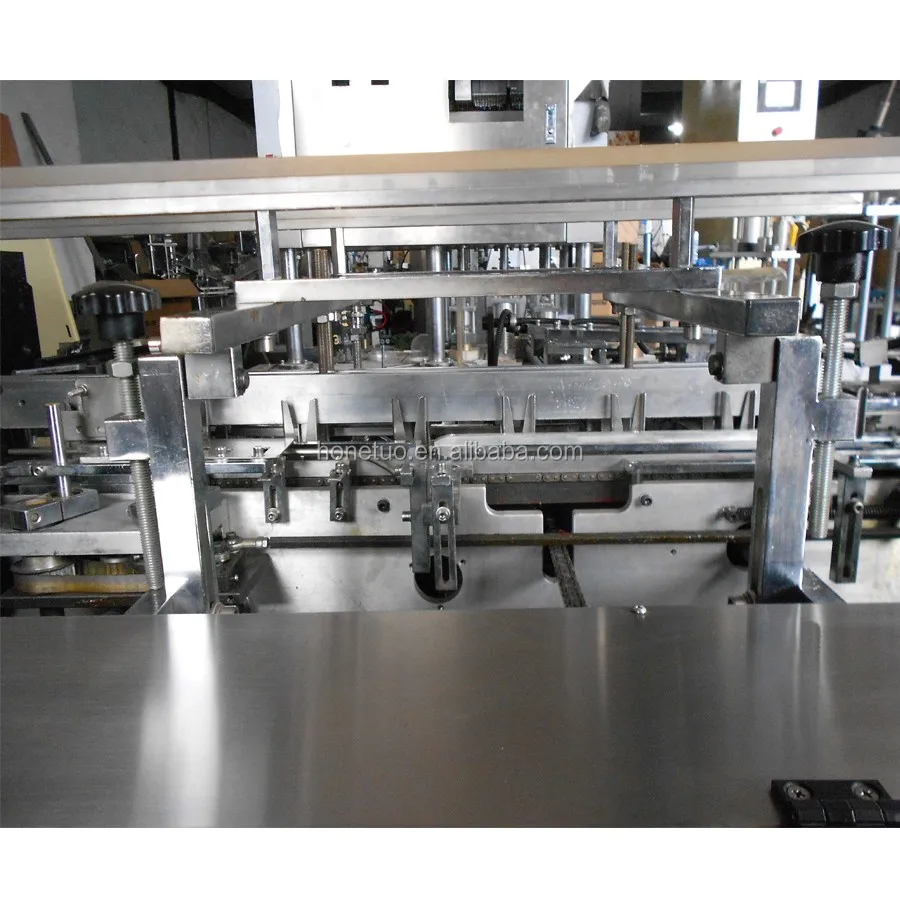

 Machine Picture Show

HTH-100T



Product Application

HTH-100T is the fastest Continuous Motion Cartoning Machine in our company. It is suitable for pharmaceuticals, food, household chemicals, hardware and electrical industries for the packaging of blisters, bottles, vials, pillow packs, toothpaste, etc .

SPECIFICATIONS FOR CARTON PACKAGING MACHINE HTH-100T
Encasing Speed
30-150box/min
Box Quality Requirement
250-350g/m2 (according to customer request)
Box Dimension Range
(55-200)X(14-90)X(13-65)mm (can customize according to request)
Compressed Air Working Pressure
>=0.6mpa

Leaflet
Unfolded leaflet specificationL×W (80-250)mm×(90-170)mm
Fold range (1-4) fold

Power Supply
380V 50Hz(Can be ajusted)
Motor Power
1.5KW
Noise
≤80dB
Environment temperature
25±10℃
Air Consumption
20m3/h

Machine Dimension
3800X1100X1900mm
Machine Weight
1500KG
Certifications

Main Features

1.Many of electrical appliances are made by international famous brand. For example:Japan OMRON PLC, SMC pneumatic element, Germany BECKER vacuum pump and Switzerland Robatech hot melt applicator.

2.The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively. For example ,The paper box will not be supplied without material; the glue will not be sprayed without the paper box. The machine will alarm when the paper box is not in position, and will stop when the material is not supplied and the machine can stop automatically if overload happen,etc.

3.Simple structure in linear type ,easy in installation and maintation. Running in a high automatization and intellectualization,no pollution

4.It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line.


COMPONENTE LIST

The brand can be configured according to the customer's requirements

Name
Model and Specification
Place of Origin or Brand
Quantity
PLC
LP1E-30DR-D
Japan Omron
1
Coder
E6B2-CWZ6C
Japan Omron
1
Touch screen
MP5-SQ000 B1
Japan Omron
1
Frequency Converter
3G3CV-A4015
Japan Omron
1
 Servo motor
0.4KW
Taiwan
1
vacuum generator
ZH20DS-01-04-04
Japan SMC
2
Electric elements
Japan Omron
Japan Omron
 many
Optical fiber
GTE6-N1212
Germany SICK
1
Main Motor
CH-1500-10S 1.5KW
Taiwan
1
Sensor
E3Z-D61
Japan Omron
1
Detailed Images

Other Types Machine


Please click the pictures of below ,to know other machine maybe you might be interesting in.

plastic wrap cartoner           facial mask cartoner                ampoules cartoner                 cookies cartoner


Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.


OUR CLENTS


Packing & Delivery
Our company




Thank you for taking time to look at our machines , please contact us if you need.
