automatic oil making machine, rice bran oil extraction plant,soybean oil extraction line

FOB Reference Price:Get Latest Price
$1,680.00 - $14,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
RB77
Power(W):
depend on capacity
Report Suspicious Activity
Overview
Product Hightlights
Warranty Production Capacity Usage
1 Year 9-11 Tons per day soybean,corn,peanut,sesame,rapeseed,rice bran,cottonseed,tea seed, rice bran,soybean oil edible oil
Specifications
Condition:
New
Type:
Cold & Hot Pressing Machine
Automatic Grade:
Automatic
Place of Origin:
Henan, China (Mainland)
Brand Name:
Kinetic
Voltage:
220V/380V/440V
Dimension(L*W*H):
2850*1850*3270mm
Weight:
5000 kg(depend on capacity)
Certification:
ISO CE
After-sales Service Provided:
Field installation, commissioning and training, Video technical support, Online support, Engineers available to service machinery overseas
Item:
rice bran oil making machinery
Capacity:
10t/d- 60t/d, 70t/d, 80t/d,100t/d, 150t/d
residual oil rate:
≥ 97%, meal residual: ≤ 1%, press cpress cake residual: ≤ 6%
processing steps:
pretreatement, extracting, cleaning
Raw material:
carbon steel & stainless steel
Color:
Clients' Requirements
Advantage:
full automatic, high efficiency, energy saving
Function:
oil press
Supply Ability
Supply Ability:
100 Set/Sets per Month soybean oil extracion line
Packaging & Delivery
Packaging Details
Plywood, international standard trade packing,
automatic oil making machine, rice bran oil extraction plant,soybean oil extraction line
Port
qingdao, shanghai ,wuhan
Video Description
Product Description

What can we do?
1.Provide all kinds of oil machine: mini oil plant, oil extraction mill, oil refinery machine, small oil factionry mills, large oil processing line, etc.
2.Single oil machine and turnkey oil processing project are both available.
3.Oil plants include: coconut oil machine, palm oil mill, sesame oil plant, soya bean oil machine,rice bran oil extraction machine , peanut groundnut oil plant, rapeseed oil machine, corn germ oil machine and othervegetable oil plant.
4.Custom design for household oil machine and oil factory turnkey project with installing and adjusting.

Price Advantages

(1) High oil yield , obvious economic benefit .
(2) Residual oil rate in the dry meal .
(3) Improving the quality of the meal .
(4) Low processing cost , high labor productivity.

Residual oil in meal
≤1% (Rice Bran)
Solvent consumption
≤3Kg/T(6#solvent oil)
Crude oil moisture and volatile matter
≤ 0.30%
Power consumption
≤ 15KWh/T
Steam consumption
≤280Kg/T (0.8MPa)
Finished meal moisture
≤ 10-13% (adjustable)
Residual solvent in finished meal
≤ 300PPM (qualified detonated experiment)
Main Sections

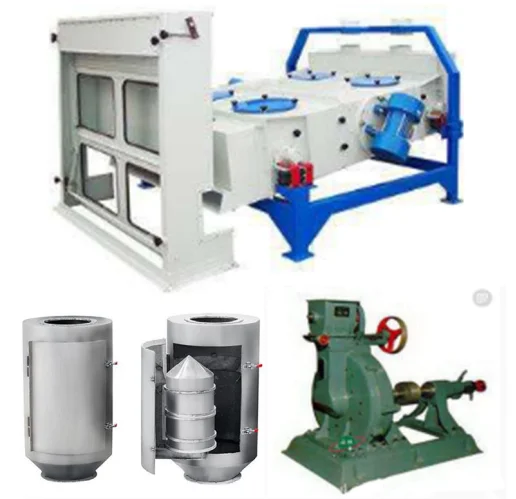

A. oil making machine pretreatment workshop introduction:
1. Raw materials cleaning
2. Raw materials softening
3. Raw materials flaking
B.solvent extraction plant price Main products:
1.Solvent pumps
2.Roary extractor
3.DTDC
4.Miscella tank 1st
5. Miscella tank 2nd
6. Miscella stripping
7. condensers
C. oil making machine refining workshop introduction:
1. oil degumming and deacidification
2. oil decolorizing
3. oil deodorization

A.oil making machine pretreatment workshop introduction:
A1. Raw materials cleaning

A2.Raw materials softening

A3. Raw materials flaking


B.solvent extraction plant price Mian products:

1.Solvent pumps: continuously spray solvent to the rotary-type extractor
2.Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be dissolved in solvent (form miscella).
  After processing,you can get wet meal and miscella (mixed oil).
3.DTDC: used to separate the solvent from the wet meal.
4.Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1ist , and then add 10% saline water to it. The phospholipid and impurities in the miscella will react with the saline wter, at last the reactant precipitate, reaching the goal of purifying.
5. Miscella tank 2nd: the purified miscella will be pumped into it.
6. Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.
7. condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.

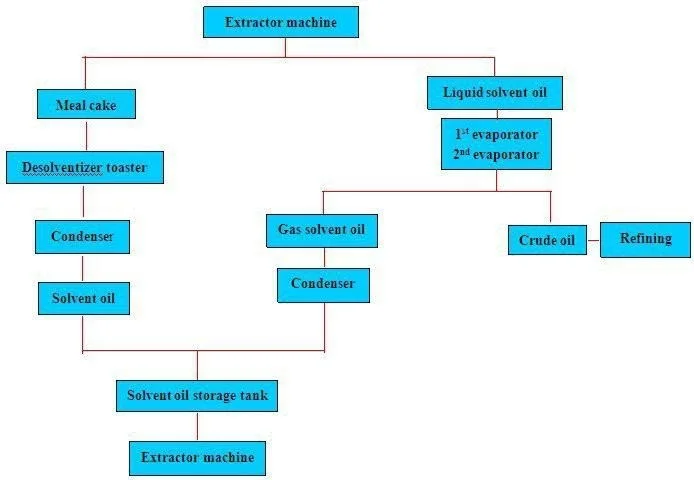

Solvent-- Extractor--Mixed oil --  1st and 2nd evaporation -- Stripping tower -- Crude oil
Wet meal -- DTDC toaster -- Meal

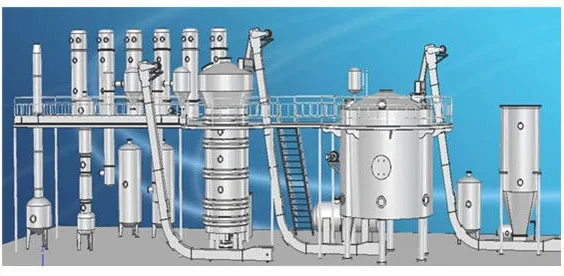

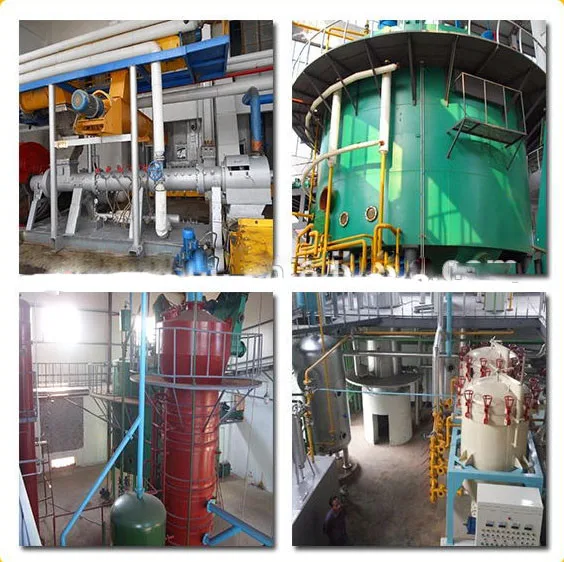

Workshop details:
leaching (extraction), evapo-separate (embryos solvent material separation), evaporation (oil and solvent separation), condensation, exhaust gas recycling, water recovery and other systems.
Working principle:
Leaching system is an oil extraction through soaking or spraying prepressed cake by a certain organic solvent. The principle of this
part is the different solubility of solvent.
Main process:
(1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.
(2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.
(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is separated.
(4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary extraction.

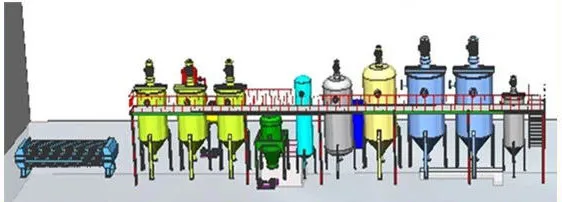

C.oil making machine refining workshop introduction:

1. oil degumming and deacidification: removing the phosphatide by adding hot water and alkalia.

2. oil decolorizing:removing the pigment by adding bleaching earth,and then use the filter to separated the wasted earth.

3. oil deodorization: removing the FFA  and other solid particle to get the good smell oil.

Packing & Delivery
Tool
Ship, express or Air
Packing
In containers
Shipping Details
The normal shipping method is by sea. We also accept Air Transporting if you are in urgent need.
You can contact your own shipping agent or ask us to arrange shipping for you.
Our Factory

Wuhan Kinetic is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.
The following pictures show our company and customers in our workshop.

Our service:

Pre-sales service
1.Quick response
2.Detailed quotation
3.Professional production and transportation solution
After-sales service
1.Warranty policy one year from shipment
2. We will send you the replacement after received the broken part
3. Evaluate the customs risk and choose safest shipping company before shipping.
4. Follow status up time by time until the goods arrived.

Certifications
FAQ

1.What is the warranty of the machines?
12 months free guanantee and life long standard paid service.

2.What is the raw material of your machinery?
Stainless steel and carbon steel.

3.When can I get the price?
Within 24 hours, if urgent, please directly contact us.

4.How to ask quotation?
Please inform us your crude oil specifications and your target capacity per day, then we will send our proposal as soon as possible.

5.How many areas are required to build the plant refinery?
The land area required usually depends on the capacity of your plant. We can calculate the area needed and give you the plant designs.

6.How long will it take to get my products?
In general, it will take us 45-120 days to make the machinery, and 3-7days to shipping port.

7.Can you install the production line and train our stuffs for free?
Yes we can. We'll send engineers to help you install the equipment and train your workers freely.
