big screen led P2 plasma tv multimedia lcd monitor advertising

FOB Reference Price:Get Latest Price
1 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Model Number:
SINO-P10
Brand Name:
LEEMAN
Brightness:
More than 6500cd/sqm
Refresh frequency:
More than 2000HZ
Power supply:
Meanwell
Input voltage:
5V/40A
LED Chips:
Cree + Nichia + Epistar + Opto + Silan
Working Temperature:
-45 degree - +65 degree
Drive method:
1/4 Scanning
Lifespan:
More than 100,000
Waterproof:
IP65
Horizontal/Vertical Viewing angle:
160 degree/60 degree
Display Function:
Video
Screen Dimension:
480mm x 480mm
Tube Chip Color:
FULL COLOR
Pixels:
10mm
Usage:
OUTDOOR
Supply Ability
Supply Ability:
10000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
1. Carton box
2. Wooden case
3. Flight case
Port
Shenzhen, HongKong, Shanghai, Beijing
Lead Time :
3-7 working days

Specifications

1. High brightness 12000nits
2. Outdoor waterproof IP65
3. CE ROHS ETL SGS SAA Fcc UL
4. Low power consumption
5. Good image

big screen led P2 plasma tv multimedia lcd monitor advertising

Leeman Outdoor P10 SMD RGB Video LED Display:



Thin and Light-Weight Panels, Crystal Clear Pictures, Ideal for Renting out for Stage Performances

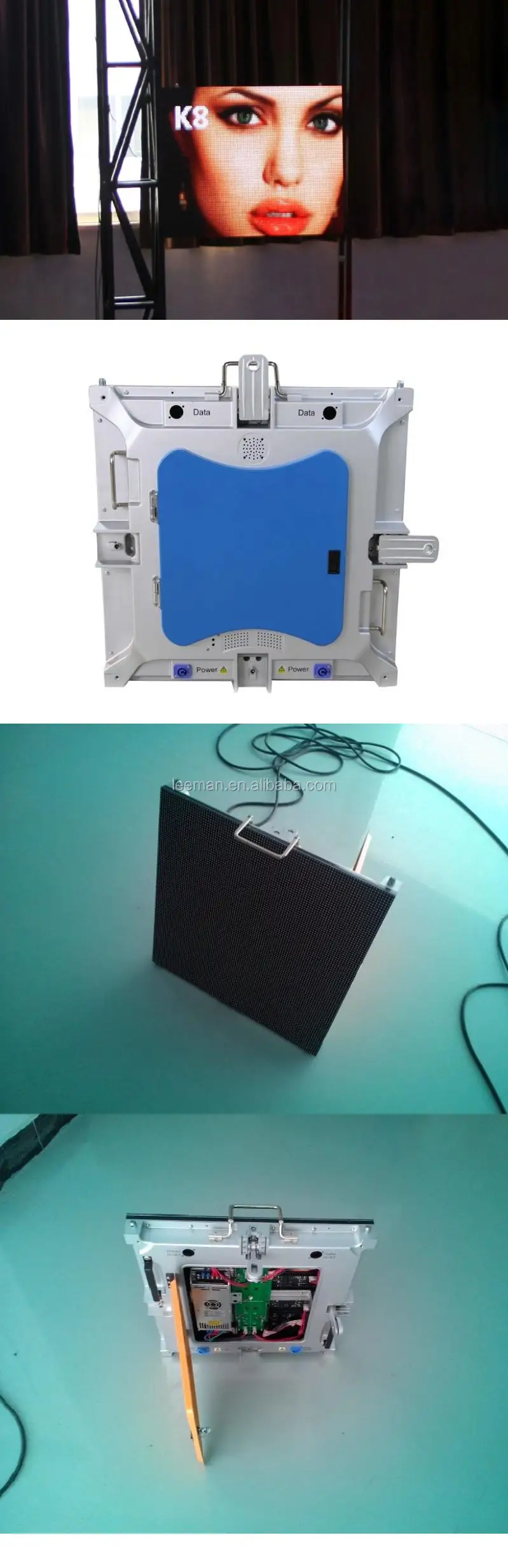

Each Leeman SMD outdoor Series panel is 480mm * 480mm, and at its thinnest point is only 15mm in thickness. Each P5, P6, P7.62 and P10 panel weighs between 9 to 9.5 Kg. With simple assembly/disassembly and compact packaging, it is extremely easy to transport, and saves time and labor.

With a 65,536 grayscale level (16-bit color), high refresh rate and ultra-high contrast in image quality, A-Series panels deliver crystal clear images and are perfect to display high-definition images and videos for stage performances and television studios.

P5 uses SMD5050 black lights to enhance contrast grade. The application of soft masks ensures a greater flatness of the screen and a seamless patching between cabinets.

P6 SMD 2828 panels, IP rated at IP65/54, is suitable for indoor and outdoor applications and adaptable for fixed or rental installations.

Different Pixel Pitches but Same Panel Dimensions Create Innovative Visual Effects

Pixel pitches for P5, P6, P7.62 and A10 panels are 5mm, 6mm, 7.62mm and 10mm respectively. The three products have the same dimensions, which allows a single display screen to have a seamless mosaic of different pixel pitches, providing a creative and innovative solution to meet all types of display needs.

Die-cast Aluminum Casing, Flat Panels and Special Connector Design Helps Create a Seamless Image Mosaic

The die-cast aluminum casing is created with high-precision machining, ensuring complete panel flatness.

With a special connector design it is easy to reduce gaps while installing, creating a perfect display.

Original Noise-Free Design and Low Power Consumption

The use of a high-quality aluminum alloy with a fanless thermal design solves the heating problem, reduces noise and power consumption, and minimizes panel weight for easy installation

EMC, ETL And UL Certifications Ensure High Quality

The thin and light-weight A-Series products are EMC, ETL, UL certified to ensure that they meet the quality requirements of most countries




Pixel   pitch10 mmModule size320 x 160mm
Pixel   configuration1R1G1B ( SMD 3in1 )Module   Resolution32x16dots
View angle180°/140°Pixel density10,000dots/m2
LED encapsulationSMD 2828 (3in1)Refresh Rate≥1200Hz
Driving   Method1/8 scan,   constant currentMax power   consumption600w/m2
Brightness>6500 nitsAverage Power   consumption300 w/m2
Cabinet sizeNormal 640 x 640mm orCabinet materialAluminum alloy or
Designed   by requirementsIron, Steel
Cabinet thickness< 8cm orCabinet weight< 10kg/cabinet or
Designed   by requirementsDesigned by require
Working   voltageAC110 / 230V ±15%Working temp-40°Cto +60°C
Best   viewing distance>8mWorking humidity35%~85%
LED parametersR: 620 - 625nmMTBF>5,000hours
IV:250- 300mcd
G:520 - 523nm;Gray LevelRGB/8192/ 14bit
IV:800 - 1000mcd
B: 467 - 470nm;Lifespan>100,000hours
IV:200 - 230mcd&, amp;, lt;, /TD>
Image processingVideo denoising, rapid motion compensation,   edge sharpening, edge smoothing,
color coordinate conversation   & control , grey scale transformation etc
Brightness   uniformityRatio of min pixel brightness /max   pixel<0.9(When each color reaches its highest brightness)
Effective   control distanceCat-5<100M,Multi-mode   fiber:<500M;Single-mode fiber<20Km
Color Temperature/contrastBrightness and contrast of red, green and blue   can be adjusted by software,
100 scales are available, color   temperature is adjustable
Input   signalRF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control   systemSending card+Receiving card+Hub card+DVI   Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video   processor(Optional)+ Fiber Transmitter(Optional)

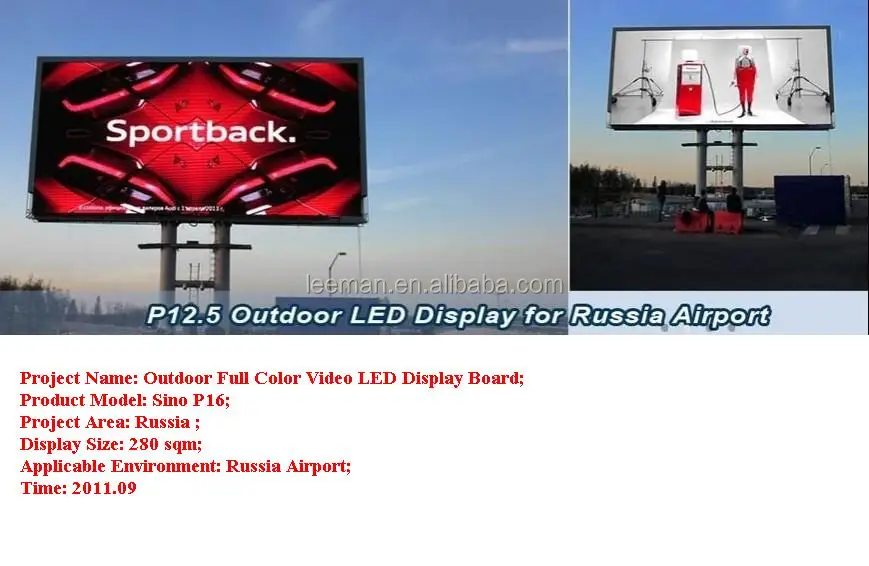

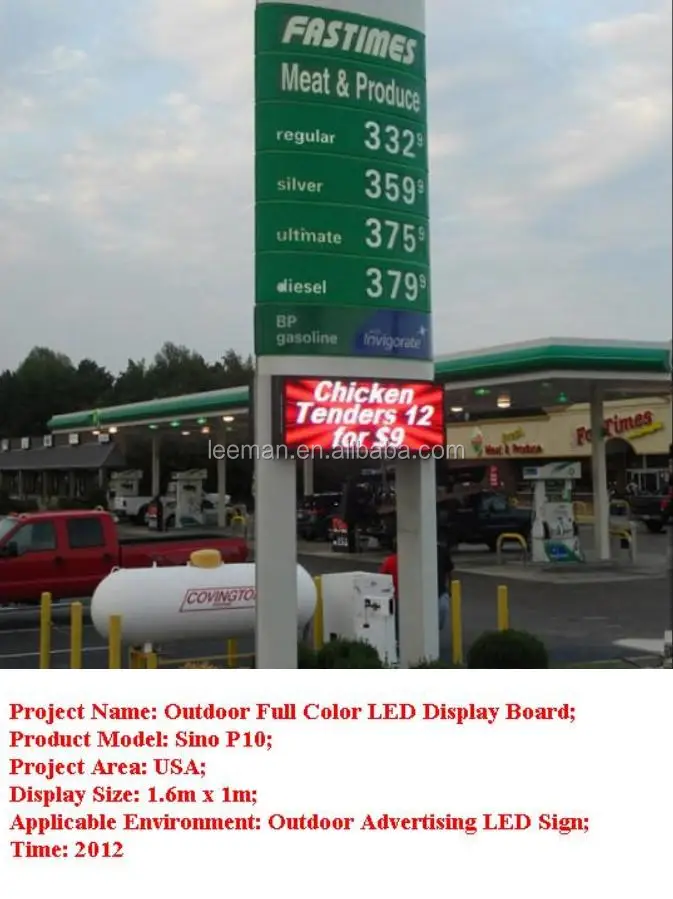

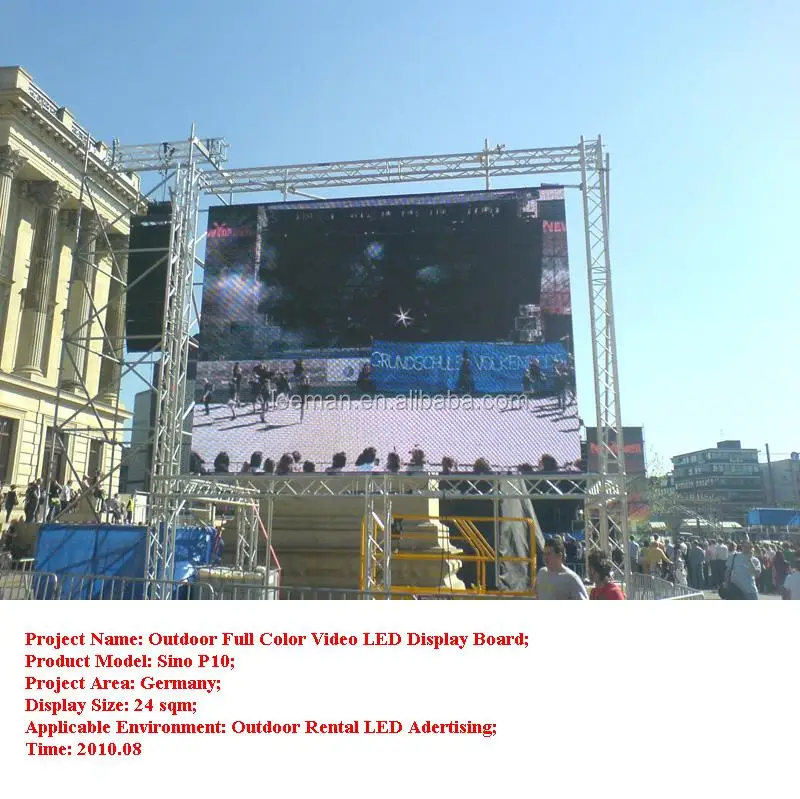

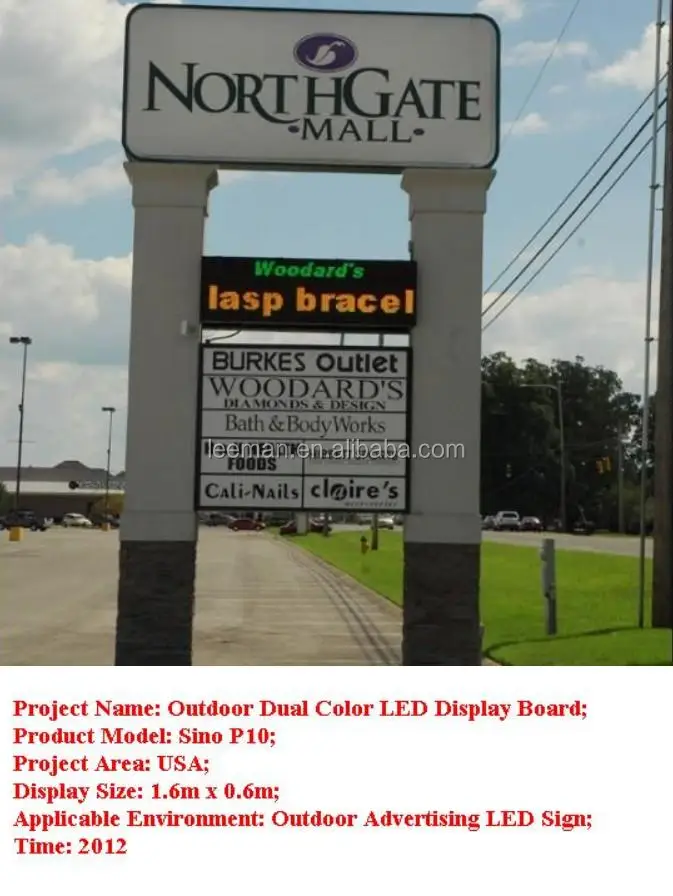

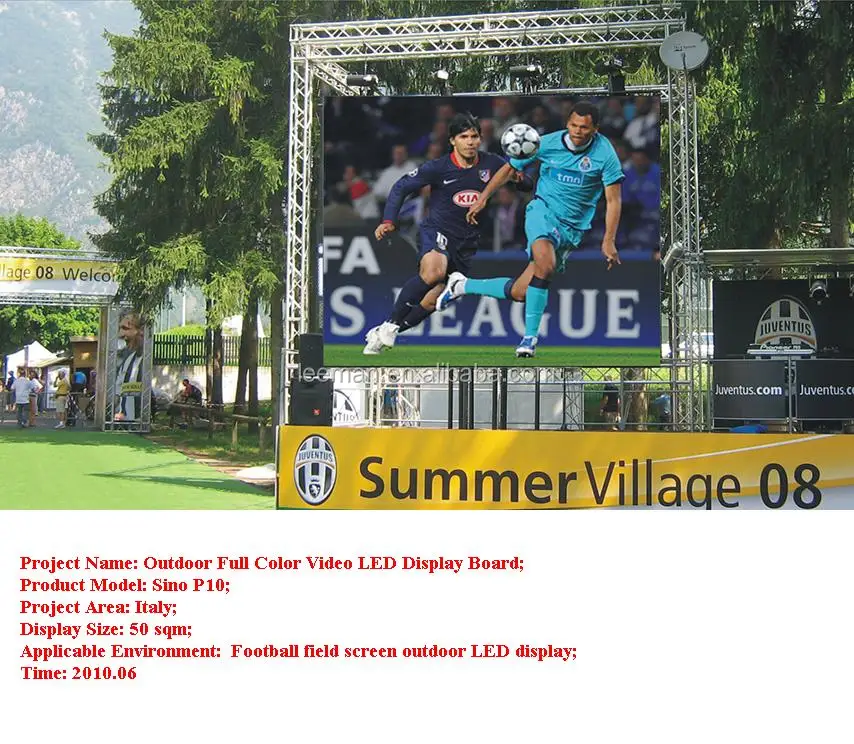

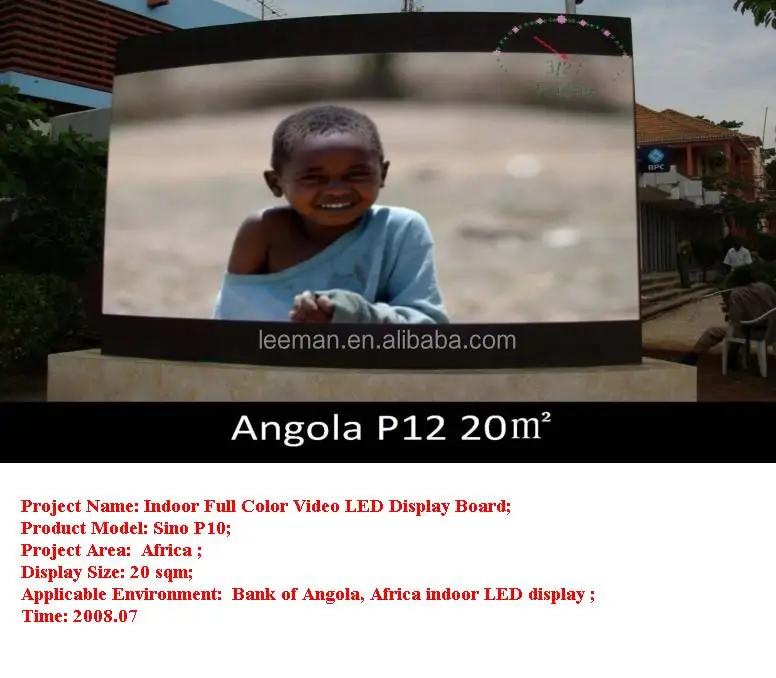

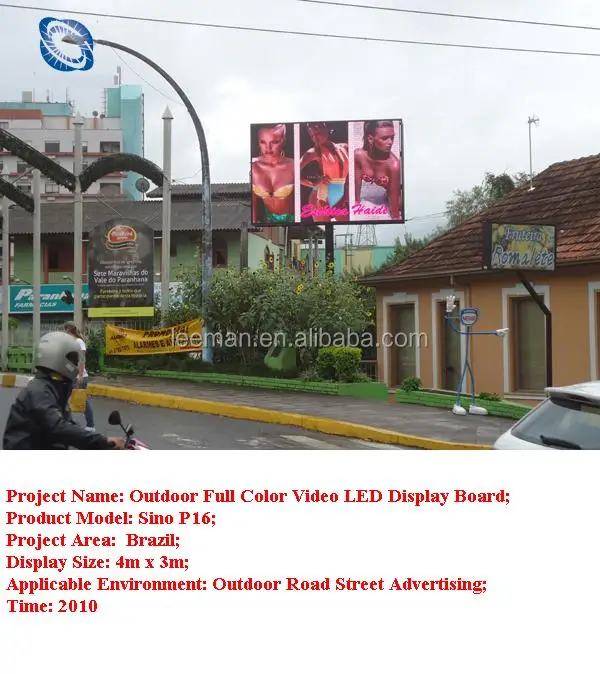

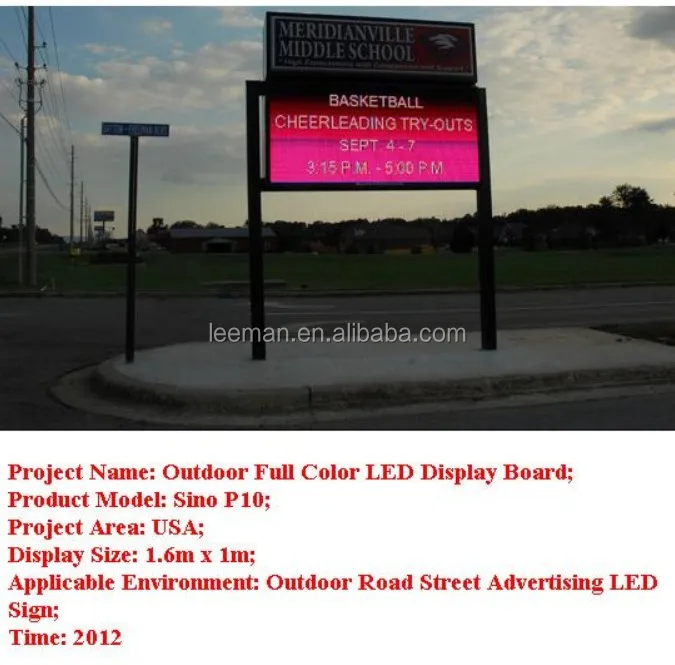

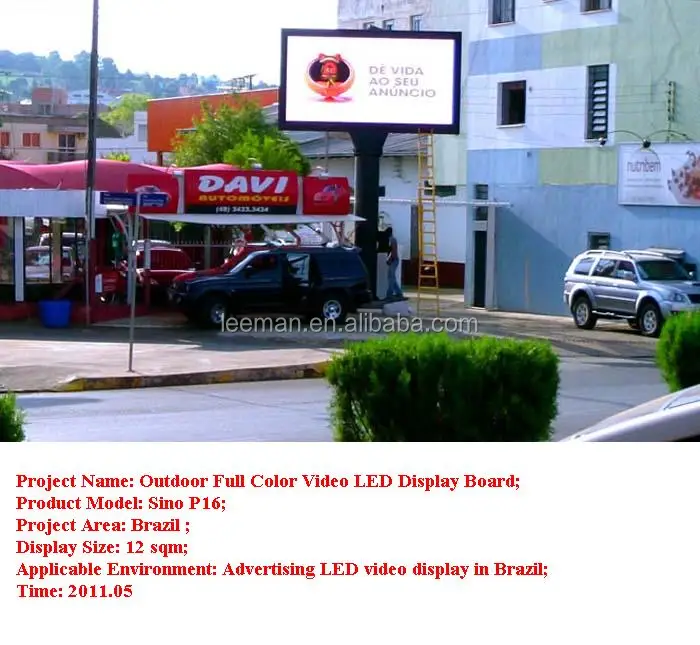

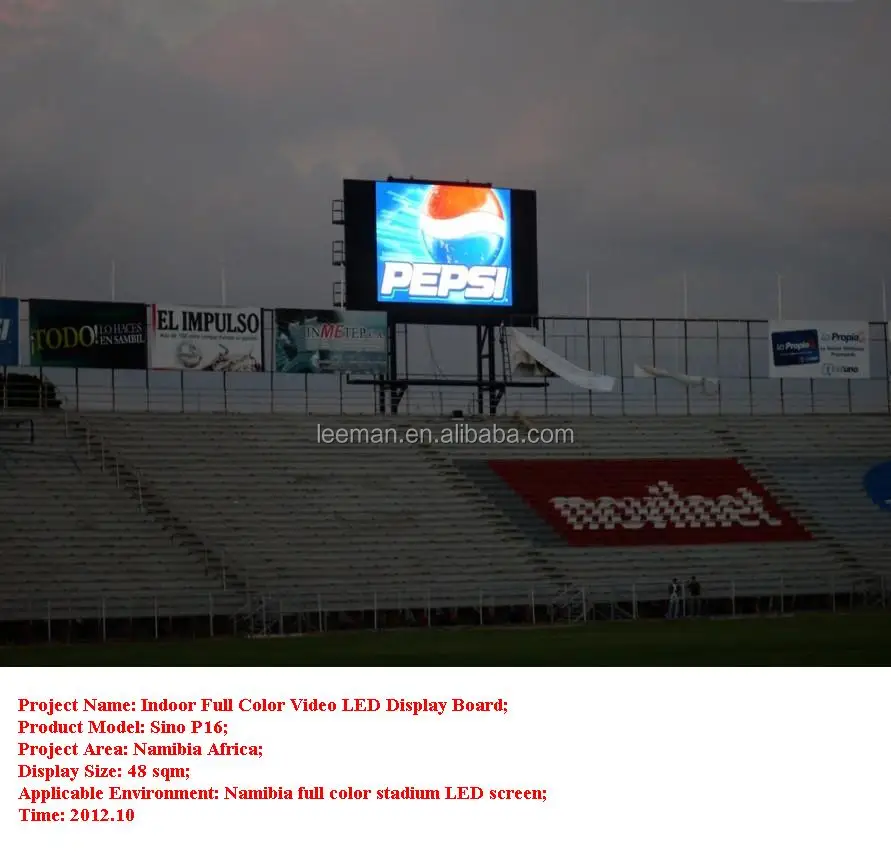

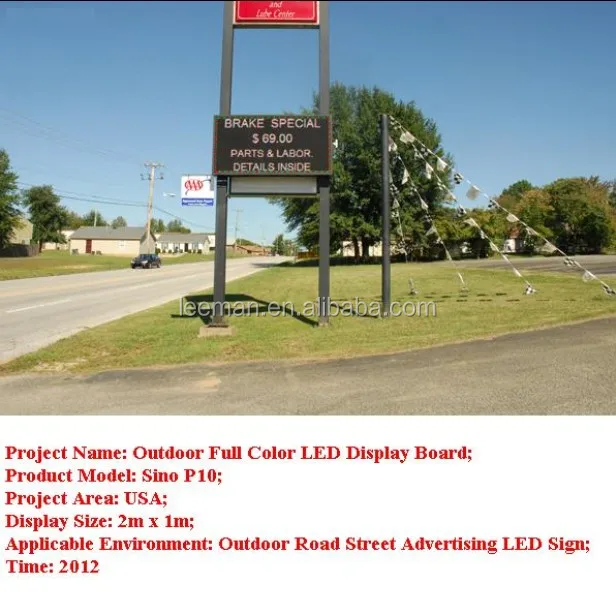

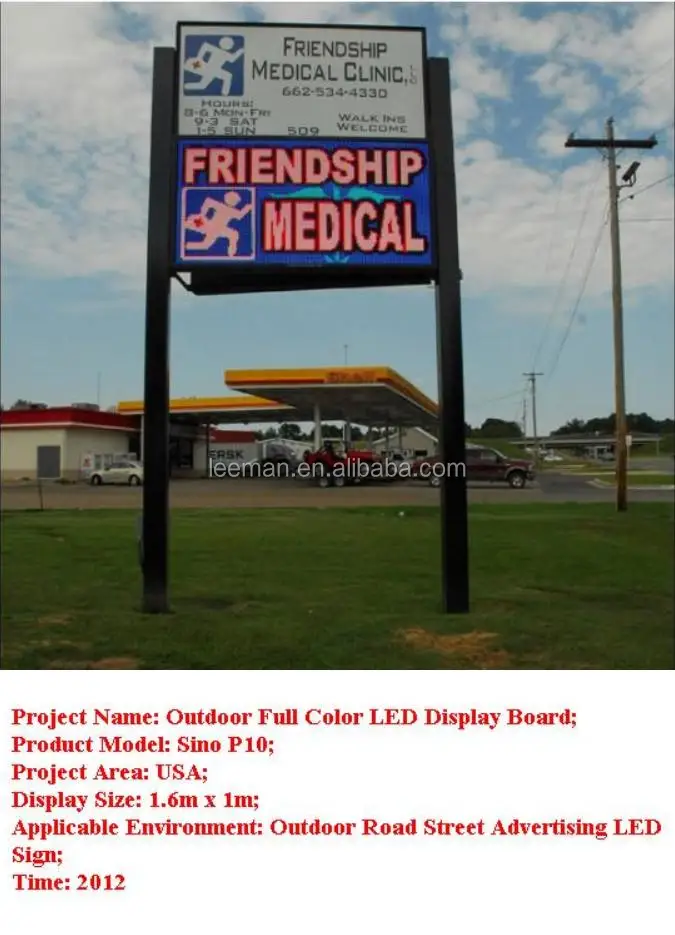

Leeman P10 Outdoor SMD 12000nit  LED Display Screen Project Case Study
