brew kettle 300 litre

FOB Reference Price:Get Latest Price
$2,650.00 - $20,340.00 / Sets | 1 Set/Sets MLT/KWT/HWT/FV/BBT (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Zhuoda
Model Number:
ZD-300L
Processing Types:
Alcohol
Voltage:
220V/380V 50Hz 3-phase
Power(W):
15-70Kw Depends
Dimension(L*W*H):
User Requirements
Weight:
200KG-2000KG
Certification:
CE ISO TUV
Product Name:
brew kettle 300 litre
Raw Material:
Food grade stainless steel 304/316
Material Thickness:
Inner 3mm/ Outer 2mm
Heating Method:
Electric/Steam/Direct fire heating
Control System:
Digital Display / Plc
Effective Capacity:
300L
Payment Way:
30% pre-payment
Delivery Time:
20 working days
Application:
Brewing Plant
Function:
brew kettle 300 litre
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
5 Years
Supply Ability
Supply Ability:
10 Set/Sets per Month Completely brewery equipment
Packaging & Delivery
Packaging Details
brew kettle 300 litre .
We have two ways for customer's equipment packages.
1.standard woode box packing the 2-4 tanks for customer.
2. Brewhouse: mash/lauter tun + Lauter tun + Heating exchanger
3. Fermenter tank + bright beer tank
4. Ice water tank + Chiller.
5. Pumps +Miller+ Accessories.
6. All parts loading in one 20HQ container.
Port
Qingdao port
Lead Time :
30 working days
Product Description
brew kettle 300 litre  Main parts
Brewery System
Components
Capacity
Specifications
Crushing System
Miller
250kg-500kg/h
Adjustable double roller,

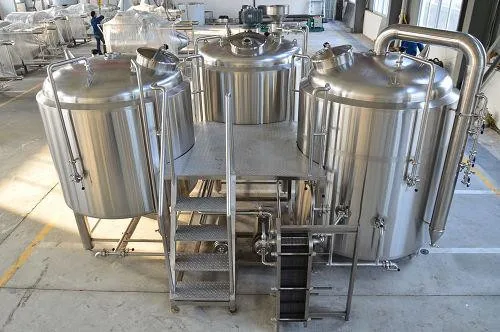

Brewhouse
Mash/Lauter Tun
300L
Brewhouse vessels can be customized.: 2/3/4 vessels
Kettle/Whirlpool Tun
300L
Heating way can be customized: electric heating, steam heating and direct fire heating.
Water System
Ice Water Tank
900L
Glycol water supply for wort, cooling and fermentation cooling
Brazing Chiller
3HP
Use for IWT cooling, R404A
Hot Water Tank
300L
Use for mashing water
Fermenting System
Fermenter tank
300L
Dimple plate jacket for cooling, Manhole in the side.
Bright beer tank
300L
Carbonation stone for fill Co2, Make beer clearly.
Control System
Digital display
Square table
Each square table corresponds to a control part
PLC
Instrument panel
Control all tank’s temperature, motor, pump show on/ off
Cleaning System
CIP car
50L
Cleaning all tanks buy Alkali and disinfectant
Voltage
Customized
Optional
 Auger system/ Hopper/Grist Hydrator.
Beer bottle machine, Beer keg machine.
Detailed Images

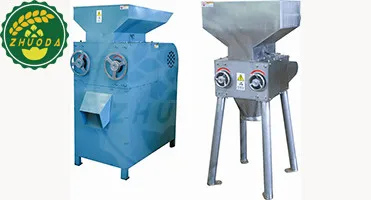

Crushing System.

Malt shredder 150 kg/h.

Working Capacity: 150kg
Roller: Double roller
Roller spacing: Adjustable
Roller speed: 800RPM
Power : 0.75kw
Material: 304 Stainless steel

Mash/Laute tun.

TECH SPECS:
Total Volume: 375L
Effective volume: 300L
Diameter: 910mm
Overall Height: 1950mm
Manhole: 350*300mm
Insulation Materials:Rock wool
Insulation Thickness: 80mm
Motor style: upright
Mixing: stir

Kettle/Whirlpool tun.

TECH SPECS:
Total Volume: 375L
Effective volume : 300L
Diameter: 910mm
Overall height: 1950mm
Manhole: 350*300mm
Insulation Materials: Rock wool
Insulation Thickness: 80mm
Motor style: upright
Evaporation rate: 6% -8%

Digital display.

Simple operation, easy maintenance.
Cabinet material: stainless steel.

Function: Show brewhouse tanks temperature, turn on/off all motors and pumps by button, control all fermenting parts temperature, chillers soft start,

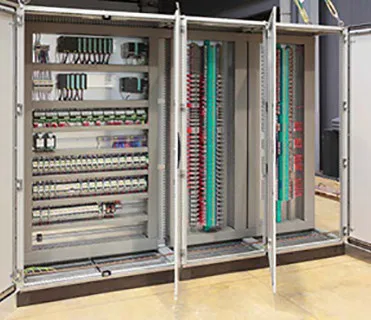

PLC.

Programmable, stable, Brewing recipes can be stored.Cabinet material: stainless steel


Function: Show and control brewhouse tanks temperature, step heating is automatic, turn on/off all motors and pumps by touch screen, control all fermenting part.

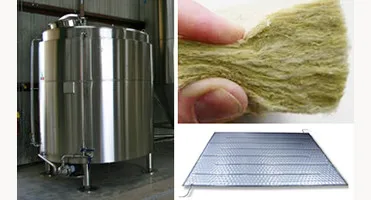

Hot water tank.

TECH SPECS:
Total Volume: 375L
Effective volume: 300L
Diameter: 910mm
Overall Height: 1950mm
Manhole: 350*300mm
Material: 304 Stainless steel

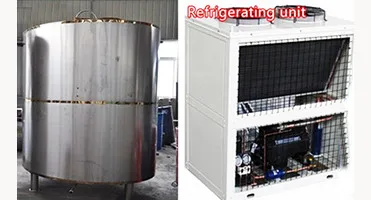

Ice water tank.

TECH SPECS:

Total Volume: 1875L
Effective volume: 1500L
Diameter: 1360mm
Overall Height: 1700mm
Manhole: 1360mm
Material: 304 Stainless steel

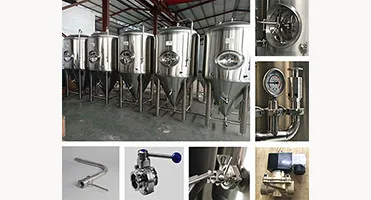

Fermenter tank .

Total Volume: 375L
Effective volume: 300L
Diameter: 810mm
Overall Height: 1900mm
Manhole: 350*300mm
Dimple plate: yes
Pressure regulation: 3 bar
Material:Food grade stainless steel 304/316

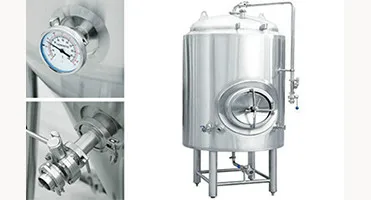

Bright beer tank .

Total Volume: 375L
Effective volume:300L
Diameter: 810mm
Overall Height: 1900mm
Manhole: 350*300mm
Dimple plate: yes
Pressure regulation: 3 bar
Material: Food grade stainless steel 304/316

Product  Name
Items
Introduction

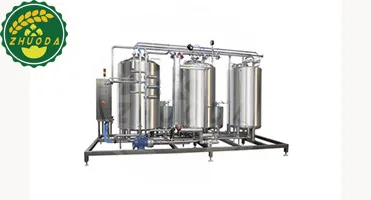

CIP Car
Function
Cleaning equipment
Raw material
Food grade stainless steel 304
Structure
Alkali/disinfectant tank,
 pump.
Control system
Independent control
Certifications

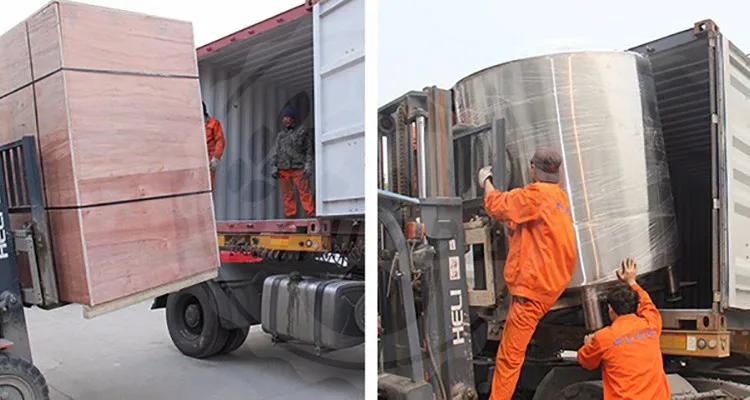

Packing & Delivery

brew kettle 300 litre .

We have two ways for customer's equipment packages.
1.standard woode box packing the 2-4 tanks for customer.
2. Brewhouse: mash/lauter tun + Lauter tun + Heating exchanger
3. Fermenter tank + bright beer tank
4. Ice water tank + Chiller.
5. Pumps +Miller+ Accessories.
6. All parts loading in one 20HQ container.

Successful Case

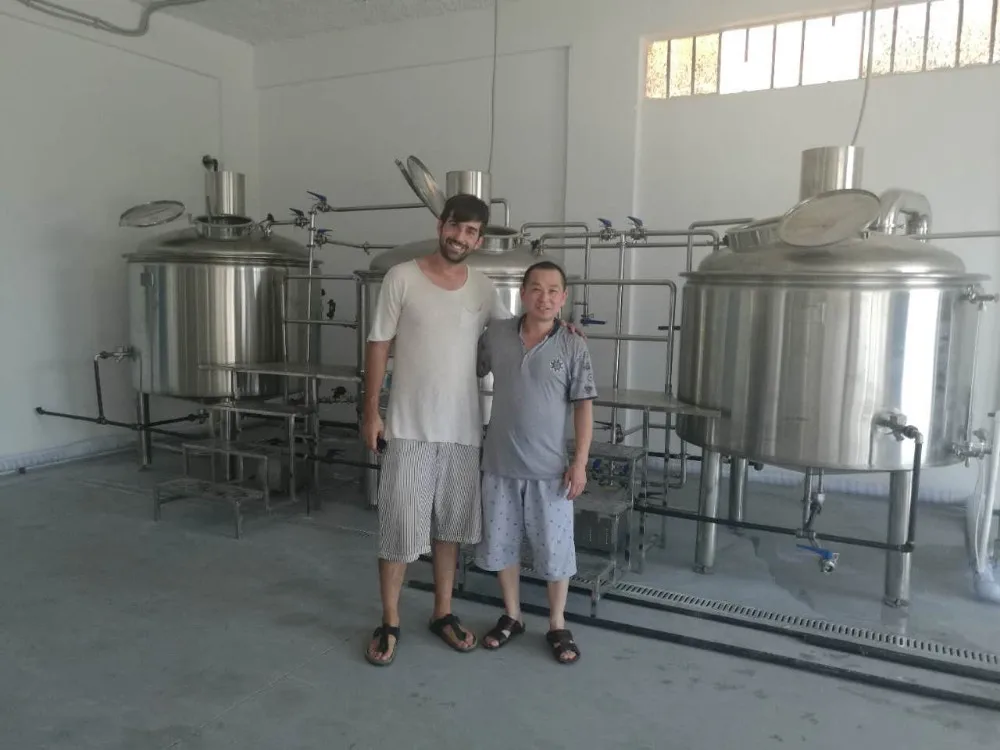

1000L brewery equipment for Greece customer..

1. 1000L Mash/Lauter tun , Kettle/Whirlpool tun, 1000L Hot water tun.
2.Steam heating way with 100kg /h working capacity Steam boiler.
3.3*2000L Fermenter Tank.
4.3000L Ice Water Tank with 2*8HP Brazing Chiller.
5.Digital Display Control system.
6.100L CIP system.

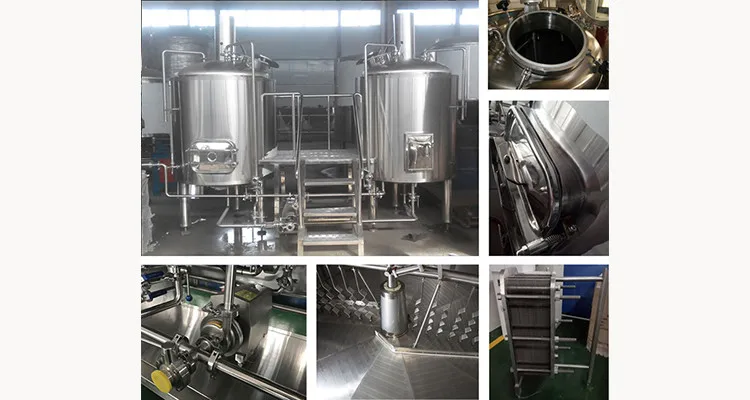

The pictures we showed from customer local factory when our engineer service here.

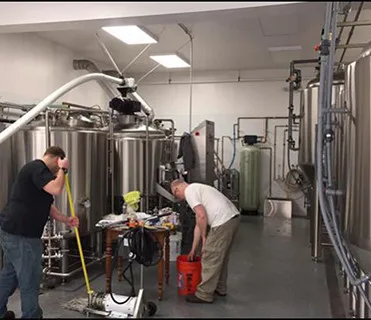

7BBL brewery equipment for Canada Customer..

1. 7BBL Mash/Lauter tun, Kettle/Whirlpool tun, 10BBL Hot water tank.
2. 3000L Ice water tank with 2*5HP Brazing Chiller.
3. 10*7BBL Fermenter tank.
4. 4*7BBL Bright beer tank.
5.PLC control system.
6.Steam heating way with 150kg/h Gas steam heating way.
7.150L CIP Car.
Use for a small beer factory.

FAQ
The points of our after-sales service.

-Training at Supplier how to set up the system
1. we will install the equipment in our factory , and testing the equipment working situation,at the same time, we have worker will take the installion video for you , our service team provide on line install guide.
( provide install drawing for customer reference.)

2. we are welcome customer visiting our factory, after the equipment production finished, the customer can come to Jinan, We are happy to demonstrate live installation and winemaking for our customers. ( provide install drawing for customer reference.)

3. we have the after-sales service team, they can fly to your local helping install.


-Training at Supplier how to maintain the system
1. We will inform the customer of the use of equipment precautions, and provide spare parts before the equipment transport.

2. The contact must be numbered and kept in the user's file.he sales staff regularly contact the customer, provide the appropriate technical guidance.

3.The after-sale personnel have received uniform training and there is round-the telephone service -Clock aftermarket, ensuring that the problems raised by customers are resolved in time.

-How the service will be arranged?

1. The buyer and seller sign a trade contract and the terms of the contract are negotiated by both parties.

2. Trade term are constructed by Chinese and English bilinguals to prevent the occurrence of unclear terms,

3. All the terms of the service in the trade contract embodied, to ensure that customers enjoy the services.

4. Trade contract with official seal and general manager of the company signed.
