brewpub mini brewery used bright beer tank brite tank

FOB Reference Price:Get Latest Price
$3,000.00 - $15,000.00 / Sets | 1 Set/Sets brewpub mini brewery used bright beer tank brite tank (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
YUXIN
Model Number:
brewpub mini brewery used bright beer tank brite tank
Processing Types:
beer
Voltage:
customized as your local electricity
Power(W):
15-75kw depends on size
Dimension(L*W*H):
Capacity Request
Weight:
various in different models
Certification:
CE PED EAC
name:
brewpub mini brewery used bright beer tank brite tank
keywords:
bright beer tank, brite tank, mini brewery
Material:
Stainless Steel 304
Cooling jacket:
Dimple Cooling Jacket
Heat Insulation::
Polyurethane with Thickness=80mm
Controlling System::
PID/PLC
interior:
pickling and passivating or mirror polishing
carbonation port and stone:
assembly
liquidometer:
assembly
drawing:
our engineer will design it as your actual requirement
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
3 Years
Supply Ability
Supply Ability:
100 Set/Sets per Year brewpub mini brewery used bright beer tank brite tank
Packaging & Delivery
Packaging Details
Packaging Details: 1. Ship by LCL or FCL
2. Packed with plastic film or bubble film
3. Fix with iron frame for big tank, lay down in the container
4. Fumigation free wooden case for small capacity by LCL
5. Up to export standard, make sure everything is safe
Port
Qingdao
Lead Time :
Shipped in 60 days after receiving deposit

brewpub mini brewery used bright beer tank brite tank

Product Description

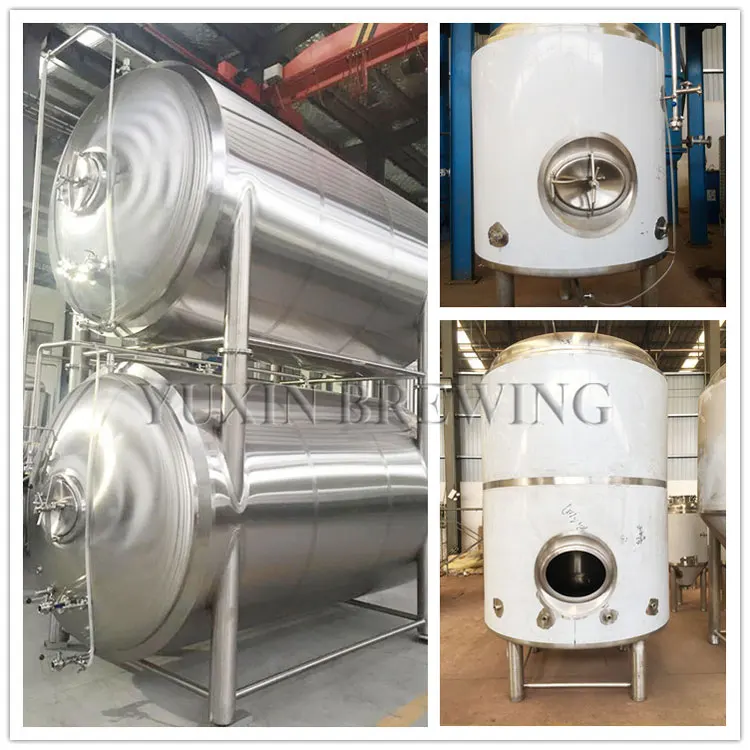

Bright beer tanks are often also called serving tanks, tax determination tanks or clear beer tanks (=CBTs), bright beer tanks (=BBTs) or maturation or conditioning tanks. These tanks are used for the storage of the beer prior to being served or packaged. Depending on their application the beer serving tanks can be glycol jacketed or can be located in a cold room.For brewpubs serving is often done by pumping or pressurizing the beer toward the serving location.

Bright beer tank



Inner(SUS 304) thickness: 3mm

Outer(SUS 304) thickness: 2mm

Insulation: Polyurethane

Single tank single control

CIP arm and 360° sprayball
Coolant inlet and outlet
Sample valve

Side manway, dish top, dish bottom inside
Wort inlet and yeast outlet
Racking arm for beer outlet
Clamps and gaskets, pressure gauge(PSI displayed)

Mechanical pressure valve
Stainless steel legs with stainless leveling footpads
Interior and exterior finish polished to a sanitary finish

Sanitary tri-clamp connections

Stainless steel dimple cooling jacket on cone and side

Safety valve on top; Dry Hopping Port on the top

Level gauge connections

Carbonation stone assembly



Equipment Components
Bright Beer tank/Serving tank/Maturation tank/Lagering tanks
Useful capacity/volume100L~10000LForhomebrew,pub/restaurant brewery, micro breweyr plant
Type Vertical/horizontal Frame-system for positioning of horizontal tanks at several levels above each other
 Interior&Exterior material Stainless steel304/316 Food and sanitary material, easy to clean and maintain
 Insulation Polyurethane Thickness corresponding to the size of the tank and the environment
 Cooling method Liquid/Air cooled

Double walled tank with glycol

Un-insulated tank used in a temperature controlled room

 Cooling jacket Dimple/cooling coil Stainless steel cooling jacket
 CIP Spray ball &CIP arm Clamp connection, 360° thorough cleaning
 Temperature control PT100/Bimetallic thermometer Insulated with PT100, display & control through digital control cabinet Un-insulated with Bimetallic thermometer
 Pressure relief valve Stainless steel 304 Prevent the tank from over-pressuring, allow a vacuum relief
 Manway Stainless steel 304 Top manway/ side manway/ Clamp manway/Flange manway
 Sampling valve Stainless steel 304 Sampling &testing
 Pressure gauge  Display pressure level
 Safety valve Optional On top of the tanks, normally for tank above 2000L
 Carbonization Optional Special jet for carbonation of beverages from CO2 bottle
 Level indicator Optional Cleanable and sanitizable glass/hose level indicator
 Ladder Optional Stainless steel ladder for large capacity tanks

Cooling Jacket:

Beer Fermentation Bright Beer tanks, normally vertical type same as beer fermentation tanks, the horizontal type for space saving is also available.

Interior:

Mirror polishing:

Accessories



Packaging & Shipping

 1. Ship by LCL or FCL
2. Packed with plastic film or bubble film
3. Fix with iron frame for big tank, lay down in the container
4. Fumigation free wooden case for small capacity by LCL
5. Up to export standard, make sure everything is safe



Company Information

YUXIN is a well-known brewing equipment supply company in China which has 30 years brewing experience and ten years manufacturing experience. Our company combines the world’s most sophisticated brewing technology with economical prices in order to provide our customers with the best equipment at affordable price. Our product line caters to every possible customer in the market: including Brewing Systems, Tanks, and Kegging/bottling/canning machine. Our products range from individual pieces of equipment to complete turn-key systems. Fully committed to the brewing industry, YUXIN strives to consistently deliver quality products and the very best customer service, we always take customer’s requirement and satisfaction as our aim.
