cabinet door making machines atc cnc router machine wood cutting machine

FOB Reference Price:Get Latest Price
$22,000.00 - $24,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MC2513-A8
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Anhui, China (Mainland)
Brand Name:
SIWEI
Voltage:
380V
Power(W):
7.5KW
Dimension(L*W*H):
2500X1300X170mm
Weight:
2500kgs
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Keywords:
ATC Woodworking Cnc Router
Machine structure:
heat treatment
Control system:
Syntec
Motor:
France Schneider servo system
Linear rail:
THK
Inverter:
TECO
Software:
Ucancam
Working table:
Vacuum table
Transmitting way:
XYZ axis transmitting by rolling ball screw
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood case for 2513-A8 CNC ROUTER MACHINE WITH 9 KW HSD AIR COOLING SPINDLE MOTOR
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

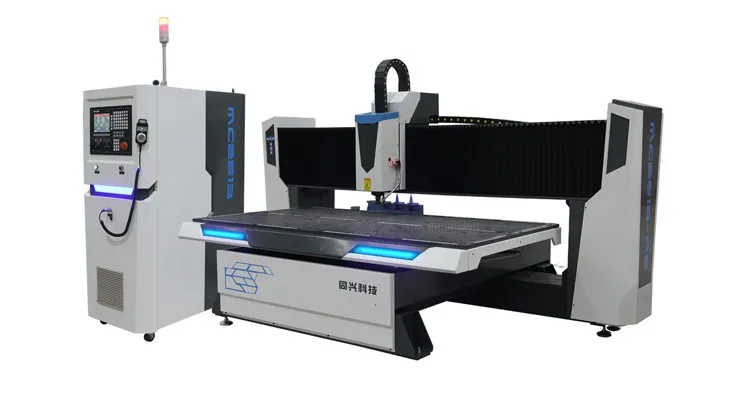

HIGH PRECISION MC2513-A8 PLATFORM MOVING CNC ROUTER

Main configurations

1.Adopt industrial heavy-duty structure design, combined with the finite element method calculation, annealing and destressing strictly according to process requirements, and primary shaping by numerical control high precision five axis machining center, thus to ensure the strength and rigidty of the machine body.
2. Adopt fixed gantry with frame structure and movable working table, to make the equipment more stable and less vibration.
3. Standard with matrix vacuum table with high strength.
4. Adopt Japan THK high precision linear rail with lubrication system, more wearable.
5. XYZ axis adopt totally closed dust cover design, z axis equipped with spindle protection cover.
6. Configured with France Schneider AC servo system, to ensure the transmission more stronger and speed higher.
7. Taiwan SYNTEC control system, Professional industrial control system, have mant functions, you can directly read the G-Gode.
8.
Configured with high performance Taiwan TECO inverter, speed control uniform and cutting edge smooth.
Model
MC2513-A8
Machine structure
The machine structure undergoes heat treatment will not deform after a long time use
Rail
THK linear rail from Japan
Spindle power
9kw HSD air cooling spindle motor for ATC
Servo system
France Schnidder servo system
Inverter
TECO inverter
Transmitting way
XYZ axis transmitting by rolling ball screw
Control system
Syntec control system
Working table
Vacuum vacuum table
Software
Ucancam
Working size
2500*1300*170mm
Auto feeding device
Auto surface detector
Detailed Images

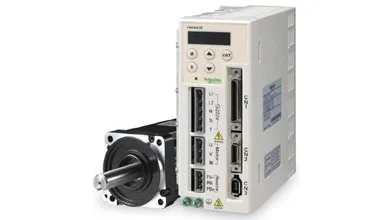

Name: Servo system
Brand: Schneider
Original: France
To ensure the transmission more stronger and speed higher.

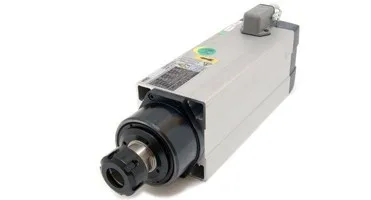

Name: Water cooling spindle
Original: China
Standard with 9kw HSD air cooling spindle motor for ATC (4pcs),



Name: linear rail
Brand: THK
Original: Japan
The quality of THK is the best in the world, it will not broken even use 10 years.

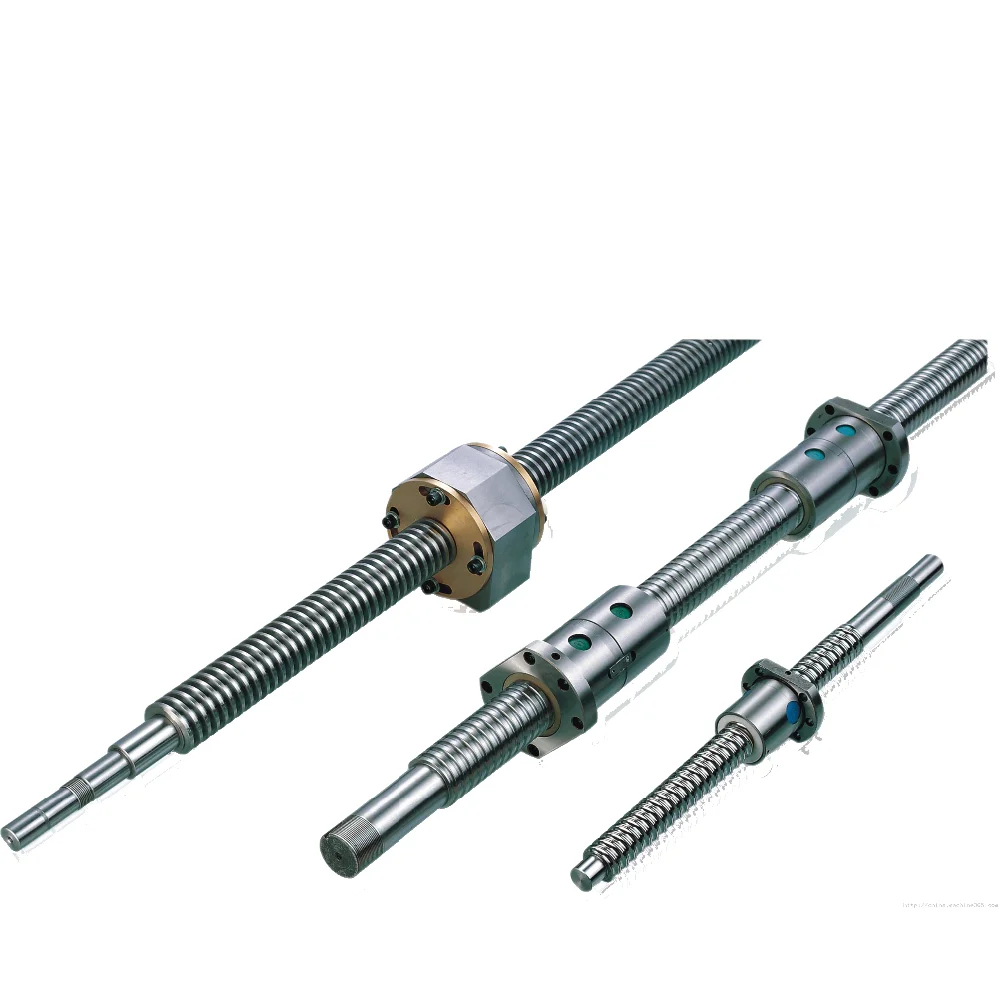

Name: Rolling ball screw
Brand: TBI
Original: Taiwan
Process material have higher precision.

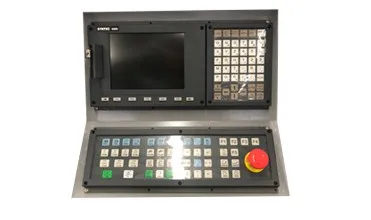

Name: Control system
Brand: SYNTEC
Original: Taiwan
Professional industrial control system, have mant functions, you can directly read the G-Gode.

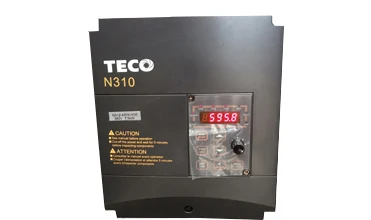

Name: Inverter
Brand: TECO
Original: Taiwan
High performance Taiwan TECO inverter, speed control uniform and cutting edge smooth.

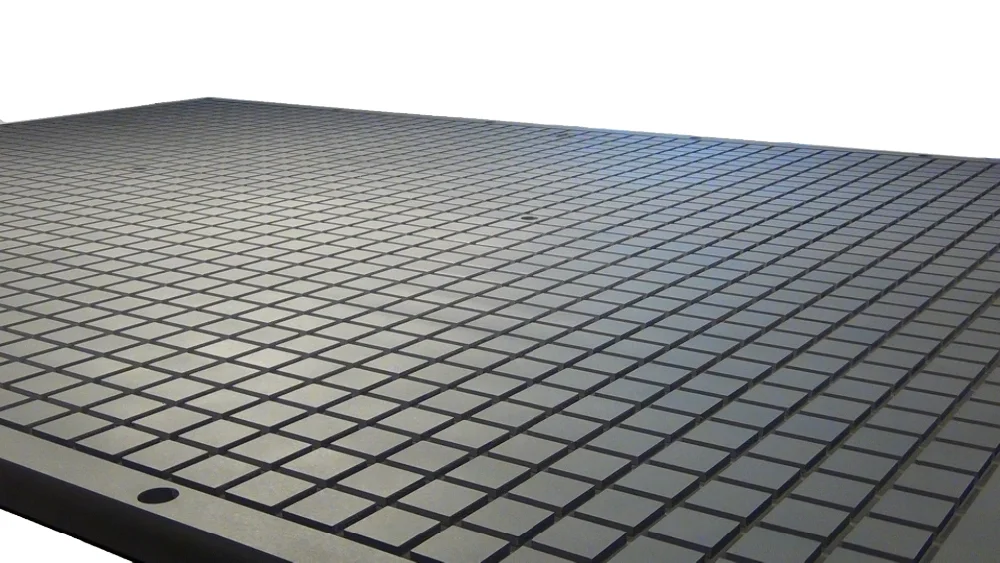

Name: Vacuum table
Brand: SIWEI
Original: China
To make the material absorb more tightly and the processing is more stable .

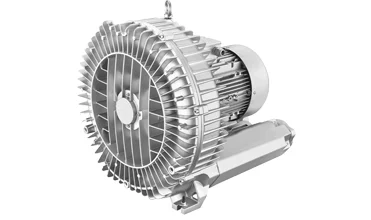

Name: 7.5kw Vacuum pump
Original: China
You can optional German Becker pump(4kw).

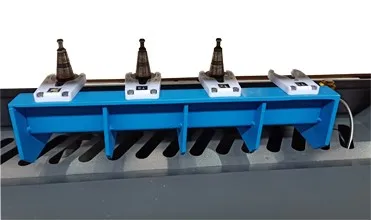

Name: Linear ATC
Brand: SIWEI
Original: China
Standard with 4pcs linear ATC, more efficiency, you can optional 6pcs or 8pcs ATC.

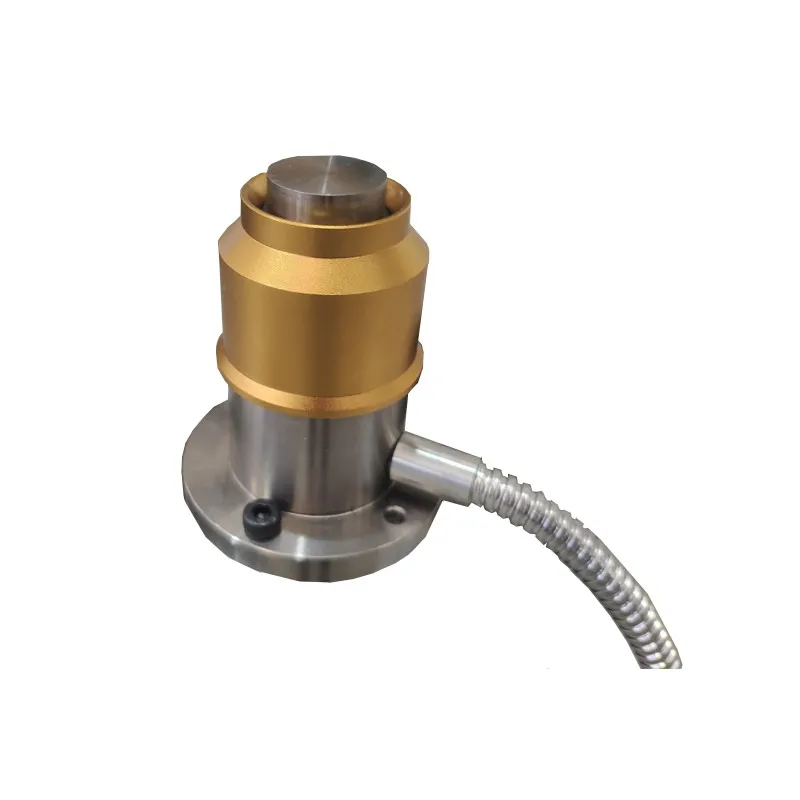

Name: Auto feeding device
Brand: SIWEI
Original: China

For cutting tools more accuracy.

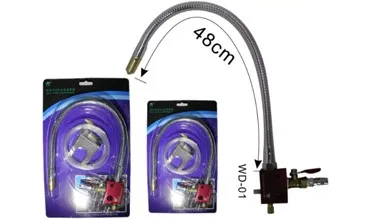

Name: Oil spray system
Brand: SIWEI
Original: China
Chilling tools, if you can process metal, you can optional the system, it have good effects for chilling tools .

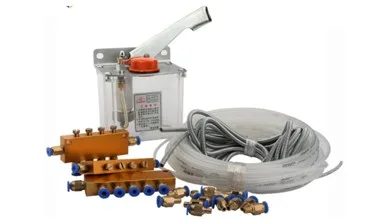

Name: Oil lubrication system
Brand: SIWEI
Original: China
Lubricating the block of the guide, extend the machine lifespan.

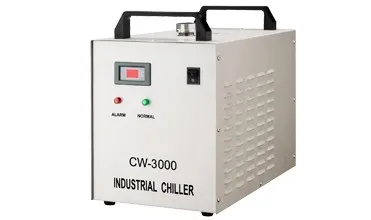

Name: Chiller
Brand: S&A
Original: China
Chiller the spindle, extend the spindle lifespan.

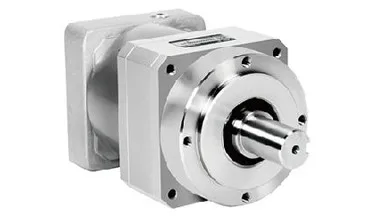

Name: Reducer
Brand: Shimpo
Original: Japan
Japan Shimpo reducer make the machine more precision.


Product Application

Mini LED word, bevel edge word, acrylic lighting word, high-end advertising word and sign processing, ect. other applicable industry including building model, plastic and wood, three dimensional surface processing of musical indtrument, also applies the carving on cooper, aluminum, iron plate .
The series of products are more focused on high precision processing mode, apply to the advertising industry, electronics, wood, furniture, aluminum alloy products highlights processing.

Related Products

        A7S CNC ROUTER WITH ATC

    S6 CNC ROUTER WITH ATC

     MINI1325 CNC ROUTER WITH ATC

Certifications
Packing & Delivery
Package size
3.3*2.26*2.2m
Weight
2500kgs
Package
One pcs for wooden case

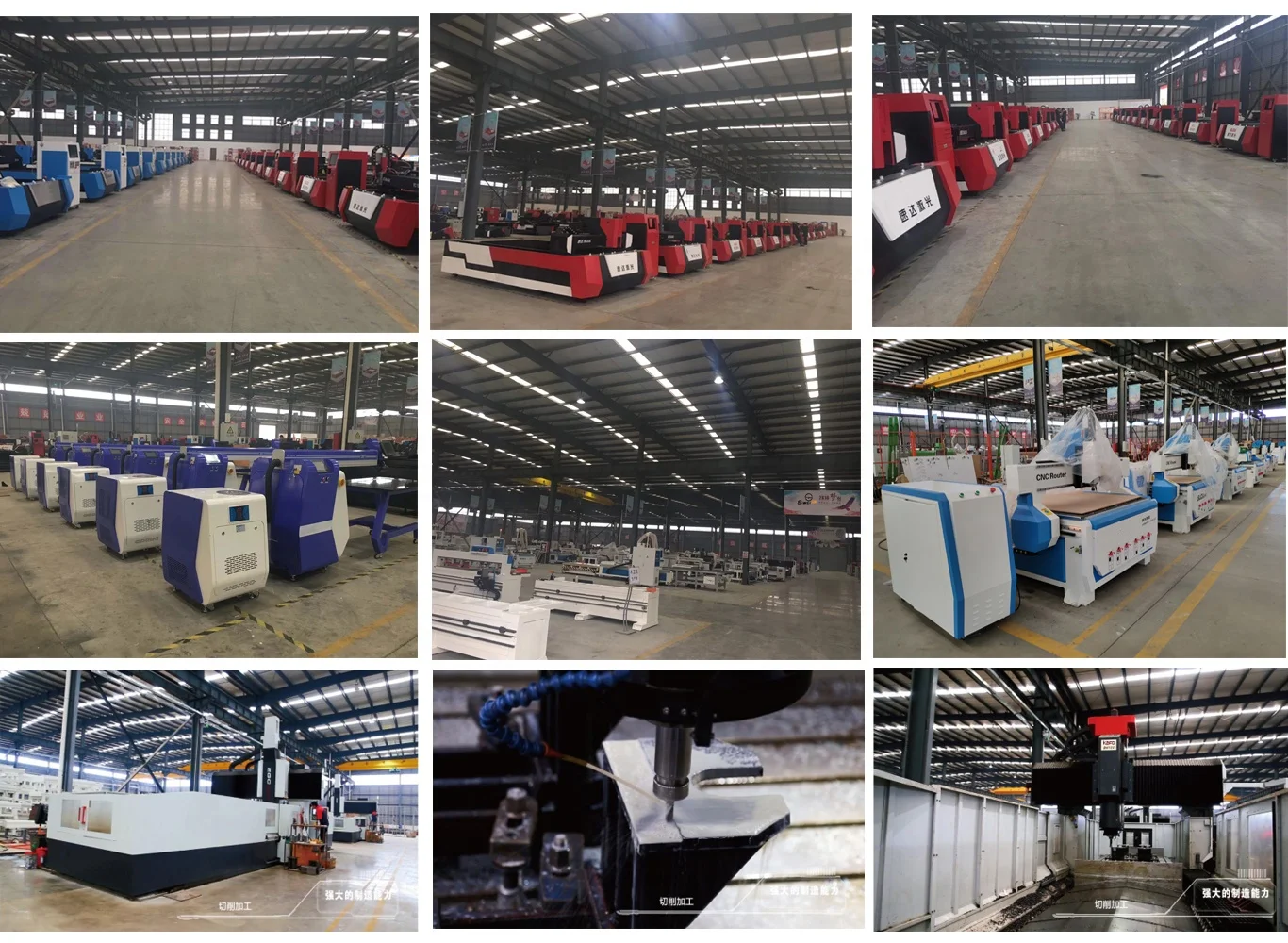

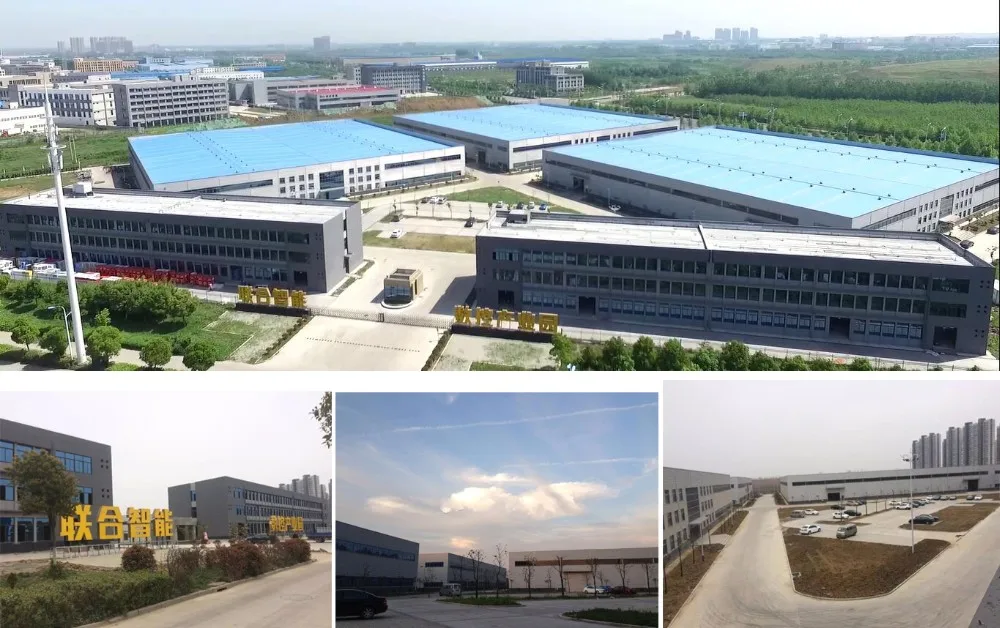

Our Company

HEFEI SIWEI CNC MACHINERY CO.,LTD

established in 1992, lies in HEFEI --One of Chinese scientific and technology cities. It has been working on researching and manufacturing CNC machinery in field of woodworking, stone engraving, metal processing, glass cutting and advertising etc over 20 years.

The main products: Heavy moving column CNC machining center, Heavy static column CNC machining center, High accuracy metal cutting machine, High precision fiber laser machine, Vanguard series CNC engraver, Multistage CNC machine center, high accuracy CNC engraver, laser cutting machine, plasma cutting machine, totally 23 series, more than 100 models.

Our sales net not only covers all Chinese provinces and municipalities, including HongKong, Taiwan&Macao, also the products are exported to more than 120 countries and regions such as Europe, America, Middle-east, South-east Asia etc.

Product Process

Clients&Exhibitions

We have clients from all over the world come to our factory to learn machine.

And we have 3 exhibitions every year at least.

Our Services

Pre-sale service

1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test etc.

After-sale service

1) 24 Hours online service.
2) 1 year warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas.
4) Offer help out of warranty.
5) Clients come to factory learning.

FAQ

Q1.How do you get the best price?
As you may know,the different type of CNC machine apply to the different material,and the different model apply to the different material.
Please tell me what's material you want to cutting or engraving ?
And what's MAX size of carved material ?
Then I wil recommand the most suitable model and the best price for you.

Q2:How long is the delivery time?
For standard machines, it would be 15-20days; For non-standard machines and customized machines according to client s specific requirements, it would be 20 to 30 days.

Q3:How about the payment?
Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU)

Q4.In case of failure,how to do?
Call us----our enginners are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.


Q5:How is the packing?
1) For CNC engraving machine: Machine body covered with plastic film, control cabinet packed with plywood case and put on the machine body.
2) For fiber laser cutting machine:Machine body covered with plastic film, laser source, control cabinet packed with plywood case and put on the machine body, chiller packed with plywood alone.
