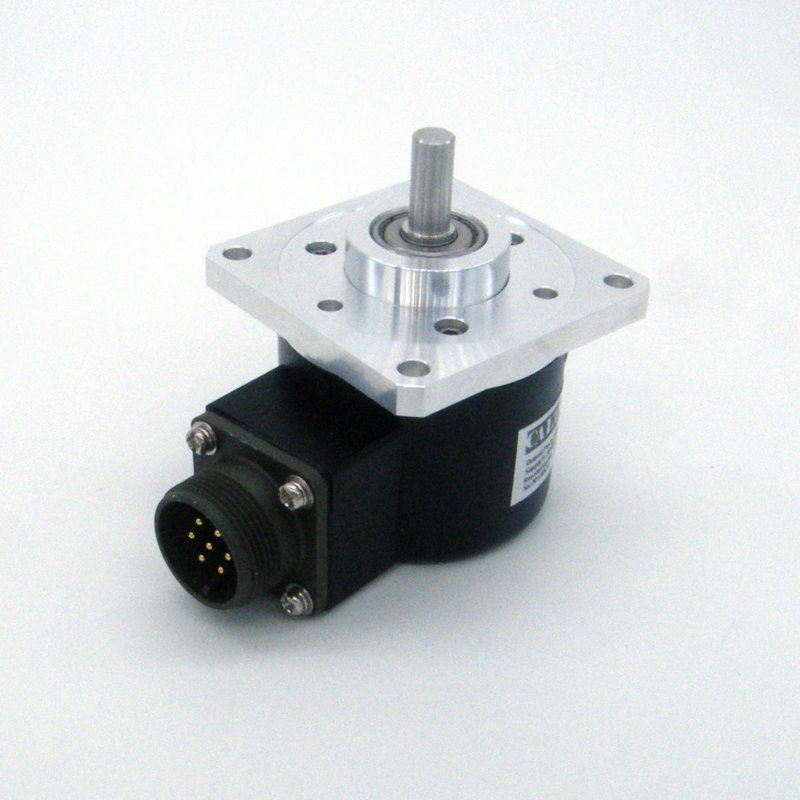

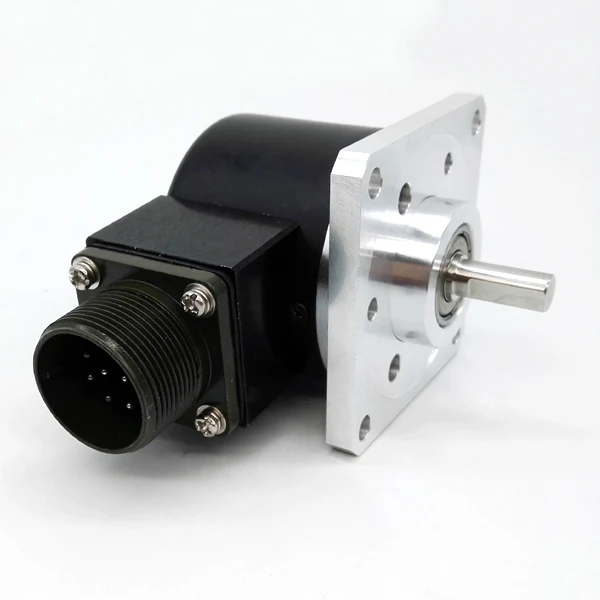

CALT Square flange encoder GHSF58 replace Eltra- EL63 incremental rotary encoder

5.0(3 reviews)
1 sold

Key attributes

Mounting Type
manual
Description
Square flange encoder
Model Number
GHS58
Type
incremental rotary encoder
Place of Origin
Shanghai, China
Brand Name
CALT
Usage
Speed Sensor
Theory
Optical sensor
Output
Digital Sensor
Name
Square flange encoder GHSF58 replace Eltra EL63 incremental encoder
type
EL63
connector
7pins or 10pins

Packaging and delivery

Selling Units
Single item
Single package size
12X12X10 cm
Single gross weight
1.000 KG

Lead time

Quantity (pieces) 1 - 1 > 1
Lead time (days) 10 To be negotiated

Product descriptions from the supplier

Warning/Disclaimer
California Proposition 65 Consumer Warning

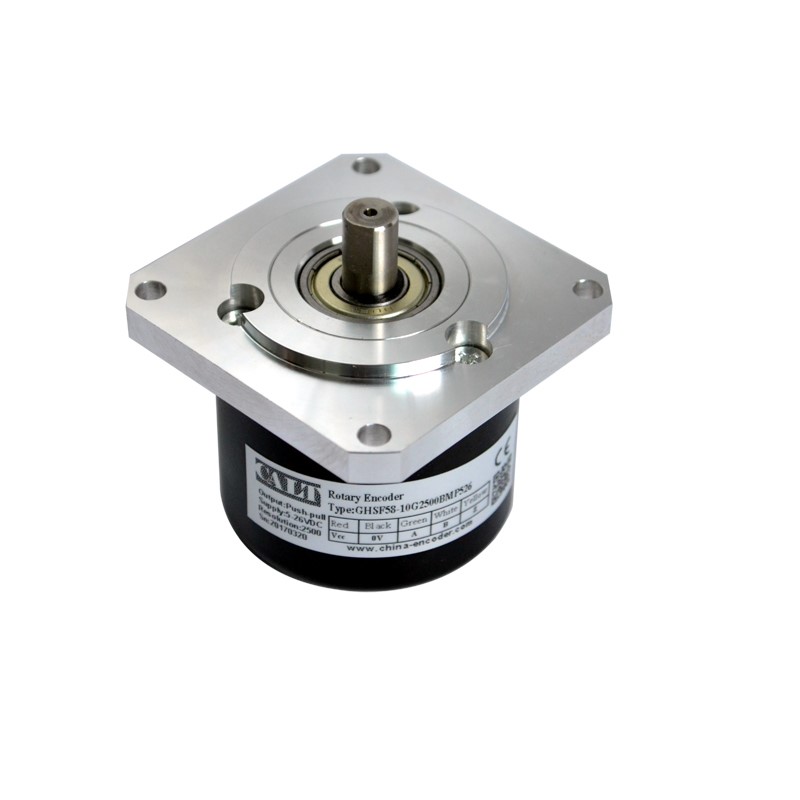

      CALT Square flange encoder GHSF58 replace Eltra EL63 incremental rotary encoderFeatures:

l  ASIC devices internal, good reliability, long life, anti-jamming performance.

Stainless steel shaft has a higher stability and protection.

Metal shell is more solid and anti-impact.

Outlet end use waterproof metal interface protection

Bearing load heavy, anti-oil and water.

Applicability to a wide variety of mechanical and industrial control.

Resolution up to 5400 pulse.

10 ~ 5400 pulses Optional: (Other pulses available on request)

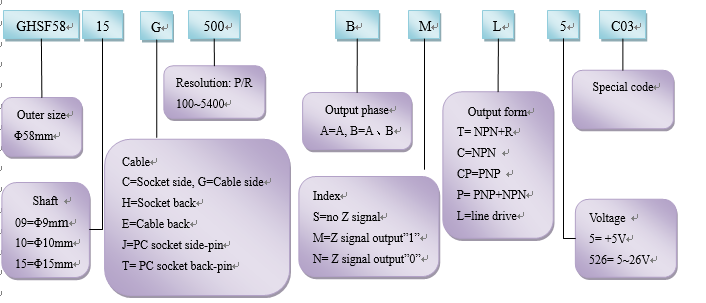

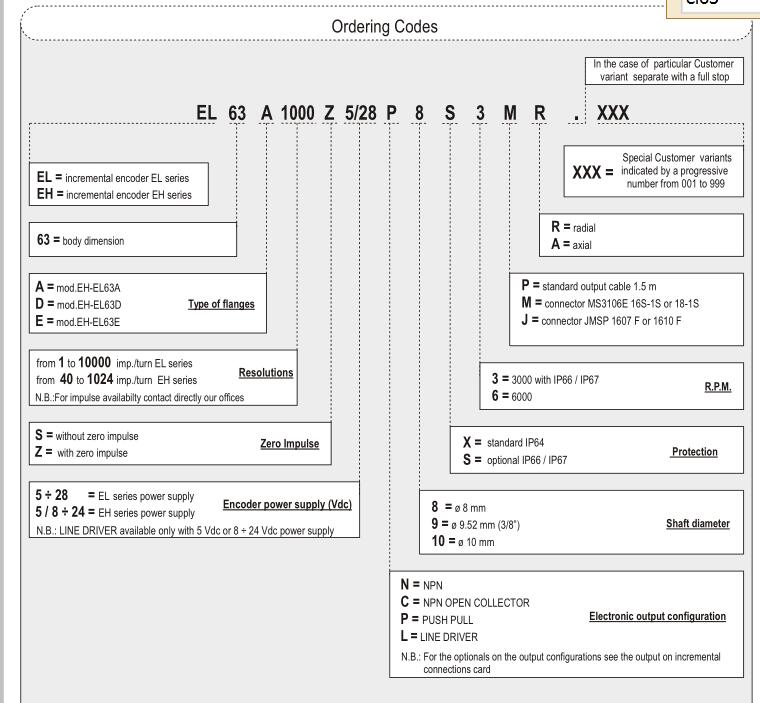

Model defined:

GHSF58 9


Electrical Characteristics:

Output circuit

Open-collector output

Voltage output

Push-pull complementary outputs

 driver

Supply voltage

5~30V

5~30V

5±0.25 5~30V

5±0.25 5~30V

Current consumption

≤80mA

≤80mA

≤80mA

≤150mA

Load current

40mA

40mA

40mA

60mA

Output high

Min Vcc*70%

Min Vcc-2.5V

Min Vcc-1.5V

Min 3.4V

Output low

MAX 0.4V

MAX 0.4V

MAX 0.8V

MAX 0.4V

Rise time Tr

MAX 1us

MAX 1us

MAX 1us

MAX 200ns

Fall time Tf

MAX 1us

MAX 1us

MAX 1us

MAX 200ns

Highest frequency response

300kHz

300kHz

300kHz

300kHz



Mechanical properties:

Max speed r/min

Starting torque

Axis maximum load

Impact

Anti-vibration

6000

<0.05Nm

Radial 40 N Axial 30 N

50G/11ms

10G 10-2000Hz

Moment inertia

Work Temperature

Storage Temperature

Protection Degree

Weight

4 x 10.-6kgm²

-30~85ºC

-40~95ºC

IP54

250g



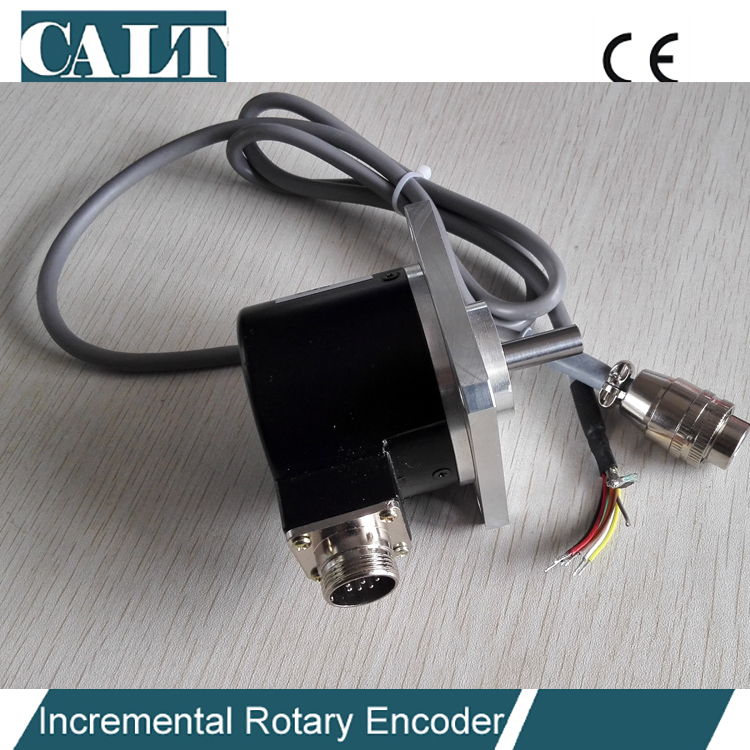

Connections:

Signal

A

B

Z

A-

B-

Z-

Vcc

GND

Color

Green

White

Yellow

Brown

Grey

Orange

Red

Black

Without inverted signal

Green

White

Yellow

-

-

-

Red

Black

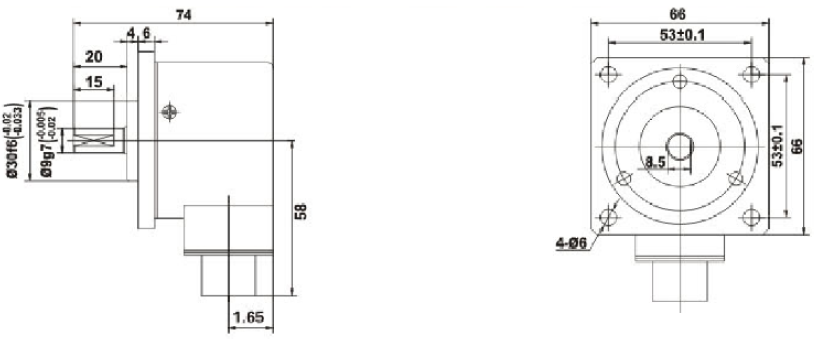

Dimensions:(mm)

GHSF58





Note: The above dimensions are for reference only, the size of all the encoder attached in instructions.

GHSF58-EL63-03GHSF5803ghsf58GHSF580003

square-wave rotary encoder    square-wave optical encoder t.jpgt.jpg

.jpg



If you are interested in the above, please no hesitate to contact us!
